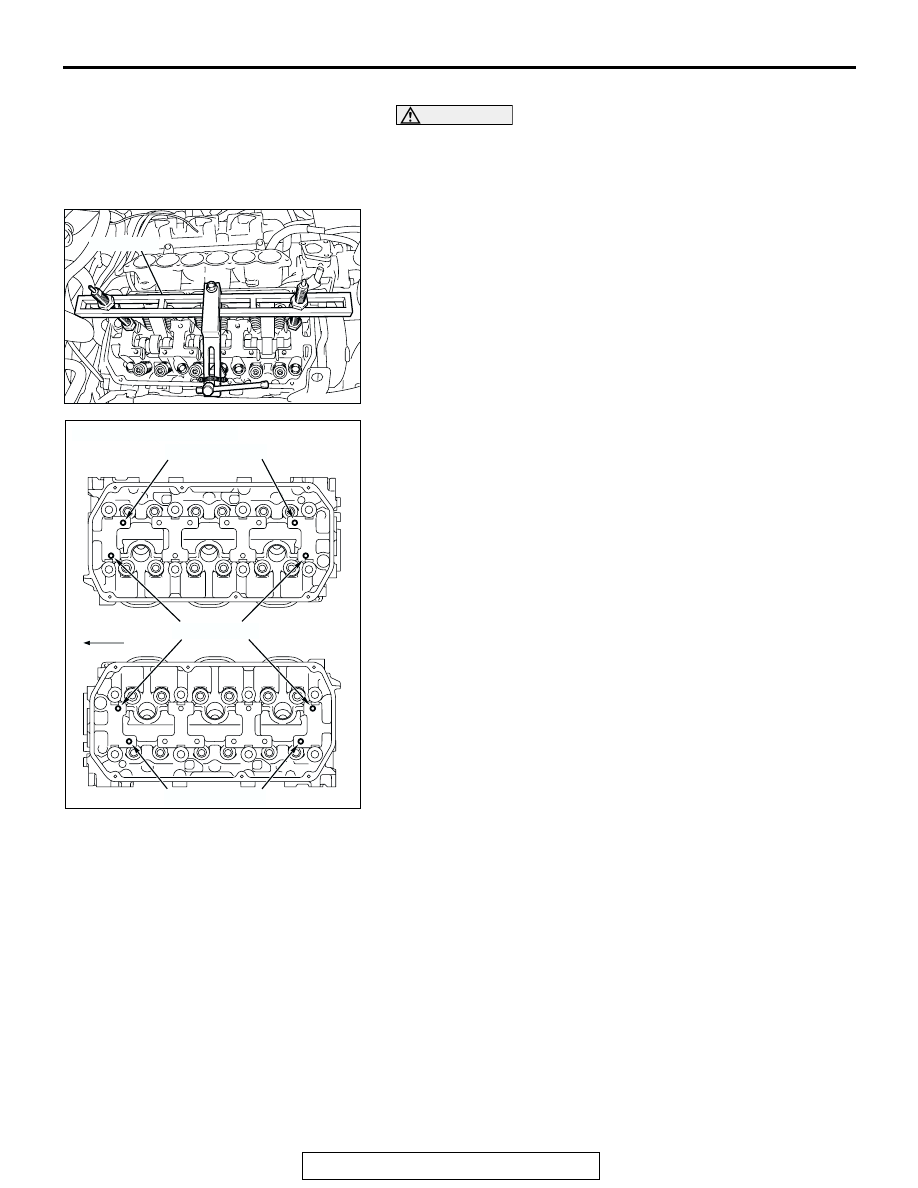

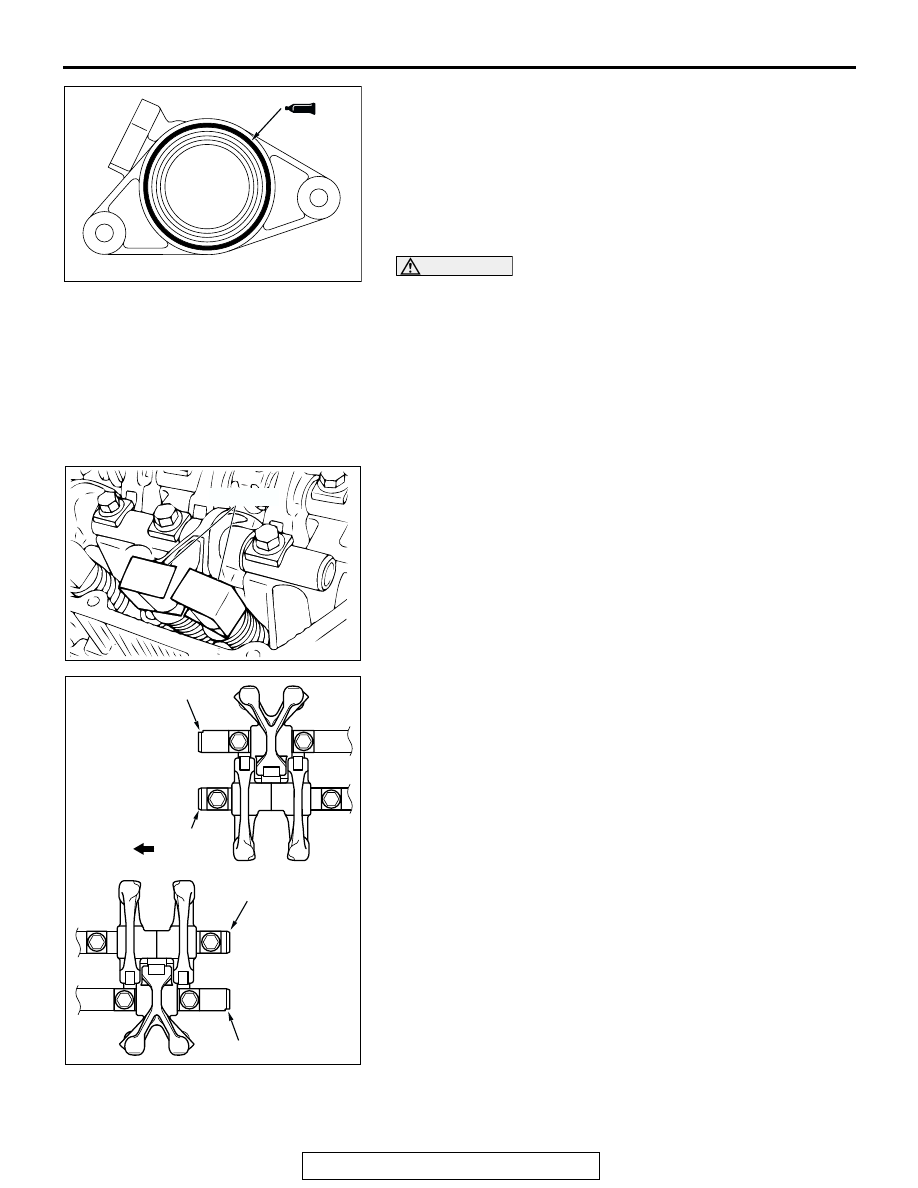

CAMSHAFT AND VALVE STEM SEAL

TSB Revision

ENGINE MECHANICAL

11A-17

<<C>> VALVE SPRING RETAINER LOCKS REMOVAL

CAUTION

When removing valve spring retainer locks, leave the pis-
ton of each cylinder in the TDC (Top Dead Center) position.
The valve may fall into the cylinder if the piston is not
properly in the TDC position.
Use special tool MD998772 to compress the valve spring, and
remove the valve spring retainer locks.

NOTE: Installation position of valve spring compressor special
tool (MD998772) is different between exhaust side and intake
side.

INSTALLATION SERVICE POINTS

.

>>A<< VALVE STEM SEALS INSTALLATION
1. Apply a small amount of engine oil to the valve stem seals.

AC204066

MD998772

AB

AC204067AB

INSTALLATION POSITION

EXHAUST SIDE

INTAKE SIDE

RIGHTBANK

LEFTBANK

FRONT

EXHAUST SIDE

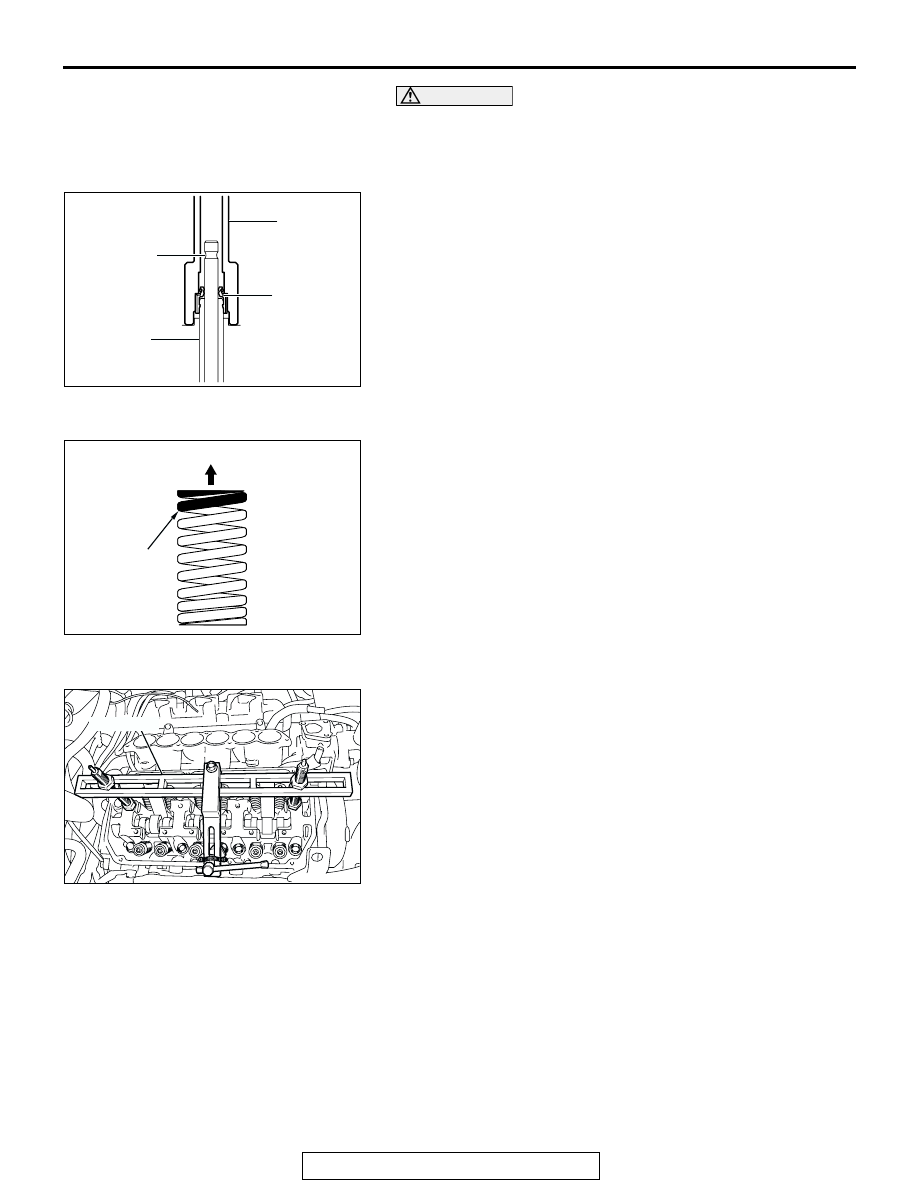

CAMSHAFT AND VALVE STEM SEAL

TSB Revision

ENGINE MECHANICAL

11A-18

CAUTION

• Valve stem seals cannot be reused.
• Special tool MD998774 must be used to install the valve

stem seal. Improper installation could result in oil leak-
ing past the valve guide.

2. Use special tool MD998774 to fill a new valve stem seal in

the valve guide using the valve stem area as a guide.

.

>>B<< VALVE SPRINGS INSTALLATION
Install the valve springs with its identification color painted end
facing the locker arm.

.

>>C<< VALVE SPRING RETAINER LOCKS INSTALLATION
Use special tool MD998772 to compress the valve spring in the
same manner as removal.

.

>>D<< CAMSHAFT POSITION SENSOR SUPPORT
INSTALLATION
1. Remove sealant from the camshaft position sensor support

and cylinder head surfaces.

AC107414

AB

MD998774

VALVE

VALVE
STEM
SEAL

VALVE
GUIDE

AC107415

AB

ROCKER ARM SIDE

IDENTIFICATION
COLOR

AC204066

MD998772

AB

CAMSHAFT AND VALVE STEM SEAL

TSB Revision

ENGINE MECHANICAL

11A-19

2. Apply the sealant to the camshaft position sensor support

flange in a continuous bead as shown in the illustration.

Specified sealant: MITSUBISHI GENUINE PART
MD970389 or equivalent

NOTE: Install the camshaft position sensor support within 15
minutes after applying liquid gasket.

3. Install the camshaft position sensor support to the cylinder

head.

CAUTION

Then wait at least one hour. Never start the engine or let
engine oil or coolant touch the adhesion surface during
that time.
4. Tighten the camshaft position sensor support mounting bolts

to the specified torque.

Tightening torque: 14

± 1 N⋅m (120 ± 13 in-lb)

.

>>E<< ROCKER ARM AND SHAFT ASSEMBLY
INSTALLATION
1. Install the rocker arm, shaft and lash adjuster assembly.
2. Tighten the mounting bolts to the specified torque.

Tightening torque: 31

± 3 N⋅m (23 ± 2 ft-lb)

3. Remove special tool MB998443.

4. Check that notches in the each rocker shaft are facing the

direction shown in the illustration.

.

AC200026

AB

φ

3 mm

(0.12 in)

ACX00331AB

MB998443

AC204149

AB

NOTCH

NOTCH

ENGINE
FRONT

NOTCH

NOTCH

<RIGHTBANK>

<LEFTBANK>

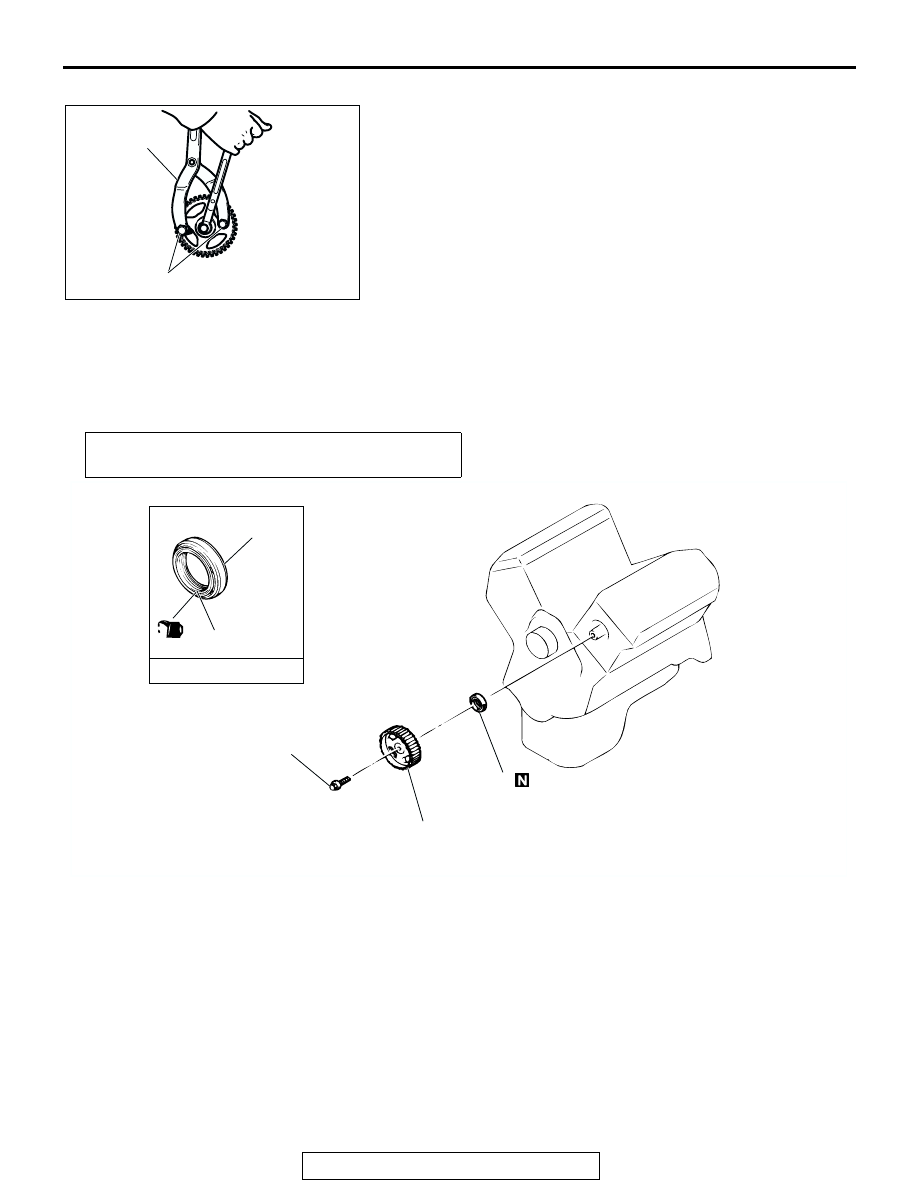

CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL

11A-20

>>F<< CAMSHAFT SPROCKET INSTALLATION
1. Use special tools MD998715 and MB990767 in the same

way as during removal to install the camshaft sprocket.

2. Tighten the camshaft sprocket mounting bolt to the specified

torque.

Tightening torque: 88

± 10 N⋅m (65 ± 7 ft-lb)

CAMSHAFT OIL SEAL

REMOVAL AND INSTALLATION

M1112002200147

Required Special Tools:
MB990767: End Yoke Holder
MB991559: Camshaft Oil Seal Adapter

MD998713: Camshaft Oil Seal Installer
MD998715: Crankshaft Pulley Holder Pin

ACX00301AB

MB990767

MD998715

Pre-removal and Post-installation Operation
• Timing Belt Removal and Installation (Refer to

P.11A-33

.)

ACX00375

ENGINE OIL

1

2

LIP PORTION

2

88 ± 10 N·m
65 ± 7 ft-lb

AC

REMOVAL STEPS

<<A>>

>>B<<

1.

CAMSHAFT SPROCKET

<<B>>

>>A<<

2.

CAMSHAFT OIL SEAL
