TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-145

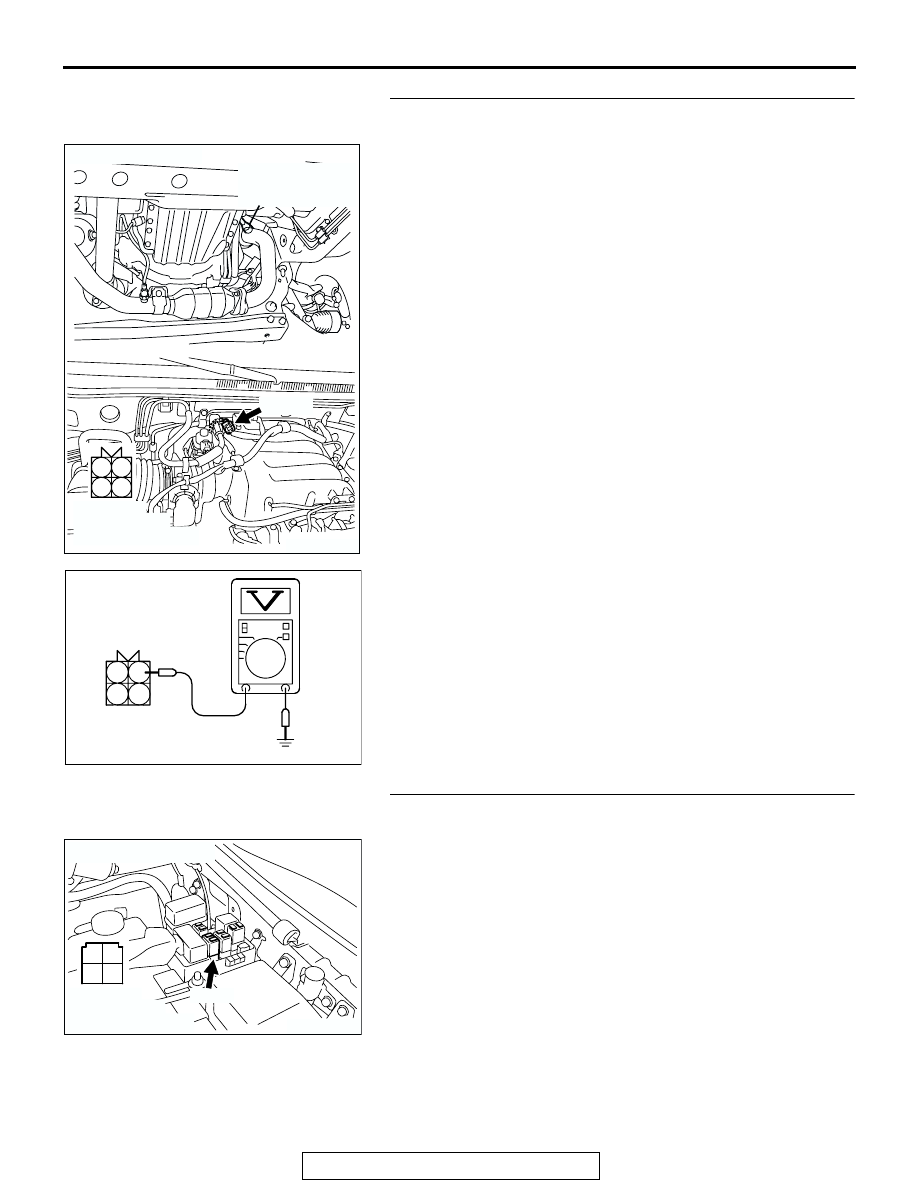

STEP 3. Measure the power supply voltage at right bank
heated oxygen sensor (front) harness side connector B-07.
(1) Disconnect the connector B-07 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check harness connector B-22X at the MFI relay
for damage.
Q: Is the harness connector in good condition?

YES : Repair harness wire between MFI relay connector B-

22X (terminal No. 1) and right bank heated oxygen
sensor (front) connector B-07 (terminal No. 1)
because of open circuit or short circuit to ground.
Then go to Step 12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK201274

1

2

3

4

CONNECTOR: B-07

B-07(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AKX01498

B-07 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

4

AY

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-146

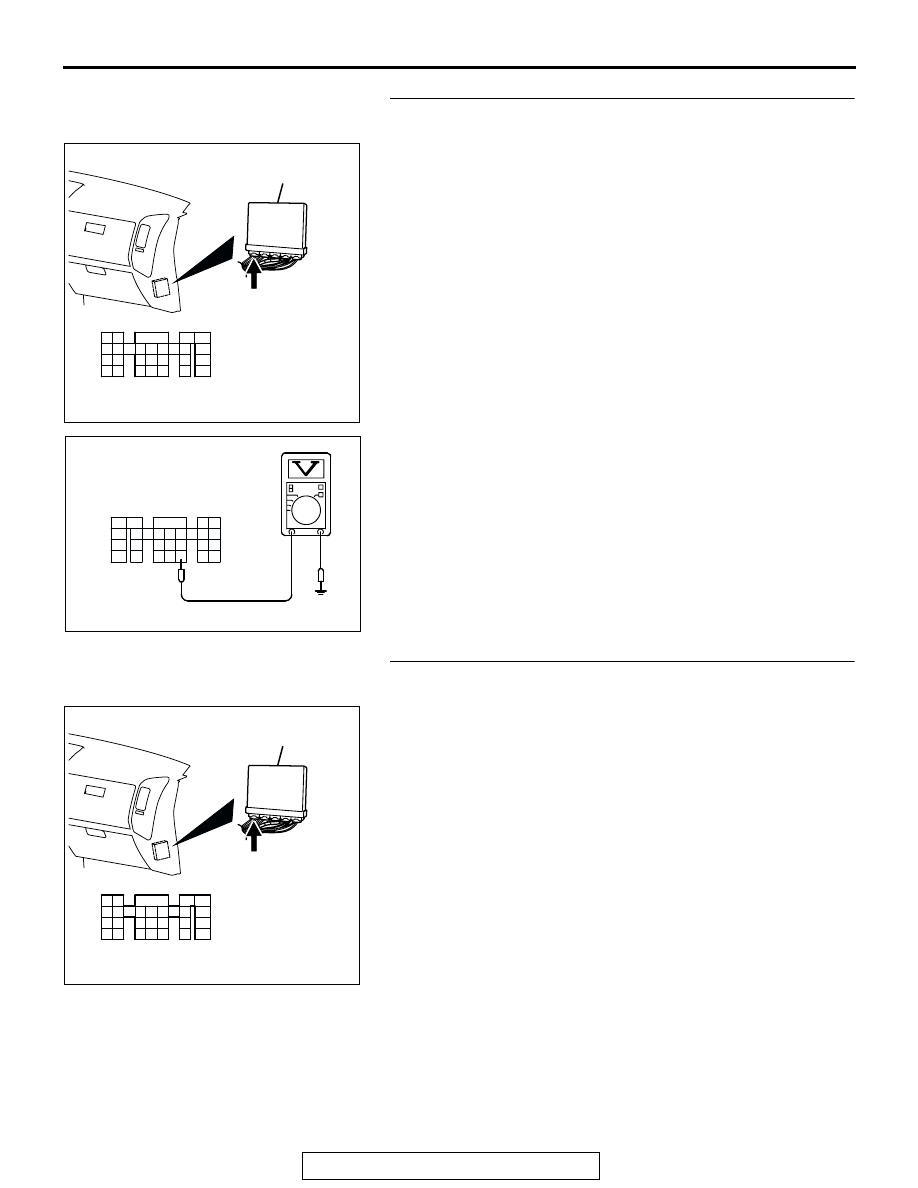

STEP 5. Measure the power supply voltage at PCM
connector D-132 by backprobing.
(1) Do not disconnect the connector D-132.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 25 and ground

by backprobing.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check harness connector D-132 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK201397

1

2

3

5

6 7 8 9

4

20

21 22

232425

2627

10111213

14 15

16 1718

19

D-132 HARNESS
CONNECTOR:
HARNESS SIDE

AB

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-147

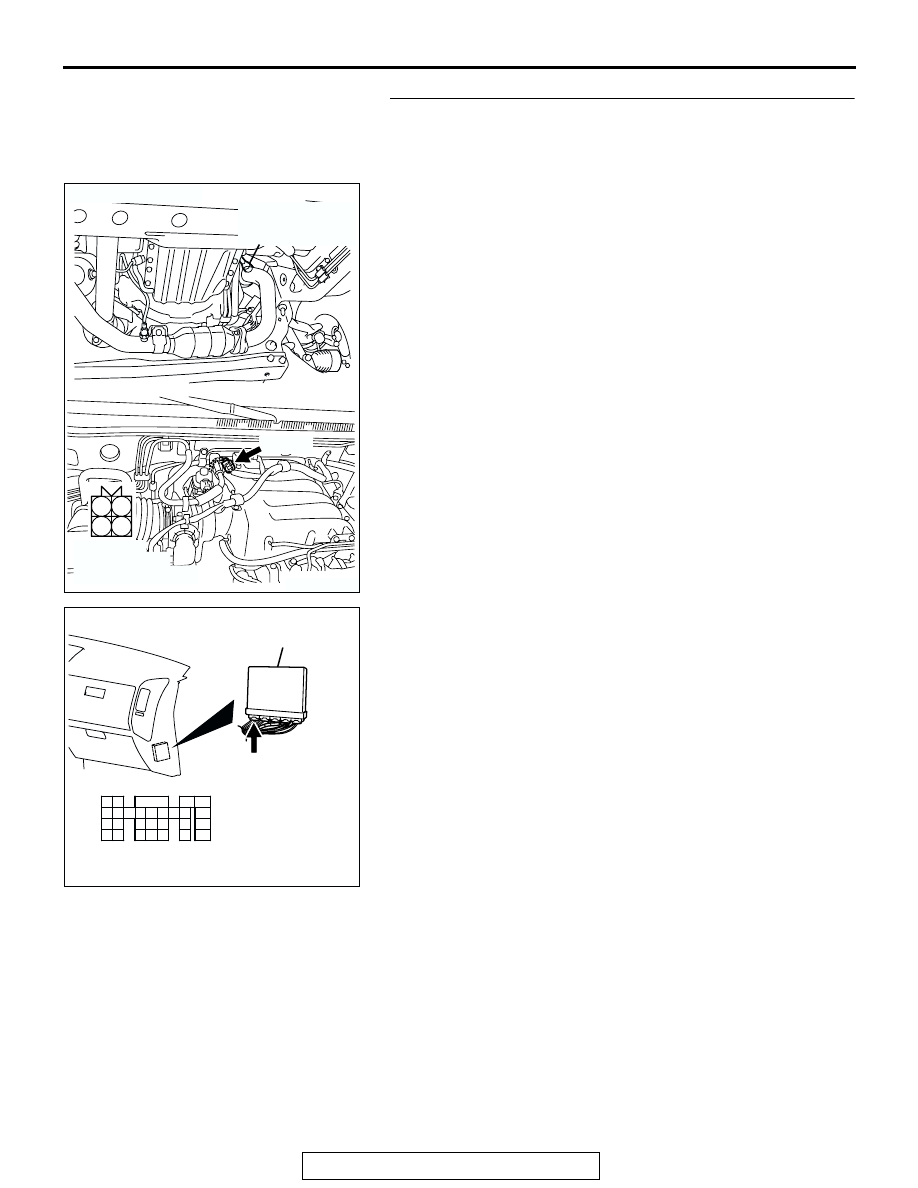

STEP 7. Check for open circuit or short circuit to ground
between right bank heated oxygen sensor (front)
connector B-07 (terminal No. 3) and PCM connector D-132
(terminal No. 25).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

AK201274

1

2

3

4

CONNECTOR: B-07

B-07(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-148

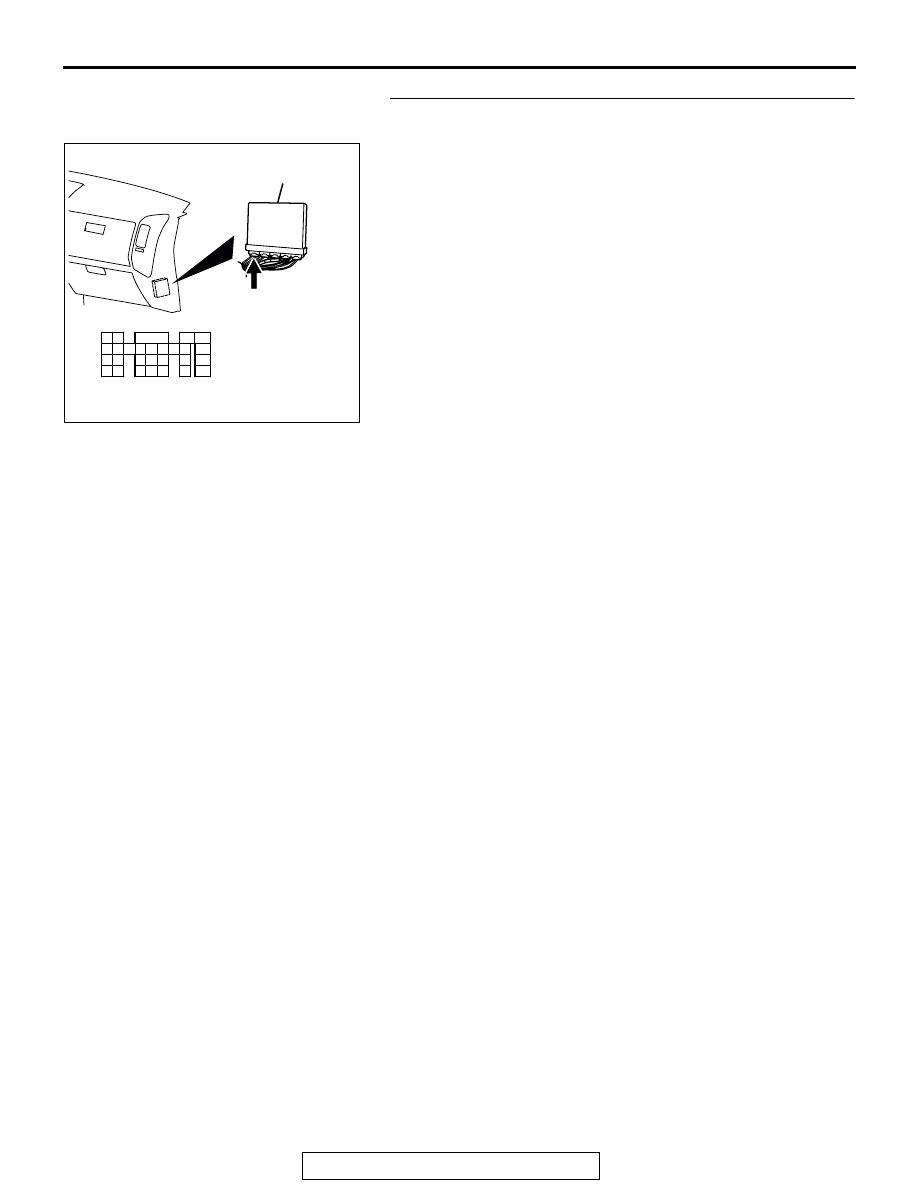

STEP 8. Check harness connector D-132 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)
