INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-71

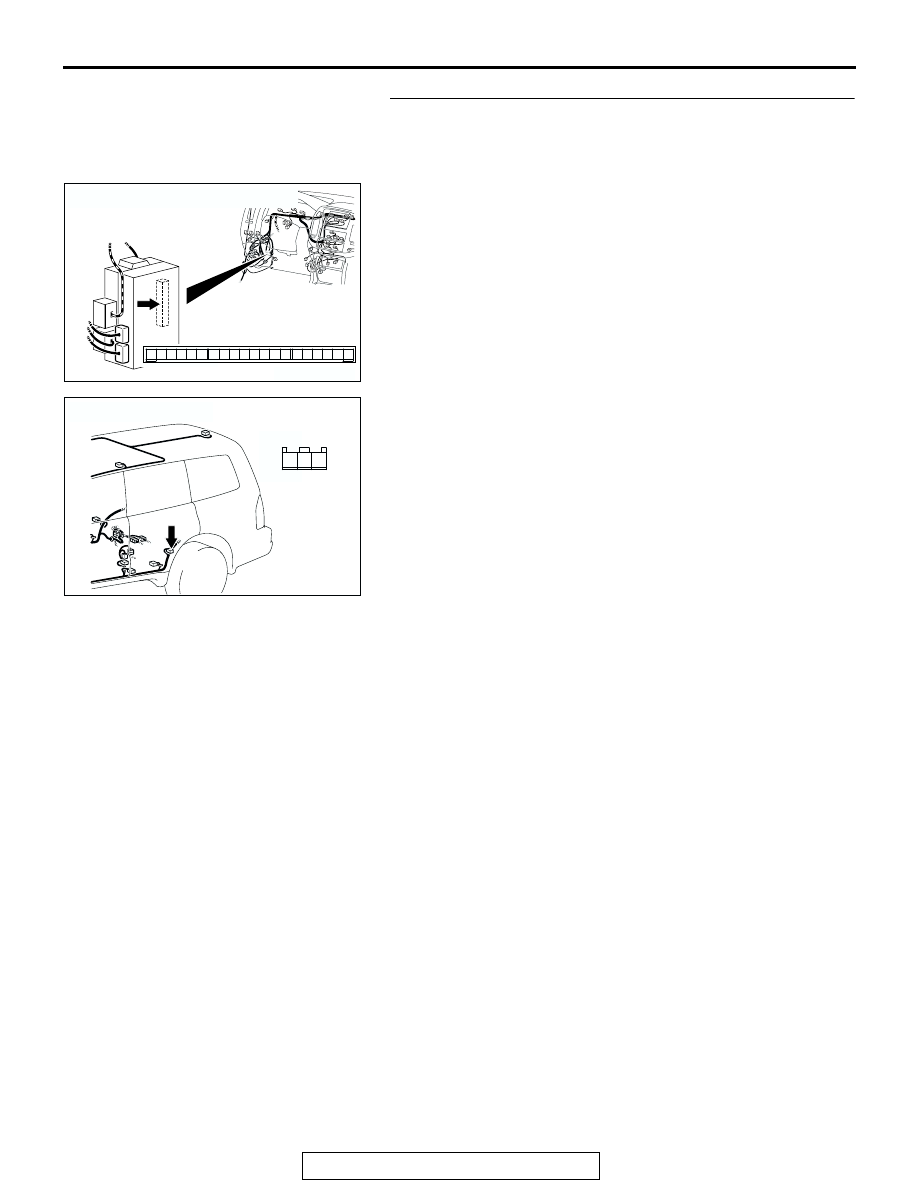

STEP 12. Check back door switch connector G-15 and
ETACS-ECU connector D-222 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are back door switch connector G-15 and ETACS-ECU

connector D-222 in good condition?
YES :
Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions, which are described in

"CIRCUIT OPERATION", work normally, the input
signal from the back door switch should be normal.

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204179

CONNECTOR : G-15

AG

HARNESS SIDE

1

2

3

G-15

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-72

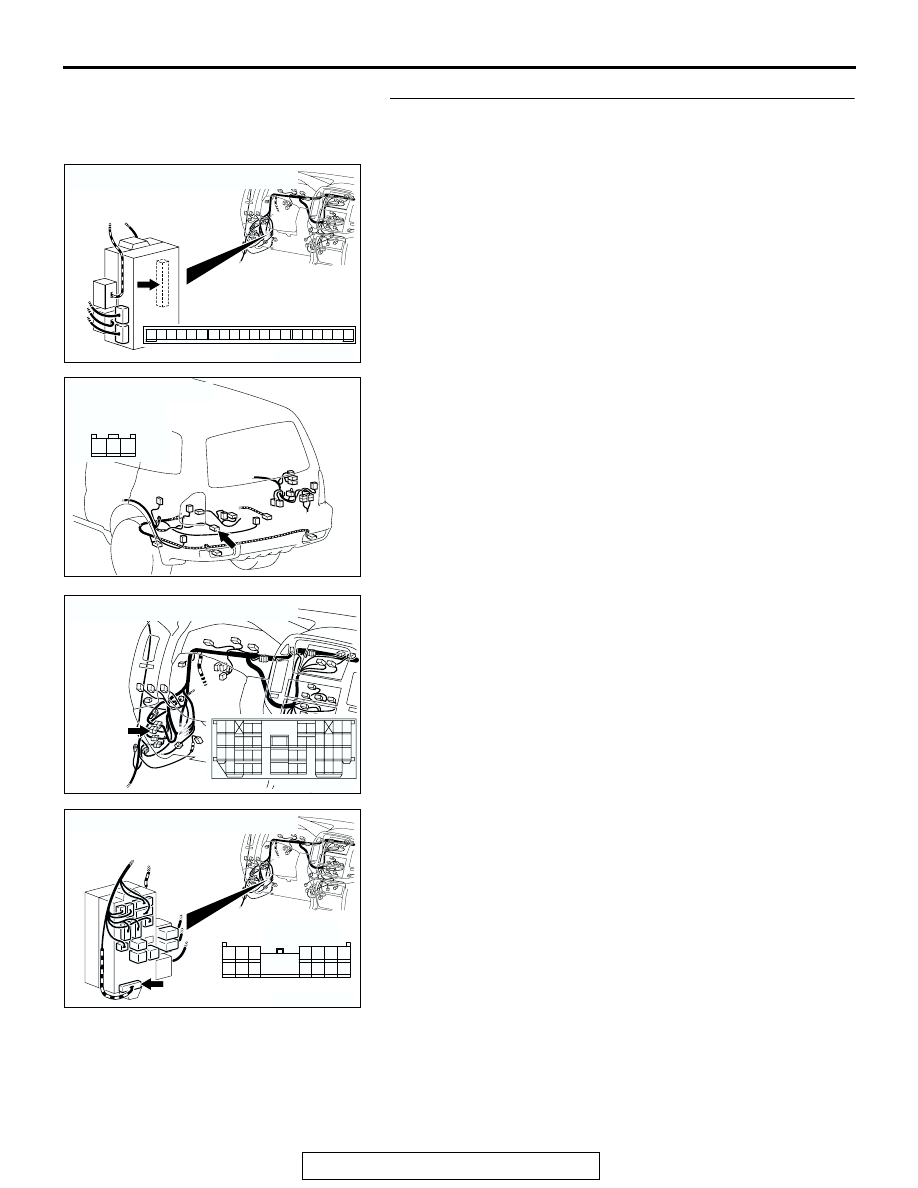

STEP 13. Check the wiring harness between back door
switch connector G-15 (terminal 2) and ETACS-ECU
connector D-222 (terminal 7).

NOTE: Also check intermediate connector D-125 and junction
block connector D-217 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If intermediate
connector D-125 or junction block connector D-217 is dam-
aged, Repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between back door switch

connector G-15 (terminal 2) and ETACS-ECU connector
D-222 (terminal 7) in good condition?
YES :
Replace the ETACS-ECU. If the functions, which are

described in "CIRCUIT OPERATION", work normally,
the input signal from the back door switch should be
normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions, which are described in "CIRCUIT
OPERATION", work normally, the input signal from
the back door switch should be normal.

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204179

CONNECTOR : G-15

AG

HARNESS SIDE

1

2

3

G-15

AC204170

CONNECTOR : D-125

AO

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204173

CONNECTOR : D-217

AG

HARNESS SIDE

8

1

11 10

3

4

12

9

2

13

14

6 5

15

7

D-217

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-73

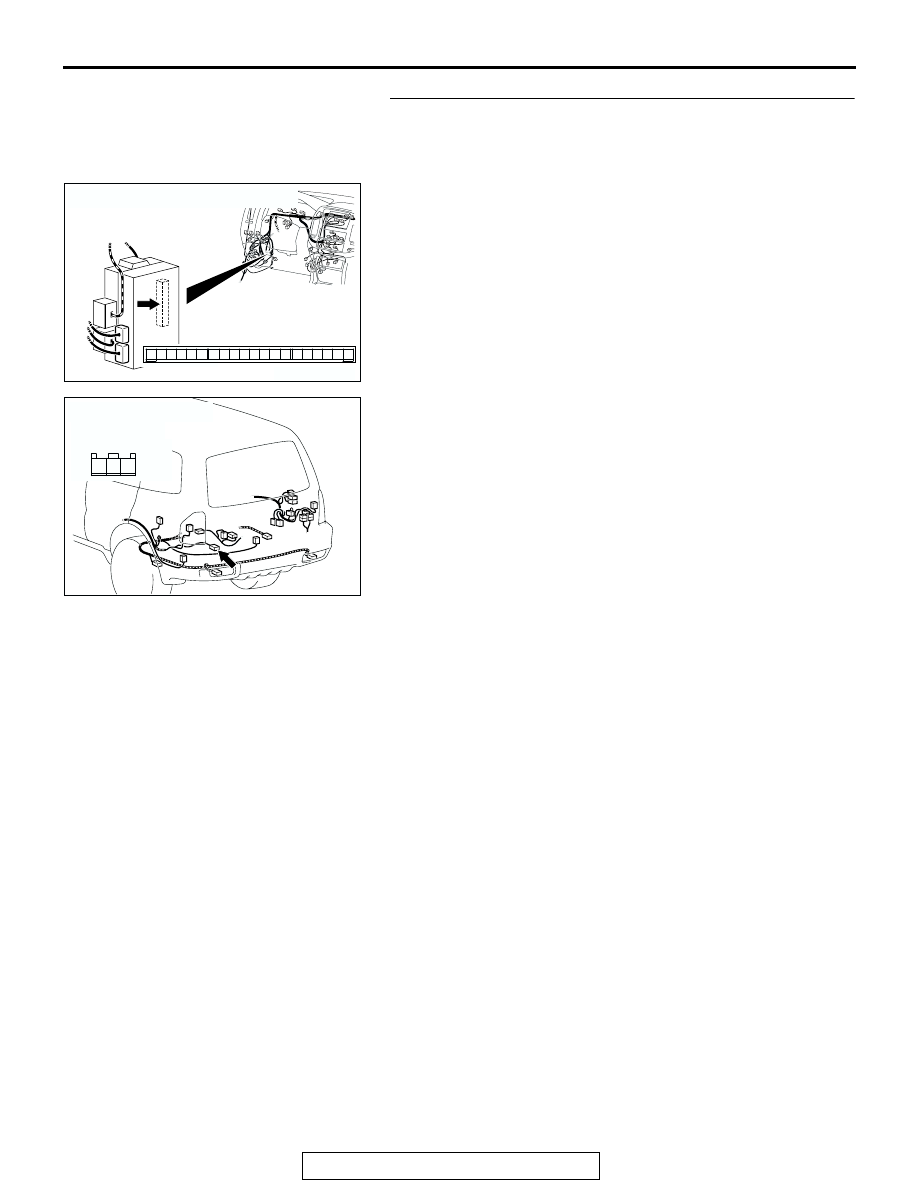

STEP 14. Check rear door switch (LH) connector F-09 and
ETACS-ECU connector D-222 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are rear door switch (LH) connector F-09 and ETACS-

ECU connector D-222 in good condition?
YES :
Go to Step 15.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions, which are described in

"CIRCUIT OPERATION", work normally, the input
signal from the rear door switch (LH) should be
normal.

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204178

CONNECTOR : F-09

AC

HARNESS SIDE

1

2

3

F-09

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-74

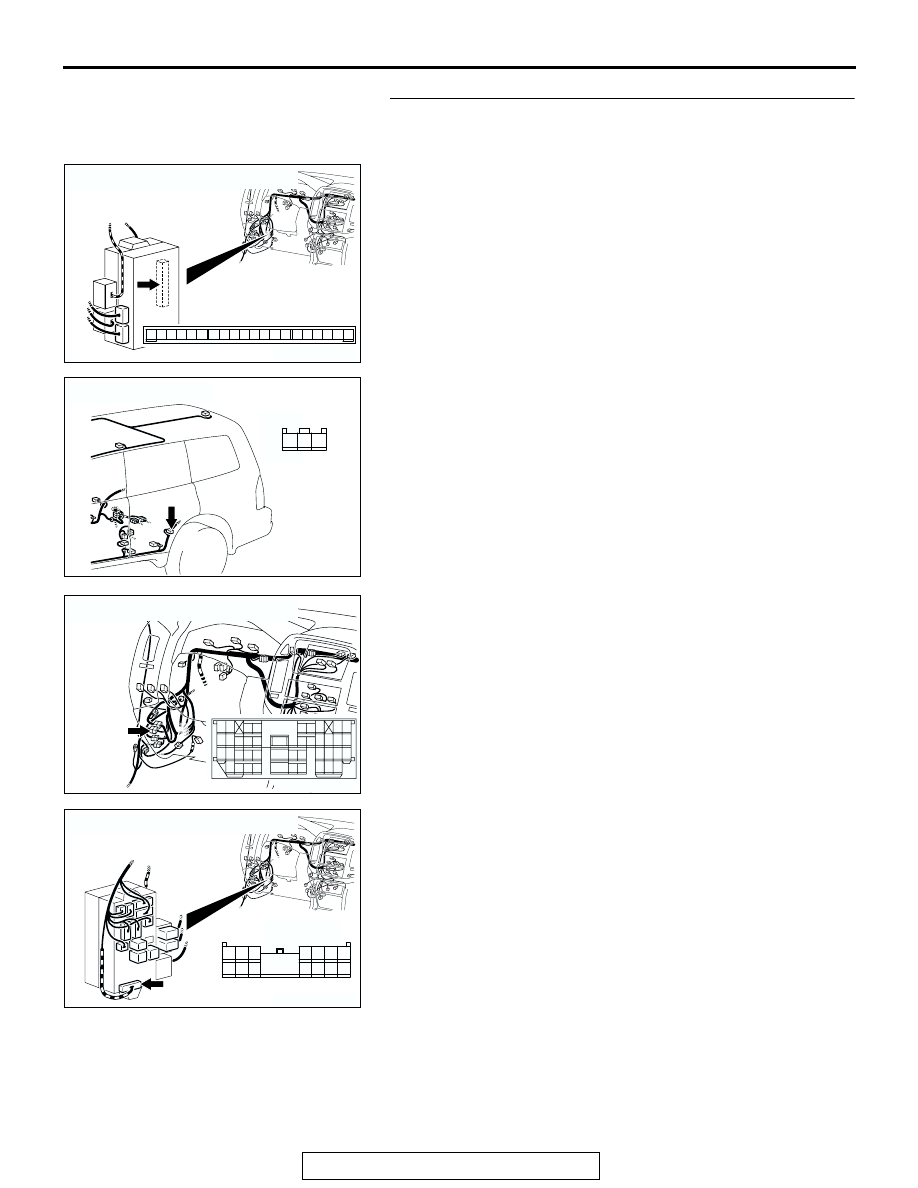

STEP 15. Check the wiring harness between rear door
switch (LH) connector F-09 (terminal 2) and ETACS-ECU
connector D-222 (terminal 7).

NOTE: Also check intermediate connector D-125 and junction
block connector D-217 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If junction
block connector D-217 or intermediate connector D-125 is
damaged, Repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear door switch (LH)

connector F-09 (terminal 2) and ETACS-ECU connector
D-222 (terminal 7) in good condition?
YES :
Replace the ETACS-ECU. If the functions, which are

described in "CIRCUIT OPERATION", work normally,
the input signal from the rear door switch (LH) should
be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions, which are described in "CIRCUIT
OPERATION", work normally, the input signal from
the rear door switch (LH) should be normal.

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204178

CONNECTOR : F-09

AC

HARNESS SIDE

1

2

3

F-09

AC204170

CONNECTOR : D-125

AO

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204173

CONNECTOR : D-217

AG

HARNESS SIDE

8

1

11 10

3

4

12

9

2

13

14

6 5

15

7

D-217
