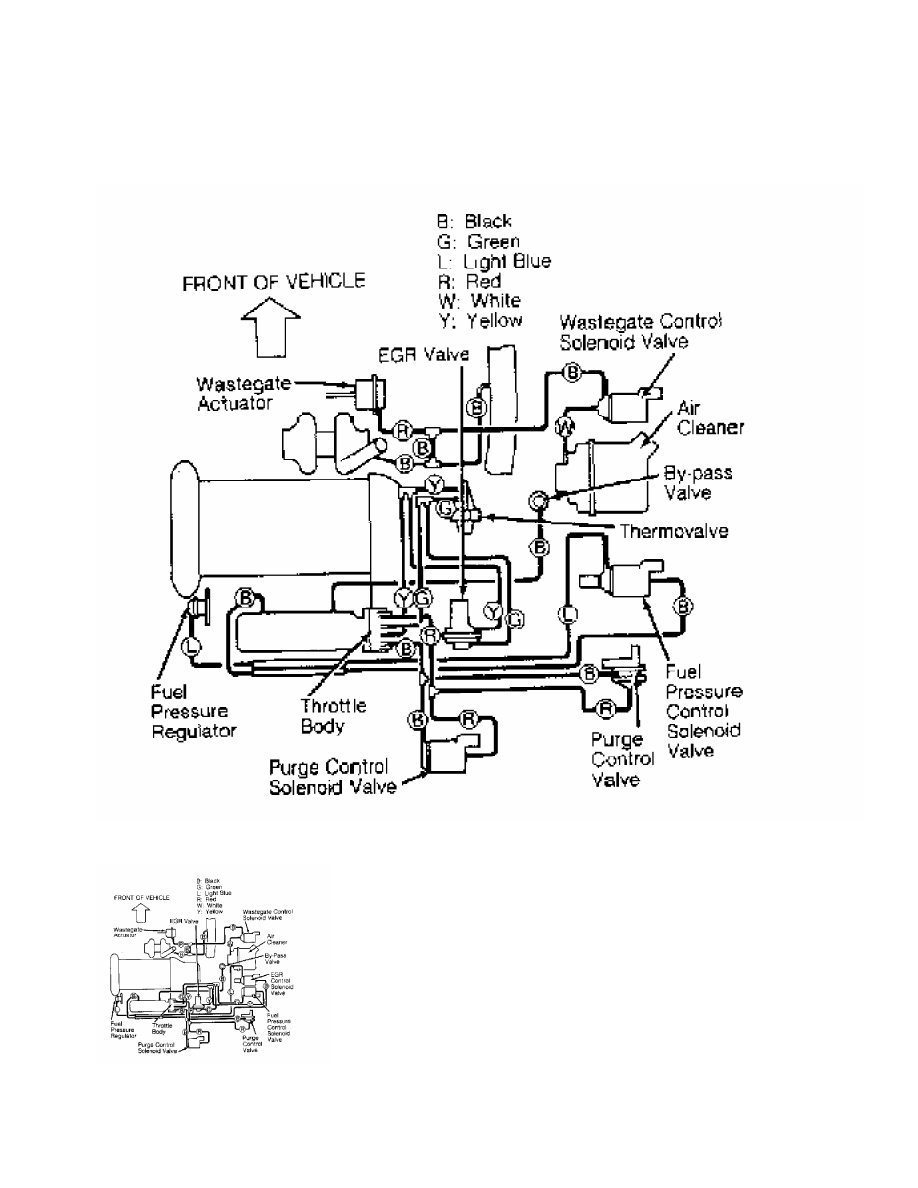

Fig. 13:  Vacuum Diagram (Galant VIN U/Fed.)

Courtesy of Mitsubishi Motor Sales of America.

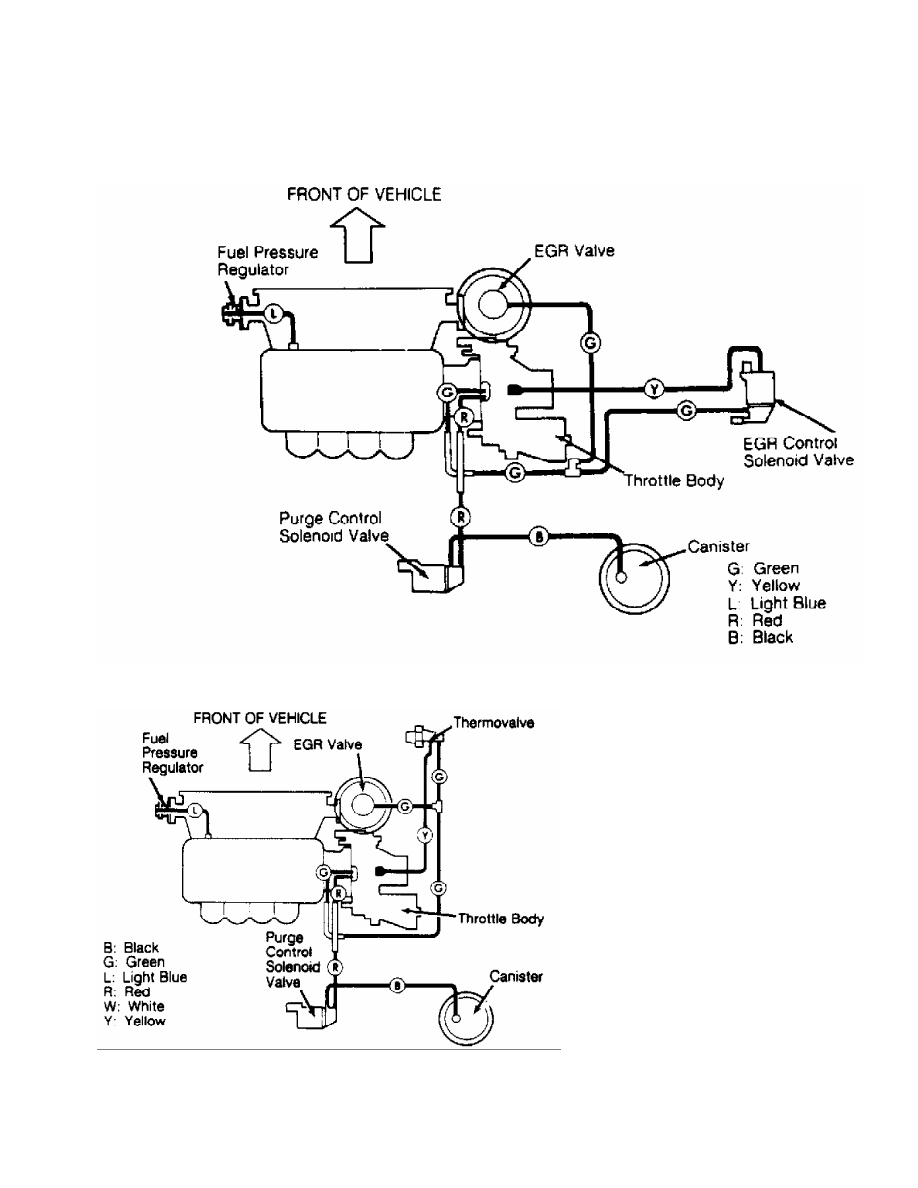

Fig. 14:  Vacuum Diagram (Galant VIN U/Calif.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 15:  Vacuum Diagram (Galant VIN V/Calif.)

Courtesy of Mitsubishi Motor Sales of America.

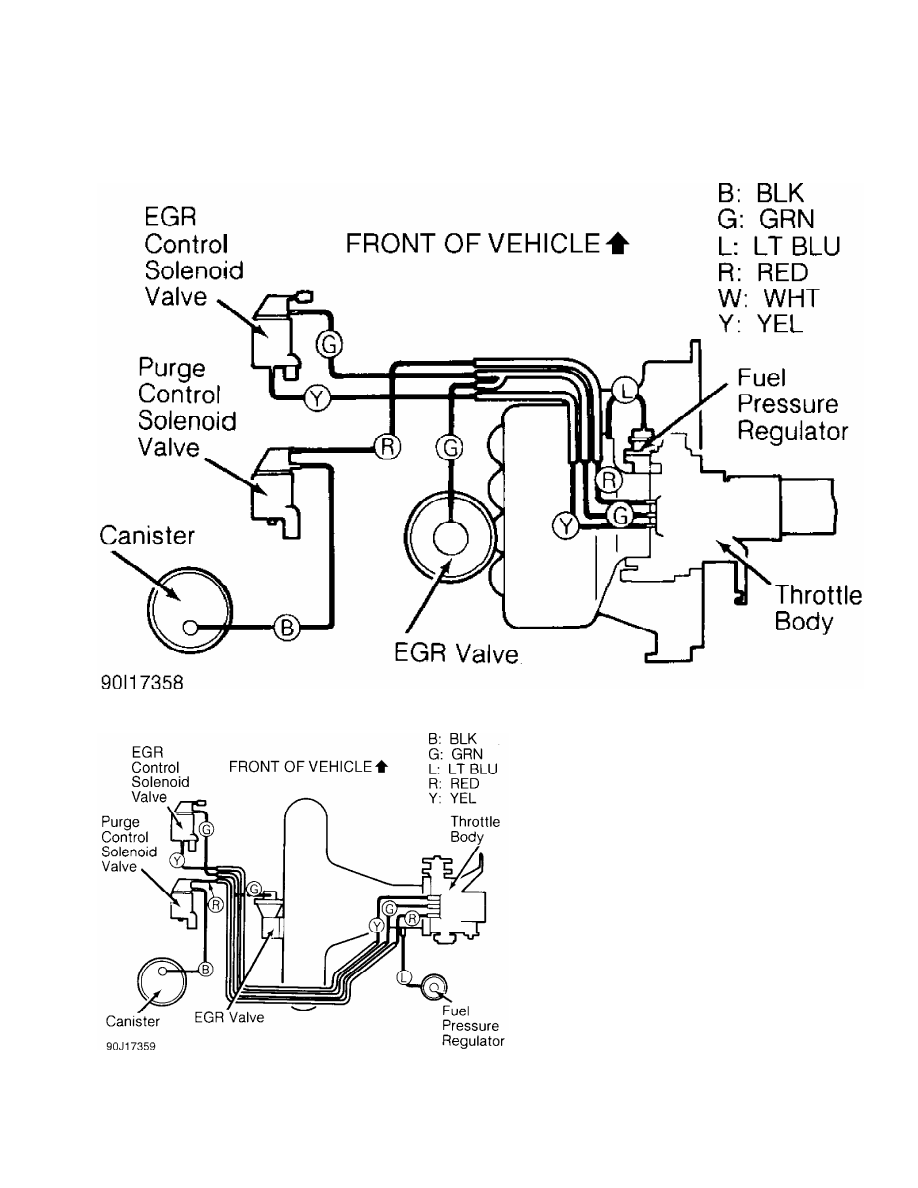

Fig. 16:  Vacuum Diagram (Galant VIN V/Fed.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 17:  Vacuum Diagram (Montero/Calif. & Fed.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 18:  Vacuum Diagram (Pickup 3.0L & Ram-50 3.0L/Fed.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 19:  Vacuum Diagram (Pickup 2.4L & Ram-50 2.4L/Calif. & Fed.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 20:  Vacuum Diagram (Pickup 3.0L & Ram-50 3.0L/Calif.)

Courtesy of Chrysler Motors.
