Mitsubishi Montero (1991+). Manual - part 247

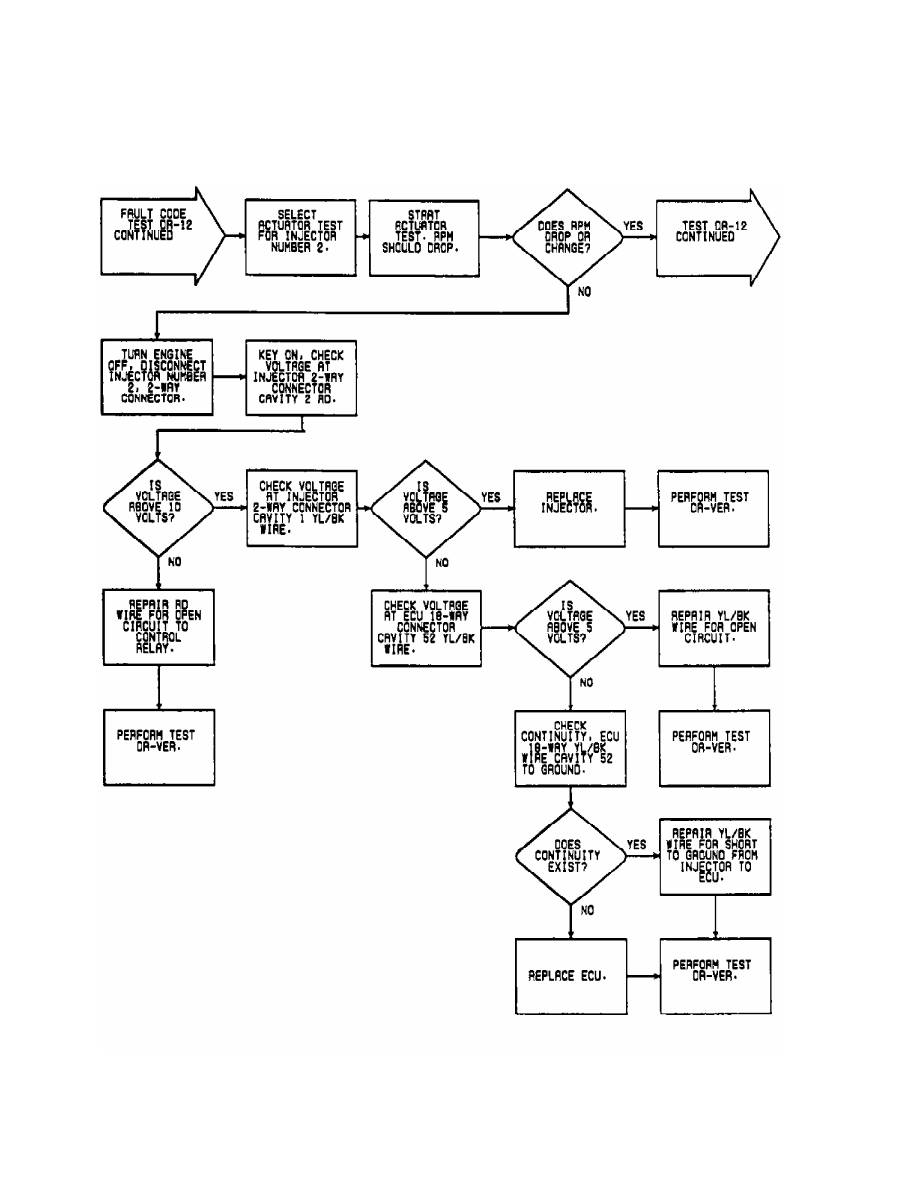

Fig. 133:  Flow Chart DR-12 (1.6L) (3 of 5)

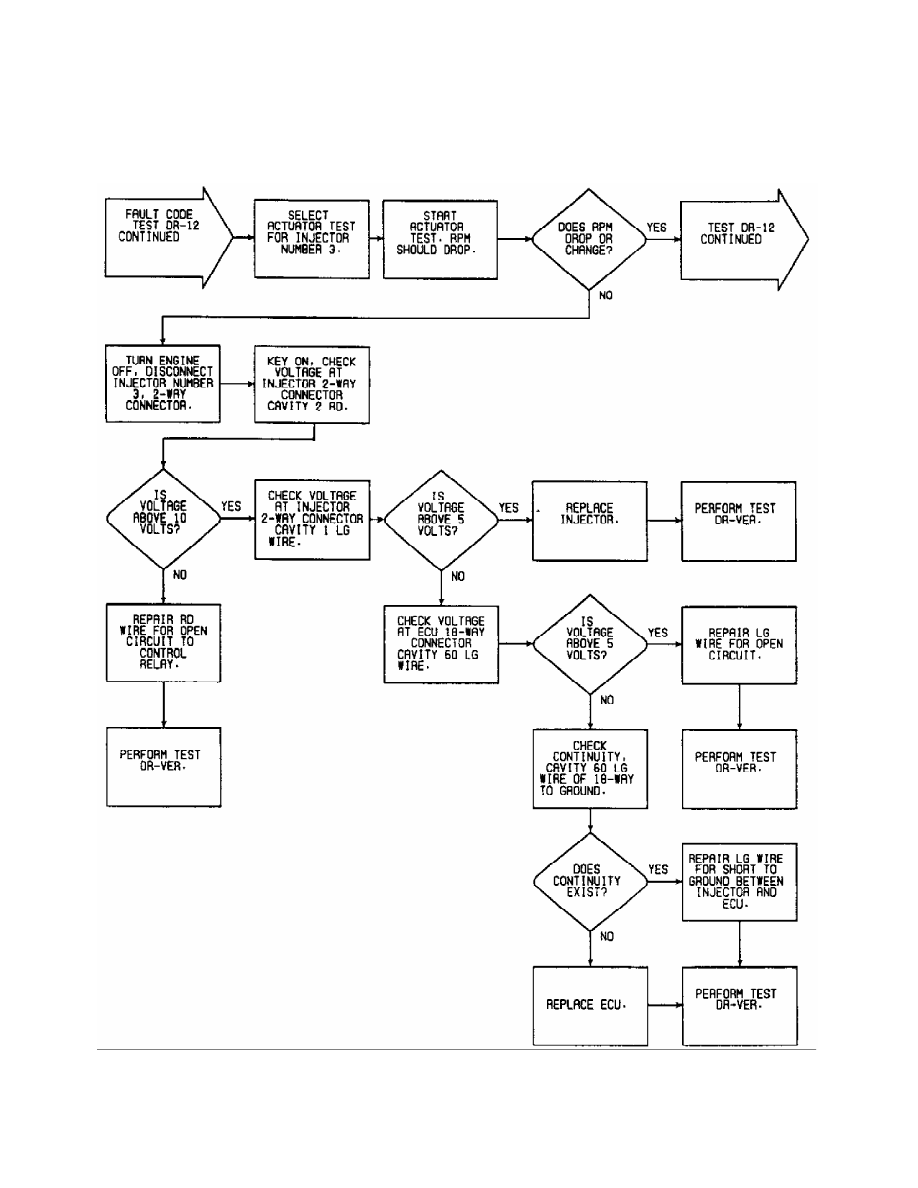

Fig. 134:  Flow Chart DR-12 (1.6L) (4 of 5)

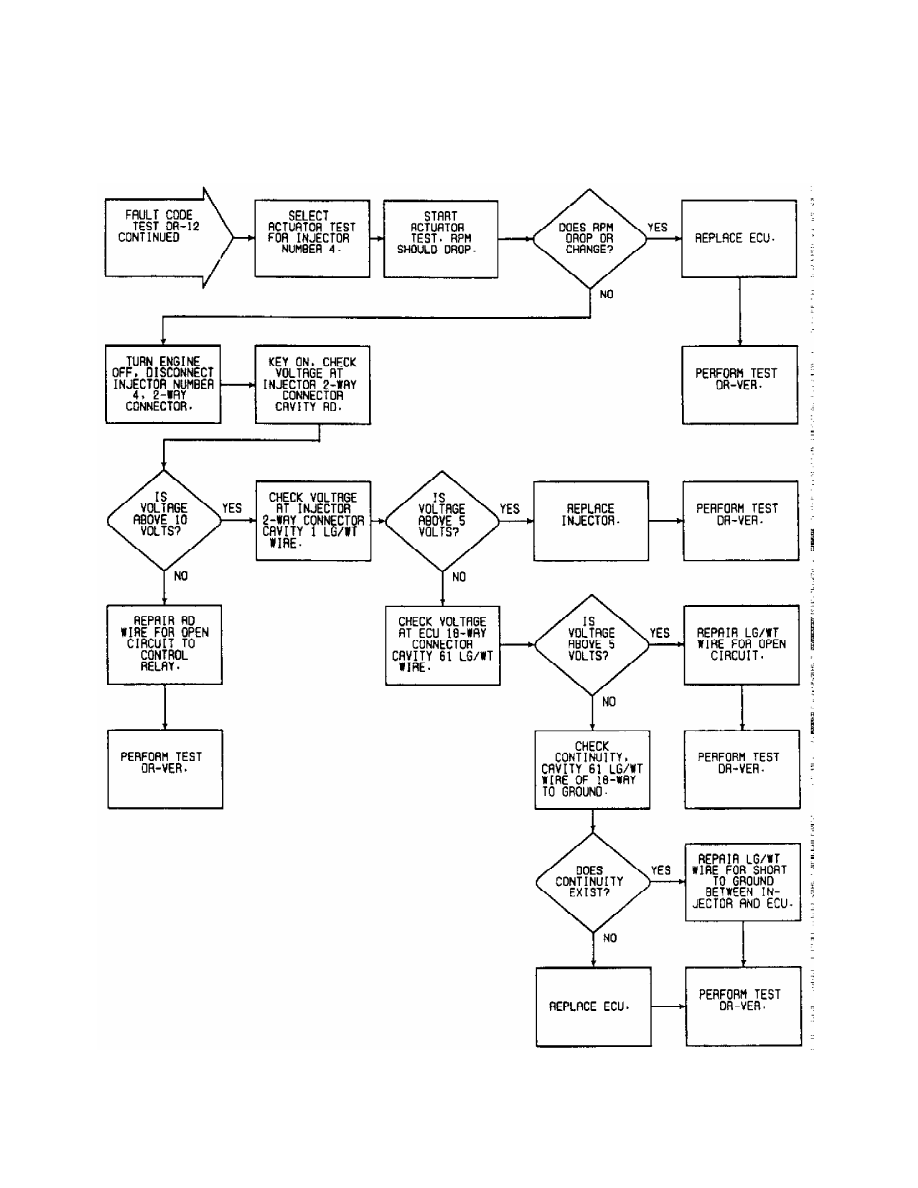

Fig. 135:  Flow Chart DR-12 (1.6L) (5 of 5)

         DR-13: CODE 42 FUEL PUMP CIRCUIT - 1.6L

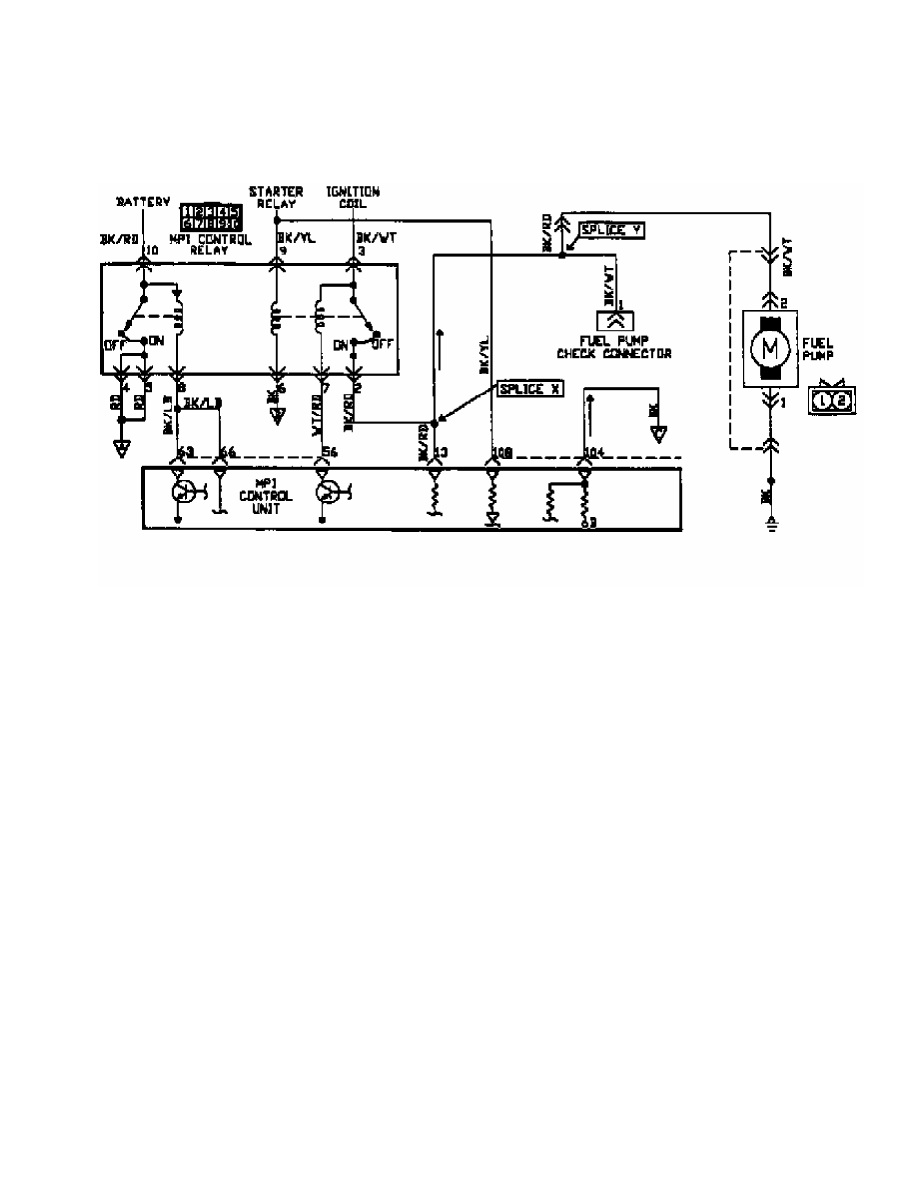

Fig. 136:  Circuit Diagram DR-13 (1.6L)
