Mitsubishi Montero (1991+). Manual - part 230

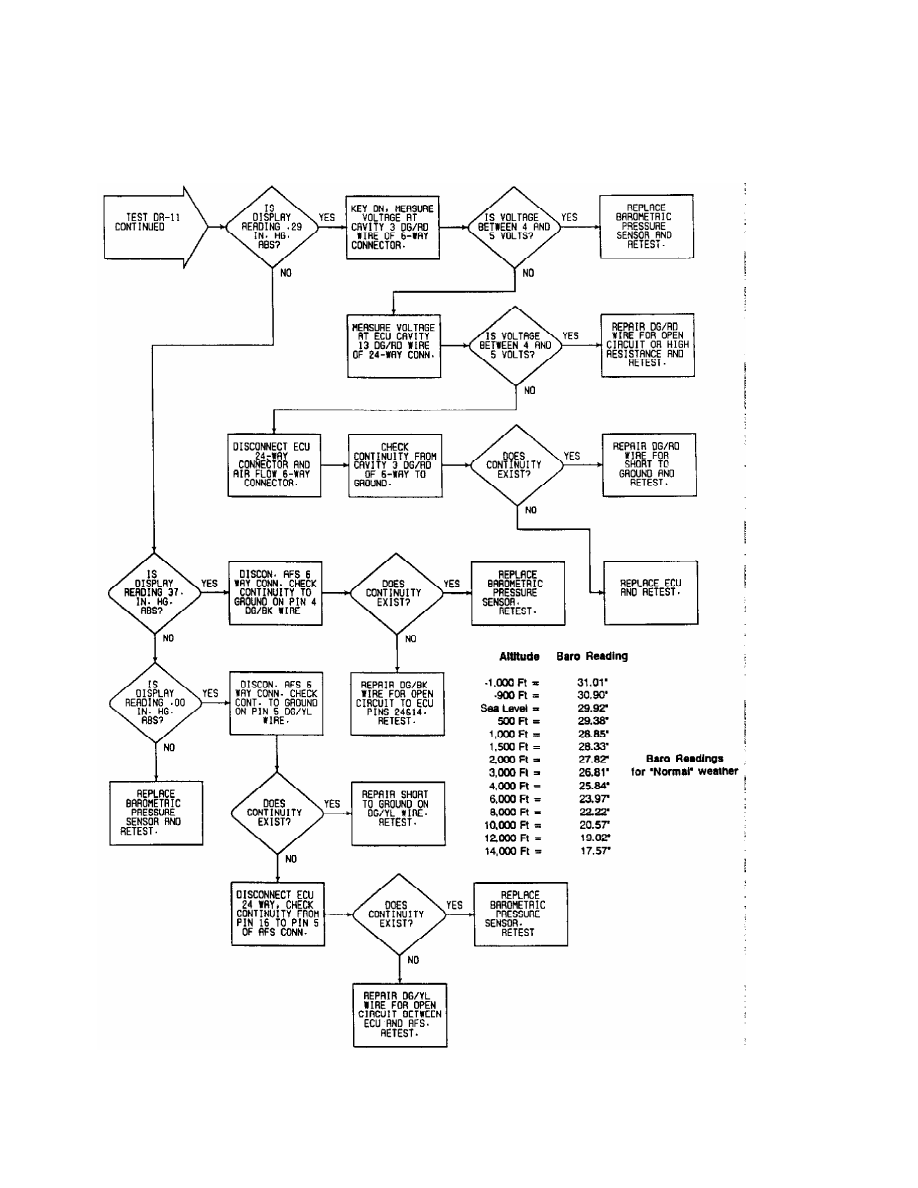

Fig. 52:  Flow Chart DR-11 (1.5L) (2 of 2)

         DR-12: CODE 41 INJECTOR CIRCUIT - 1.5L

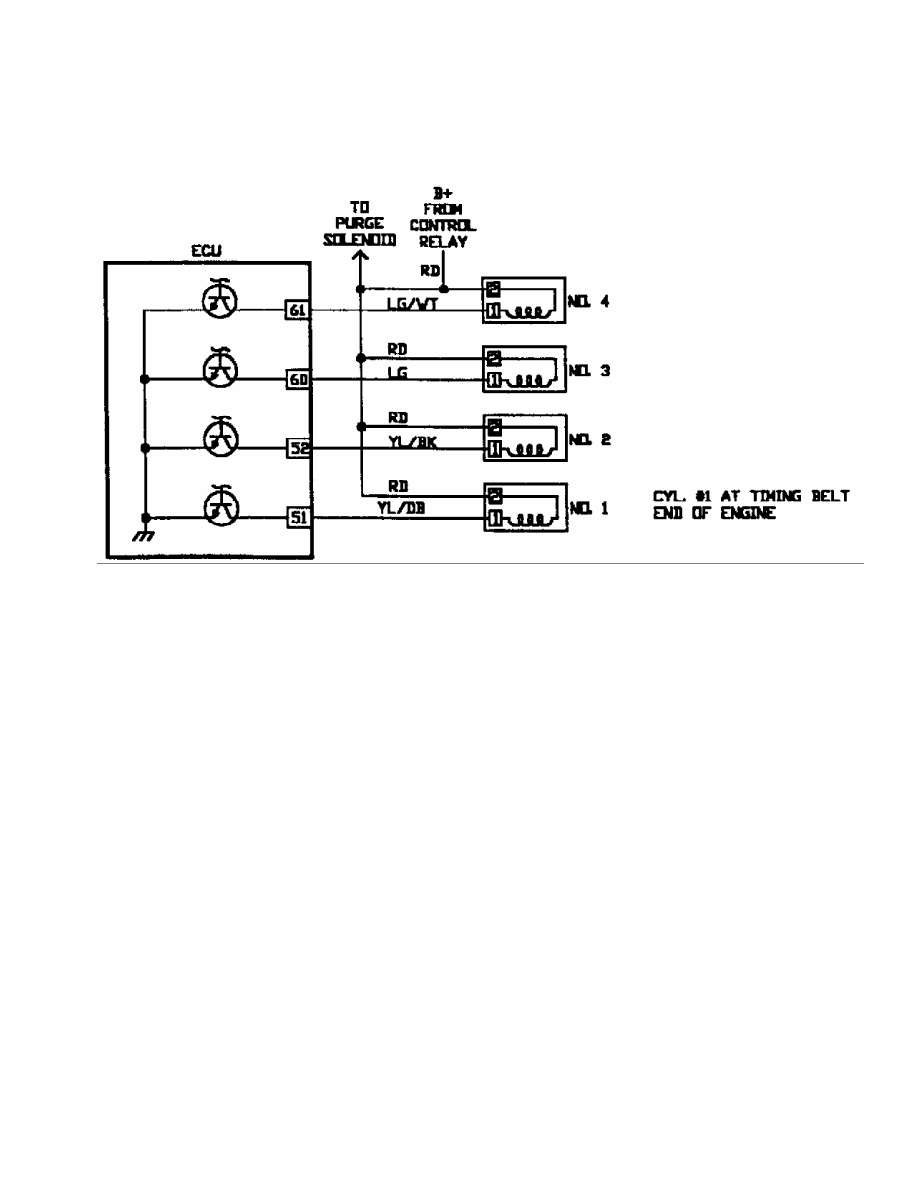

Fig. 53:  Circuit Diagram DR-12 (1.5L)

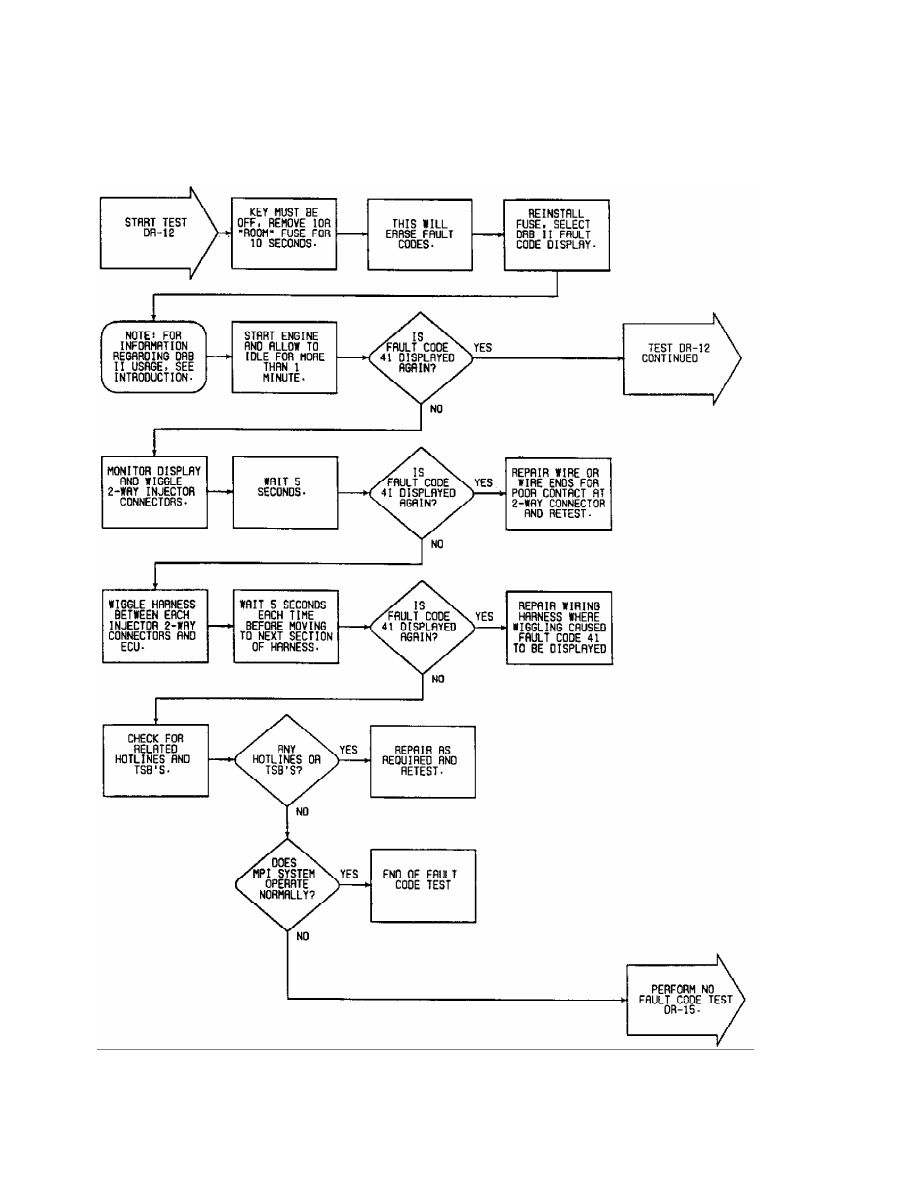

Fig. 54:  Flow Chart DR-12 (1.5L) (1 of 2)

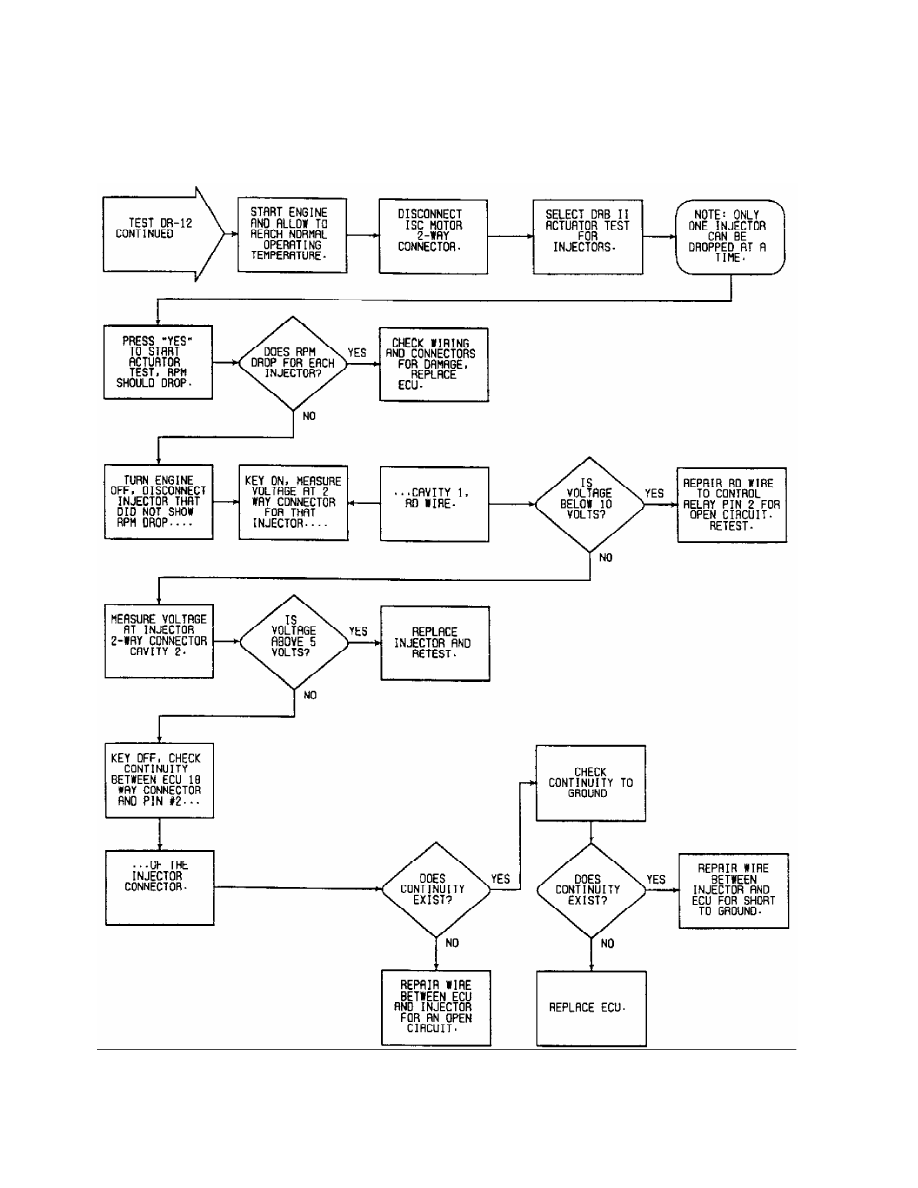

Fig. 55:  Flow Chart DR-12 (1.5L) (2 of 2)

         DR-13: CODE 42 FUEL PUMP CIRCUIT - 1.5L
