Mitsubishi Montero (1991+). Manual - part 225

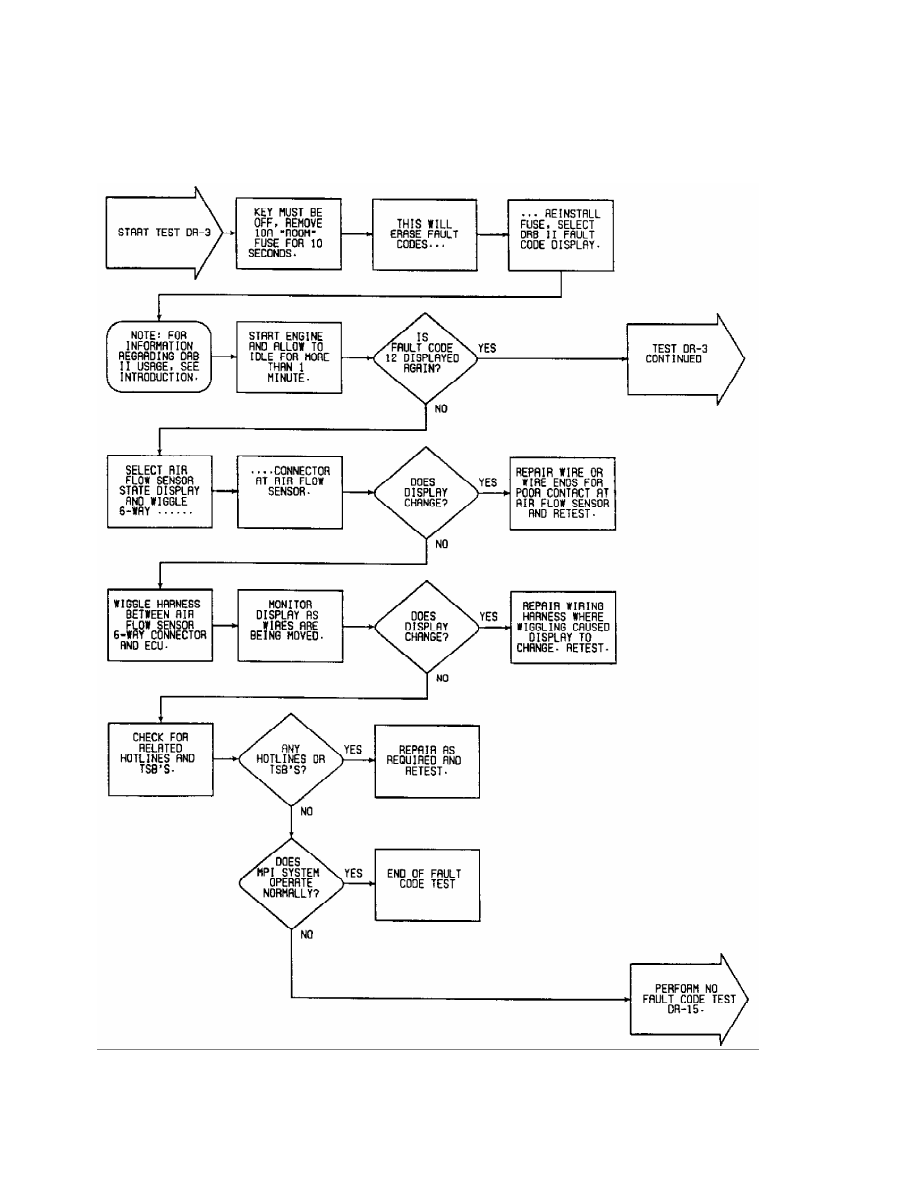

Fig. 29:  Flow Chart DR-3 (1.5L) (1 of 3)

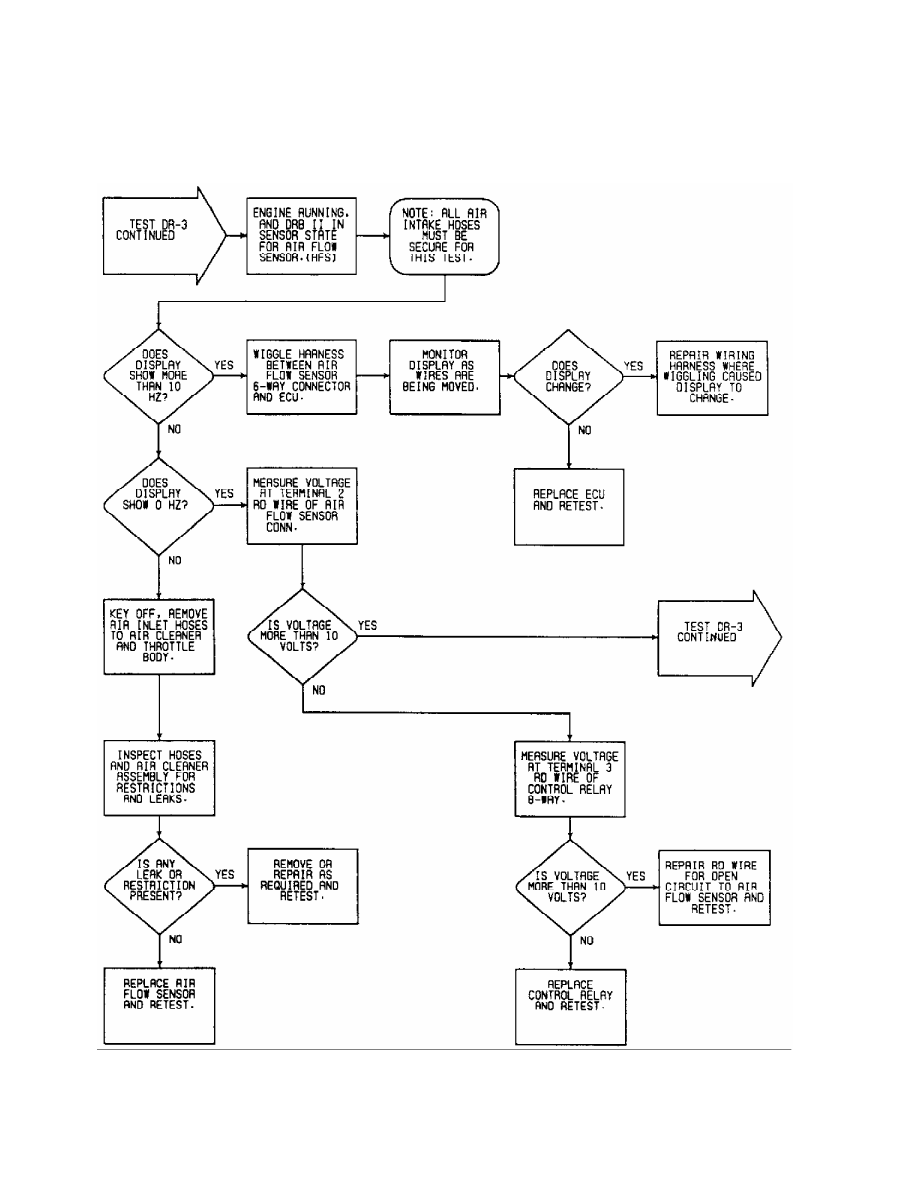

Fig. 30:  Flow Chart DR-3 (1.5L) (2 of 3)

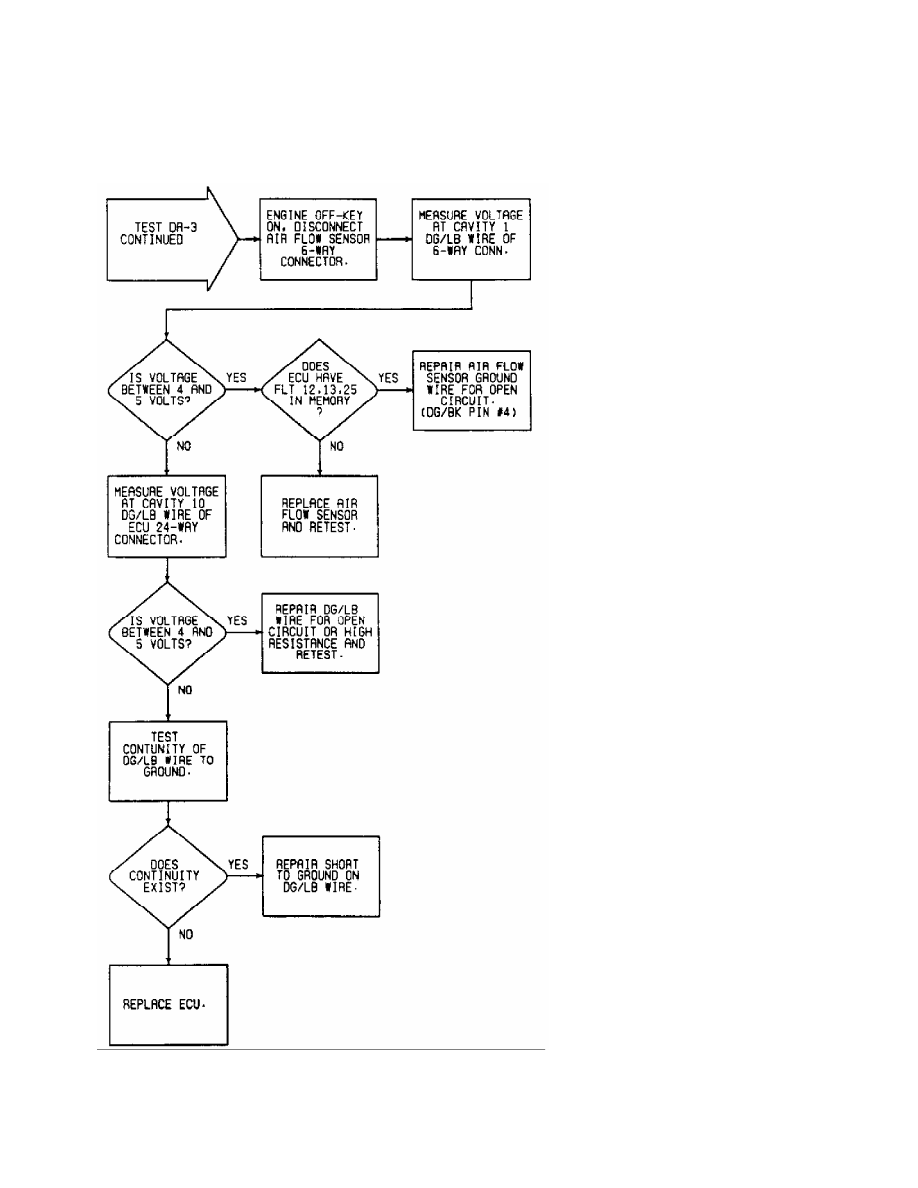

Fig. 31:  Flow Chart DR-3 (1.5L) (3 of 3)

         DR-4: CODE 13 INTAKE AIR TEMP. SENSOR CIRCUIT - 1.5L

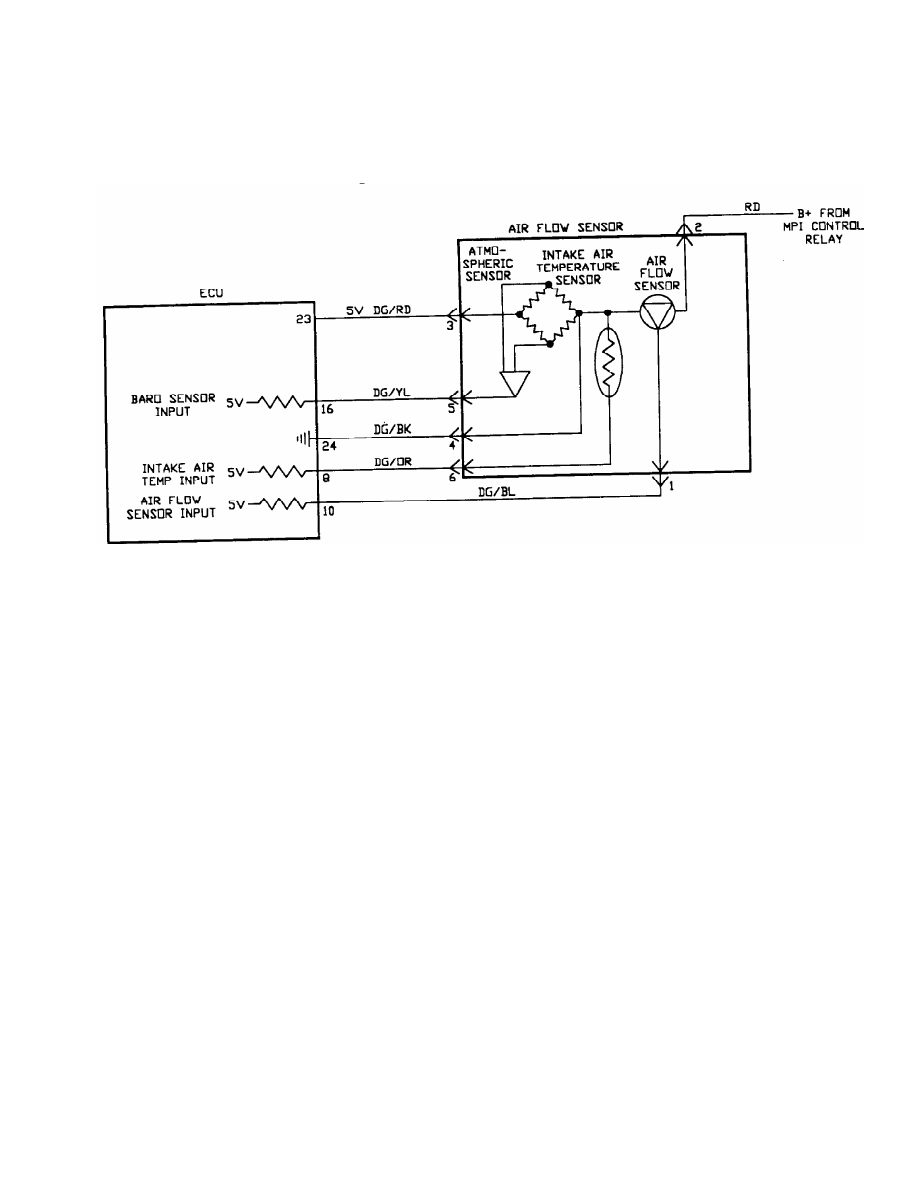

Fig. 32:  Circuit Diagram DR-4 (1.5L)
