MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-195

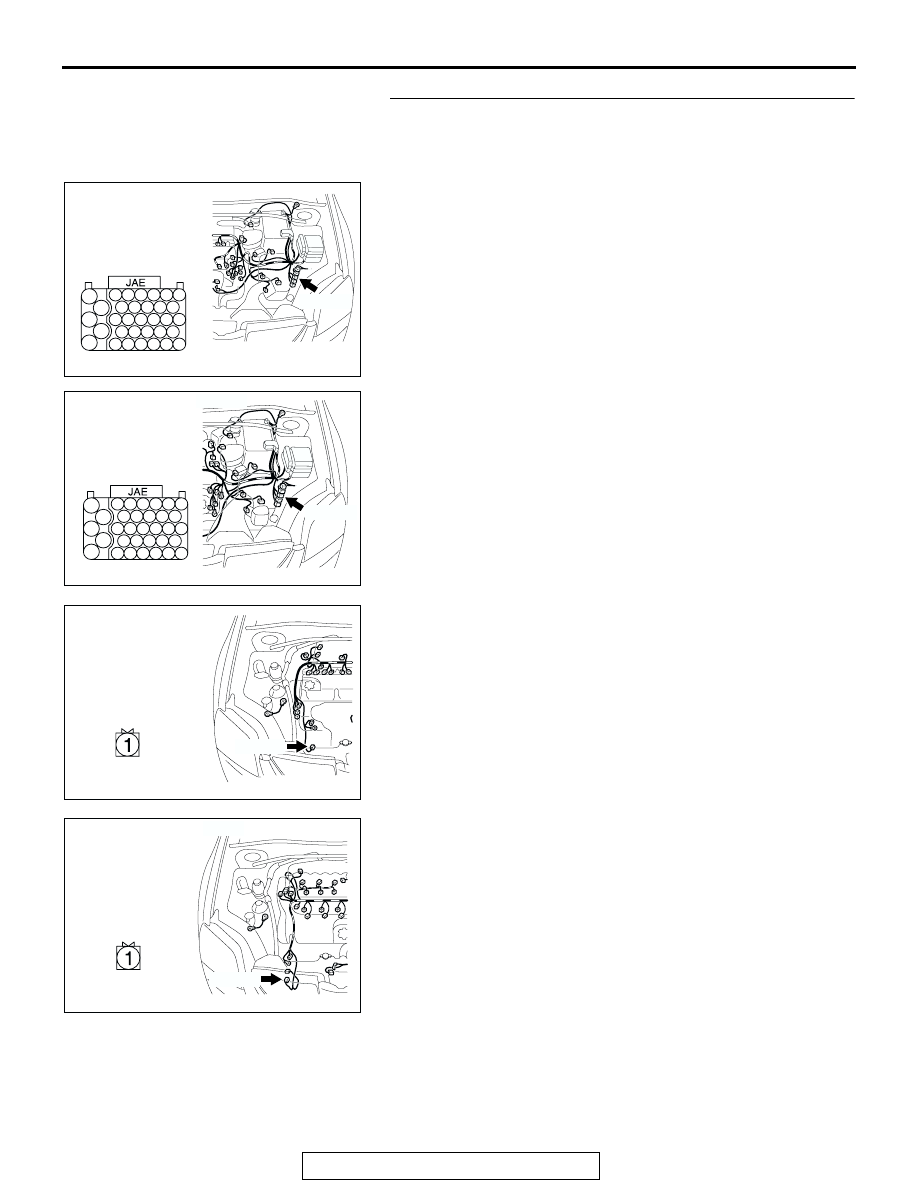

STEP 7. Check powertrain control module connector B-21
and A/C compressor assembly B-28 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:  Are powertrain control module connector B-21 and A/C

compressor assembly B-28 in good condition?
YES : Go to Step 8.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC305216

B-21 (B)

AC

CONNECTOR: B-21 <2.4L>

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

AC305229

B-21 (B)

AB

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

CONNECTOR: B-21 <3.8 L>

AC305214

B-28 (B)

HARNESS SIDE

AD

CONNECTOR: B-28 <2.4L>

AC305218

B-28 (B)

HARNESS SIDE

AB

CONNECTOR: B-28 <3.8 L>

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-196

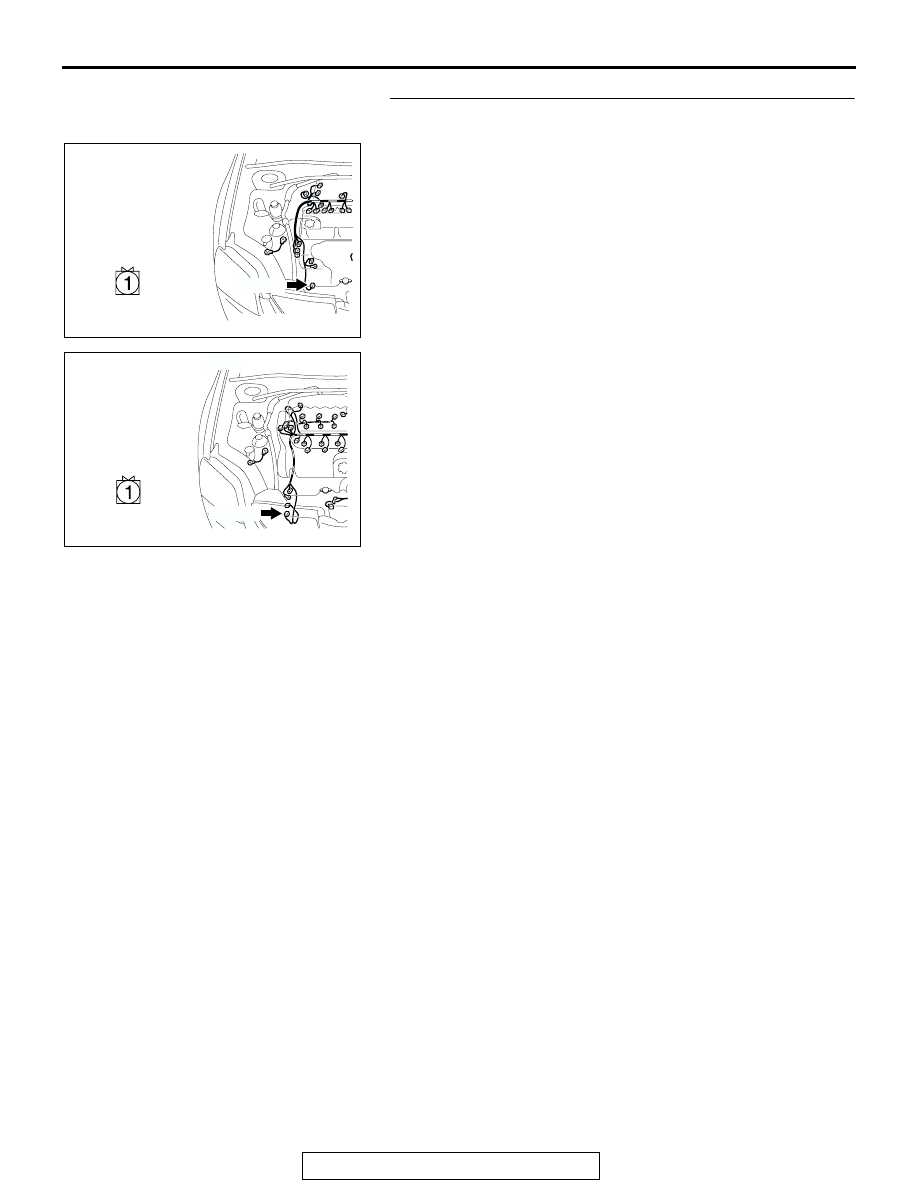

STEP 8. Measure the voltage at A/C compressor assembly
connector B-28.

(1) Disconnect A/C compressor assembly connector B-28 and

measure the voltage at the relay box side.

AC305214

B-28 (B)

HARNESS SIDE

AD

CONNECTOR: B-28 <2.4L>

AC305218

B-28 (B)

HARNESS SIDE

AB

CONNECTOR: B-28 <3.8 L>

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-197

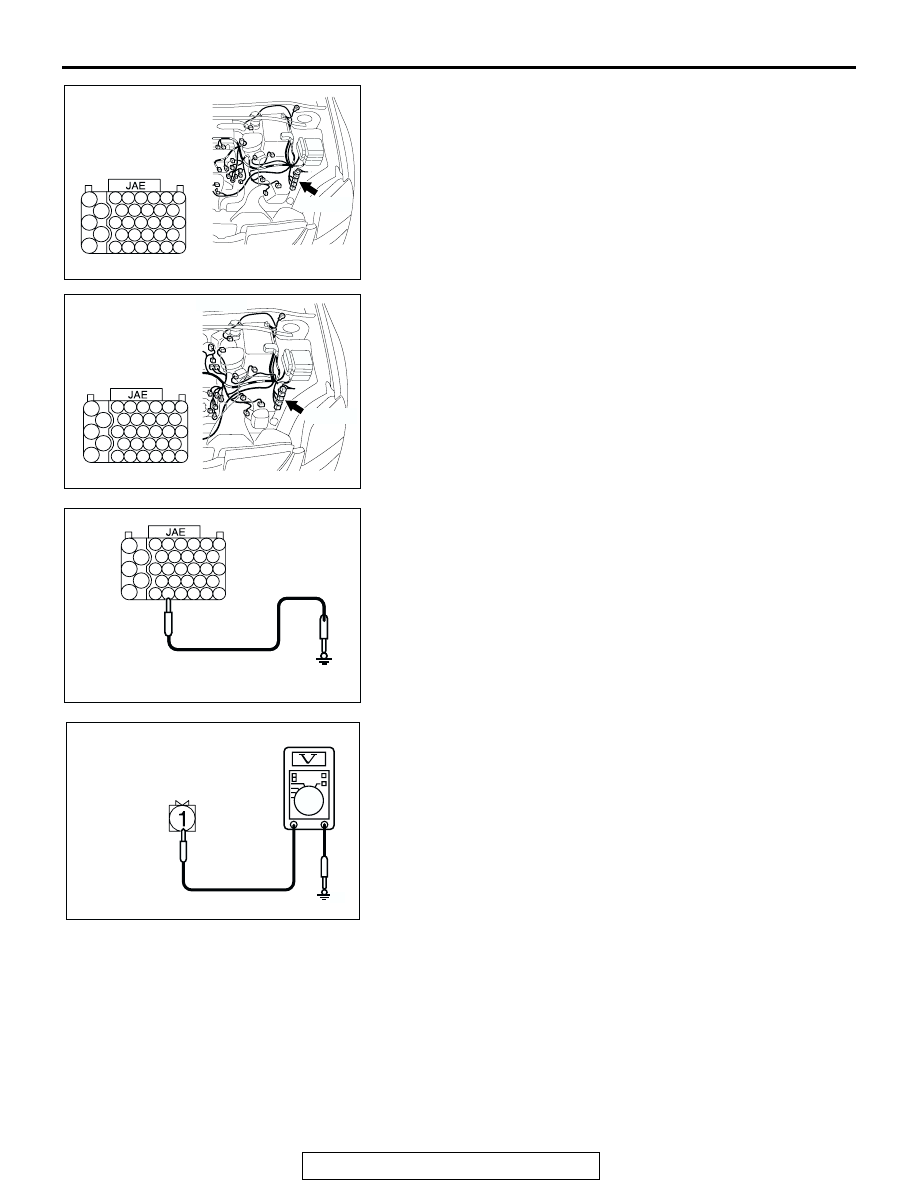

(2) Disconnect powertrain control module connector B-21 and

ground harness side terminal No.81.

(3) Turn the ignition switch to the "ON" position.

(4) A/C compressor assembly connector B-28 terminal 1 and

ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approx. 12 volts?

YES :  Go to Step 15.
NO :   Go to Step 9.

AC305216

B-21 (B)

AC

CONNECTOR: B-21 <2.4L>

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

AC305229

B-21 (B)

AB

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

CONNECTOR: B-21 <3.8 L>

AC306468

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

AC306468

CONNECTOR B-21
(HARNESS SIDE)

AD

AC209365

CONNECTOR B-28
(HARNESS SIDE)

GS

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-198

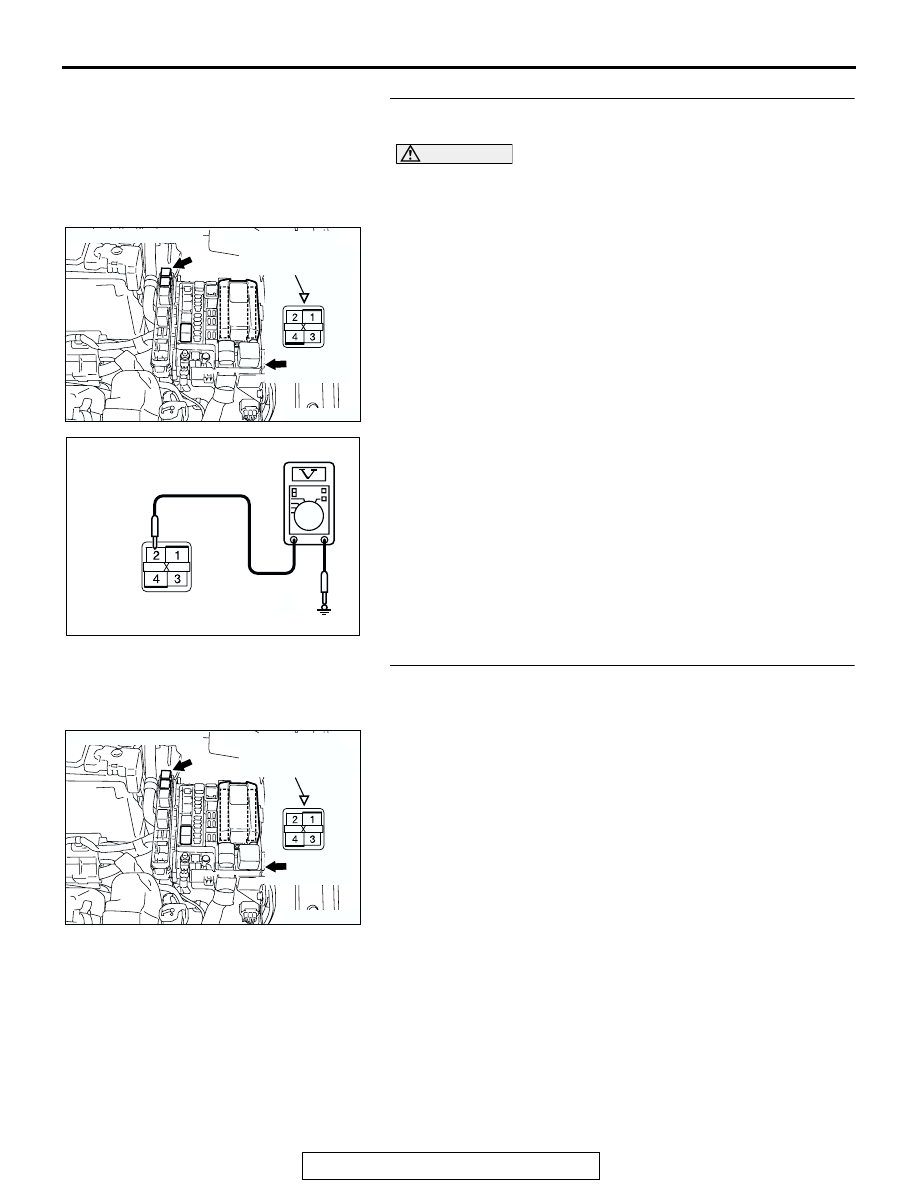

STEP 9. Measure the voltage at A/C compressor clutch
relay connector B-18X.

CAUTION

The top and bottom of the A/C compressor connector are
difficult to identify. Prior to inspection, confirm the triangle
mark on the relay box.
(1) Disconnect A/C compressor connector B-18X and measure

the voltage at the relay box side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 2 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approx. 12 volts?

YES :  Go to Step 11.
NO :   Go to Step 10.

STEP 10. Check the wiring harness between A/C
compressor clutch relay connector B-18X (terminal 2) and

the ignition switch (IG2).

AC305977AJ

CONNECTOR: B-18X

RELAY BOX SIDE

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK

AC209365GT

CONNECTOR B-18X
(RELAY BOX SIDE)

AC305977AJ

CONNECTOR: B-18X

RELAY BOX SIDE

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK
