ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-379

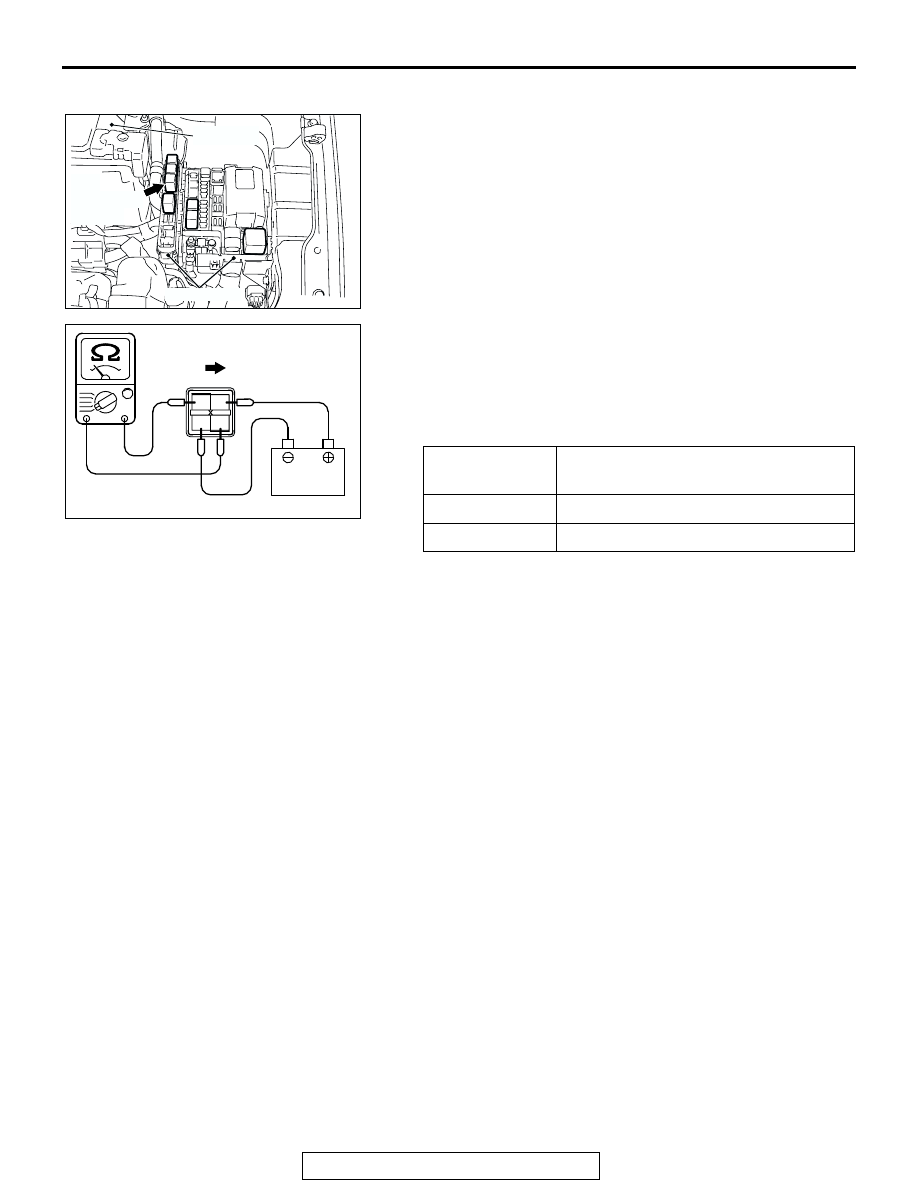

A/T CONTROL RELAY CHECK

M1231009300248

1. Remove the A/T control relay.

2. Use jumper wires to connect A/T control relay terminal 3 to

the negative battery terminal and terminal 2 to the positive
battery terminal.

3. Check for continuity between A/T control relay terminals 1

and 4 when the jumper wires are connected to and
disconnected from the battery.

4. If there is any problem with the A/T control relay, replace it.

JUMPER WIRE CONTINUITY BETWEEN TERMINALS

NO.1 AND NO.4

Connected

Continuity

Disconnected

No continuity

AC306283

A/T
CONTROL
RELAY

RELAY BOX

AC

BATTERY

AC100115

1 2
3 4

FRONT OF VEHICLE

AJ

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-380

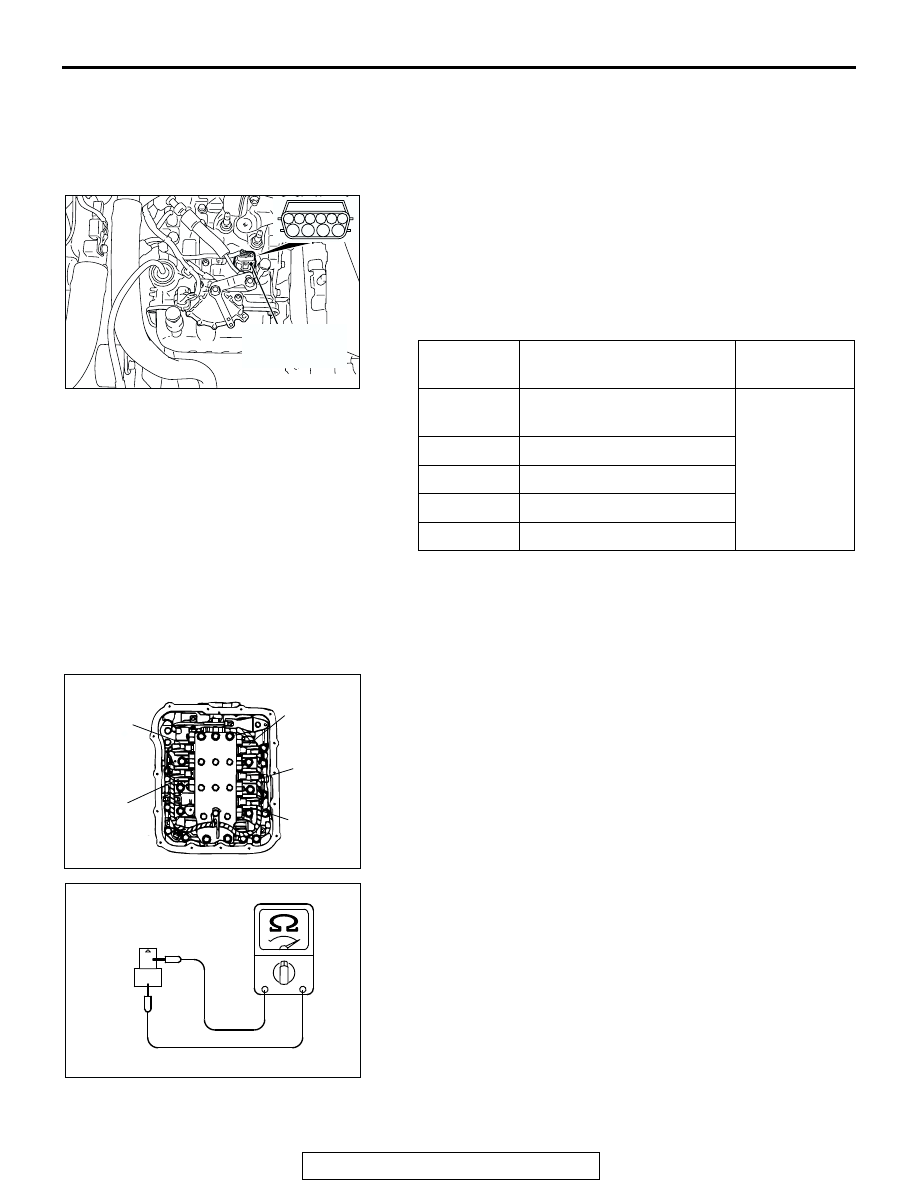

SOLENOID VALVE CHECK

M1231009400267

1. Use scan tool MB991958 (MUT-III sub assembly) to

measure the transmission fluid temperature. The desired
transmission fluid temperature setting for performing the
solenoid valve check is 20

°C (68°F).

2. Remove the A/T control solenoid valve assembly connector.
3. Measure the resistance between the solenoid valve

terminals.

4.  The measured resistance of the solenoid valve when the

transmission fluid temperature is 20

°C (68°F) should match

the specified resistance on the chart below.

Specified resistance:

5. If the solenoid valve resistance is within the specified range,

check the power supply and the ground circuits.

6. If the solenoid valve resistance is not within the specified

range, drain the transmission fluid and remove the valve
body cover.

7. Disconnect the connector of any solenoid valves that are not

within the specified range.

8. Measure the resistance between terminals 1 and 2 of any

solenoid valve that was not within the specified range.

Specified resistance: 2.7

− 3.4 Ω [at 20°C (68°F)]

9. If the resistance is not within the specified range, replace the

solenoid valve.

10.If the resistance is within the specified range, check the

wiring harness between the affected A/T control solenoid
valve assembly and the solenoid valve. If a problem is not
found in the above steps, check the solenoid valve O-rings
and replace them if necessary.

TERMINAL
NO.

NAME

RESISTANCE

7 - 10

Torque converter clutch
solenoid valve

2.7

− 3.4 Ω [at

20

°C (68°F)]

6 - 10

Low-reverse solenoid valve

4 - 9

Second solenoid valve

3 - 9

Underdrive solenoid valve

5 - 9

Overdrive solenoid valve

AC306288AB

A/T CONTROL
SOLENOID VALVE
ASSEMBLY

2

7

1

8

3

9

4

6

10

5

AC002219AD

LOW-
REVERSE
SOLENOID
VALVE

OVERDRIVE
SOLENOID
VALVE

TORQUE
CONVERTER
CLUTCH
SOLENOID

SECOND
SOLENOID
VALVE

UNDERDRIVE
SOLENOID
VALVE

AC100378

1
2

AB

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-381

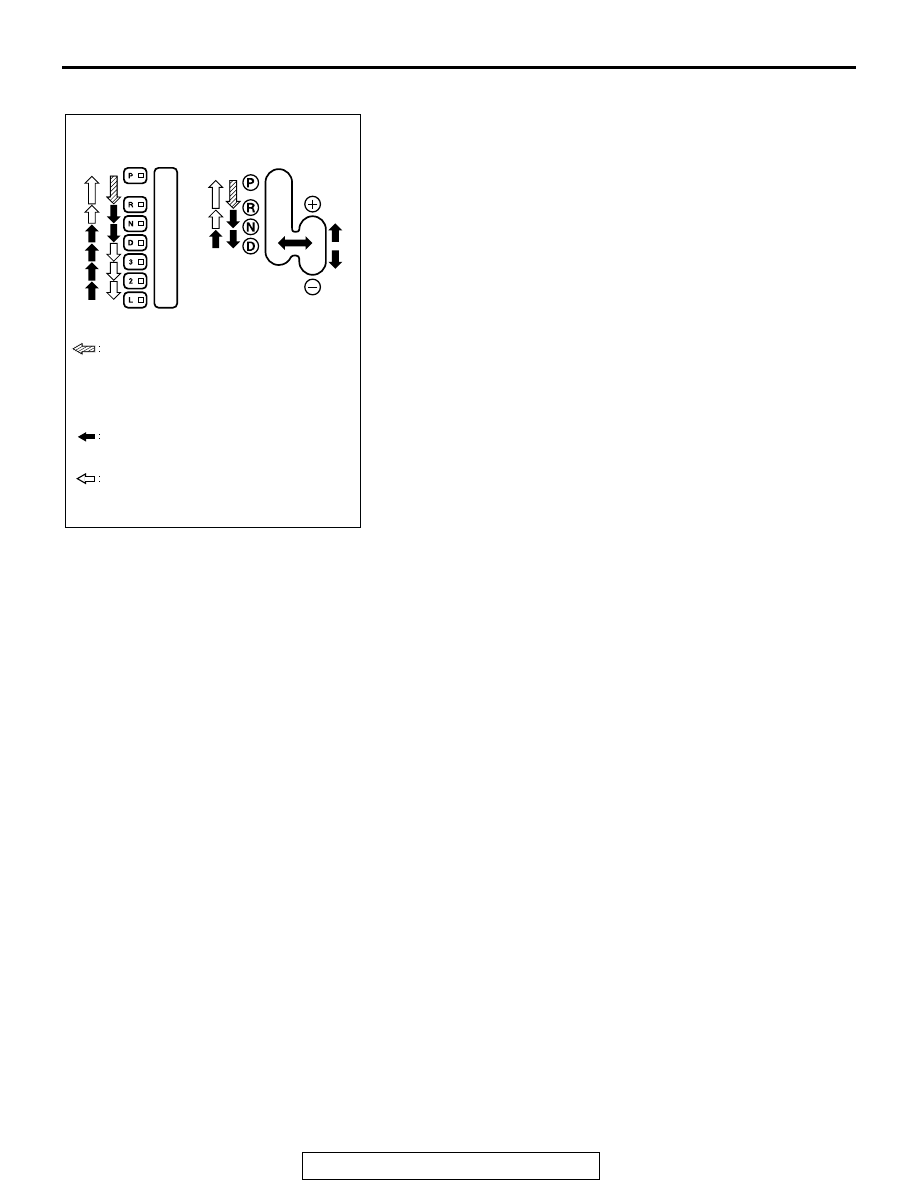

SELECTOR LEVER OPERATION CHECK

M1231001300426

1. Apply the parking brake, and check that the selector lever

moves smoothly and accurately to each position.

2. Check that the engine starts when the selector lever is at the

"N" or "P" position, and that it does not start when the
selector lever is in any other position.

3. Start the engine, release the parking brake, and check that

the vehicle moves forward when the selector lever is moved
from "N" position to "D," "3," "2" or "L" position or to 1st or
2nd gear in Sports mode, and that the vehicle reverses
when the selector lever is moved to "R" position.

4. Stop the engine.
5. Turn the ignition switch to the "ON" position, and check that

the backup lamp illuminates when the selector lever is
shifted from "P" position to "R" position.
NOTE: The A/T mis-operation prevention mechanism is pro-
vided so that the selector lever cannot be moved from the
"P" position if the ignition switch is at a position other than
the "LOCK" (OFF) position and the brake pedal is not
depressed.

AC305529

THE SELECTOR LEVER MOVES WHEN THE
BRAKE PEDAL IS DEPRESSED AND THE
BUTTON IS PUSHED IN WITH THE IGNITION
KEY IN ANY POSITION OTHER THAN THE
 "LOCK" (OFF) POSITION.

THE SELECTOR LEVER MOVES WITHOUT
PUSHING THE BUTTON.

THE SELECTOR LEVER MOVES WHEN THE
BUTTON IS PUSHED.

AB

<VEHICLES WITHOUT
  SPORT MODE>

<VEHICLES WITH
  SPORT MODE>

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-382

KEY INTERLOCK AND SHIFT LOCK MECHANISM
CHECK

M1232003100216

1. Carry out the following inspection.

2. When any of the above checks are not normal, adjust the

key interlock cable and shift lock cable unit in following
procedure.

(1) Remove the front floor console. (Refer to GROUP 52A

−

Floor Console Assembly

P.52A-9

).

(2) Shift selector lever to "P" position.
(3) Turn the ignition key to "LOCK" (OFF) position.

KEY INTERLOCK SIDE

INSPECTION
PROCEDURE

INSPECTION
REQUIREMENT

INSPECTION ITEM (NORMAL CONDITION)

1

Brake pedal:
Depressed

Ignition key position:
"LOCK" (OFF) or removed

Unable to push in the selector lever push
button and move the lever out of the "P"
position.

2

Ignition key position:
"ACC"

Able to push in the selector lever push
button, move the lever out of the "P"
position, and shift to any position.

3

Brake pedal: Not
depressed

Selector lever: Other than
"P" position

Unable to turn the ignition key to the
"LOCK" (OFF) position.

4

Selector lever: "P" position Able to turn the ignition key to the

"LOCK" (OFF) position.

SHIFT LOCK SIDE

INSPECTION
PROCEDURE

INSPECTION CONTENTS

CHECK DETAILS (NORMAL CONDITION)

1

Brake pedal:
Not depressed

Ignition key
position: "ACC"

When the selector lever push button is depressed, the
selector lever can not be shifted out of the "P" position.

2

Brake pedal:
Depressed

When the selector lever push button is depressed, the
selector lever can be shifted smoothly to other position.

3

Brake pedal:
Not depressed

When the selector lever push button is depressed, the
selector lever can be shifted smoothly from the "R"
position to the "P" position.
