PARKING BRAKE LINING AND DRUM
TSB Revision
PARKING BRAKES
36-11

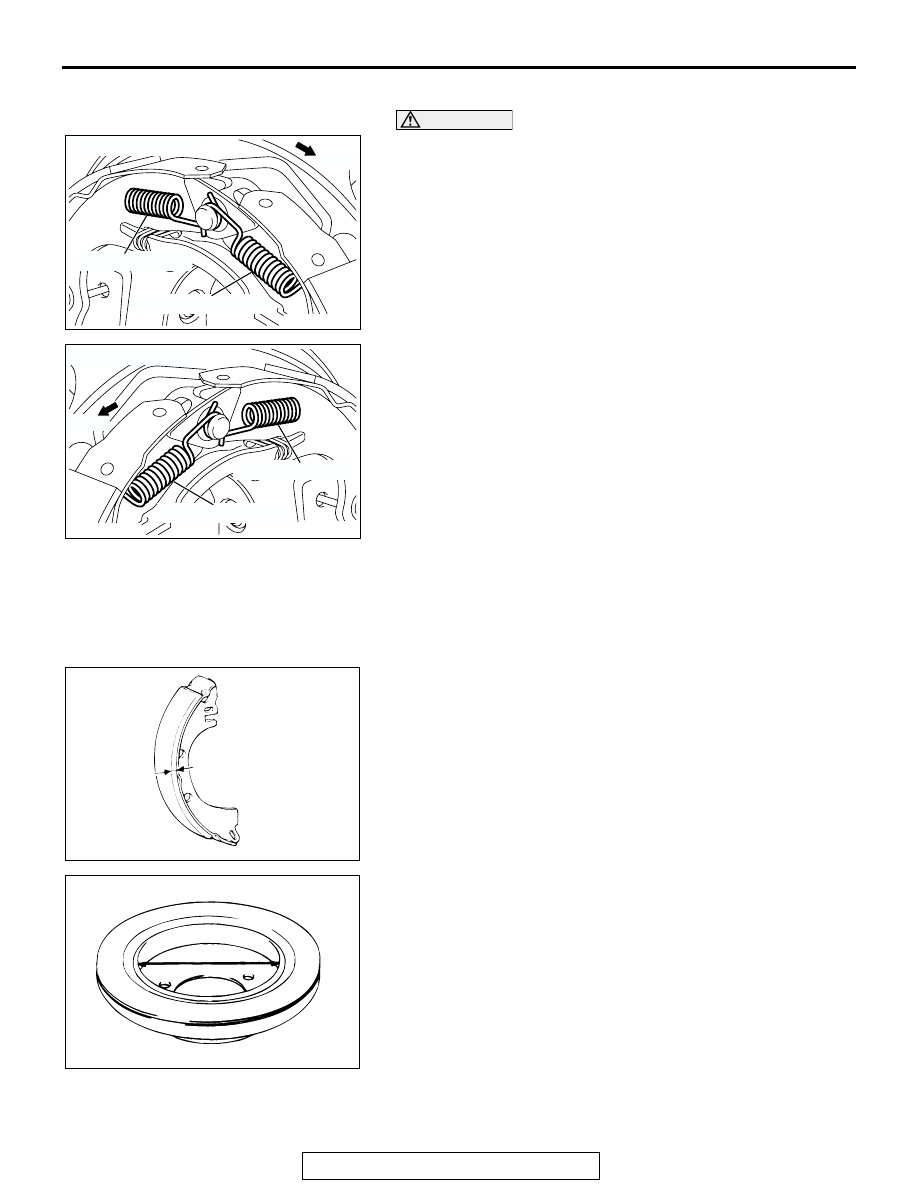

>>C<< SHOE-TO-ANCHOR SPRING INSTALLATION
CAUTION
The front and rear shoe-to-anchor springs are not inter-
changeable, so the blue spring must be installed at the
front side and the yellow spring must be installed at the
rear side.
Install the shoe-to-anchor springs in the order shown in the
illustration.
INSPECTION
M1361002600260
PARKING BRAKE LINING AND BRAKE DRUM
CHECK
1. Measure the thickness of the brake lining at several places.
Standard value: 2.8 mm (0.11 inch)
Minimum Limit: 1.0 mm (0.04 inch)
2. If the thickness of the brake lining is below the limit, replace
the shoe assemblies on both sides of the vehicle. Never
replace only one side.
3. Measure the inside diameter of the brake disc in two places
or more.
Standard value: 168.0 mm (6.61 inches)
Limit: 169.0 mm (6.65 inches)
4. If the inside diameter exceeds the limit, or if it is excessively
worn on one side, replace the brake disc.
AC206986
AB
REAR
1 (BLUE SPRING)
2 (YELLOW SPRING)
LEFT SIDE WHEEL
AC209387
AB
REAR
1 (BLUE SPRING)
2 (YELLOW SPRING)
RIGHT SIDE WHEEL
ACX00708AB
ACX00709AB
