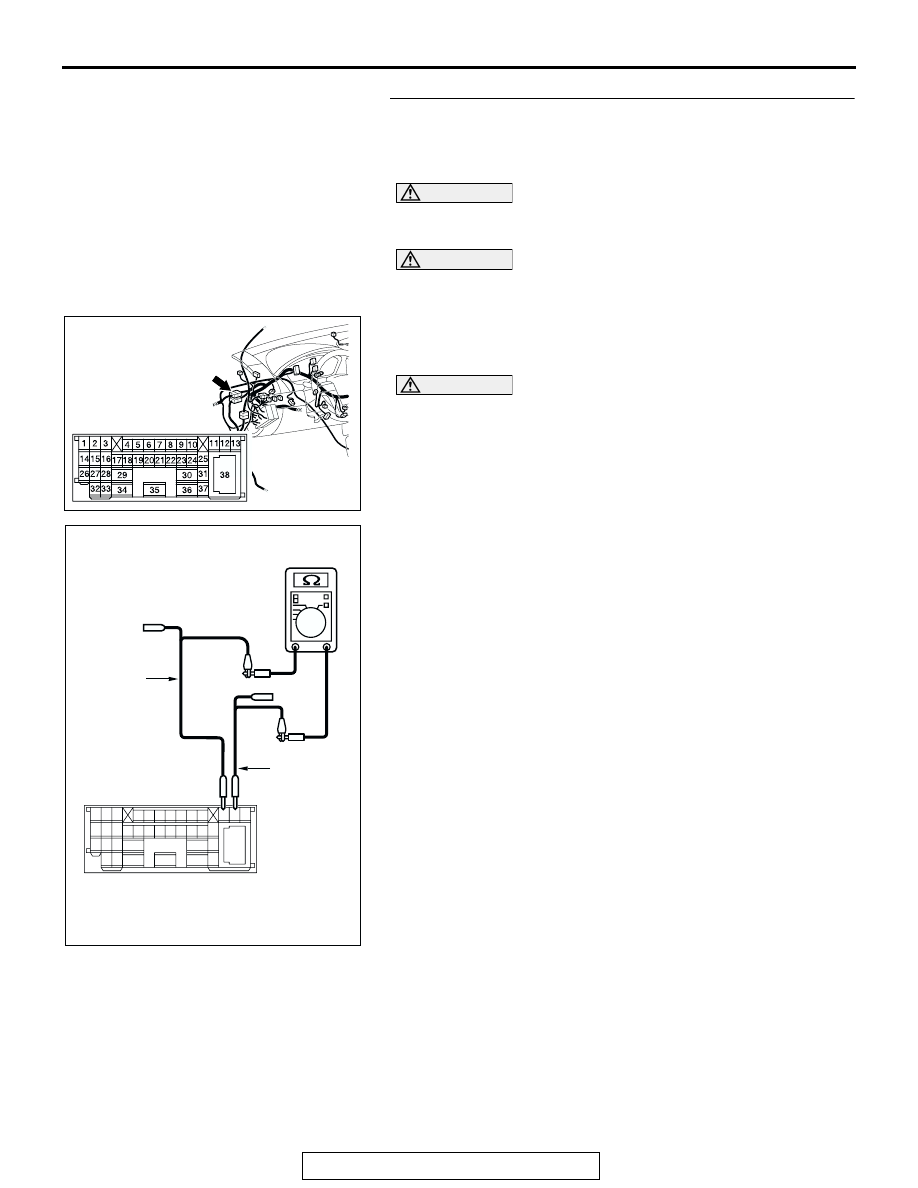

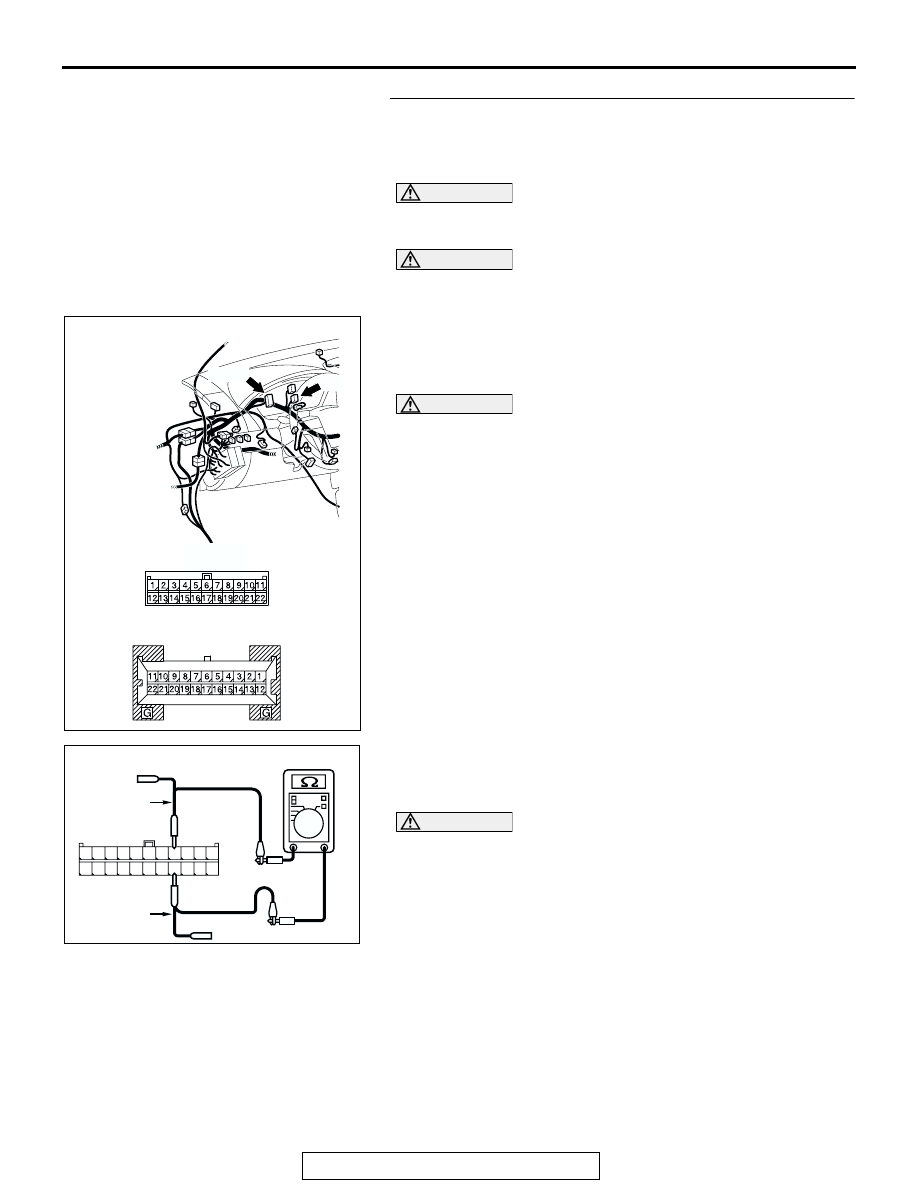

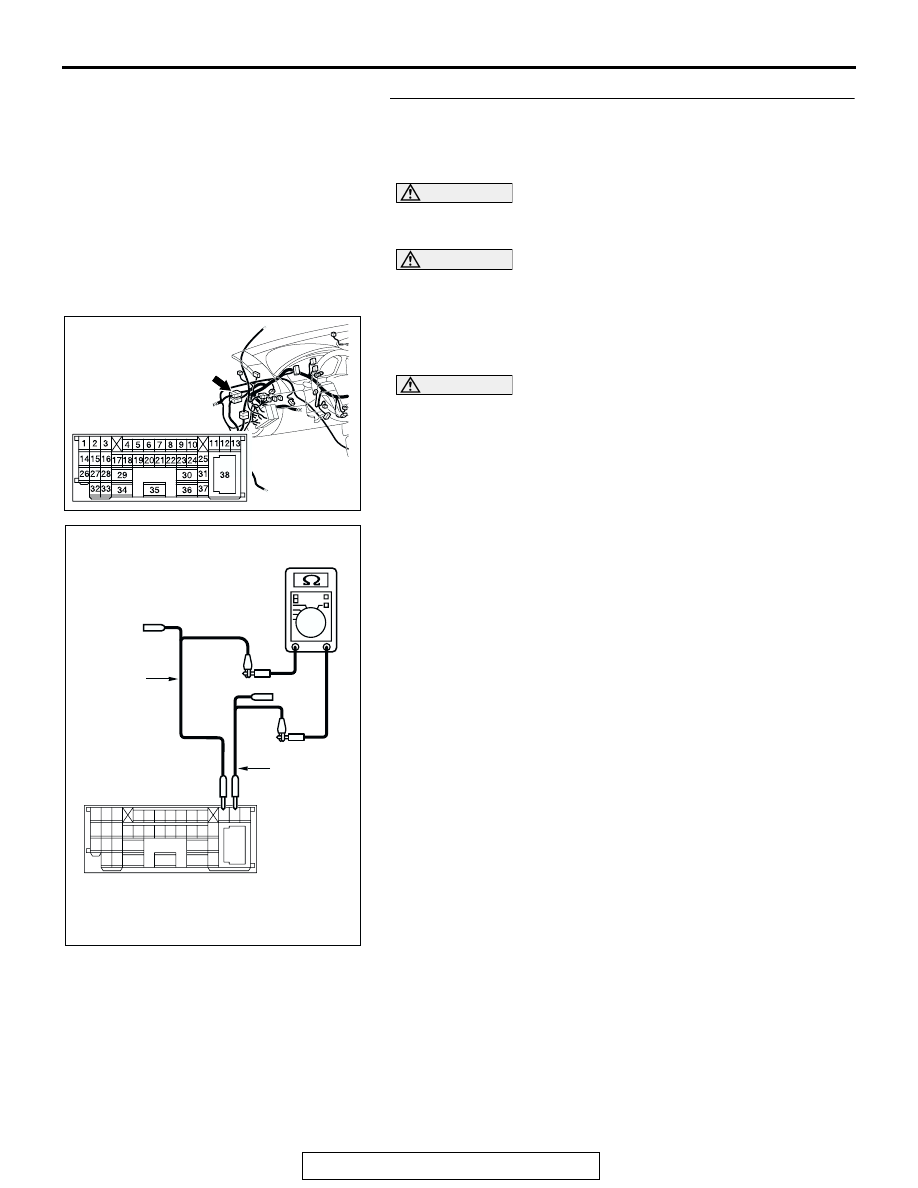

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-315 STEP 2. Check the lines between the CAN_L and H lines intermediate connector C-29. CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect intermediate connector C-29, and measure the resistance at the male side (at front wiring harness side). (2) Turn the ignition switch to the "LOCK" (OFF) position. CAUTION Disconnect the negative battery terminal. For details refer . (3) Disconnect the negative battery terminal. (4) Measure the resistance between intermediate connector terminals 11 and 12. OK: 120 ± 20 Ω Q: Does the resistance measure 120 ± 20 Ω? YES : If the resistance measures 120 ± 20 Ω, go to Step 3. NO : If the resistance does not measure 120 ± 20 Ω> Go to Step 26. AC305231AI CONNECTOR: C-29 AC204582 2 3 27 32 28 33 16 15 4 5 19 18 29 17 34 7 8 35 22 21 9 10 30 36 31 37 25 24 23 6 20 1 14 26 11 13 12 38 BX TEST TEST MALE SIDE: C-29 |
