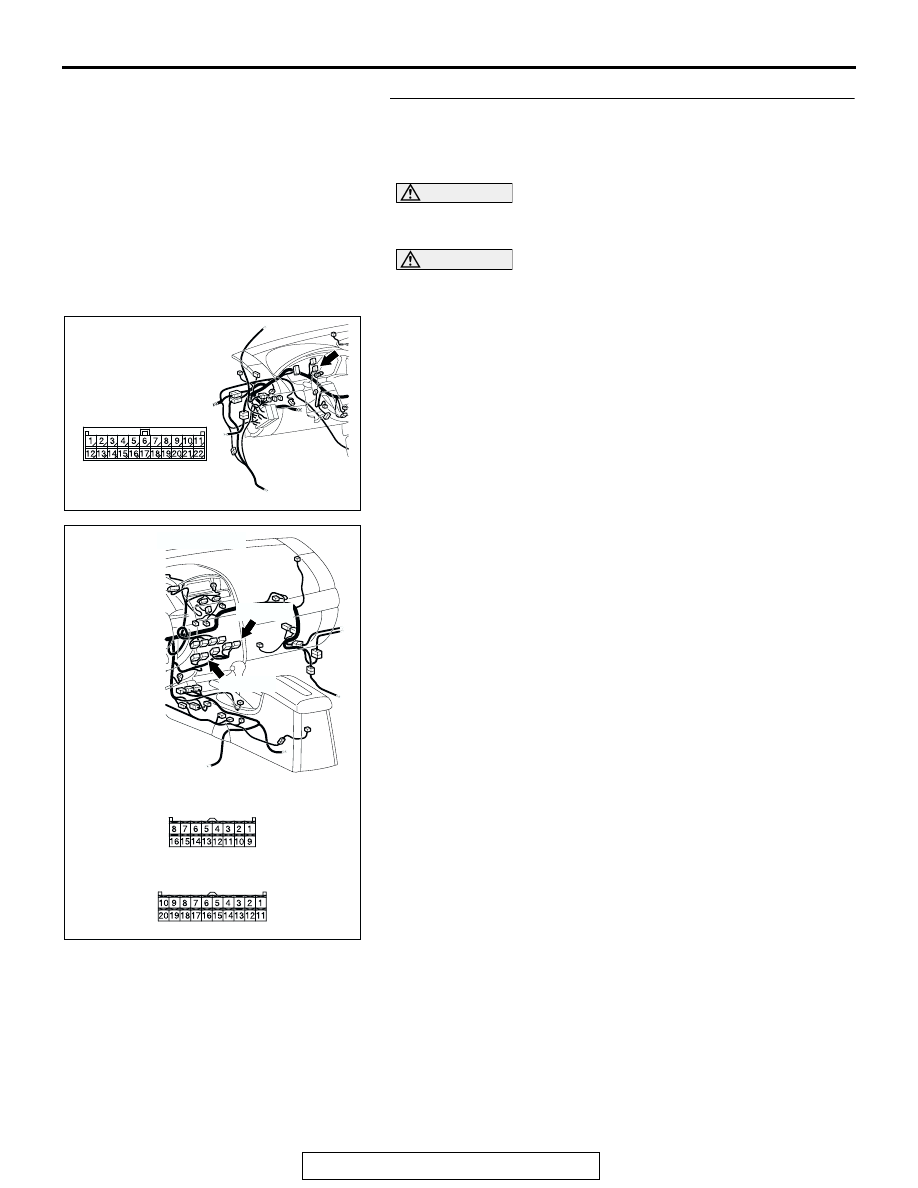

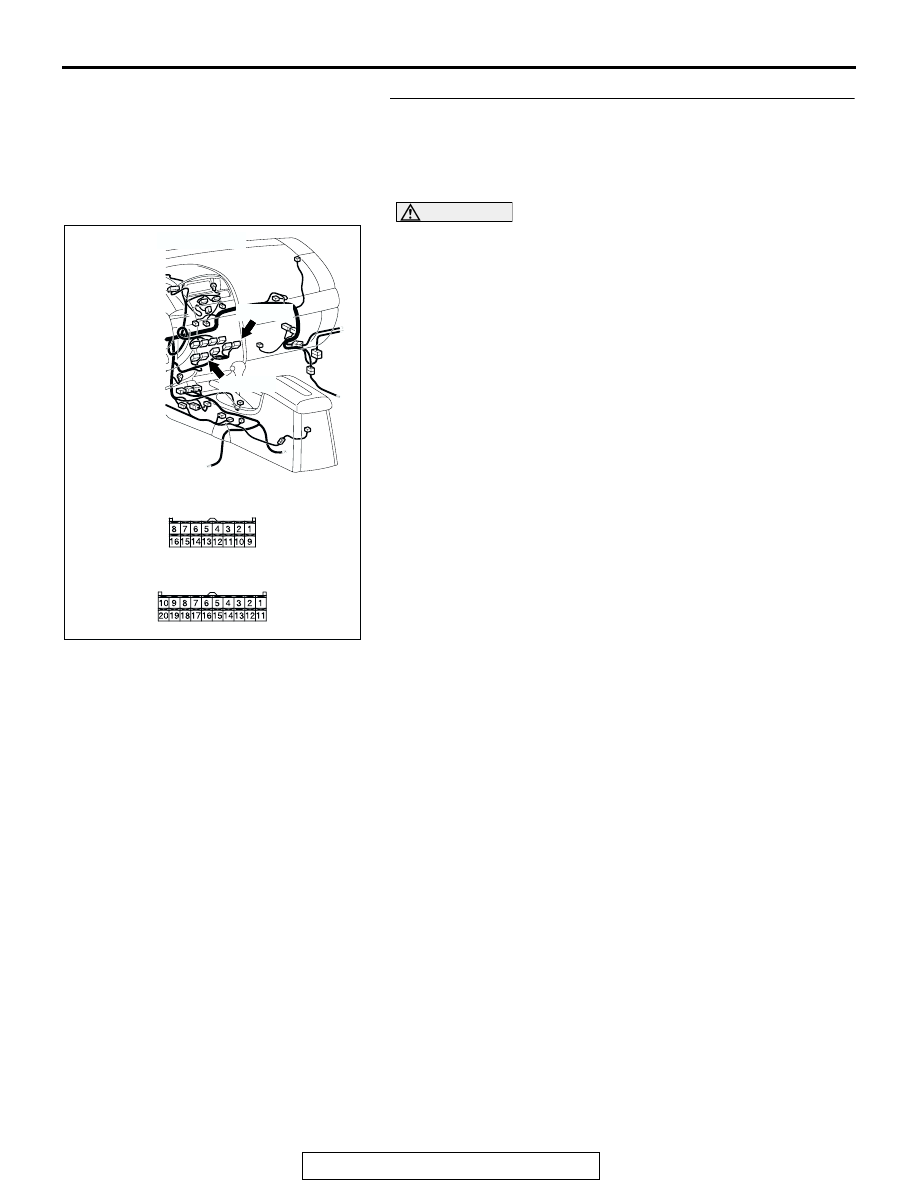

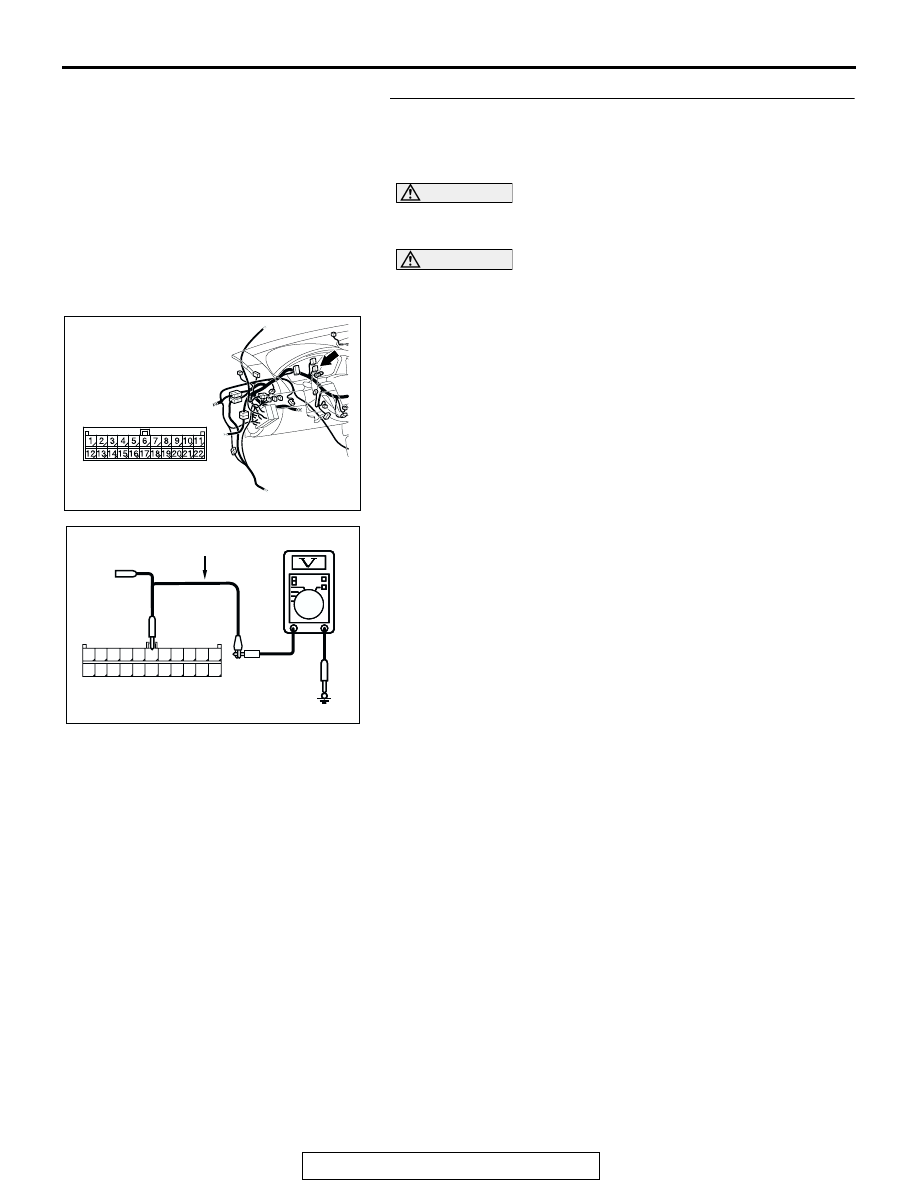

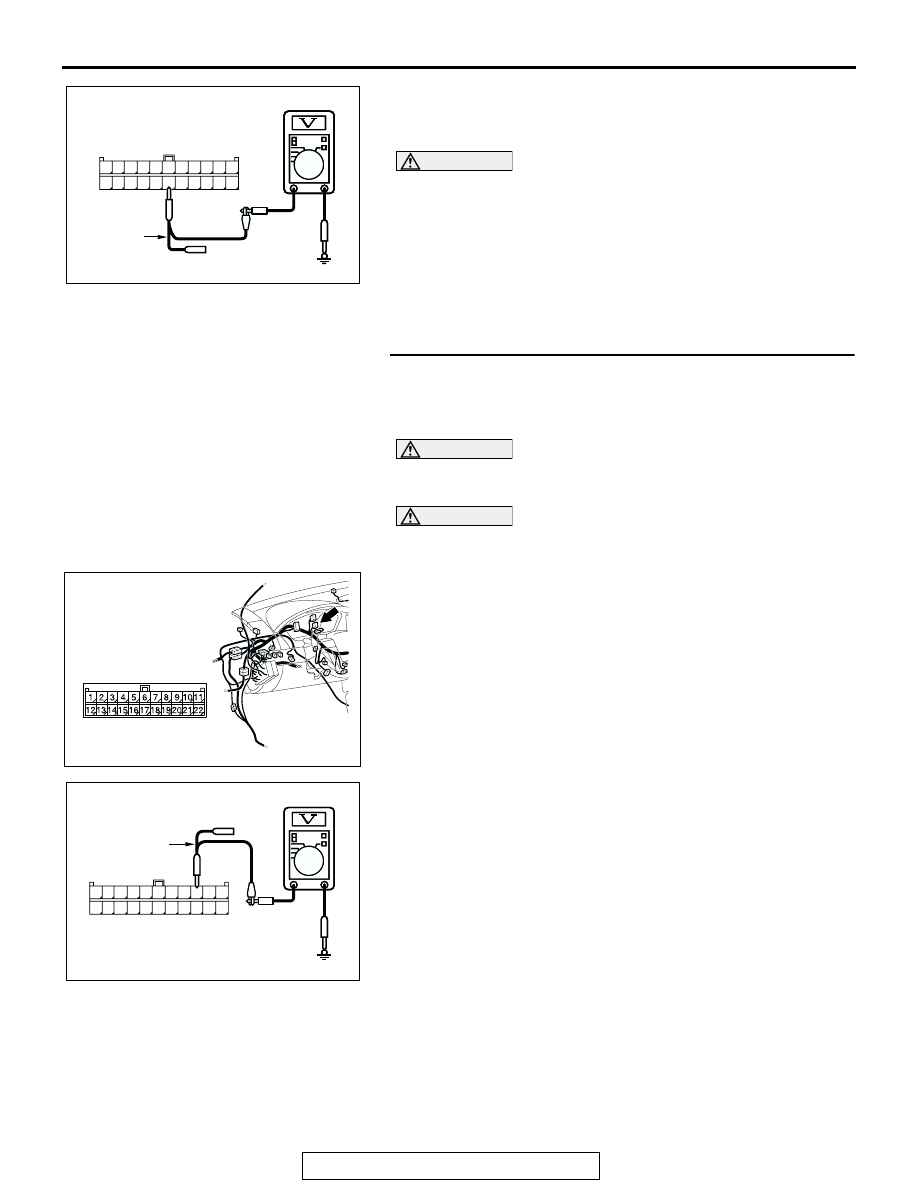

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-87 STEP 12. Check the CAN_H line (communication line Measure the voltage at joint connector (3) C-02. CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect joint connector (3) C-02, and measure the voltage at the wiring harness side of joint connector (3) (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between joint connector (3) terminal 6 and body ground. OK: 4.0 V or less Q: Does the voltage measure 4.0 V or less? YES : If the voltage measures 4.0 V or less, go to Step 15. 13. AC305231AP CONNECTOR: C-02 AC209365 11 22 10 21 9 20 8 19 7 18 6 17 5 16 4 15 3 14 2 13 1 12 AC209365 AC209365 HARNESS SIDE: C-02 FS TEST HARNESS |
