SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-203

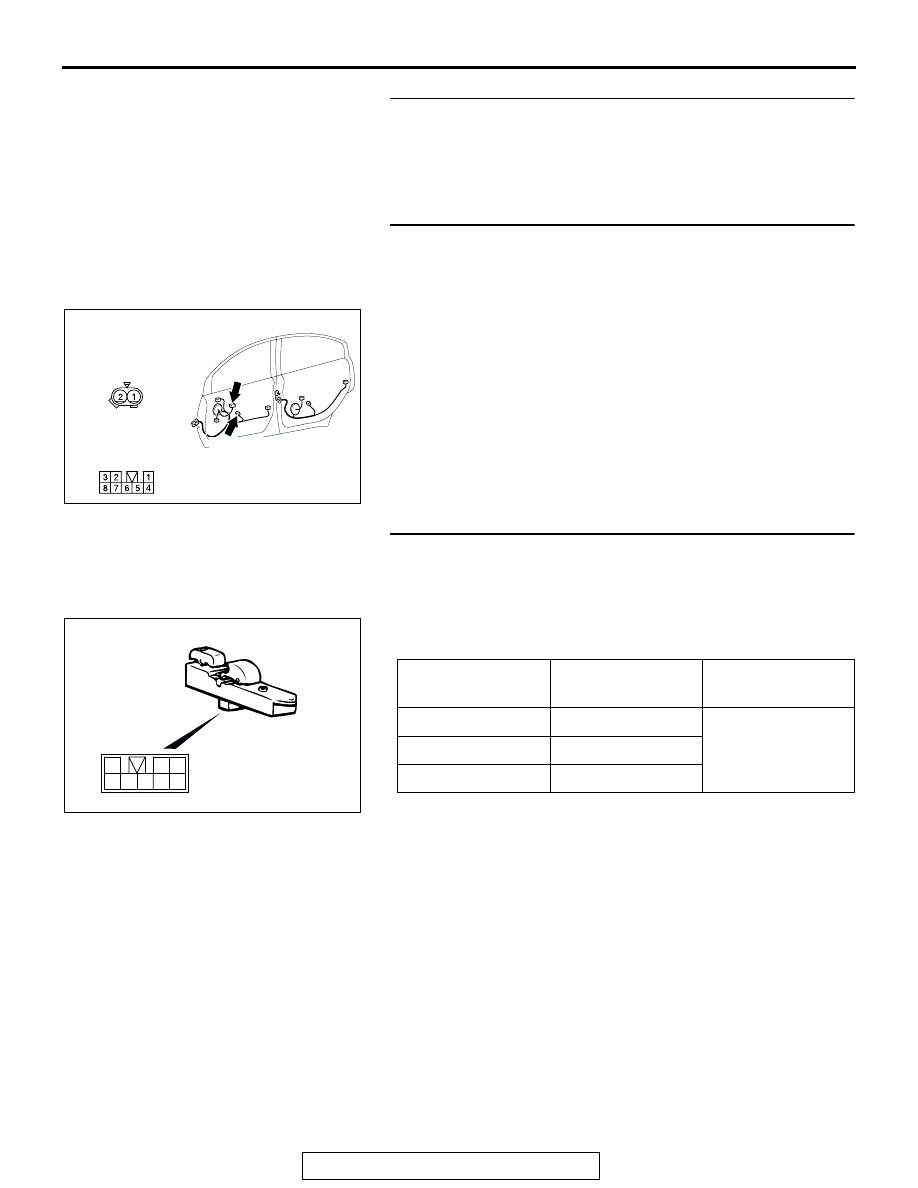

STEP 4. Check which door window does not move.
Q: Which door window does not move?

Front passenger's side : Go to Step 5.
Rear passenger (LH) : Go to Step 14.
Rear passenger (RH) : Go to Step 23.

STEP 5. Check front power window sub switch connector
E-04 and front power window regulator motor (RH)
connector E-03 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q: Are front power window sub switch connector E-04 and

front power window regulator motor (RH) connector
E-03 in good condition?
YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the front power window sub switch

(RH) is operated, the front power window (RH) should
raise and lower normally.

STEP 6. Check the front power window sub switch for
continuity.
(1) Remove the front power window sub switch. Refer to

GROUP 42, Door, Door Glass and Regulator

P.42-39

.

(2) Check continuity when the front power window sub switch is

operated to "UP" or "DOWN" position.

Q: Is the front power window sub switch normal?

YES : Go to Step 7.
NO :  Replace the front power window sub switch. When

the front power window sub switch is operated, the
front power window should raise and lower normally.

AC305333

E-03(GR)

E-04

CONNECTORS:E-03,E-04

AB

HARNESS SIDE

E-03

E-04

HARNESS SIDE

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

UP

4

− 5, 6 − 7

Less than 2 ohms

OFF

4

− 5, 6 − 8

DOWN

4

− 7, 6 − 8

AC210746

8

3

4 5

1

2

6 7

AD

<FRONT>

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-204

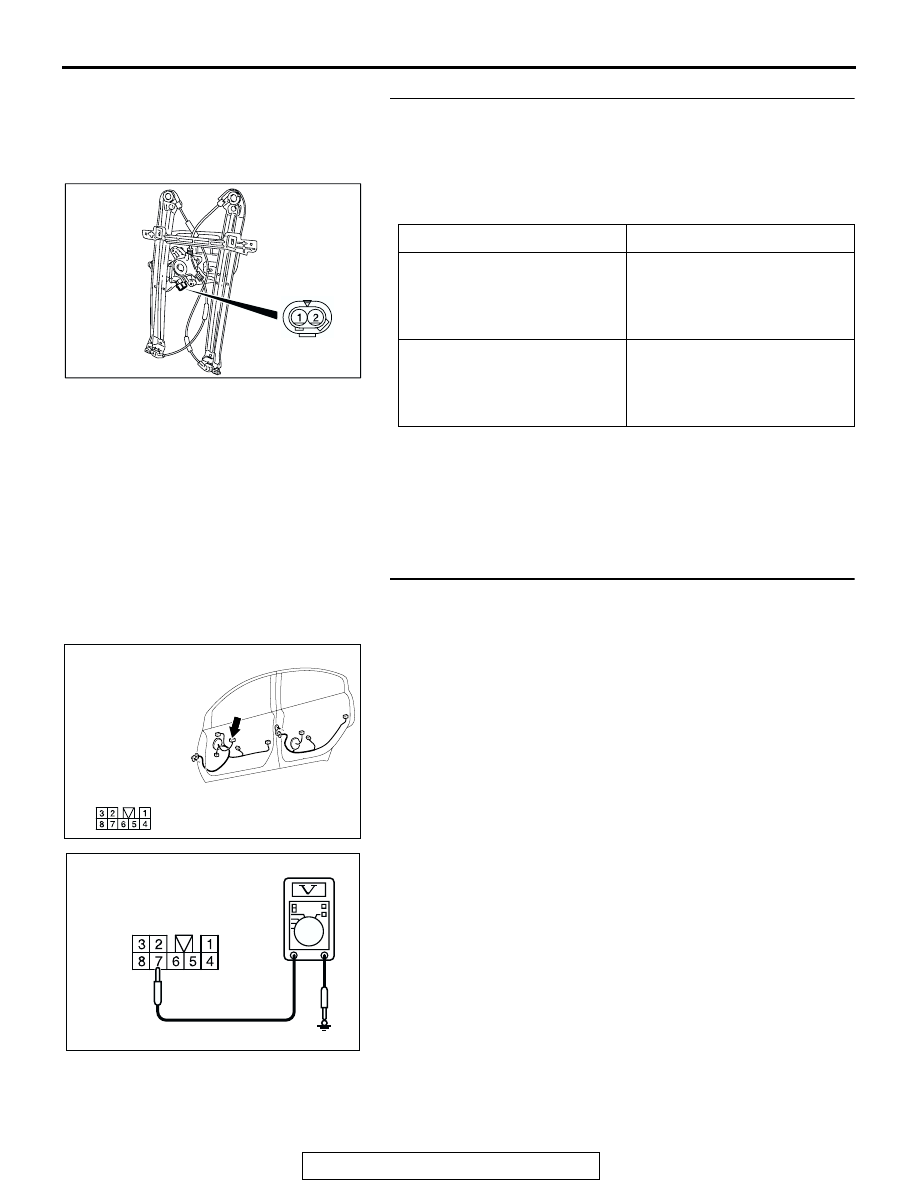

STEP 7. Check the front power window regulator motor
(RH).

(1) Remove the front power regulator assembly (RH). Refer to

GROUP 42, Door, Door Glass and Regulator

P.42-39

.

(2) Connect a battery to the motor terminal, and check that the

motor runs freely.

Q: Is the front power window regulator motor (RH) normal?

YES : Go to Step 8.
NO :  Replace the front power regulator assembly (RH).

When the front power window sub switch (RH) is
operated, the front power window (RH) should raise
and lower normally.

STEP 8. Check the battery power supply circuit to the front
power window sub switch. Measure the voltage at front
power window sub switch connector E-04.

(1) Disconnect front power window sub switch connector E-04

and measure the voltage available at the wiring harness

side of the connector.

(2) Measure the voltage between terminal 7 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 11.
NO :  Go to Step 9.

BATTERY CONNECTION

SLIDER POSITION

• Connect terminal 1 to the

negative battery terminal

• Connect terminal 2 to the

positive battery terminal

UP

• Connect terminal 2 to the

negative battery terminal

• Connect terminal 1 to the

positive battery terminal

DOWN

1 2

AC204901AB

AC305333

CONNECTOR:E-04

AC

HARNESS SIDE

AC209365EH

CONNECTOR E-04
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-205

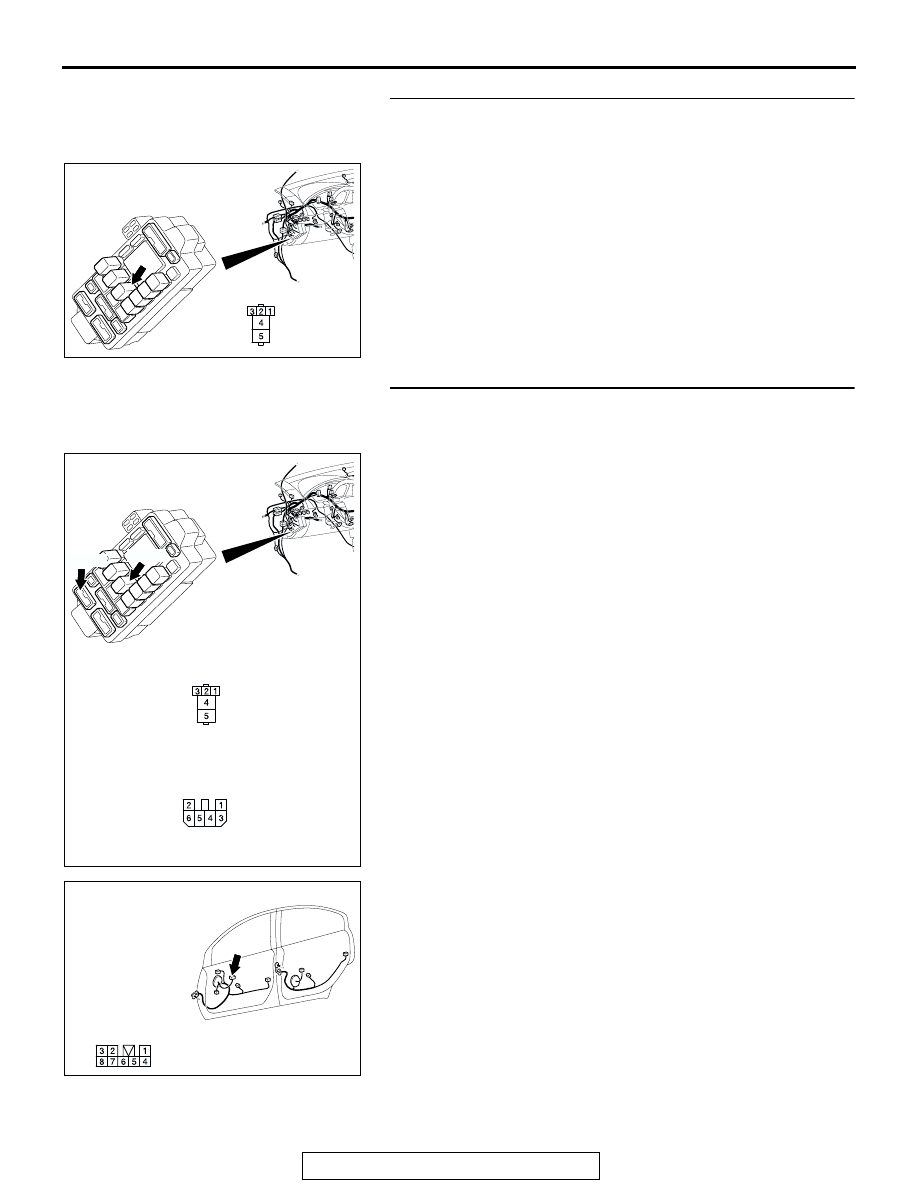

STEP 9. Check power window relay connector C-203 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is power window relay connector C-203 in good

condition?
YES : Go to Step 10.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the front power window sub switch

(RH) is operated, the front power window (RH) should
raise and lower normally.

STEP 10. Check the wiring harness between power
window relay connector C-203 (terminal 4) and front power

window sub switch connector E-04 (terminal 7).

AC305415 AC

JUNCTION BLOCK SIDE

CONNECTOR:C-203

JUNCTION BLOCK

(FRONT VIEW)

AC305416

JUNCTION BLOCK SIDE

C-203

HARNESS SIDE

C-215

CONNECTORS: C-203,C-215

AE

C-203

C-215

JUNCTION BLOCK

(FRONT VIEW)

AC305333

CONNECTOR:E-04

AC

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-206

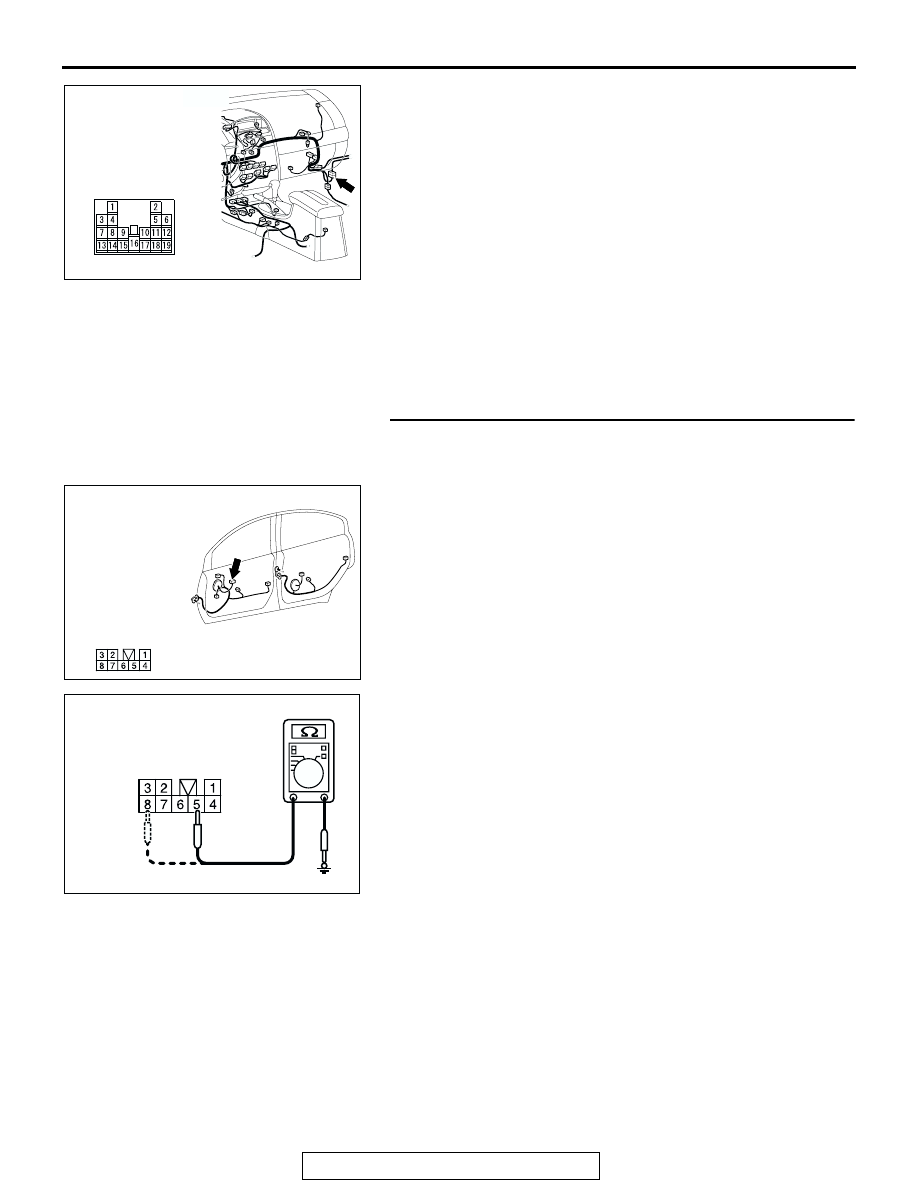

NOTE: Also check junction block connector C-215 and inter-
mediate connector C-12. If junction block connector C-215 or
intermediate connectors C-12 is damaged, repair or replace the
damaged component(s) as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window relay

connector C-203 (terminal 4) and front power window
sub switch connector E-04 (terminal 7) in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
front power window sub switch is operated, the front
power window (RH) should raise and lower normally.

STEP 11. Check the ground circuit to the front power
window sub switch. Measure the resistance at front power
window sub switch connector E-04.

(1) Disconnect front power window sub switch connector E-04

and measure the resistance available at the wiring harness

side of the connector.

(2) Measure the resistance value between terminal 5 and

ground, and also between terminal 8 and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 13.
NO :  Go to Step 12.

AC305233

CONNECTOR:C-12

AB

AC305333

CONNECTOR:E-04

AC

HARNESS SIDE

AC209364FW

CONNECTOR E-04
(HARNESS SIDE)
