SYSTEM OPERATION
FOUR-WHEEL ANTI-LOCK BRAKE SYSTEM (4ABS)
35B-13

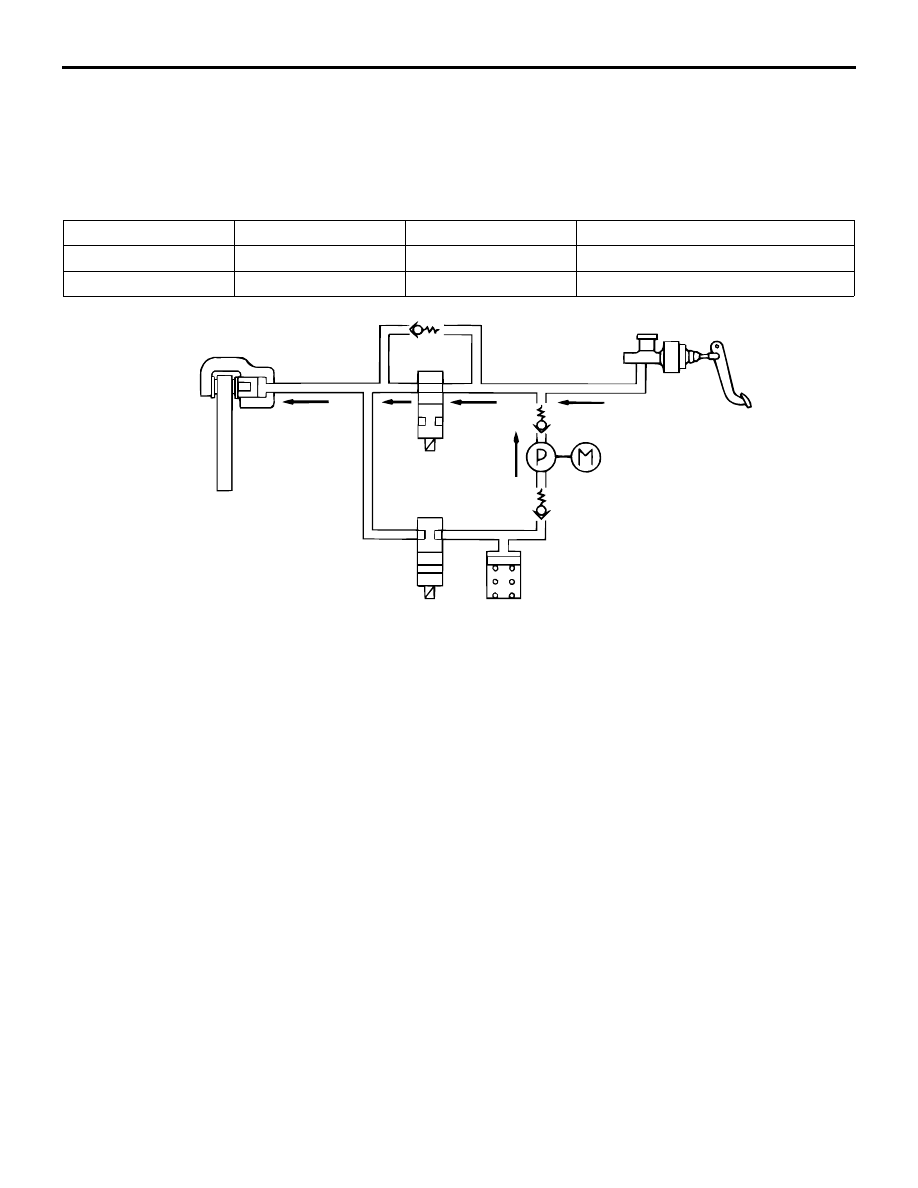

PRESSURE INCREASING MODE
When the ABS-ECU determines that none of the
wheels are approaching lock-up, it stops current sup-
ply to the solenoid valves. As a result, all the sole-
noid valves are de-energized, and the fluid in the
master cylinder flows through solenoid valve IN to
the wheel cylinders to apply greater pressure.
SOLENOID VALVE
CURRENT SUPPLY
VALVE POSITION
PASSAGE OPENED/CLOSED
IN
OFF
Opened
Master cylinder to wheel cylinder
OUT
OFF
Closed
Wheel cylinder to reservoir
AC308635
WHEEL CYLINDER
SOLENOID
VALVE IN
SOLENOID
VALVE OUT
RESERVOIR
PUMP AND
MOTOR UNIT
MASTER CYLINDER
AB
