Mitsubishi Galant (2004+). Manual - part 1615





INDIVIDUAL COMPONENT SERVICE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-353

2. Install the air bag module to check fit or alignment with the

steering wheel.

3. Check the steering wheel for noise, binding or difficult

operation and excessive free play.

4. Check the steering column shaft shock absorbing

mechanism (Refer to GROUP 37A, On-Vehicle Service

−

Steering Column Shaft Assembly Shock Absorbing
Mechanism Check

P.37A-25

).

.

Seat belt with pre-tensioner
1. Check the seat belt for damage or deformation.
2. Check the seat belt with pre-tensioner for cracks or

deformation.

3. Check that the unit is installed correctly to the vehicle body.

.

Harness connector (Front wiring harness, instrument
panel wiring harness, and floor wiring harness)
Check the harnesses for binding, the connectors for damage,
poor connection, and the terminals for deformation (Refer to

P.52B-26

).

INDIVIDUAL COMPONENT SERVICE

M1524002900282

WARNING

•

If heat damage occurs during paint work, remove the SRS-ECU, the air bag modules, the
clock spring, front seats, and the seat belt with pre-tensioner. Recheck the SRS system
operability after reinstalling them. (Refer to GROUP 00, Maintenance Service-SRS Mainte-
nance

P.00-57

).

•

SRS-ECU, air bag module, clock spring: 93

°

 C (200

°

 F) or more

•

Seat belt with pre-tensioner: 90

°

C (194

°

 F) or more

•

If the SRS components are removed for the purpose of inspection, sheet metal repair,
painting, etc., they should be stored in a clean, dry place until they are reinstalled.

If the SRS components are to be removed or replaced as a result of maintenance, diagnosis, etc., follow the
appropriate procedure in this section. (Front impact sensor: refer to

P.52B-362

, SRS-ECU: refer to

P.52B-365

, Air bag modules and clock spring: refer to

P.52B-368

, Side impact sensor: refer to

P.52B-377

,

Seat belt with pre-tensioner: refer to

P.52B-380

).

ON-VEHICLE SERVICE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-354

ON-VEHICLE SERVICE

ACCURACY CHECK OF OCCUPANT
CLASSIFICATION SENSOR

M1524025100016

CAUTION

The following precaution must be observed when execut-
ing accuracy testing and calibration.

• Eliminate the occupant classification sensor friction.
• Perform the occupant classification sensor calibration

at room temperature. (Proposal: 20

± 15°C (68 ± 27° F))

(Before the calibration, place the occupant classifica-
tion sensor more than 30 minutes at room tempera-
ture.)

• Do not apply any load or vibration while the weight

check and the calibration is performed.

• Perform the weight check and the calibration after seat

components are all assembled.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

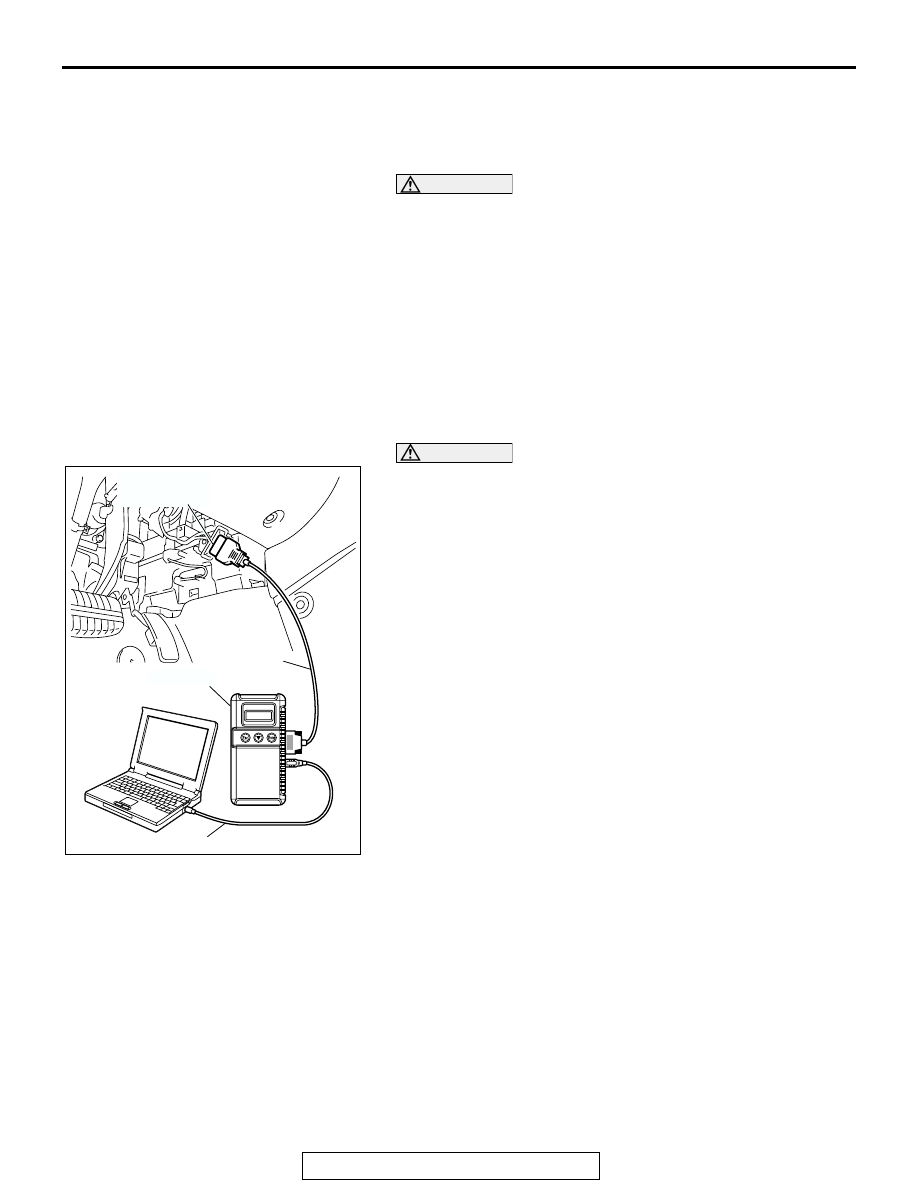

1. Connect scan tool MB991958 to the data link connector.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ON-VEHICLE SERVICE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-355

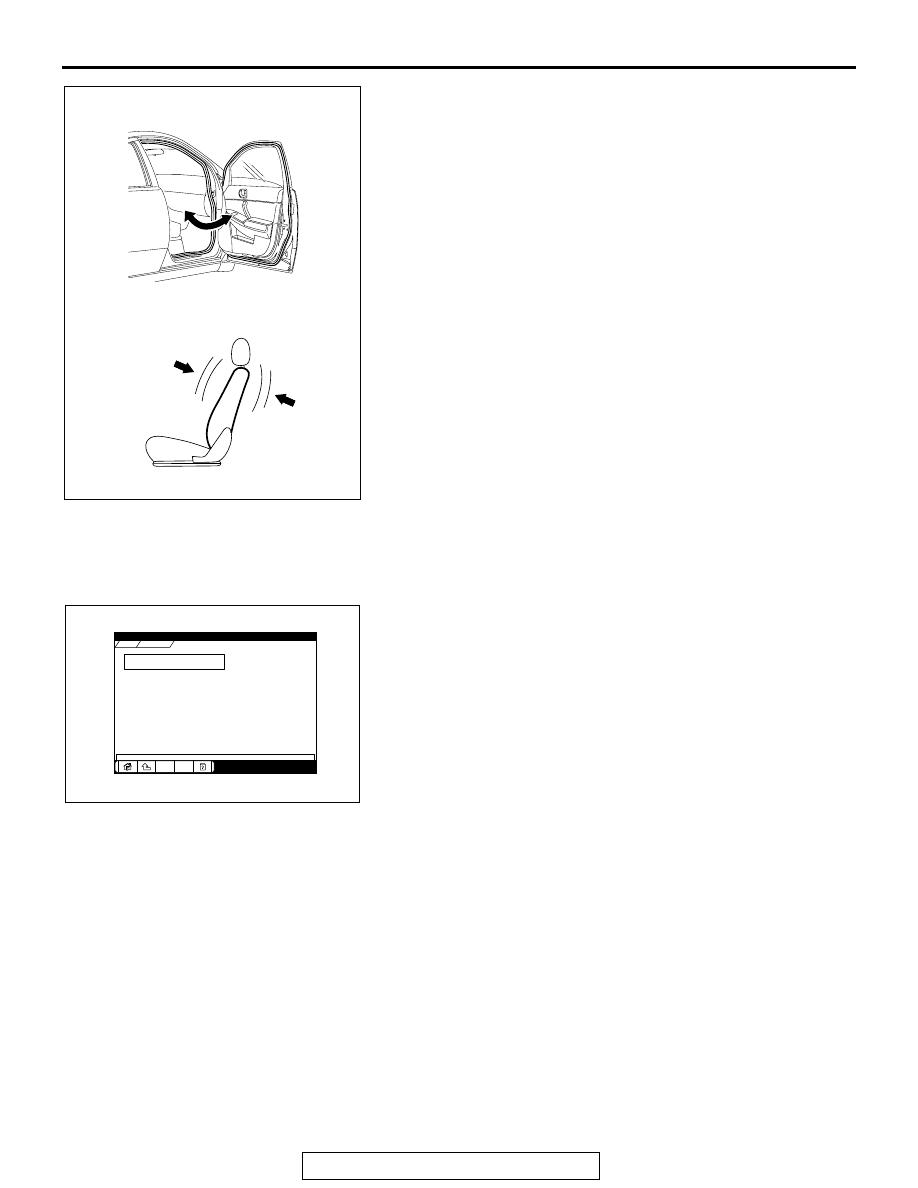

2. Open and close the front door (RH) 5 times hardly to remove

the friction. And if the door does not open and close
smoothly after the impact, hit the front and rear sides of
seatback about eight times each to remove the friction.

3. To execute accuracy check and calibration, operate scan

tool MB991958 (MUT-III Sub Assembly) as follows.

(1) Select "Interactive Diagnosis".
(2) Select "Special Function".
(3) Select "Seat Weight Sensor Accuracy Check".

AC307653

AB

<FRONT DOOR (RH)>

<PASSENGER'S SIDE SEAT>

AC307349

Seat Weight Sensor Accuracy Check

Please select function.

BODY

SRS-Air Bag

Special Function

Special Function

NXXXXXXXXX

ON-VEHICLE SERVICE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-356

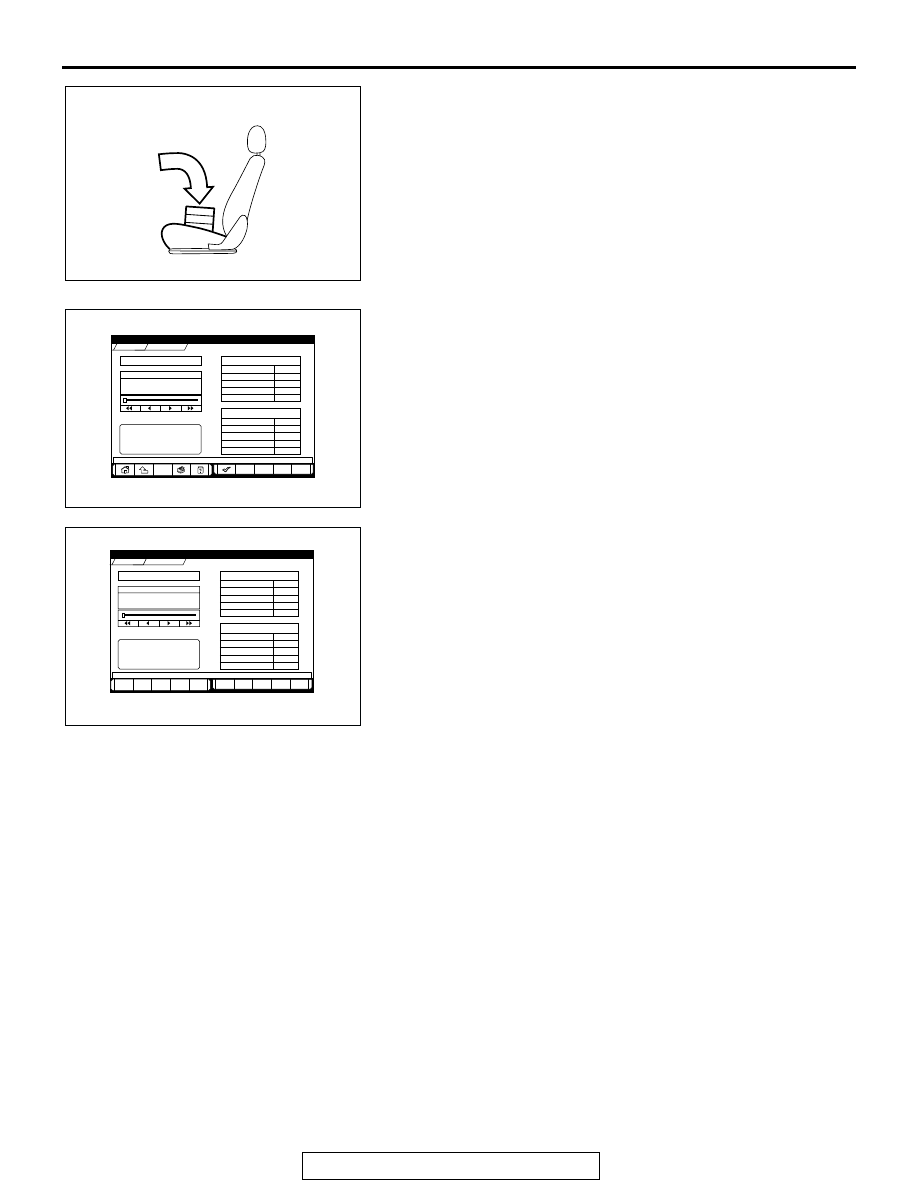

(4) For accuracy check 30 kg (66 pounds), slide the seat to

the front end, and put the 30 kg (66 pounds) weight on
the center of the seat cushion. Then, carry out the friction
removal in step (2) and press the OK button to execute
accuracy check.
NOTE: If there is not the 30 kg (66 pounds) weight, load a
square thing of 30 to 40 kg (66 to 88 pounds) instead of
the weight. At this time, operate the arrow button of
weight input part on MUT-III to input the loaded weight
value.

AC307372

Weight: 30 to 40kg
(66 to 88 pounds)

AB

AC307350

Step1:Accuracy Check -30kg-

Item

Check Result

Input value

Sensor output

Tolerance level

Value

Step1:Accuracy Check Results -30kg-

Part Number:MRxxxxxx/Communication Type:CAN/DVC:xxxxxxxxxx

Weight(30.0-40.0kg)

30.0 kg

Special Function

SRS-Air Bag

Seat Weight Sensor Accuracy Check

Special Function

NXXXXXXXXX

Item

Check Result

Input value

Sensor output

Tolerance level

Value

Step2:Accuracy Check Results -0kg-

(1)Put 30-40kg weight on the center of
     passenger seat.
(2)Input the value of the weight put on the seat.
(3)Press OK button and start the Sensor
     Accuracy Check for 30kg.

AC307351

Step1:Accuracy Check -30kg-

Item

Check Result

Input value

Sensor output

Tolerance level

Value

Step1:Accuracy Check Results -30kg-

Part Number:MRxxxxxx/Communication Type:CAN/DVC:xxxxxxxxxx

Weight(30.0-40.0kg)

Executing

30.0 kg

Special Function

SRS-Air Bag

Seat Weight Sensor Accuracy Check

Special Function

NXXXXXXXXX

Item

Check Result

Input value

Sensor output

Tolerance level

Value

Step2:Accuracy Check Results -0kg-
