SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-313

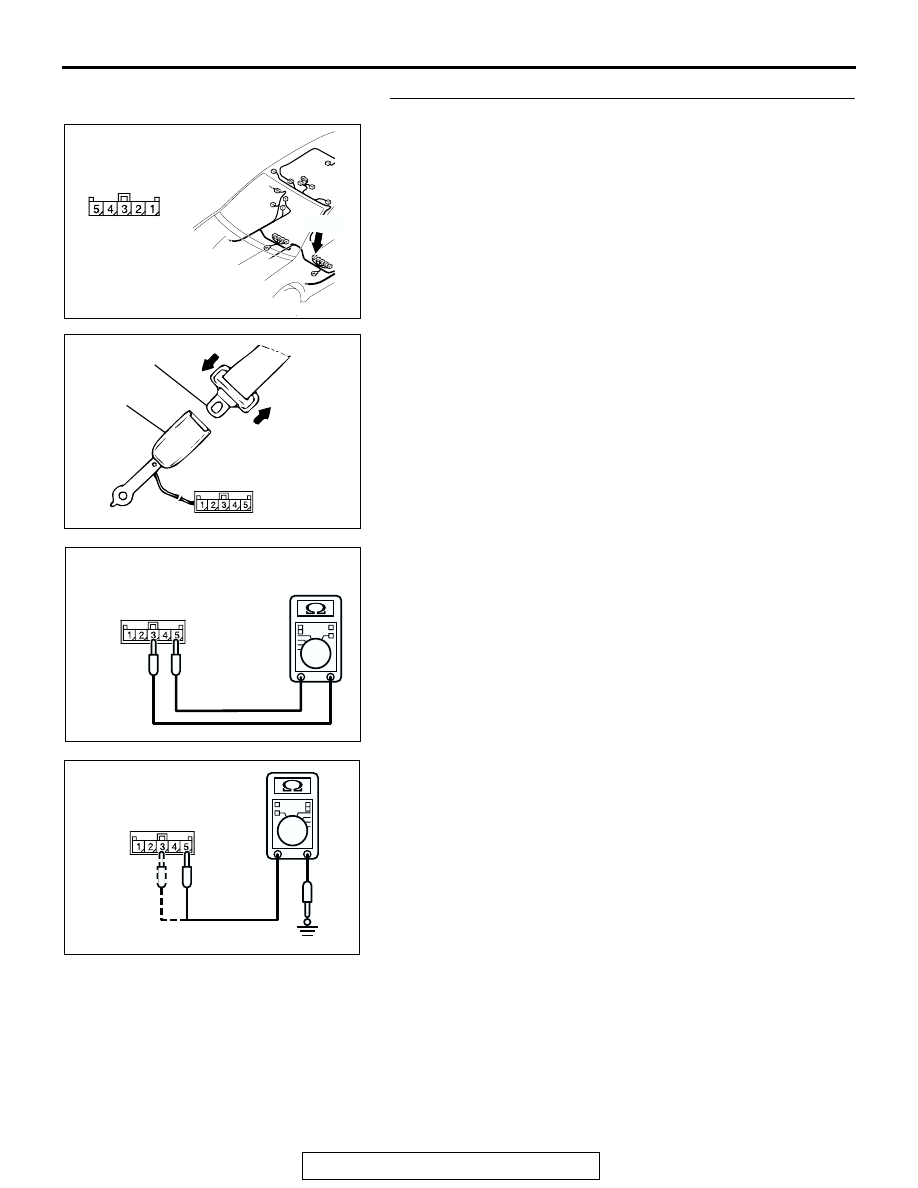

STEP 3. Check the driver’s seat belt switch.

AC305264

AS

CONNECTOR: D-28

D-28 (B)

HARNESS SIDE

AC308221AB

D-28 DRIVER'S
SEAT BELT SWITCH
CONNECTOR

BUCKLE

TONGUE

AC308214AB

D-28 DRIVER'S
SEAT BELT SWITCH
CONNECTOR

AC308219AB

D-28 DRIVER'S
SEAT BELT SWITCH
CONNECTOR

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-314

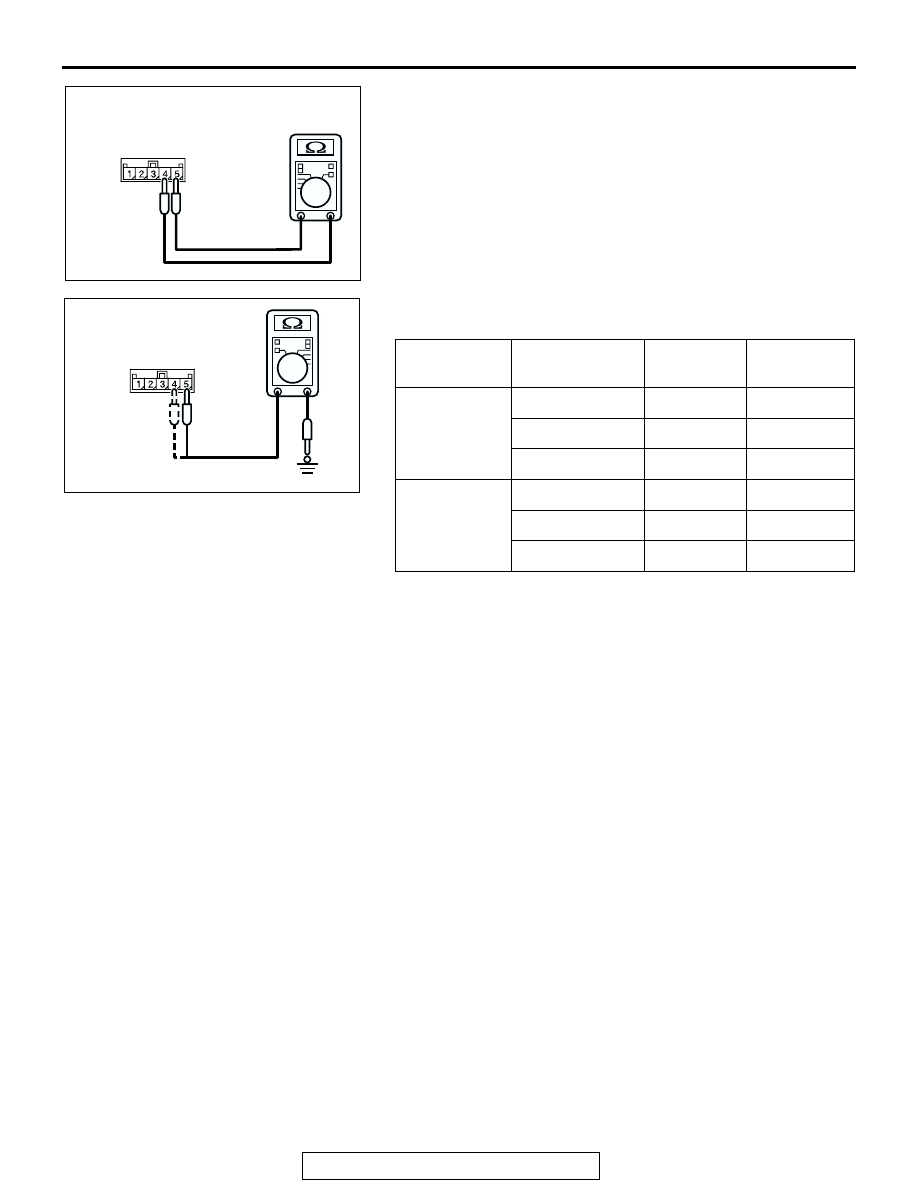

Disconnect driver’s seat belt switch connector D-28. Then
check continuity between the switch terminals.

Q: Is driver’s seat belt switch in good condition?

YES : Go to Step 4.
NO :  Replace inner seat belt. (Refer to GROUP 52A, Front

Seat Belt

P.52A-33

.)

ITEM

TESTER
CONNECTION

STANDARD
VALUE

SPECIFIED
CONDITION

Fastened seat
belt

3

− 5

820

± 20 Ω

−

3

− Ground

−

No continuity

5

− Ground

−

No continuity

Unfastened
seat belt

4

− 5

820

± 20 Ω

−

4

− Ground

−

No continuity

5

− Ground

−

No continuity

AC308215

D-28 DRIVER'S
SEAT BELT SWITCH
CONNECTOR

AB

AC308218 AB

D-28 DRIVER'S
SEAT BELT SWITCH
CONNECTOR

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-315

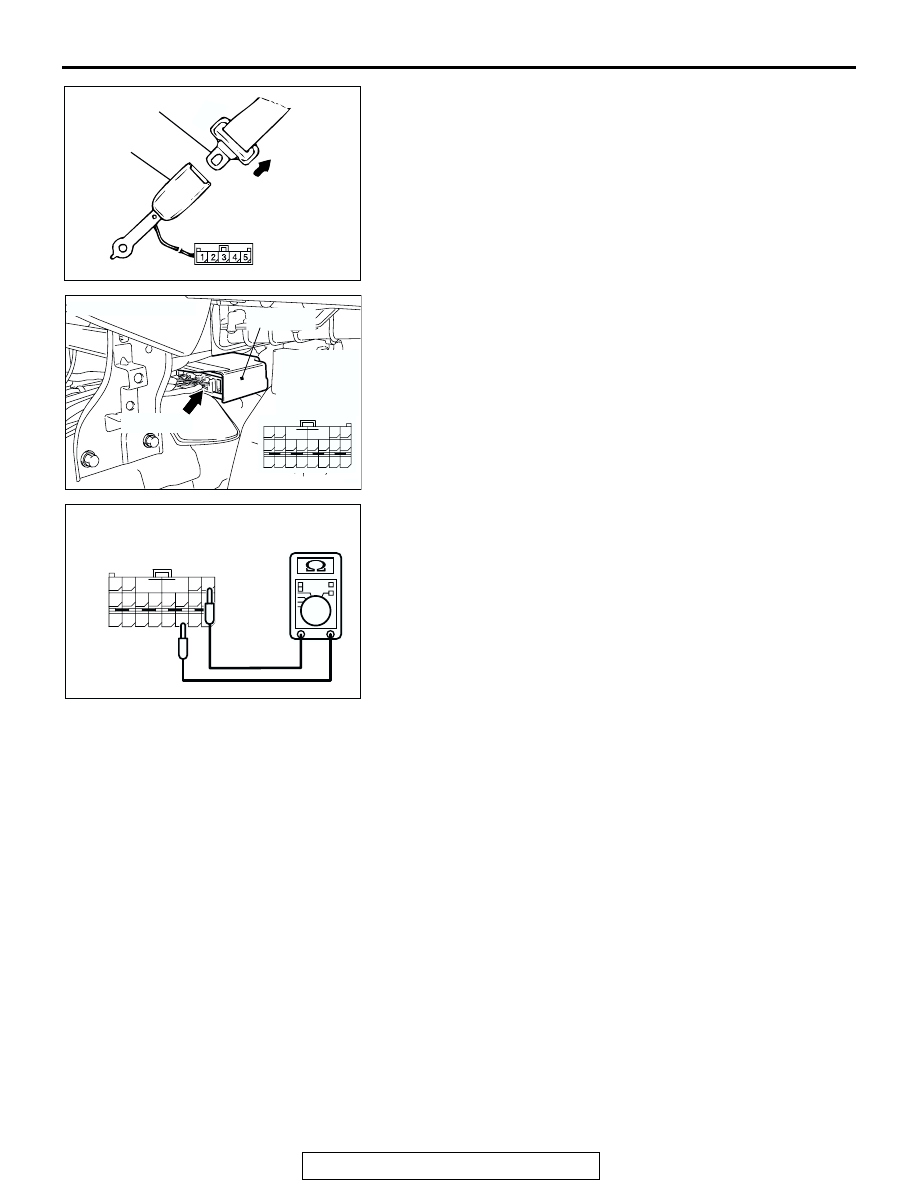

STEP 4. Check the driver’s seat belt switch circuit D-28.
Measure the resistance at SRS-ECU connector C-122.

(1) Disconnect driver’s seat belt switch connector D-28.

(2) Install the driver’s seat belt to the driver’s seat belt switch.

(3) Disconnect SRS-ECU connector C-122 and measure at the

harness side (rear side).

(4) Measure the resistance between terminal 3 and  4.

Resistance should be 820

± 82 Ω

AC305264

AS

CONNECTOR: D-28

D-28 (B)

HARNESS SIDE

AC308221AD

D-28 DRIVER'S
SEAT BELT SWITCH
CONNECTOR

BUCKLE

TONGUE

AC305362

CONNECTOR: C-122

C-122 (Y)

AI

SRS-ECU

C-122
Harness side
connector
(rear view)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AC308212

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

C-122 HARNESS SIDE
CONNECTOR
(REAR VIEW)

AB

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-316

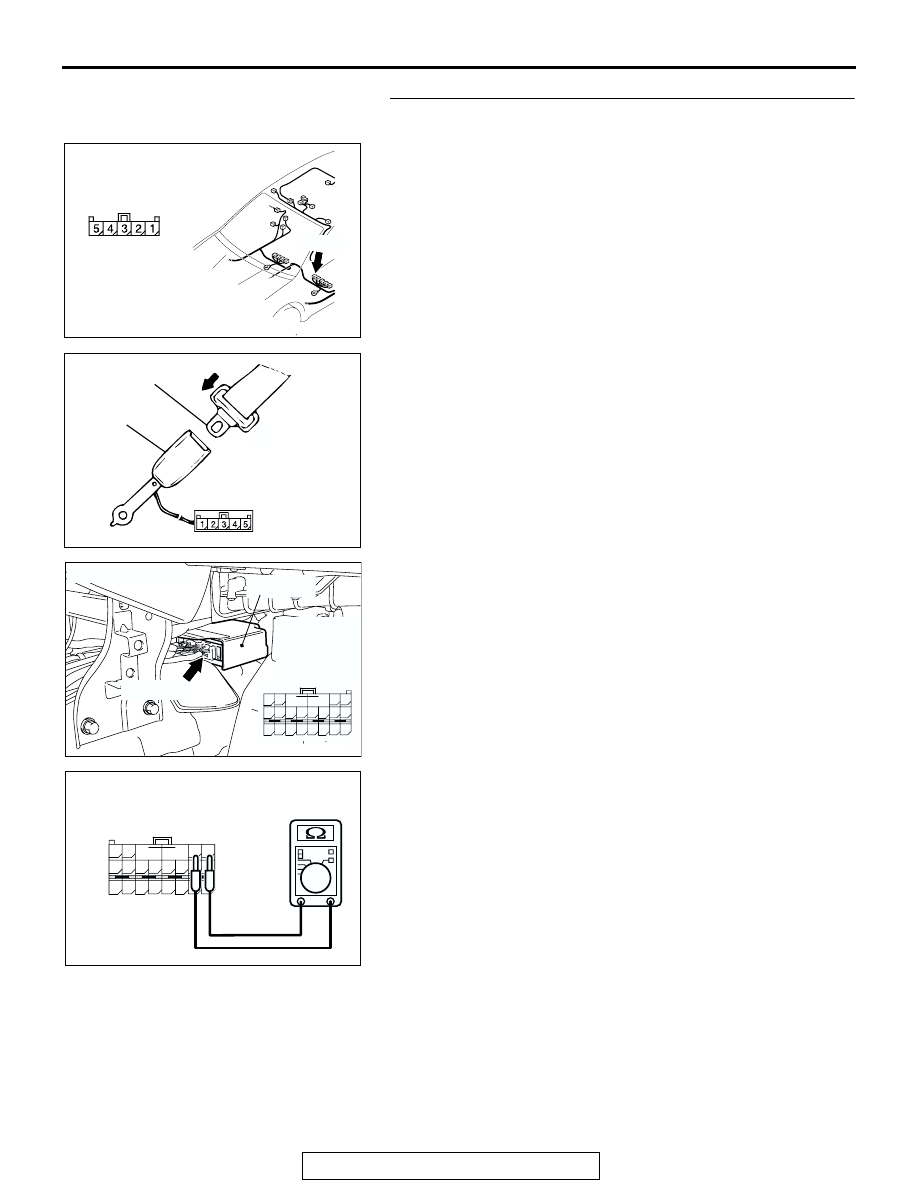

(5) Remove the driver’s seat belt from the driver’s seat belt

switch.

(6) Disconnect SRS-ECU connector C-122 and measure at the

harness side (rear side).

(7) Measure the resistance between terminal 18 and  4.

Resistance should be 820

± 82 Ω

Q: Does the resistance meet the value above?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1530, B1531,
B1532, B1533, B1534, B1535, B1536, B1537, B1538
or B1539 are set, replace the SRS-ECU. (Refer to

P.52B-365

.) Then go to Step 6.

NO :  Go to Step 5.
