Mitsubishi Galant (2004+). Manual - part 1580
SRS AIR BAG DIAGNOSIS
TSB Revision
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-213
NOTE: *: The squib circuit connectors integrate a
"short" spring (which prevents the seat belt
pre-tensioner from deploying unintentionally due to
static electricity by shorting the positive wire to the
ground wire in the squib circuit when the connectors
are disconnected) (Refer to
). Therefore, if
connector C-122 or D-21 is damaged or improperly
engaged, the short spring may not be released when
the connector is connected.
.
DIAGNOSIS
Required Special Tools:
• MB991958: Scan Tool (MUT-III Sub Assembly)
• MB991824: Vehicle Communication Interface (V.C.I.)
• MB991827: MUT-III USB Cable
• MB991910: MUT-III Main Harness A
• MB991865: Dummy resister
• MB991884: Resister harness (For Pre-tensioner)

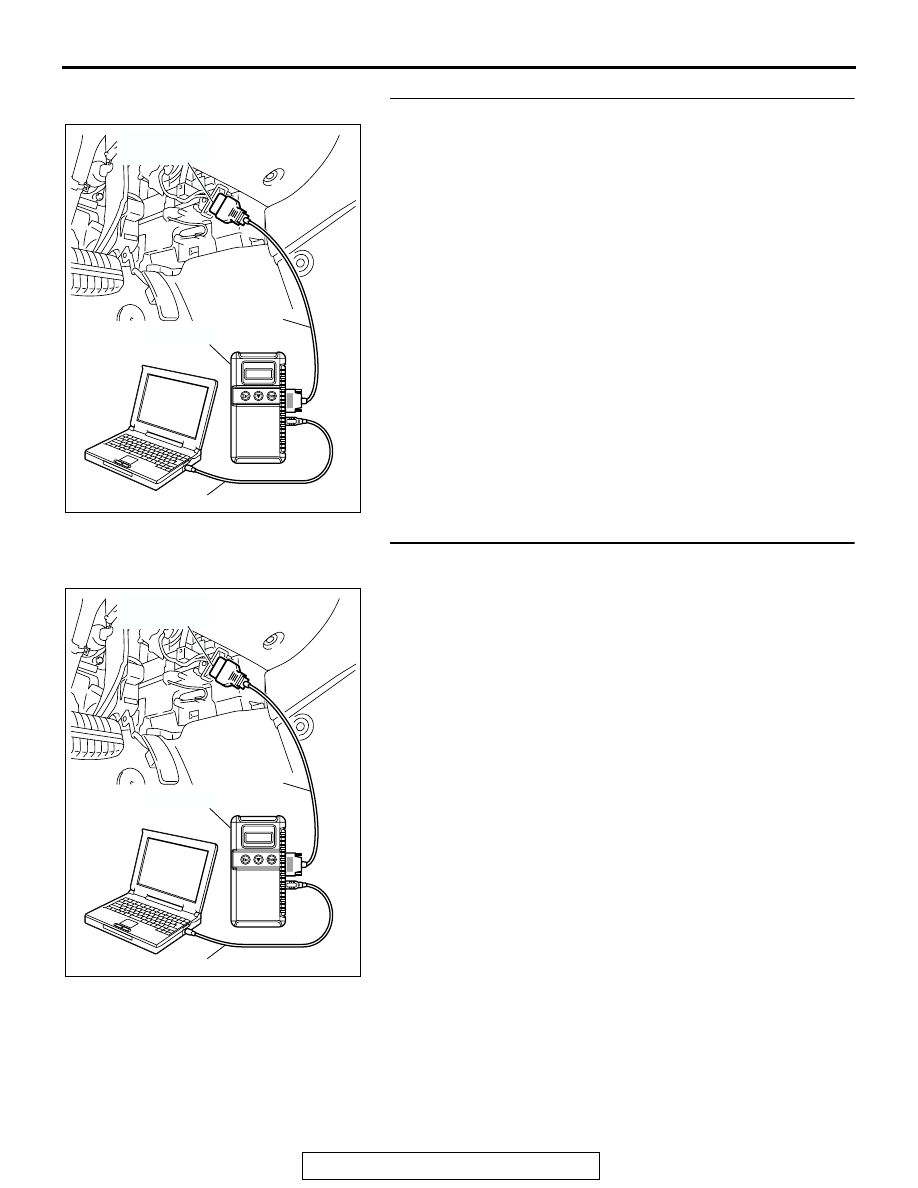

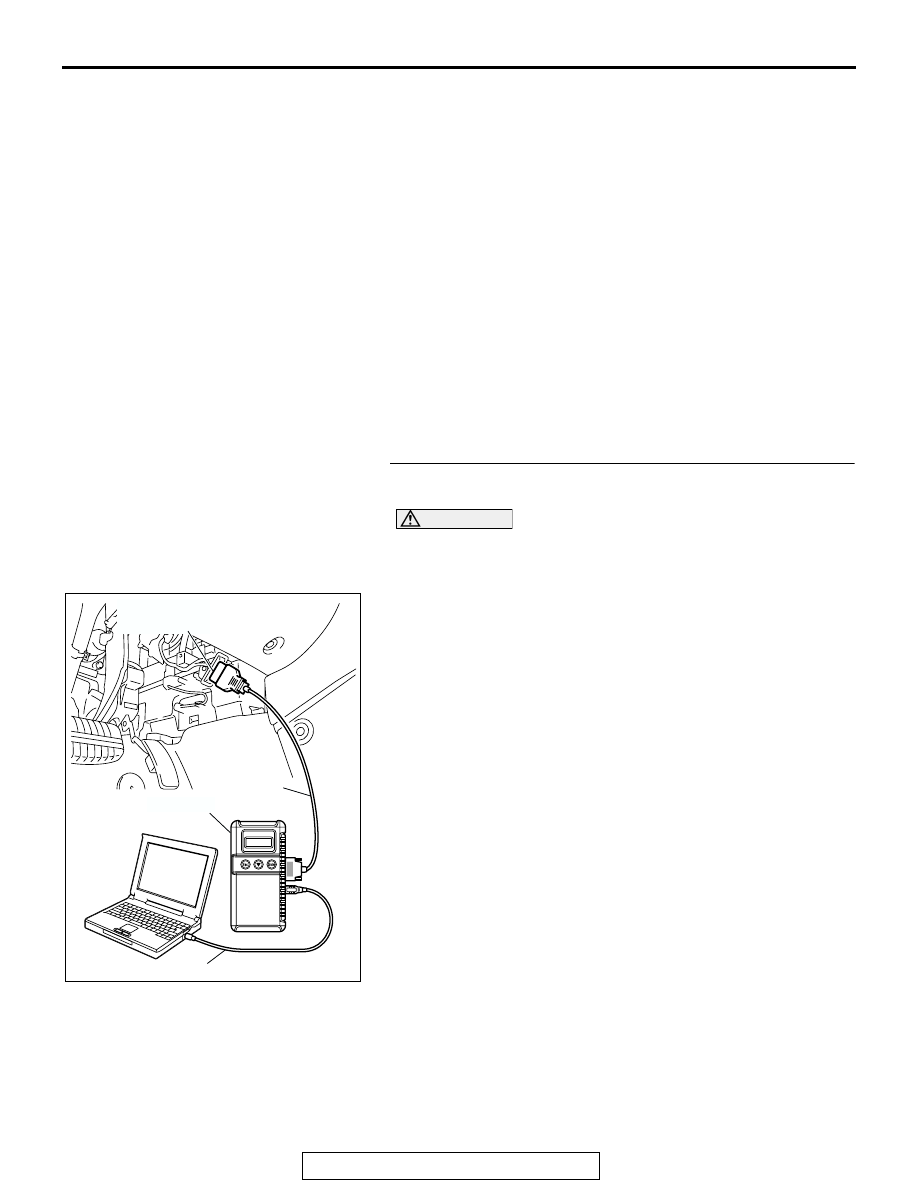

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
CAUTION
To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the
scan tool
."
(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES : Go to Step 2 .
NO : Repair the CAN bus line (Refer to GROUP 54C,
AC305412
AB
MB991910
DATA LINK
CONNECTOR
MB991824
MB991827
