RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-219

REMOVAL SERVICE POINT

.

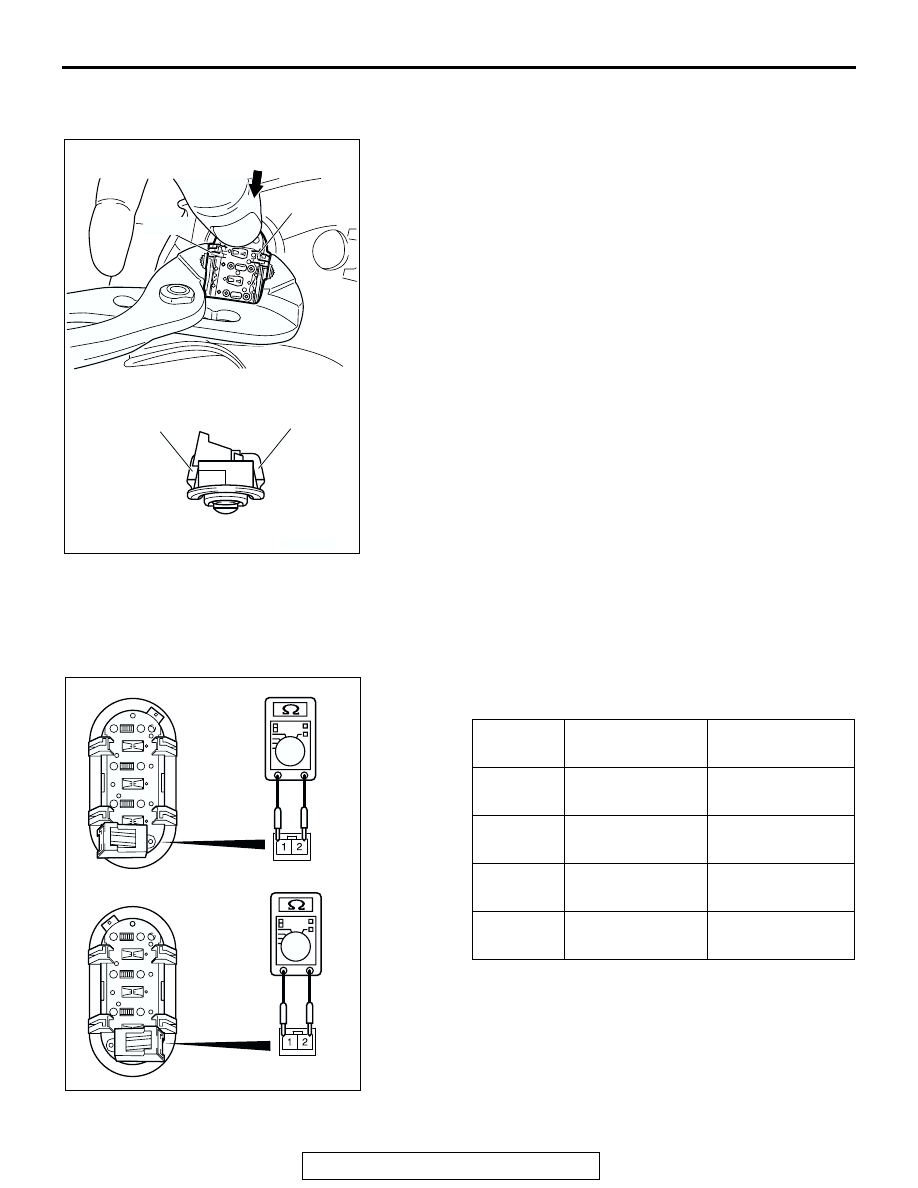

<<A>> REMOTE CONTROLLED RADIO SWITCH REMOVAL
Use a tool to hold the tabs on the remote controlled radio
switch, and push out the switch by your finger.

INSPECTION

M1544009700236

REMOTE CONTROLLED RADIO SWITCH
CONTINUITY CHECK

Use an ohmmeter to measure the resistance value between the
terminal.

AC106586

TAB

TAB

A

AB

VIEW A

TAB

TAB

SWITCH
POSITION

MEASUREMENT
VALUE (RH)

MEASUREMENT
VALUE (LH)

No push

Approximately
24.0 k

Ω

Open circuit

Upper

Approximately 6.8
k

Ω

Approximately 1.2
k

Ω

Center

Less than 2 ohms Approximately 470

k

Ω

Lower

Approximately
15.0 k

Ω

Approximately 3.3
k

Ω

AC207684AD

REMOTE CONTROLLED RADIO SWITCH (RH)

REMOTE CONTROLLED RADIO SWITCH (LH)

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-220

SPEAKER

REMOVAL AND INSTALLATION

M1544002600476

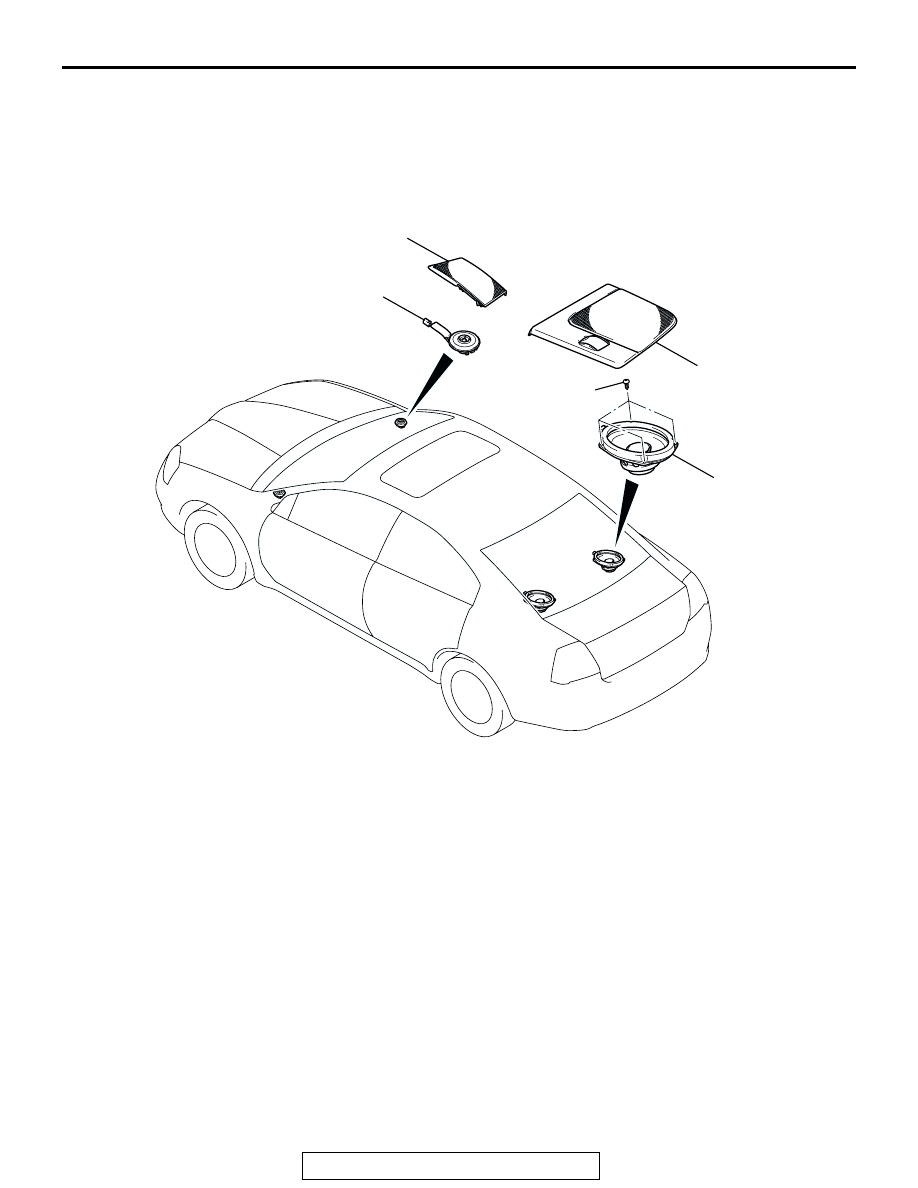

<TWEETER/REAR SPEAKER>

AC307015AC

1

2

4

3

1.5 ± 0.5 N·m
14 ± 4 in-Ib

TWEETER REMOVAL STEPS

•

FRONT DOOR OPENING TRIM,
FRONT PILLAR TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

1.

FRONT SPEAKER GARNISH

2.

TWEETER

REAR SPEAKER REMOVAL STEPS

3.

REAR SHELF SPEAKER GARNISH
(REFER TO GROUP 52A, TRIMS

P.52A-10

.)

4.

REAR SPEAKER

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-221

<FRONT DOOR SPEAKER>

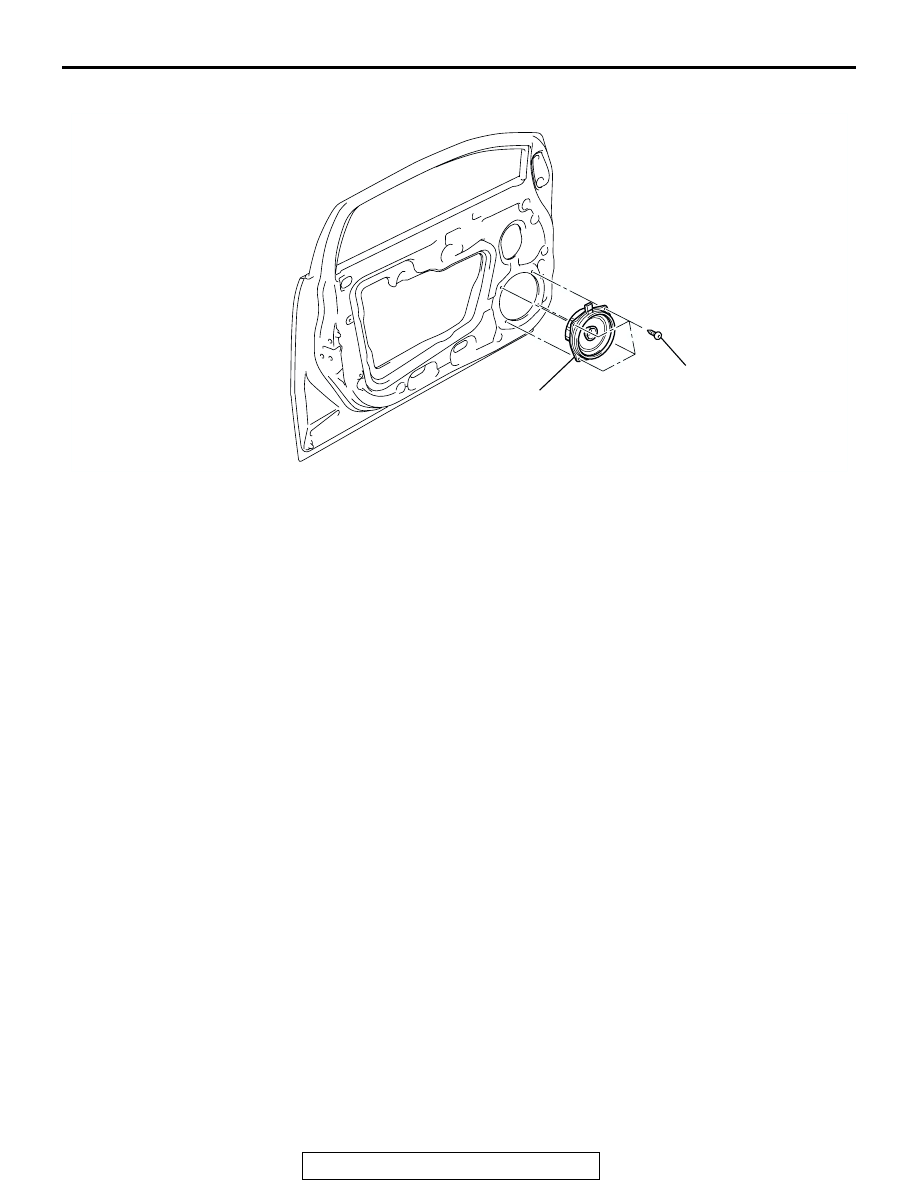

AC307181AB

1

1.5 ± 0.5 N·m
14 ± 4 in-Ib

FRONT DOOR SPEAKER REMOVAL
STEPS

•

FRONT DOOR TRIM ASSEMBLY
(REFER TO GROUP 52A, DOOR TRIM

P.52A-13

.)

1.

FRONT DOOR SPEAKER

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-222

AMPLIFIER

REMOVAL AND INSTALLATION

M1544004100295

REMOVAL SERVICE POINTS

.

<<A>> AMPLIFIER REMOVAL
Move the audio amplifier wiring harness to one side, and then
maneuver out the audio amplifier.

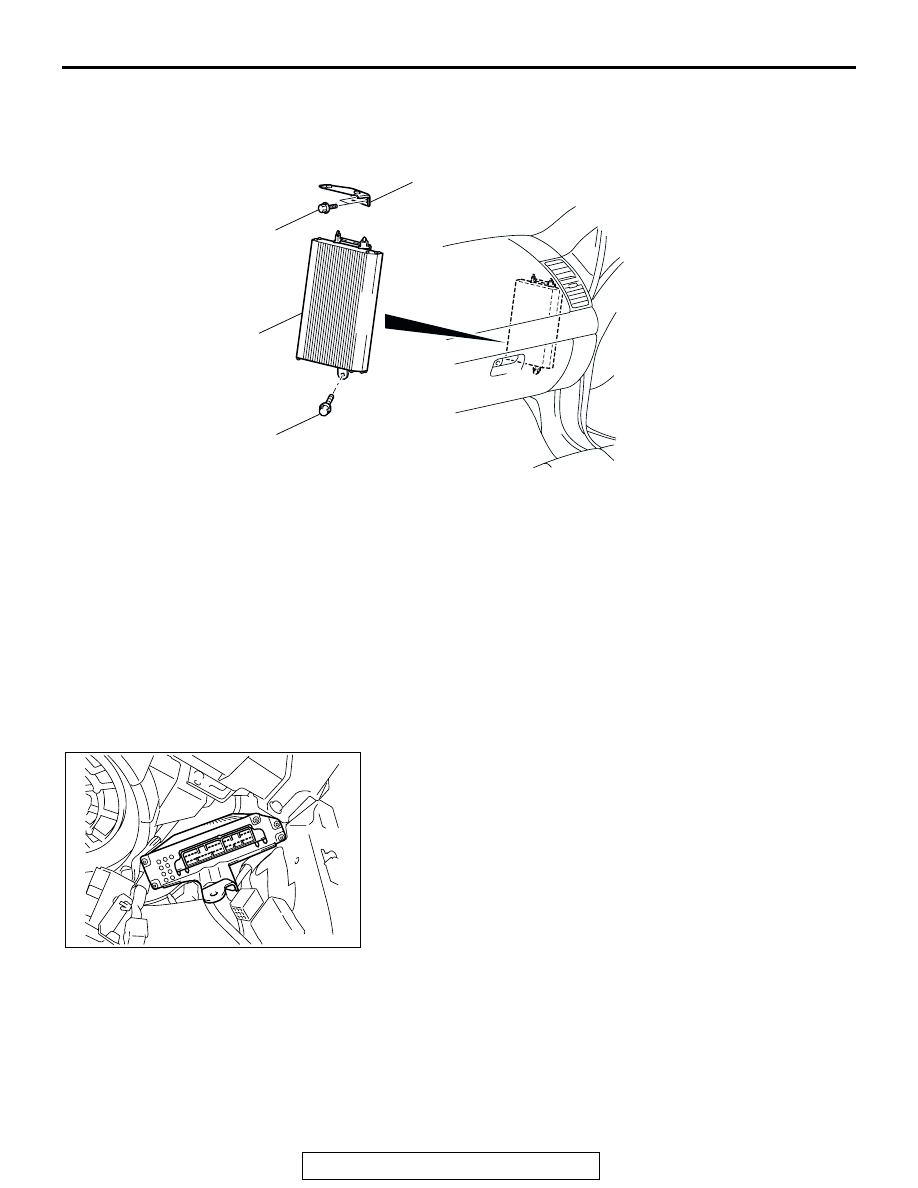

AC307102 AB

1

2

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

REMOVAL STEPS

•

GLOVEBOX ASSEMBLY,
INSTRUMENT PANEL PARCEL BOX
(REFER TO GROUP 52A,
INSTRUMENT PANEL ASSEMBLY

P.52A-3

.)

•

FRONT SCUFF PLATE (RH), COWL
SIDE TRIM (RH) (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

<<A>>

1. AUDIO AMPLIFIER
2. AMPLIFIER BOX BRACKET

REMOVAL STEPS (Continued)

AC207462 AC
