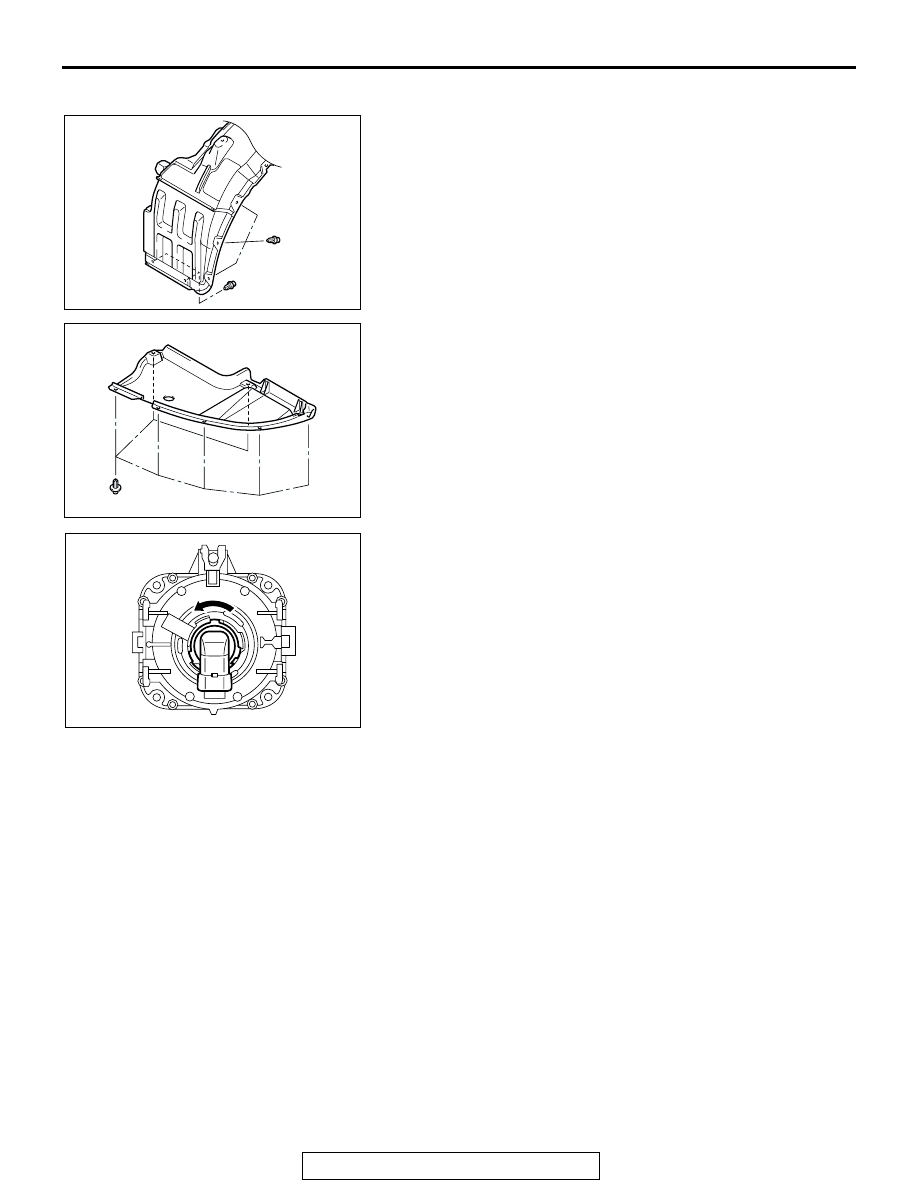

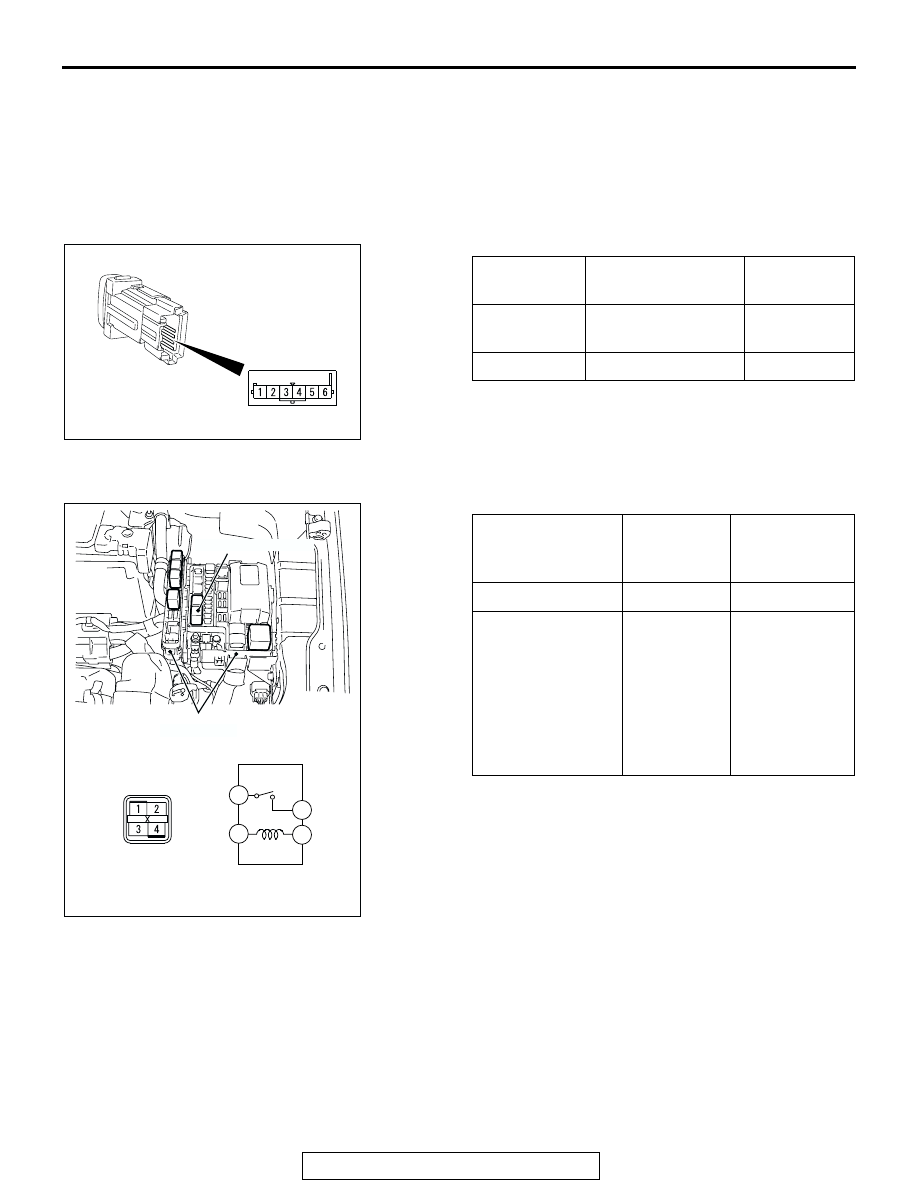

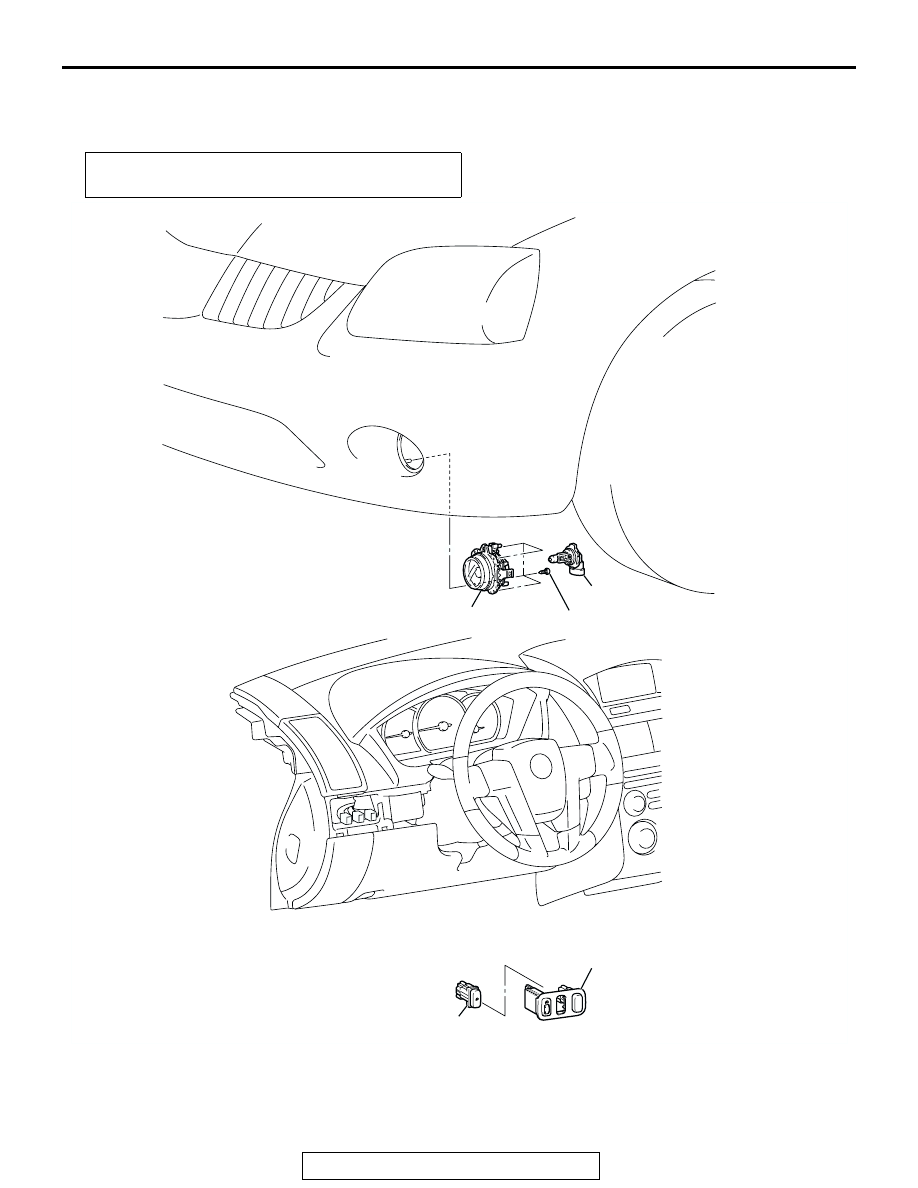

FOG LIGHT
TSB Revision
CHASSIS ELECTRICAL
54A-119

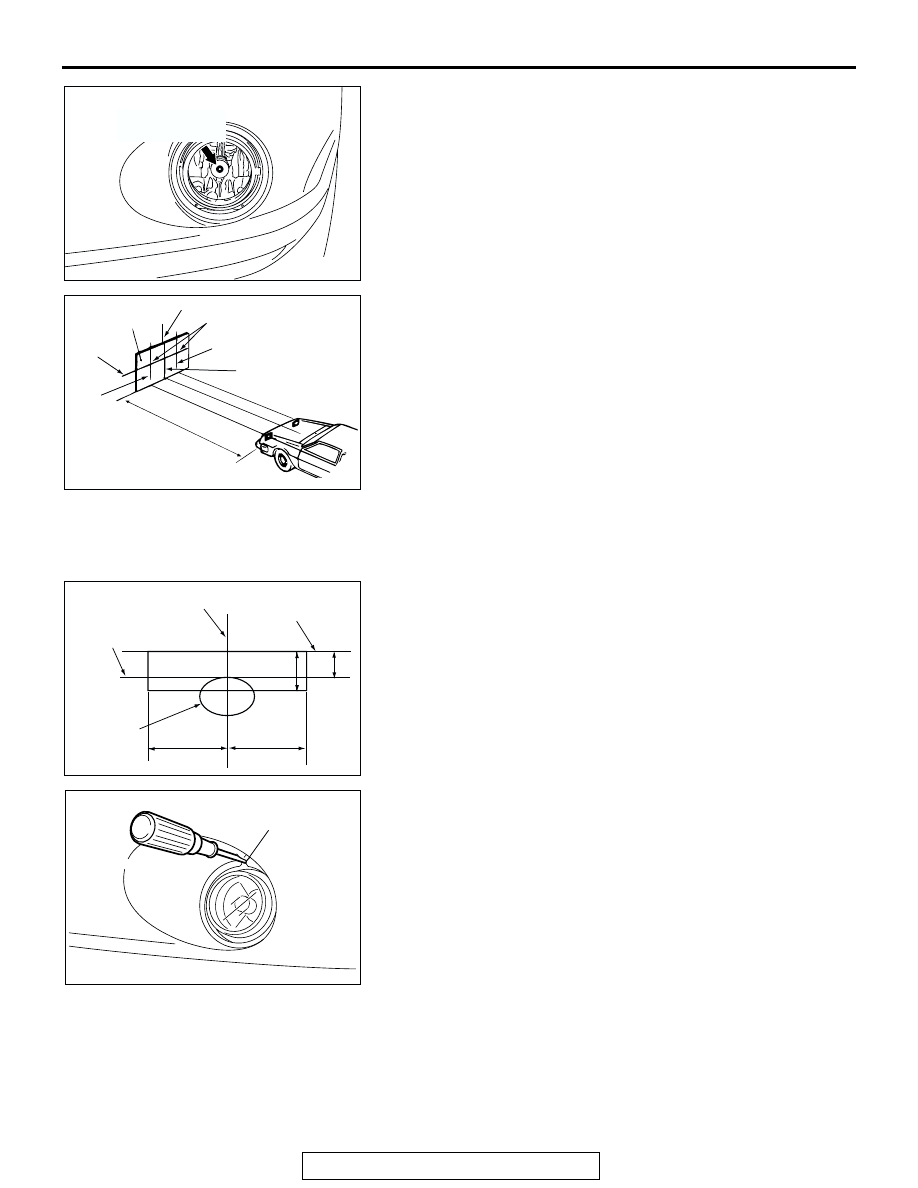

10.Measure the center of the fog lights as shown in the
illustration.
11.Four lines of adhesive tape (or equivalent markings) are
required on screen or wall:
(1) Position a vertical tape or mark so that it is aligned with
the vehicle center line.
(2) Measure the distance from the center of the fog light lens
to the floor. Transfer the measurement to the screen.
Horizontal tape or mark on the screen is for reference of
vertical adjustment.
(3) Measure the distance from the center line of the vehicle
to the center of each fog light. Transfer the measurement
to the screen. Vertical tape or mark on the screen is for
reference to the center line of each fog light.
FOG LIGHT ADJUSTMENT
1. Check if the beam shining onto the screen is at the standard
value.
2. If it is not within the standard value range, adjust by turning
the adjusting screw.
Standard value:
(Vertical direction): Top of the hot zone should be
101 mm (4.0 inches) (0.76 degrees angle) down-
ward from the height of the fog light center.
Limit:
(Vertical direction): Top of the hot zone should be
152mm (6.0 inches) (1.14 degrees angle) in maxi-
mum downward from the height of the fog light
center.
NOTE: The horizontal direction is non-adjustable. If deviation of
the light beam axis exceeds the standard value, check that the
mounting location or some other points are not faulty.
AC306966 AB
IN THE CENTER
OF FOG LIGHT
AC307983AB
SCREEN
(1)
(2)
(3)
(3)
FOG LIGHT CENTER
VEHICLE CENTER
LINE
7.62 m (25.0 ft)
AC100547
HEIGHT OF FOG
LIGHT CENTER
VERTICAL CENTER LINE
AHEAD OF FOG LIGHT
UPPER MOST LEVEL
OF HOT ZONE
HOT ZONE
mm (in)
AB
152 (6.0)
101 (4.0)
598 (23.5)
598 (23.5)
AC307156
AB
ADJUSTING SCREW
