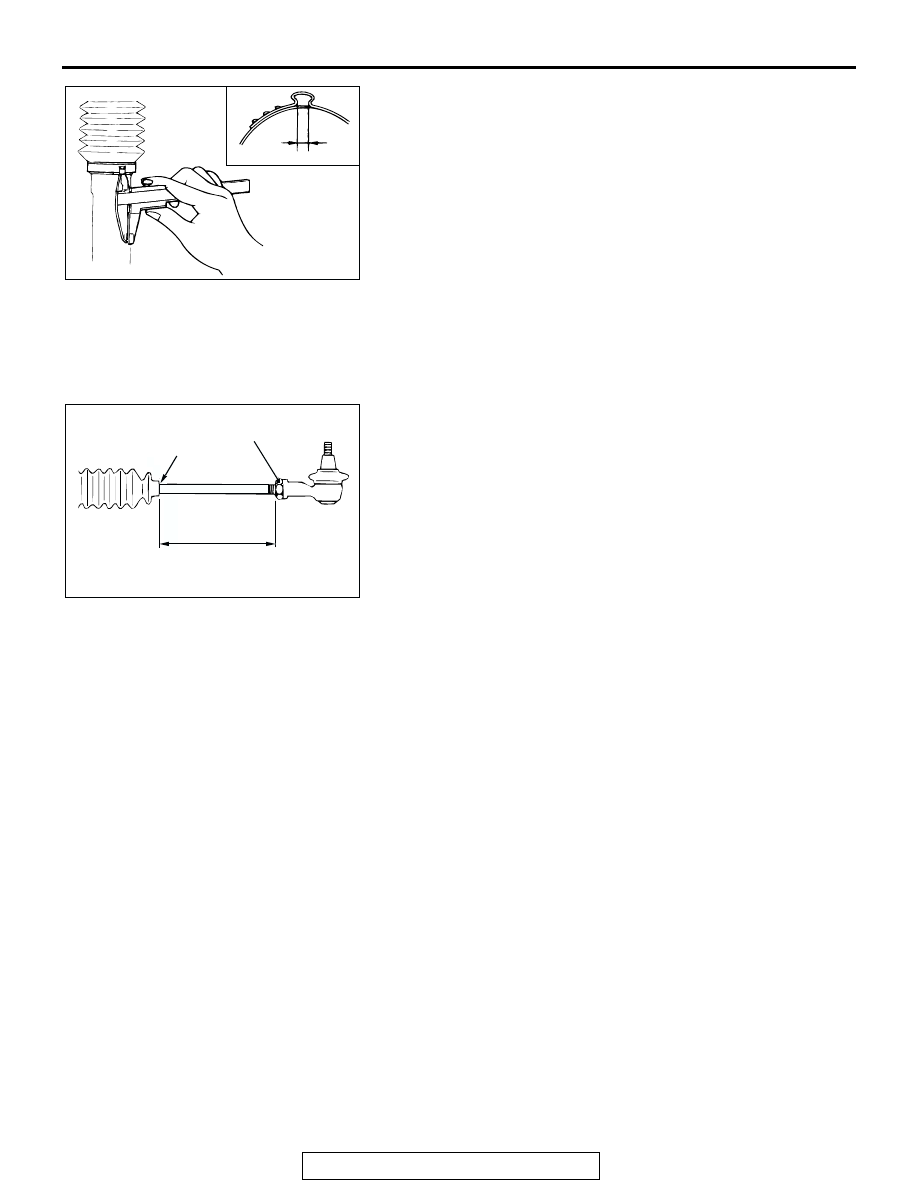

POWER STEERING GEAR BOX AND LINKAGE TSB Revision POWER STEERING 37A-53 3. Check that crimped width (A) is within the standard value. Standard value (A): 1.4 − 1.8 mm (0.06 − 0.07 inch) <When more than 1.8 mm (0.07 inch)>: Readjust the − A [Example: if (A) is 1.9 mm (0.07 inch), (W) is 3.6 mm (0.14 inch).] − A [Example: if (A) is 1.3 mm (0.05 inch), (W) is 4.2 mm (0.17 inch).] . >>P<< TIE ROD END ASSEMBLY/STEERING GEAR NUT INSPECTION M1372004400114 RACK • Check the rack tooth surfaces for damage or wear. • Check the oil seal contact surfaces for uneven wear. • Check the rack for bends. PINION AND VALVE ASSEMBLY • Check the pinion gear tooth surfaces for damage or wear. • Check for worn or defective seal ring. BEARING • Check for roughness or abnormal noise during bearing operation. • Check the bearing for play. • Check the needle roller bearings for roller slip-off. OTHERS • Check the cylinder inner surface of the rack housing for damage. • Check the boots for damage, cracking or deterioration. • Check the rack support for uneven wear or dents. • Check the rack bushing for uneven wear or damage. ACX01166 AB A AC001011AN JAM NUT EDGE OF BELLOWS 208.6 mm (8.2 in) <GTS MODELS> |
