THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1145

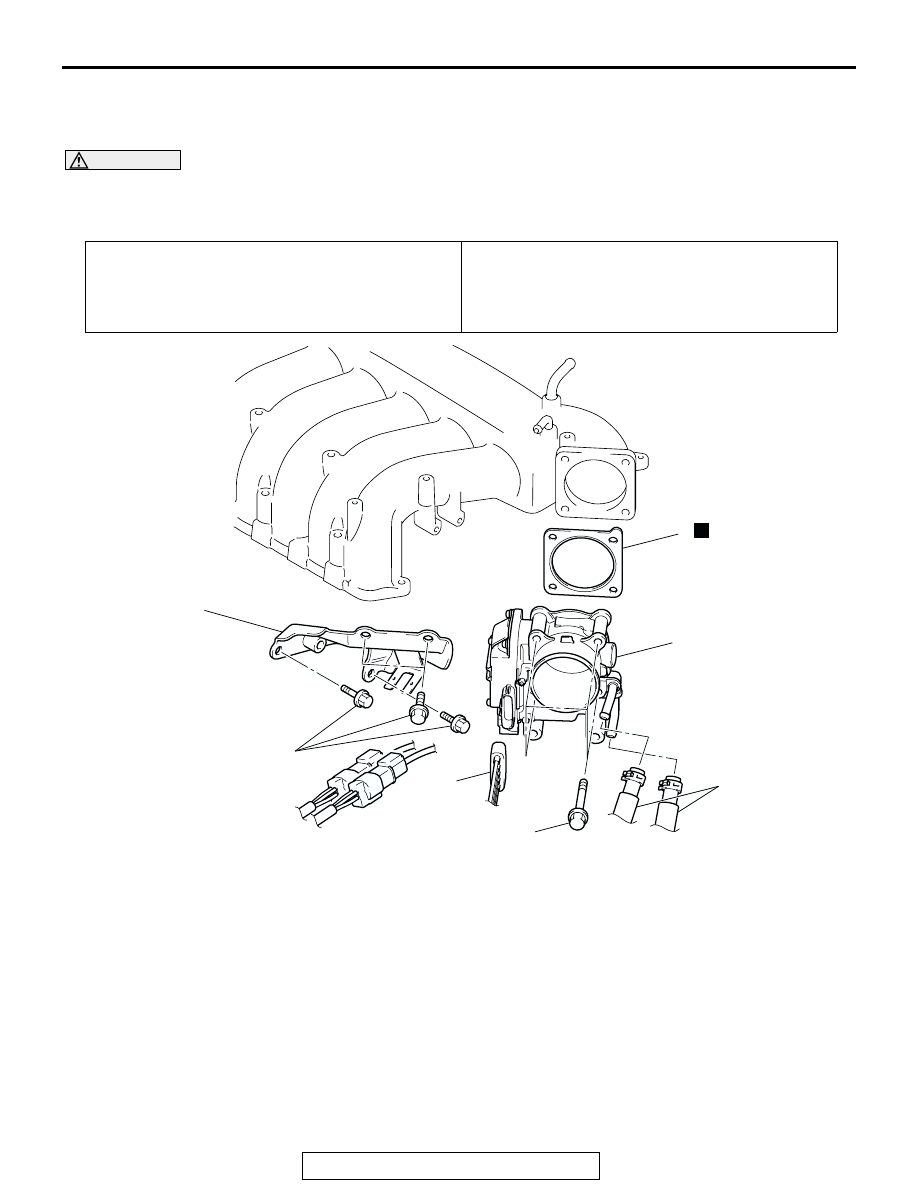

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION

M1131007700652

CAUTION

Do not loosen the fixing screws for the resin cover of throttle body assembly. If the screws are loos-
ened, the sensor incorporated in the resin cover becomes misaligned and the throttle body can not
work normally.

Pre-removal Operation
• Engine Coolant Draining [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-53

].

• Air Intake Hose Removal (Refer to GROUP 15, Air

Cleaner

P.15-4

).

Post-installation Operation
• Air Intake Hose Installation (Refer to GROUP 15, Air

Cleaner

P.15-4

).

• Engine Coolant Refilling [Refer to GROUP 00, Mainte-

nance Service

− Engine Coolant (Change)

P.00-53

].

AC307254

18 ± 2 N·m
13 ± 2 ft-lb

2

3

4

5

1

AB

N

28 ± 4 N·m
21 ± 3 ft-lb

REMOVAL STEPS

1.

THROTTLE POSITION SENSOR
CONNECTOR

2.

WATER HOSE CONNECTION

3.

THROTTLE BODY

>>A<<

4.

THROTTLE BODY GASKET

5.

THROTTLE BODY STAY

REMOVAL STEPS (Continued)

POWERTRAIN CONTROL MODULE (PCM)

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1146

INSTALLATION SERVICE POINT

.

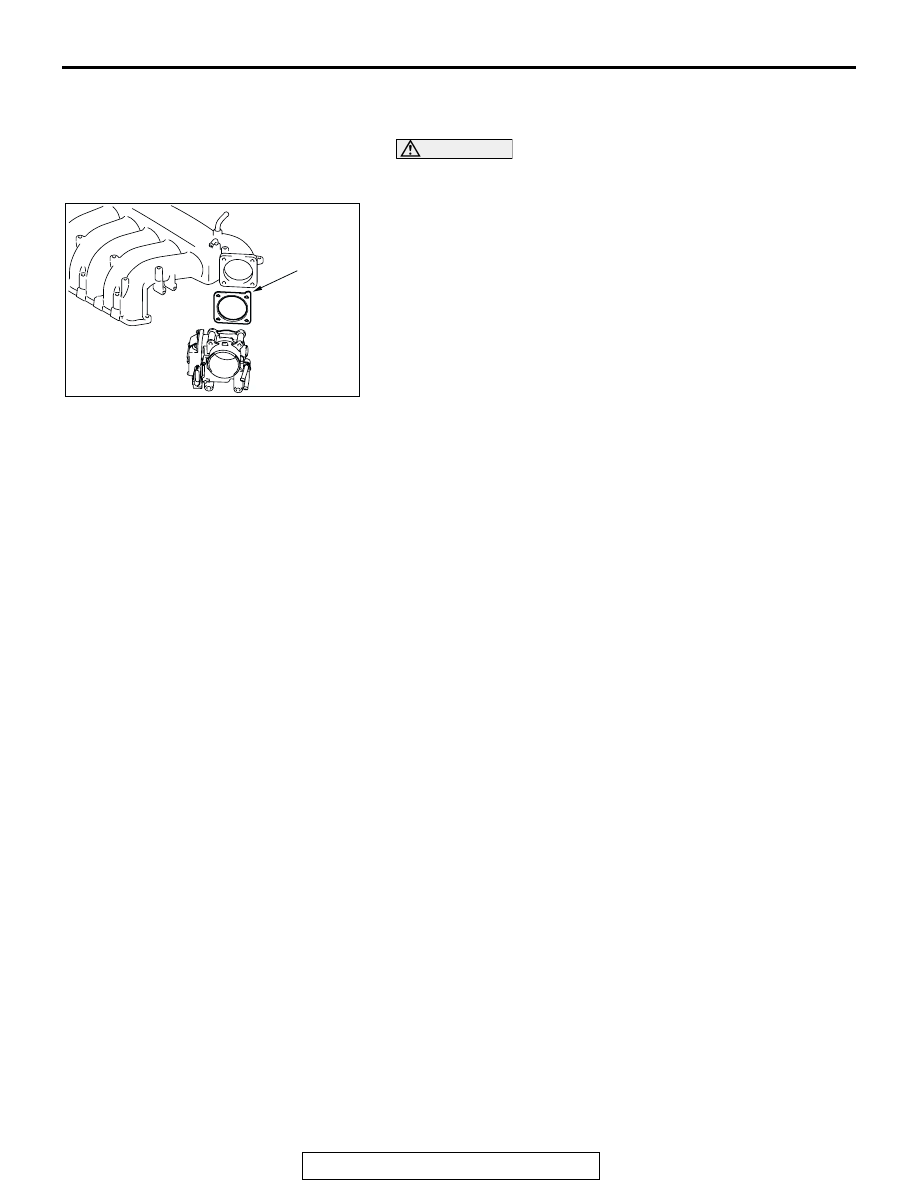

>>A<<THROTTLE BODY GASKET INSTALLATION

CAUTION

Poor idling etc. may result if the throttle body gasket is
installed incorrectly.
Install the gasket as its protrusion is in the direction shown.

POWERTRAIN CONTROL MODULE (PCM)

REMOVAL AND INSTALLATION

M1131033400243

Refer to GROUP 13A, Powertrain Control Module
(PCM)

P.13A-1121

.

AC308086AB

PROJECTION

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1147

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1131011600517

GENERAL SPECIFICATIONS

M1131000200582

ITEM

SPECIFICATION

Engine mount stay bolt

36

± 6 N⋅m (27 ± 4 ft-lb)

Fuel rail and injector assembly bolt

12

± 1 N⋅m (102 ± 13 in-lb)

Fuel high-pressure hose bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Hole cover screw

1.5

± 0.5 N⋅m (14 ± 4 in-lb)

Throttle body mounting bolt

28

± 4 N⋅m (21 ± 3 ft-lb)

Throttle body stay bolt

18

± 2 N⋅m (13 ± 2 ft-lb)

ITEMS

SPECIFICATIONS

Throttle body

Throttle bore mm (in.)

63 (2.48)

Throttle position sensor

Hall element type

Throttle actuator control motor

DC motor type, having brushes

Powertrain
control module
(PCM)

Identification model No.

E6T40078

Sensors

Mass airflow sensor

Heat sensitizing type

Barometric pressure sensor

Semiconductor type

Intake air temperature sensor

Thermistor type

Engine coolant temperature sensor

Thermistor type

Heated oxygen sensor

Zirconia type

Accelerator pedal position sensor

Hall element type

Transmission range switch

Contact switch type

Camshaft position sensor

Magneto resistance element type

Crankshaft position sensor

Magneto resistance element type

Knock sensor

Piezoelectric type

Power steering pressure switch

Contact switch type

Manifold absolute pressure sensor

Semiconductor type

Actuators

Multiport fuel injection (MFI) relay

Contact switch type

Fuel pump relay

Contact switch type

Throttle actuator control motor relay

Contact switch type

Injector type and number

Electromagnetic type, 6

Injector identification mark

HDB305F

Exhaust gas recirculation (EGR) valve

Stepper motor type

Evaporative emission purge solenoid

Duty cycle type solenoid valve

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1148

SERVICE SPECIFICATIONS

M1131000300705

SEALANT AND ADHESIVE

M1131000500442

ITEMS

STANDARD VALUE

Fuel pressure kPa (in.Hg)

Approximately 324 (95.7) at curb
idle

Intake air temperature sensor resistance   k

Ω −20°C (−4°F)

13

− 17

0

°C (32°F)

5.3

− 6.7

20

°C (68°F)

2.3

− 3.0

40

°C (104°F)

1.0

− 1.5

60

°C (140°F)

0.56

− 0.76

80

°C (176°F)

0.30

− 0.45

Engine coolant temperature sensor
resistance   k

Ω

−20°C (−4°F)

14

− 17

0

°C (32°F)

5.1

− 6.5

20

°C (68°F)

2.1

− 2.7

40

°C (104°F)

0.9

− 1.3

60

°C (140°F)

0.48

− 0.68

80

°C (176°F)

0.26

− 0.36

Heated oxygen sensor output voltage   V

0.6

− 1.0

Heated oxygen sensor heater resistance

Ω <Front>

4.5

− 8.0 [at 20°C (68°F)]

<Rear>

11

− 18 [at 20°C (68°F)]

Injector coil resistance

Ω

10.5

− 13.5 [at 20°C (68°F)]

Throttle actuator control motor coil resistance

Ω

0.3

− 80 [at 20°C (68°F)]

ITEM

SPECIFIED SEALANT

Engine coolant temperature sensor threaded portion 3M

 AAD part number 8731or equivalent
