MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-989

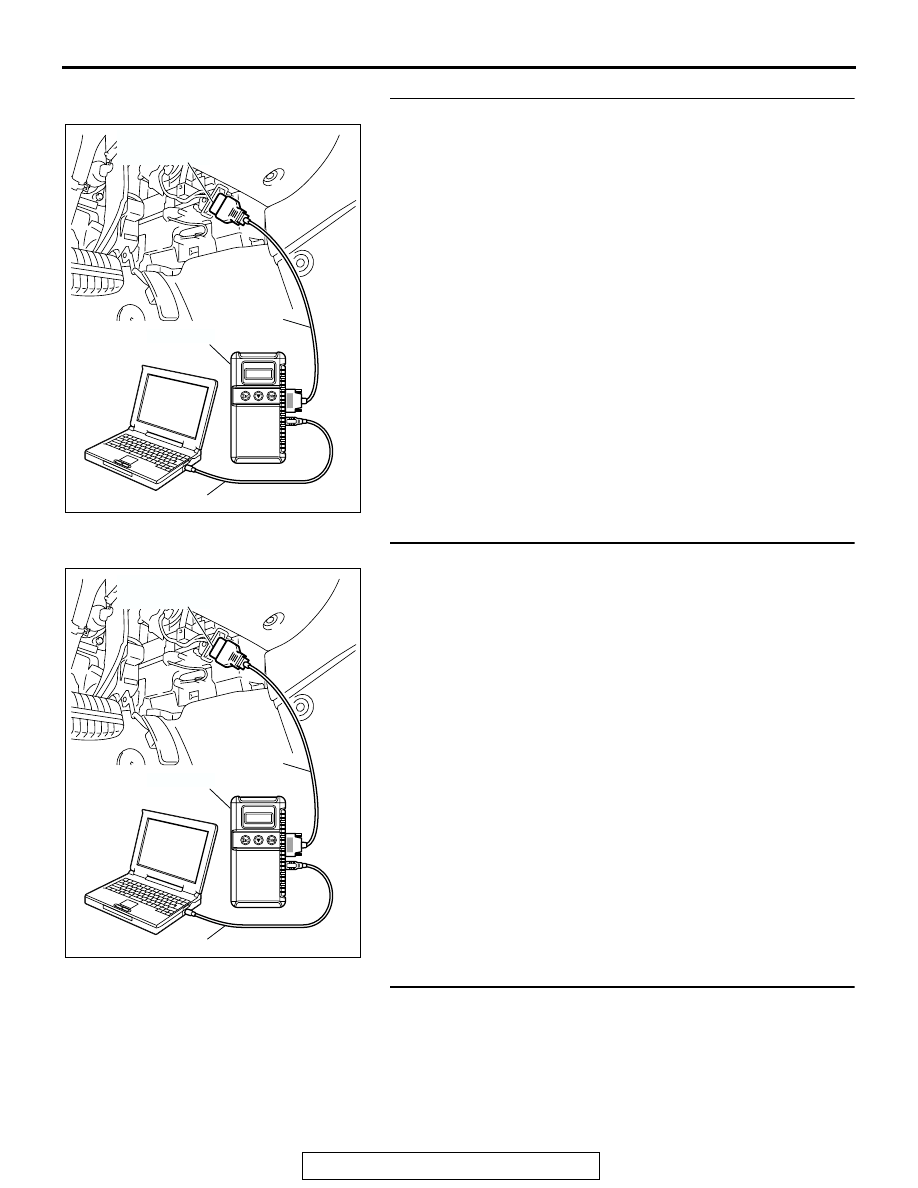

STEP 3. Using scan tool MB991958, check actuator test.

(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the actuator test. Refer to

Actuator Test Reference Table

P.13B-1106

.

a. Item 07: Fuel Pump.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Go to Step 4.
NO :  Repair or Replace. Then confirm that the malfunction

symptom is eliminated.

STEP 4. Using scan tool MB991958, check data list.

(1) Turn the ignition switch the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13B-1092

.

a. Item 21: Engine Coolant Temperature Sensor.

(3) Turn the ignition switch the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 5.
NO :  Repair or Replace. Then confirm that the malfunction

symptom is eliminated.

STEP 5. Inspection of throttle body (throttle valve area) for
dirtiness.
Q: Is the throttle valve area dirty?

YES : Refer to On-vehicle service

− Clean the throttle valve

area

P.13B-1133

.

NO :  Go to Step 6.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-990

STEP 6. Check the ignition timing.
(1) Check the ignition timing at cranking.

Standard value: 5

° BTDC ± 3°

Q: Is the ignition timing normal?

YES : Go to Step 7.
NO :  Check that the crankshaft position sensor and timing

belt cover are in the correct position. Then confirm
that the malfunction symptom is eliminated.

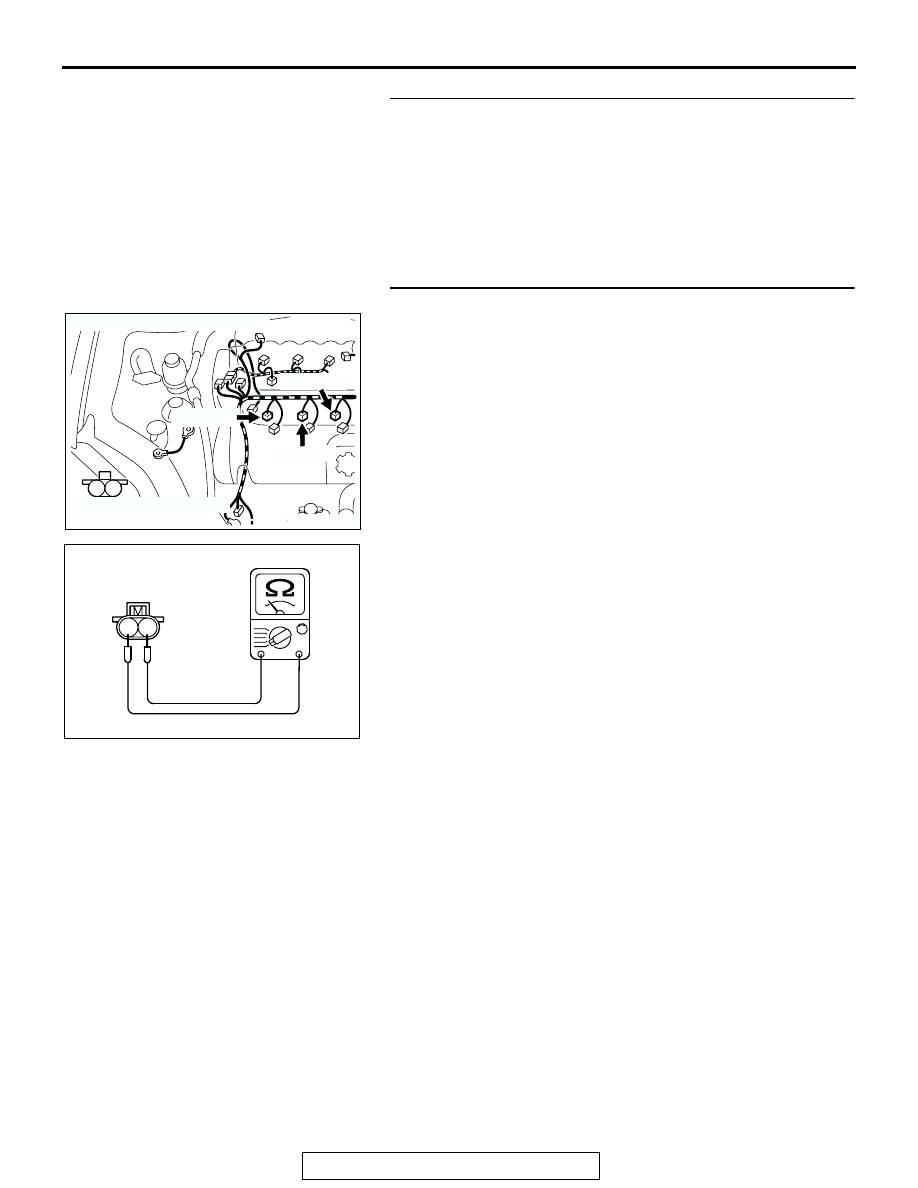

STEP 7. Check the left bank injector.

(1) Disconnect the left bank injector connector B-27, B-26,

B-30.

(2) Measure the resistance between each injector side

connector terminal No. 1 and No. 2.

Standard value: 10.5

− 13.5 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Go to Step 8.
NO :  Replace the faulty injector. Then confirm that the

malfunction symptom is eliminated.

AK303075

M

1

2

CONNECTOR: B-26, B-27, B-30

B-30 (GR)

B-27 (GR)

B-26 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-991

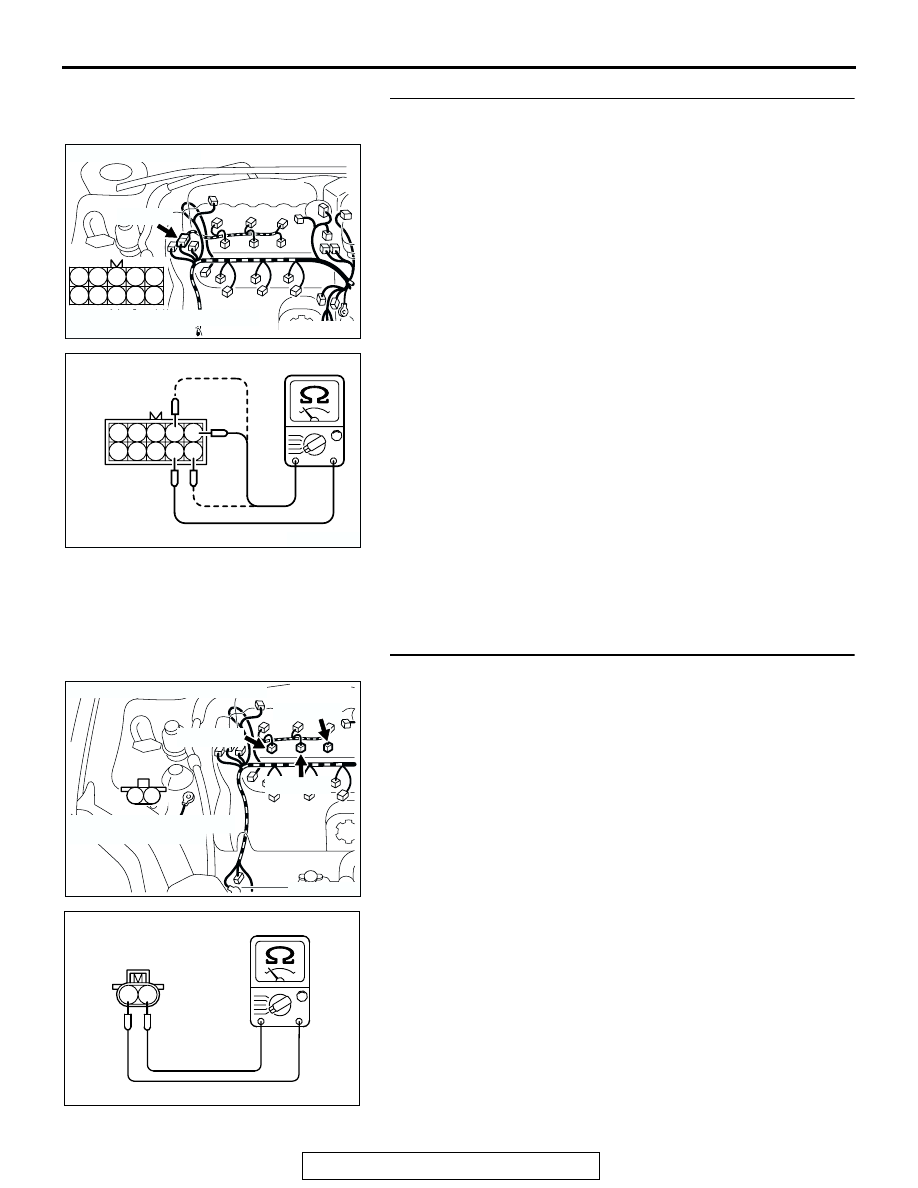

STEP 8. Check the right bank injector resistance at
intermediate connector B-32.

(1) Disconnect the intermediate connector B-32.

(2) Measure the resistance between each male connector side

terminal.

a. Measure the resistance between terminal No. 9 and No.

5 at No. 1 cylinder injector.

b. Measure the resistance between terminal No. 9 and No.

10 at No. 3 cylinder injector.

c. Measure the resistance between terminal No. 9 and No.

4 at No. 5 cylinder injector.

• Resistance should be between 10.5 and 13.5 ohms [at

20

°C (68°F)].

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Go to Step 11.
NO :  Go to Step 9.

STEP 9. Check the right bank injector.

(1) Remove the intake manifold.
(2) Disconnect the right bank injector connector, which

deviates from the standard value at Step 8.

(3) Measure the resistance between injector side connector

terminal No. 1 and No. 2.

Standard value: 10.5

− 13.5 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Go to Step 10.
NO :  Replace the injector. Then confirm that the

malfunction symptom is eliminated.

AK303053

3

4

5

8

9

1

2

6

7

10

CONNECTOR: B-32

HARNESS CONNECTOR:
COMPONENT SIDE

AB

B-32 (B)

1

2 3

6

7 8

4 5

9 10

AK203093

B-32
INTERMEDIATE
CONNECTOR

AB

AK303055

M

1

2

CONNECTOR: B-01, B-03, B-04

AB

B-01 (GR)

B-03 (GR)

B-04 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-992

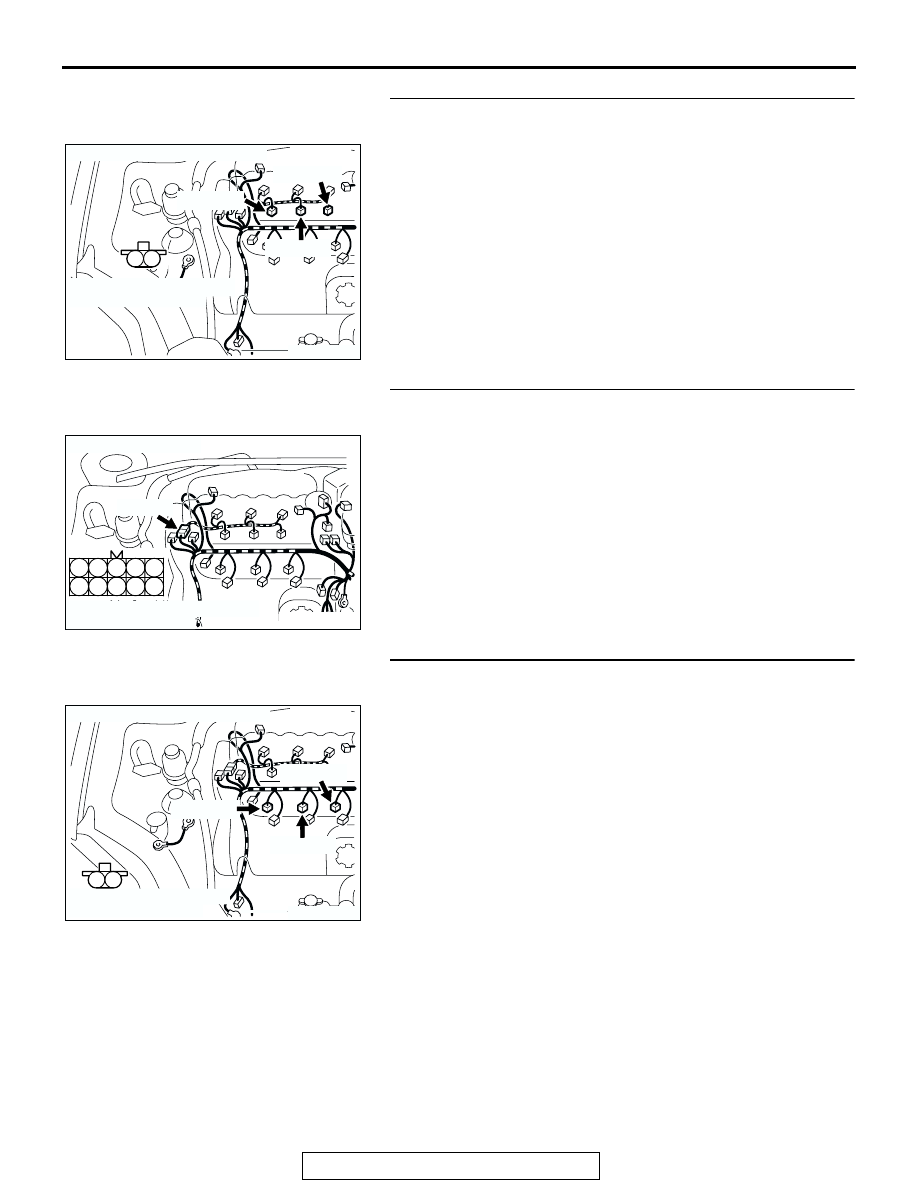

STEP 10. Check harness connector B-03 or B-04 or B-01 at
right bank injector for damage.

(1) Check the injector connector, which deviated from the

standard value listed in Step 8.

Q: Is the harness connector in good condition?

YES : Repair harness wire between injector intermediate

connector and right bank injector connector because
of harness damage. Then confirm that the
malfunction symptom is eliminated.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 11. Check harness connector B-32 at the
intermediate connector for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 12.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 12. Check harness connector B-27, B-26, B-30 at the
left bank injector for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 13.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK303055

M

1

2

CONNECTOR: B-01, B-03, B-04

AB

B-01 (GR)

B-03 (GR)

B-04 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303053

3

4

5

8

9

1

2

6

7

10

CONNECTOR: B-32

HARNESS CONNECTOR:
COMPONENT SIDE

AB

B-32 (B)

AK303075

M

1

2

CONNECTOR: B-26, B-27, B-30

B-30 (GR)

B-27 (GR)

B-26 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB
