MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-889

DTC P2122: Accelerator Pedal Position Sensor (main) Circuit Low Input

CAUTION

If DTC P2122 has been set, TCL related DTC
U1120 and U1400 are also set. After P2122 has
been diagnosed, don't forget to erase DTC U1120
and U1400.

.

AK302872

YELLO

W

-GREEN

GRA

Y

BR

O

WN-WHITE

C-24

5 V

30

1

ACCELERATOR PEDAL

POSITION SENSOR
(MAIN)

POWERTRAIN CONTROL
MODULE (PCM)

26

31

3

2

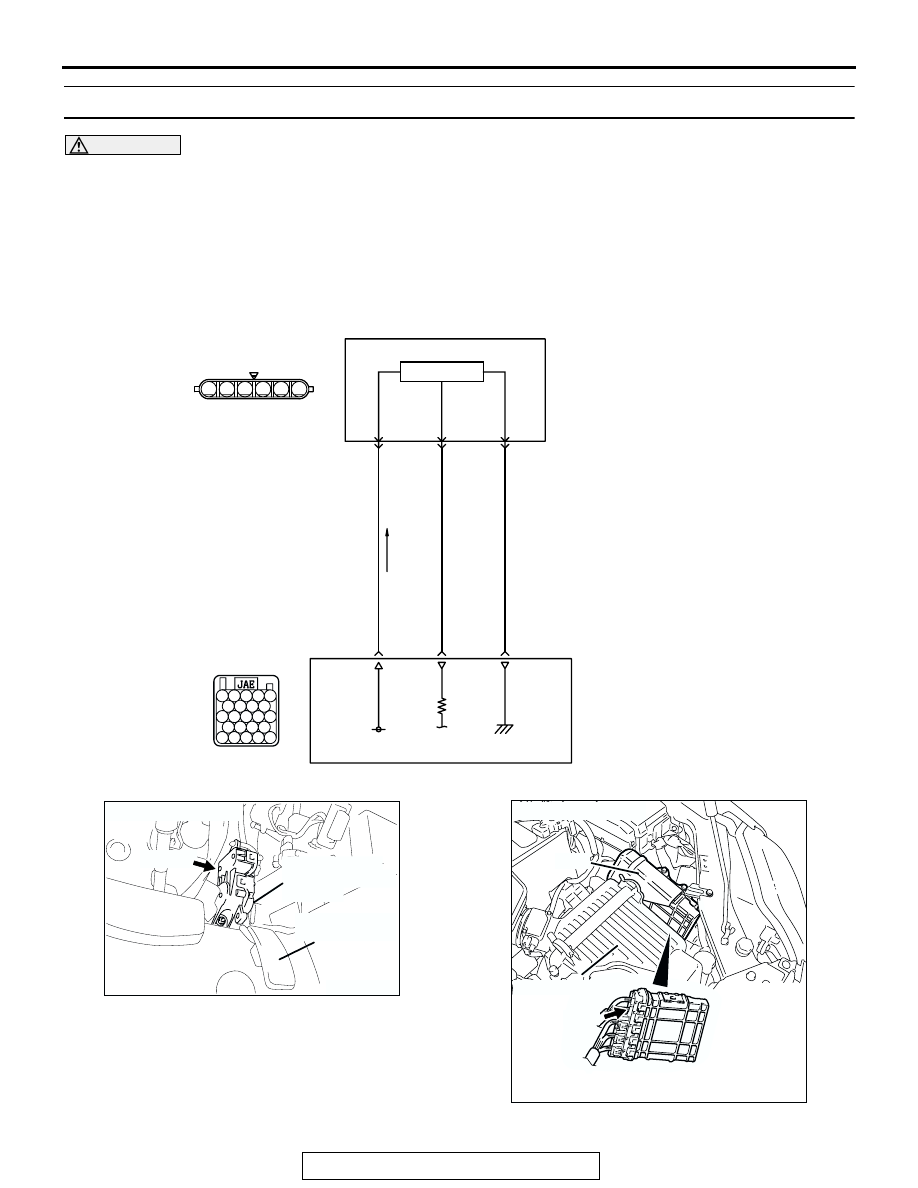

Accelerator Pedal Position Sensor (main) Circuit

B-20

22

21

23 24 25

26 27 28 29

30 31 32 33 34

35 36 37 38

39 40 41 42 43

6

1 2 3 4 5

HALL IC

AK303201

ACCELERATOR
PERAL

AB

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

AK303085

CONNECTOR: B-20

PCM

AB

AIR CLEANER

B-20

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-890

CIRCUIT OPERATION

• A 5-volt power supply is applied on the accelera-

tor pedal position sensor (main) power terminal
(terminal No. 1) from the PCM (terminal No. 30).
The ground terminal (terminal No. 2) is grounded
with PCM (terminal No. 31).

.

TECHNICAL DESCRIPTION

• The accelerator pedal position sensor (main) out-

puts voltage which corresponds to the accelera-
tor pedal depression.

• The PCM checks whether the voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Accelerator pedal position sensor (main) output volt-

age is out of specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-891

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• Ignition switch is "ON" position.

Judgement Criteria

• Accelerator pedal position sensor (main) output

voltage is 0.6 volt or less for 0.3 second.

.

OBD-II DRIVE CYCLE PATTERN
None.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Accelerator pedal position sensor failed.

• Open or shorted accelerator pedal position sen-

sor (main) circuit, harness damage or connector
damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

START

END

NO

NO

YES

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 0.3sec

OUTPUT VOLTAGE < 0.6V

AK302413

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-892

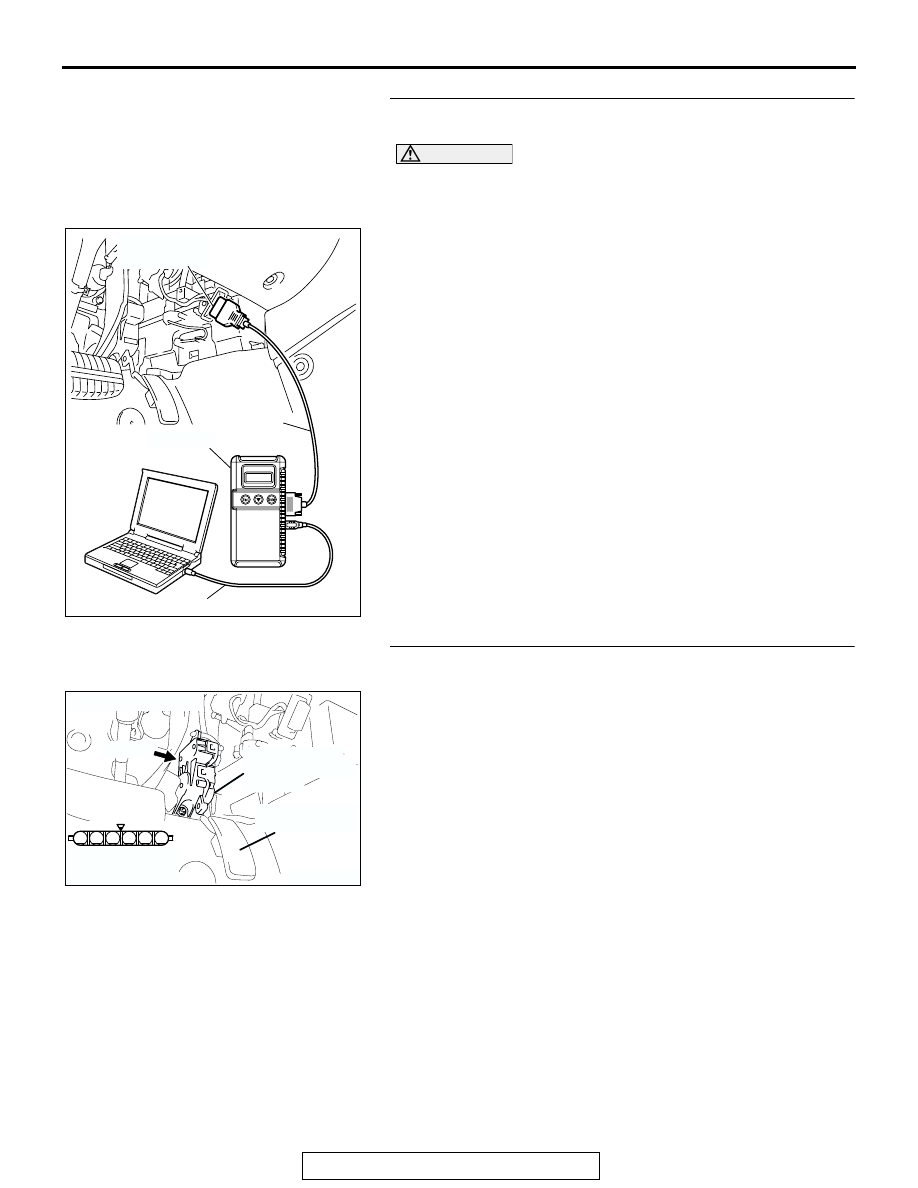

STEP 1. Using scan tool MB991958, check data list item 78:
Accelerator Pedal Position Sensor (main).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

78, Accelerator Pedal Position Sensor (main).

• Output voltage is between 0.7 and 1.3 volts when foot is

released from accelerator pedal.

• Output voltage is 4.0 volts or higher when accelerator

pedal is fully depressed.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection. Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check harness connector C-24 at accelerator
pedal position sensor for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AK303202

1

6 5 4 3 2

ACCELERATOR
PERAL

AB

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE
