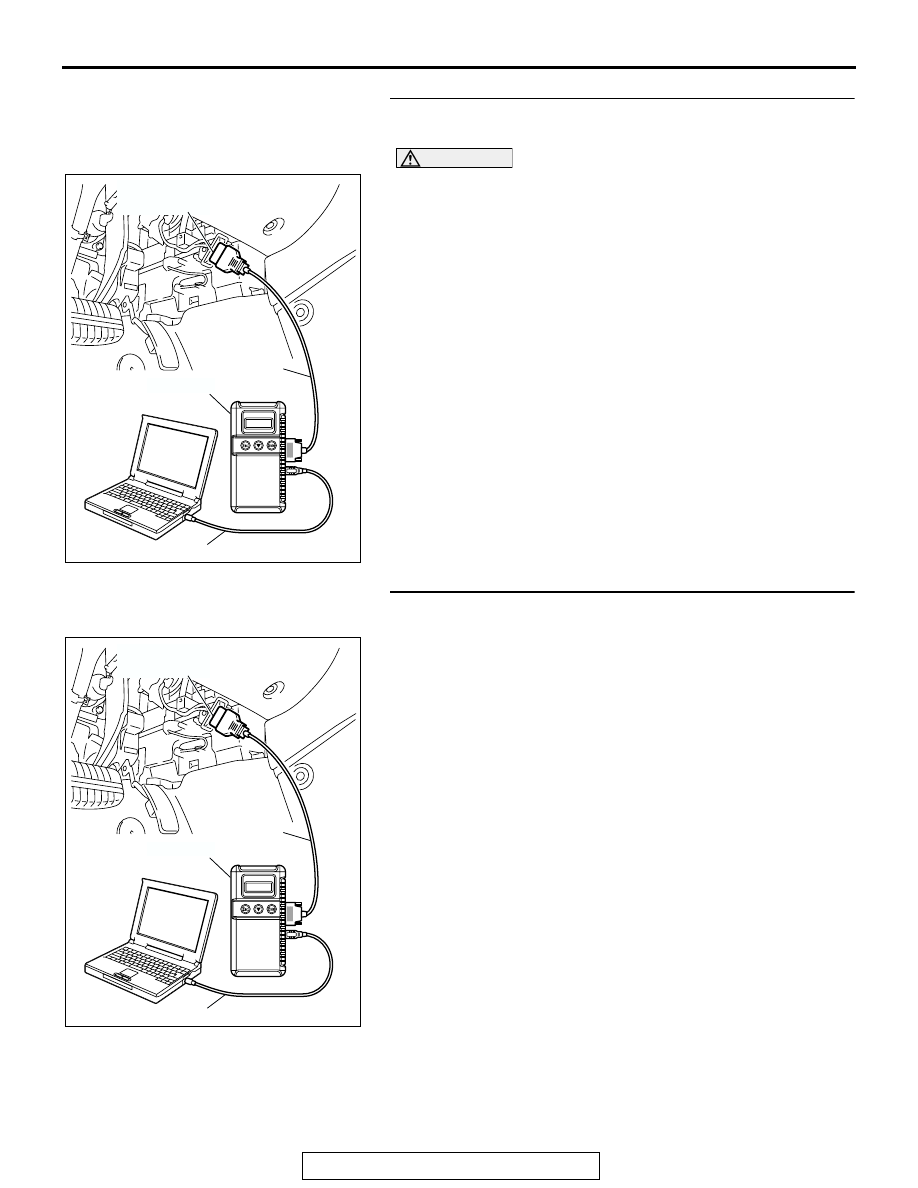

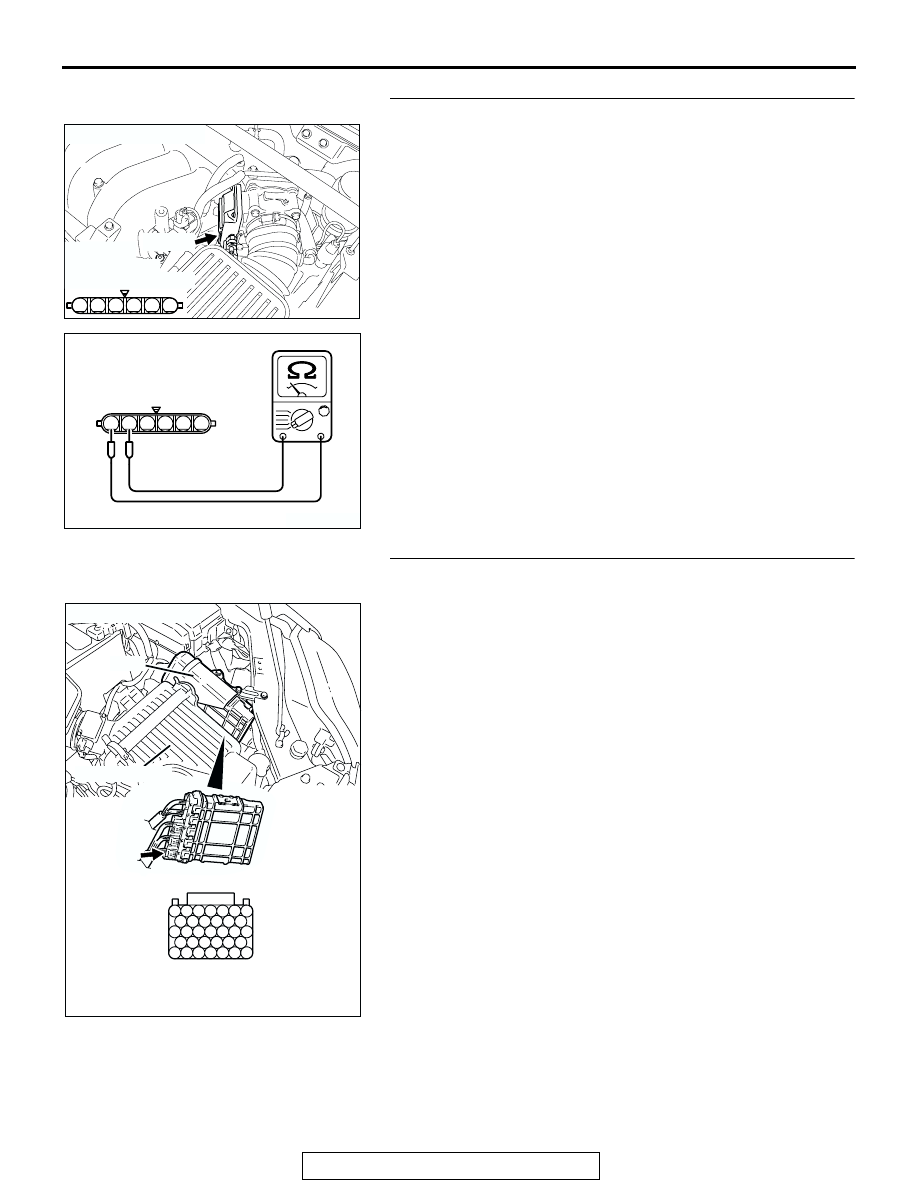

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE> 13B-877 STEP 2. Check the throttle actuator control motor. (1) Disconnect the connector B-06. (2) Measure the resistance between throttle actuator control motor side connector terminals No. 1 and No. 2. Standard value: 0.3 − 80 ohms [at 20°C (68°F) ] Q: Is the measured resistance between 0.3 and 80 ohms [at 20 °C (68°F) ] ? YES : Go to Step 3. STEP 3. Check harness connector B-23 at PCM for Q: Is the harness connector in good condition? YES : Go to Step 4. Connector Inspection . Then go to Step 7. 2 1 6 5 4 3 AK303044 HARNESS B-06 (B) CONNECTOR: B-06 AB 6 1 2 3 4 5 AK202992 THROTTLE ACTUATOR AB 127 126 125 124 123 122 121 133 132 131 130 129 128 140 139 138 137 136 135 134 146 145 144 143 142 141 153 152 151 150 149 148 147 AK303058 HARNESS CONNECTOR: CONNECTOR: B-23 B-23 PCM AB AIR CLEANER |
