MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-597

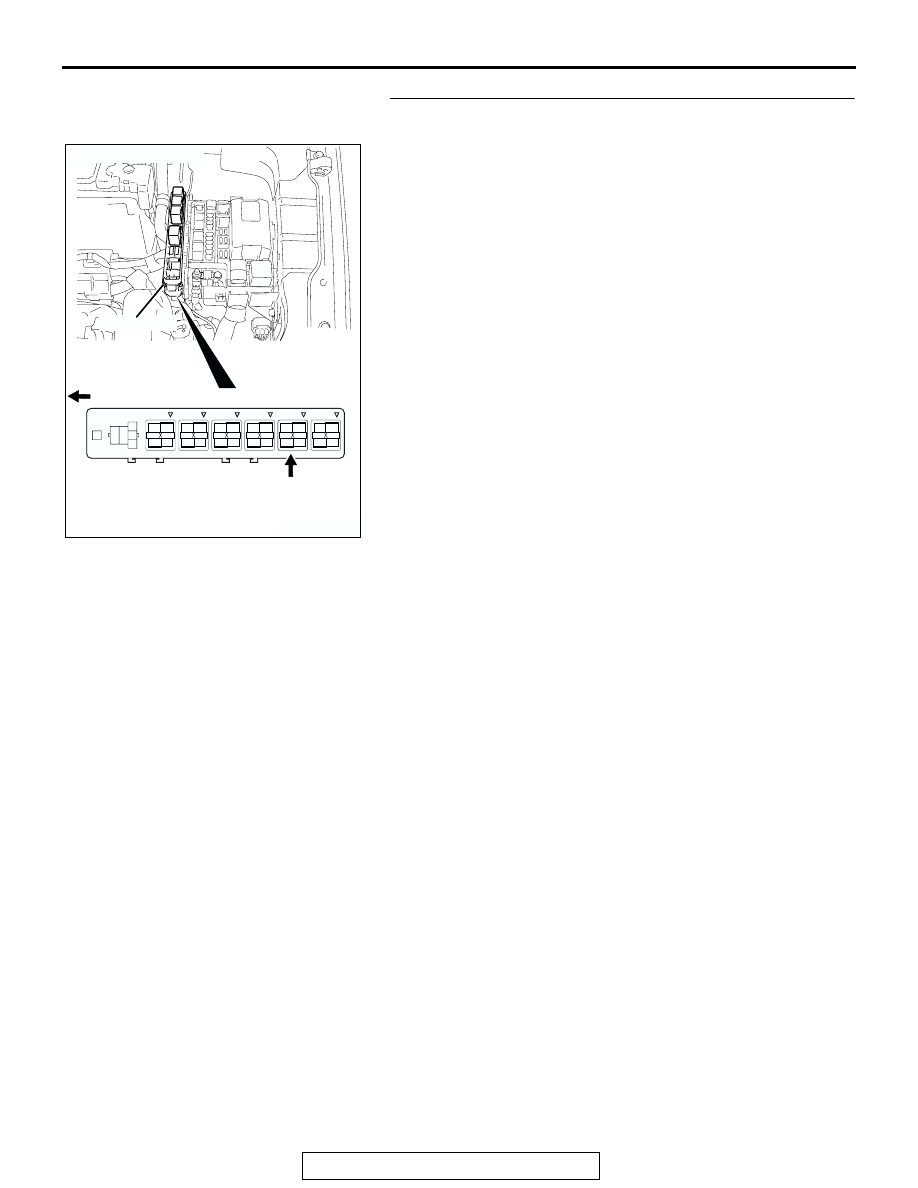

STEP 12. Check harness connector B-17X at MFI relay for
damage.

Q: Is the harness connector in good condition?

YES : Repair harness wire between MFI relay connector

B-17X (terminal No. 4) and crankshaft position sensor
connector B-119 (terminal No. 3) because of open
circuit or short circuit to ground. Then go to Step 20.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

1

2

3

4

AK303017

CONNECTOR: B-17X

FRONT OF VEHICLE

B-17X

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RELAY BOX

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-598

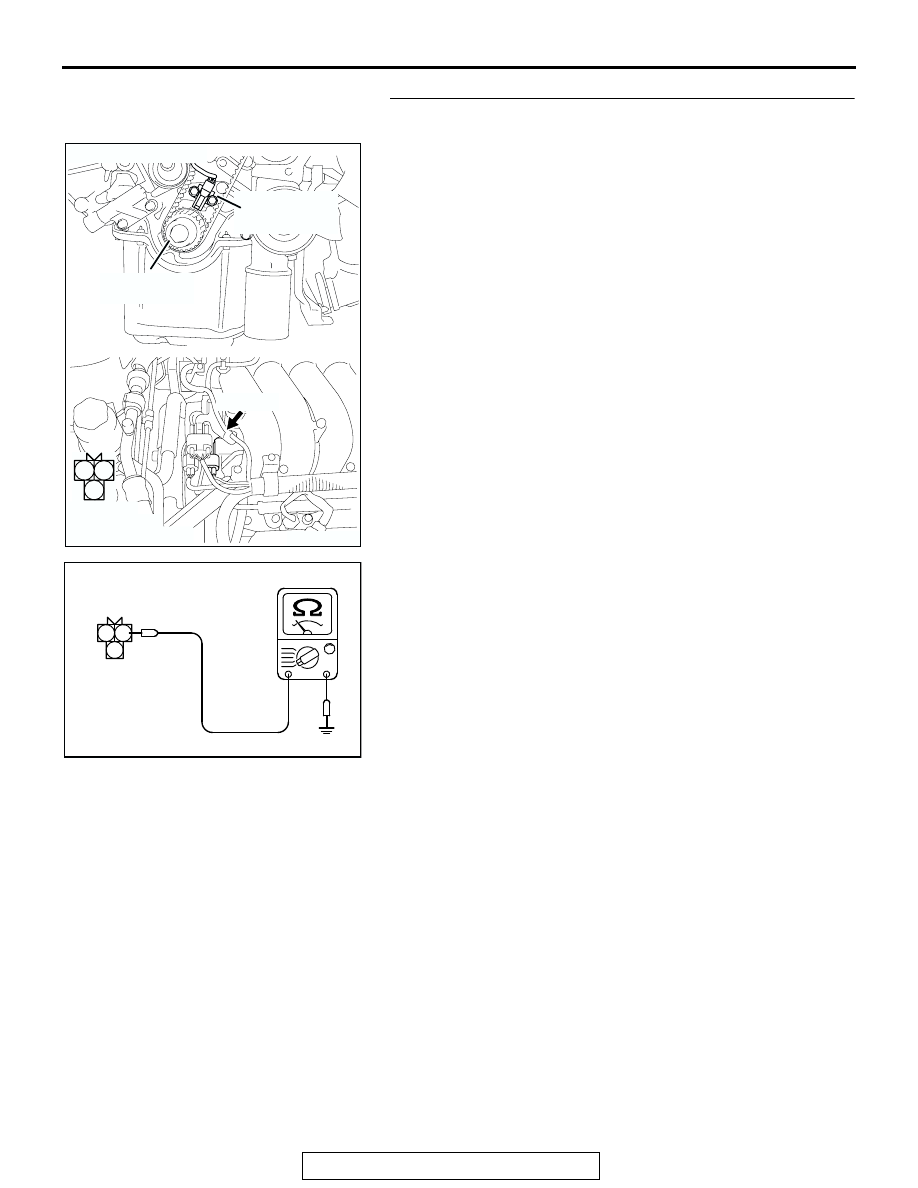

STEP 13. Check for continuity at crankshaft position
sensor harness side connector B-119.

(1) Disconnect the connector B-119 and measure at the

harness side.

(2) Check for the continuity between terminal No. 1 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 16.
NO :  Go to Step 14.

AK303123

1

2

3

CRANKSHAFT
POSITION
SENSOR

AB

CRANKSHAFT
SPROCKET

CONNECTOR: B-119

B-119 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303128 AB

2 1

3

B-119 HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-599

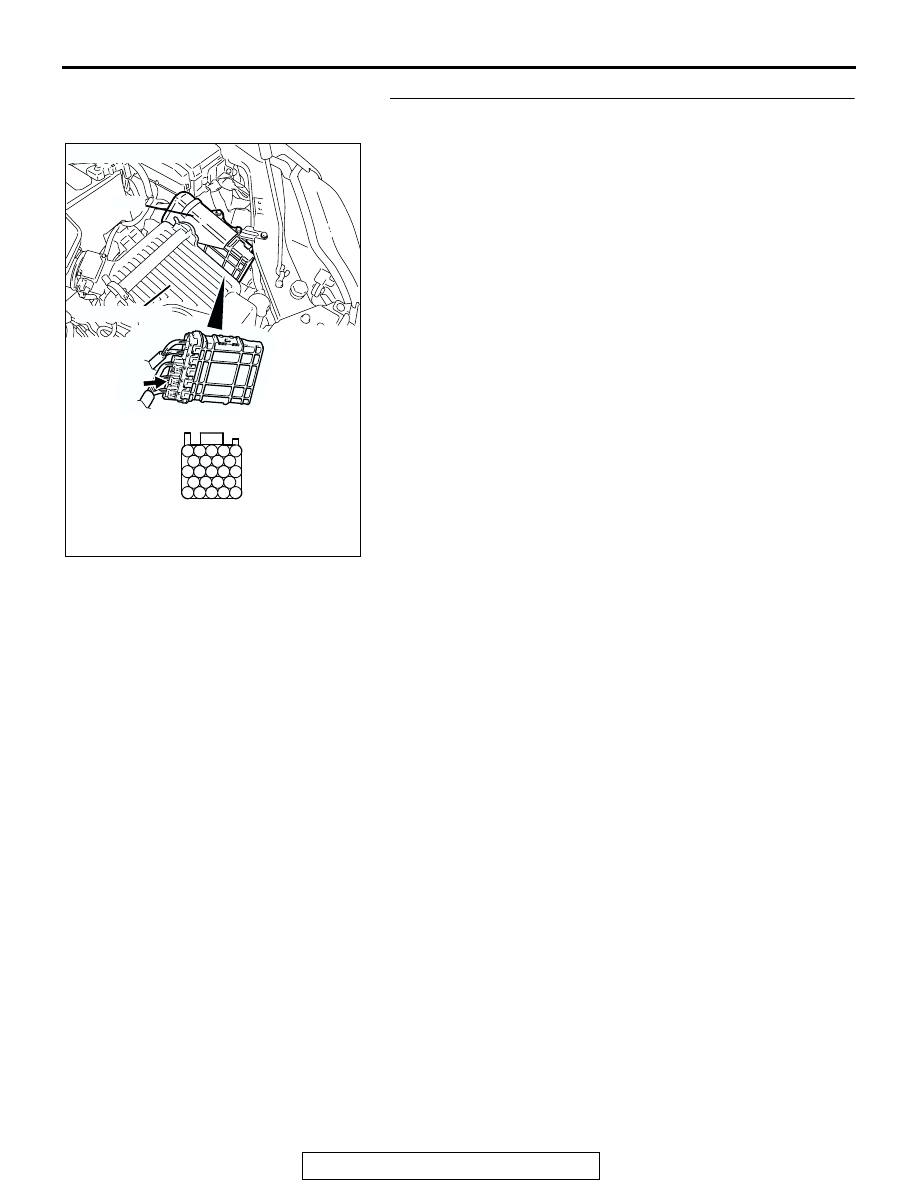

STEP 14. Check harness connector B-22 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 15.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-600

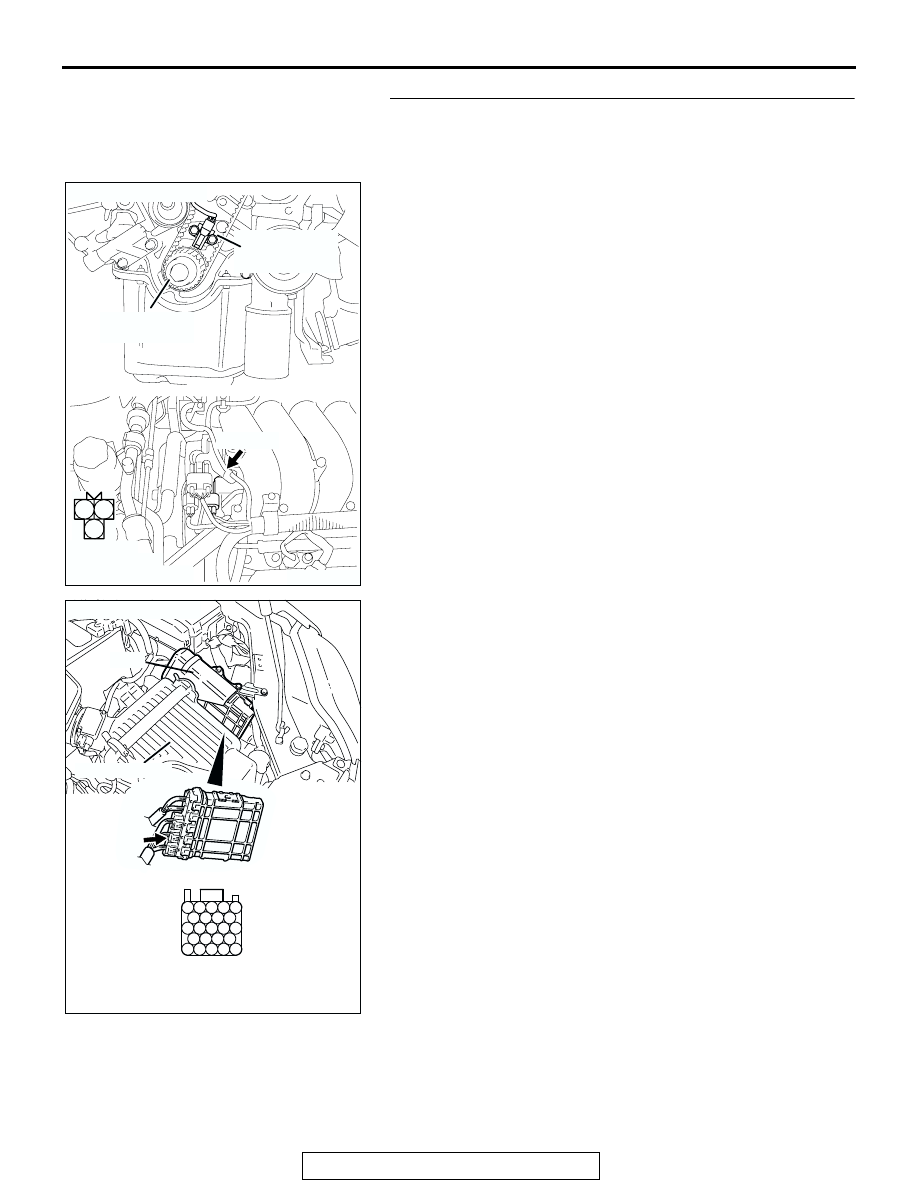

STEP 15. Check for open circuit and harness damage
between crankshaft position sensor connector B-119
(terminal No. 1) and PCM connector B-22 (terminal No.
113).

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 20.
NO :  Repair it. Then go to Step 20.

AK303123

1

2

3

CRANKSHAFT
POSITION
SENSOR

AB

CRANKSHAFT
SPROCKET

CONNECTOR: B-119

B-119 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
