AUTOMATIC AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-175

JOINT
CONNECTOR (1)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

RADIATOR
FAN RELAY

POWERTRAIN
CONTROL
MODULE

·A/C-ECU
·ENGINE
 COOLANT
 TEMPERATURE
 SENSOR
·OUTPUT SHAFT
 SPEED SENSOR

INPUT SIGNAL

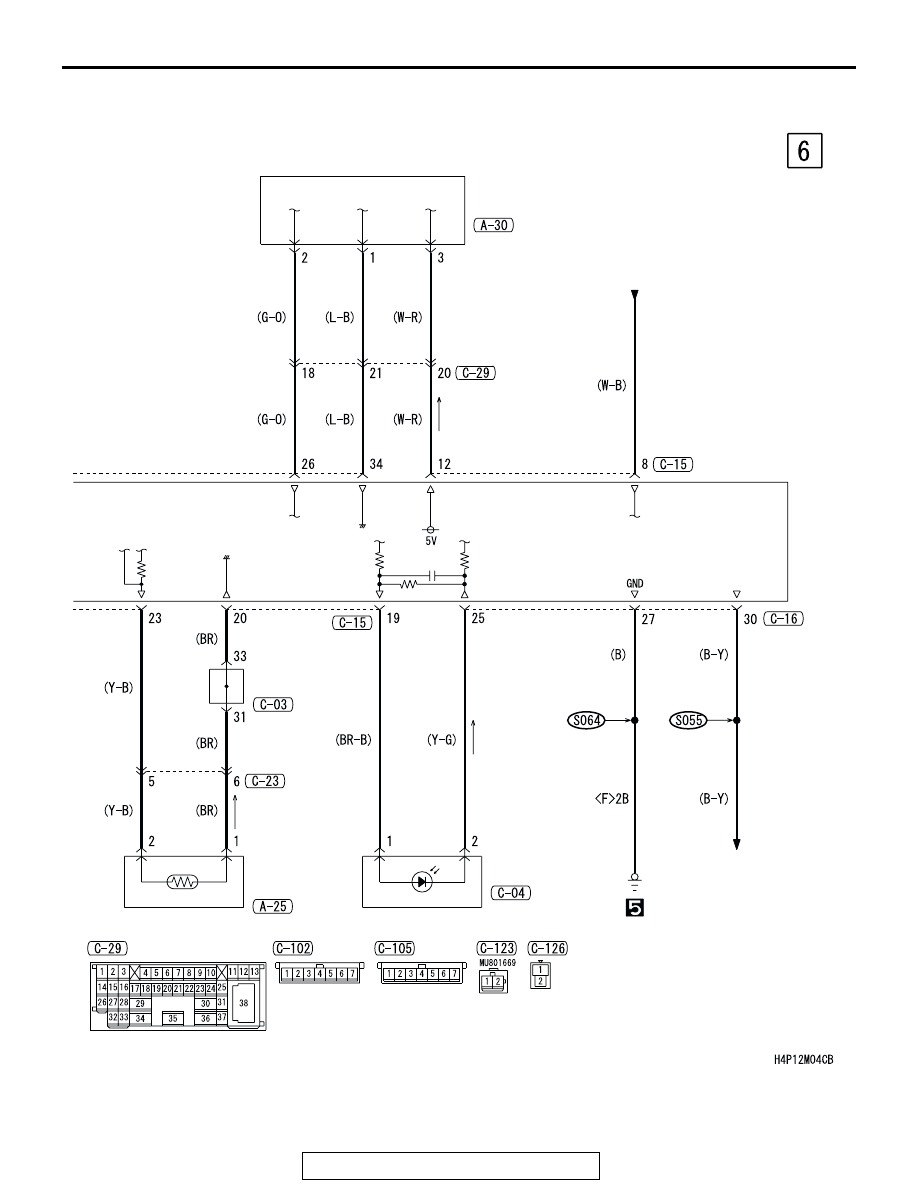

AUTOMATIC AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-176

AUTOMATIC AIR CONDITIONING SYSTEM (CONTINUED)

MODE SELECTION
DAMPER CONTROL
MOTOR AND POTENSIOMETER

AIR
THERMO
SENSOR

JOINT
CONNECTOR (2)

MOTOR
DRIVE
CIRCUIT

JOINT
CONNECTOR (2)

AIR MIXING
DAMPER CONTROL
MOTOR AND
POTENSIOMETER

INTERIOR
TEMPERA-
TURE
SENSOR

AUTOMATIC AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-177

RHEOSTAT

A/C-
ECU

DEFOGGER

A/C
PRESSURE
SENSOR

JOINT
CONNECTOR (2)

AMBIENT
TEMPERATURE
SENSOR

SENSOR

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE

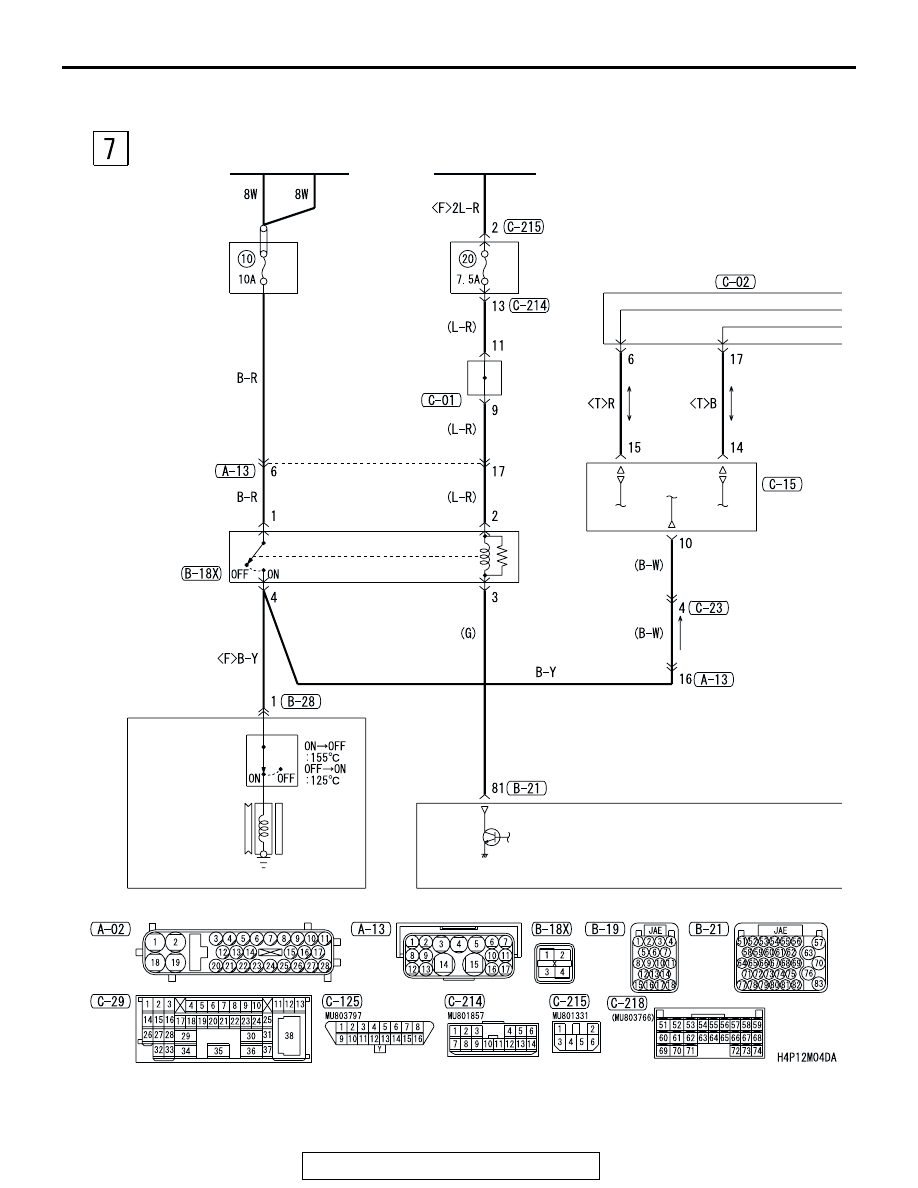

AUTOMATIC AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-178

AUTOMATIC AIR CONDITIONING SYSTEM (CONTINUED)

BATTERY

RELAY
BOX

A/C
COMPRESSOR
CLUTCH
RELAY

A/C
REFRIGERANT
TEMPERATURE
SWITCH

A/C
COMPRESSOR
ASSEMBLY

A/C
COMPRESSOR
CLUTCH

IGNITION
SWITCH (IG2)

JUNCTION
BLOCK

JOINT
CONNECTOR (1)

JOINT
CONNECTOR (3)

A/C-ECU

POWERTRAIN CONTROL MODULE
