MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-861

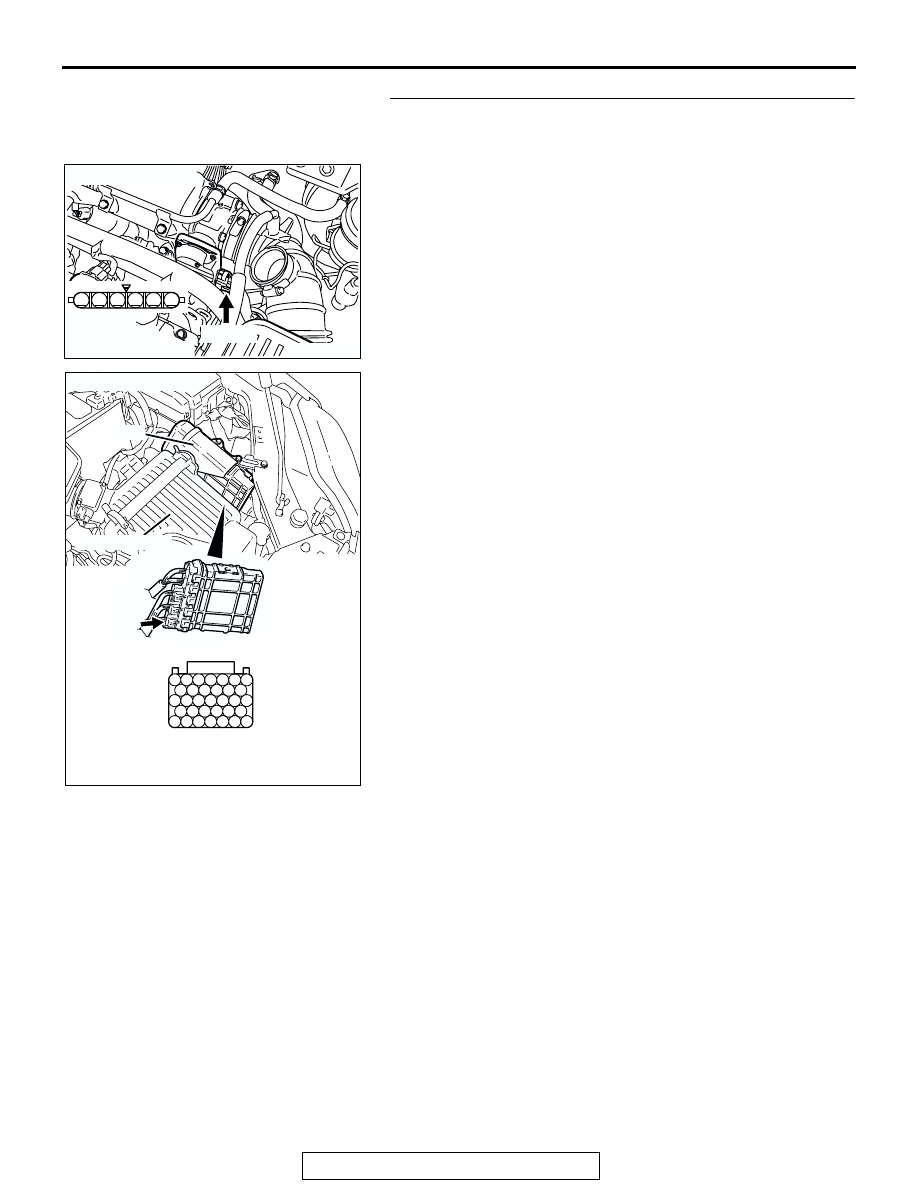

STEP 5. Check for short circuit to ground between throttle
actuator control motor connector B-06 (terminal No. 2) and
PCM connector B-23 (terminal No. 141).

Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it. Then go to Step 7.

AK303818

1

6 5 4 3 2

AB

CONNECTOR: B-06

B-06 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-862

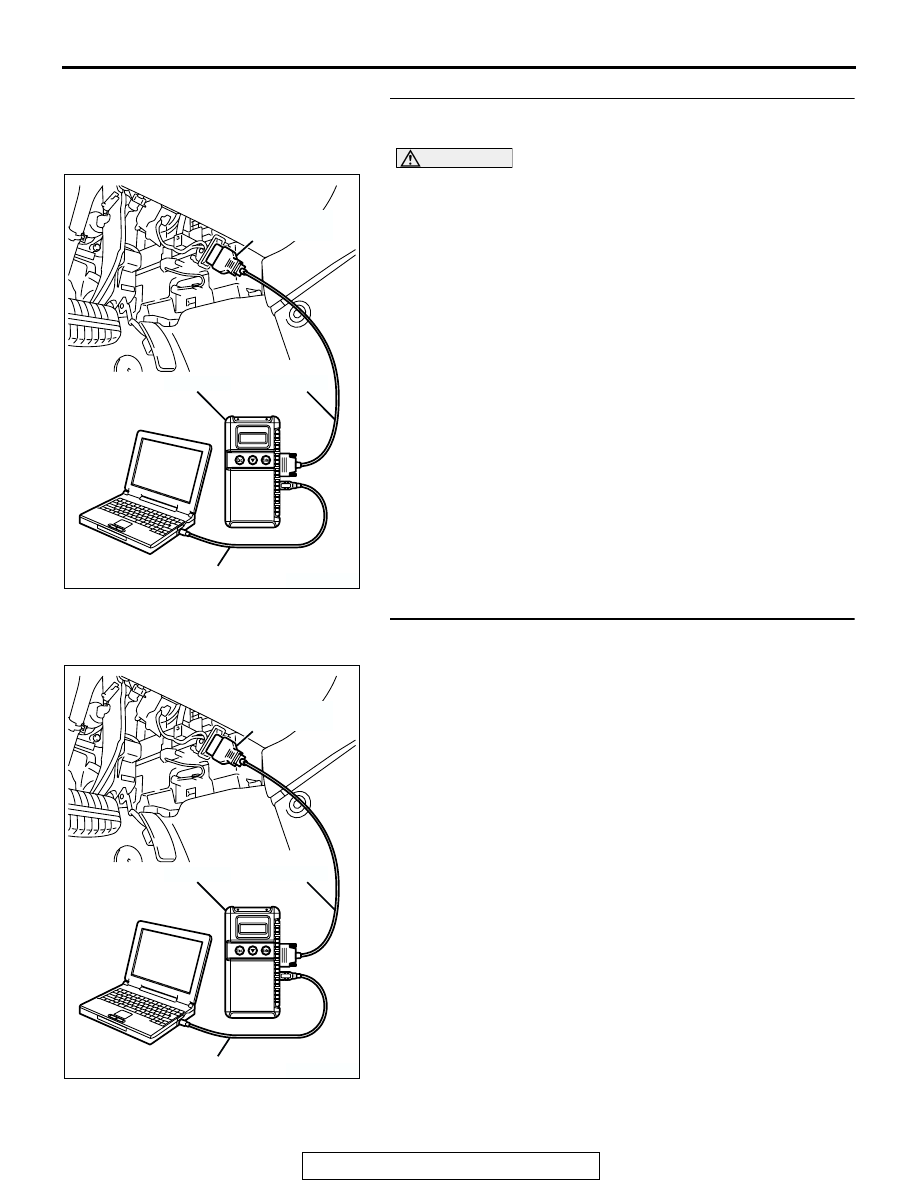

STEP 6. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P2103 set?

YES : Replace the PCM. Then go to Step 7.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

STEP 7. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.

(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P2103 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-863

DTC P2108: Throttle Actuator Control Processor Malfunction

CAUTION

If DTC P2108 has been set, TCL related DTC
U1120 is also set. After P2108 has been diag-
nosed, don't forget to erase DTC U1120.

.

TECHNICAL DESCRIPTION

• PCM checks the throttle actuator control proces-

sor for abnormal conditions.

.

DESCRIPTIONS OF MONITOR METHODS

• No watch dog pulse of throttle actuator control

processor is detected.

• Difference between throttle position sensor

(main) output and target opening is greater than
the specified value.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

DTC SET CONDITIONS

Check Conditions

• Ignition switch is "ON" position.

Judgement Criteria

• No surveillance pulse signals are input for 0.5

second.

Check Conditions

• Throttle position sensor (main) output voltage is

between 0.35 and 4.8 volts.

• Accelerator pedal position sensor (main) is nor-

mal.

• Throttle position sensor is normal.

Judgement Criteria

• Difference between the throttle position sensor

(main) output voltage and the target throttle posi-
tion sensor (main) voltage should be 1 volt or
higher for 1 second.

.

OBD-II DRIVE CYCLE PATTERN
None.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• PCM failed.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-864

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

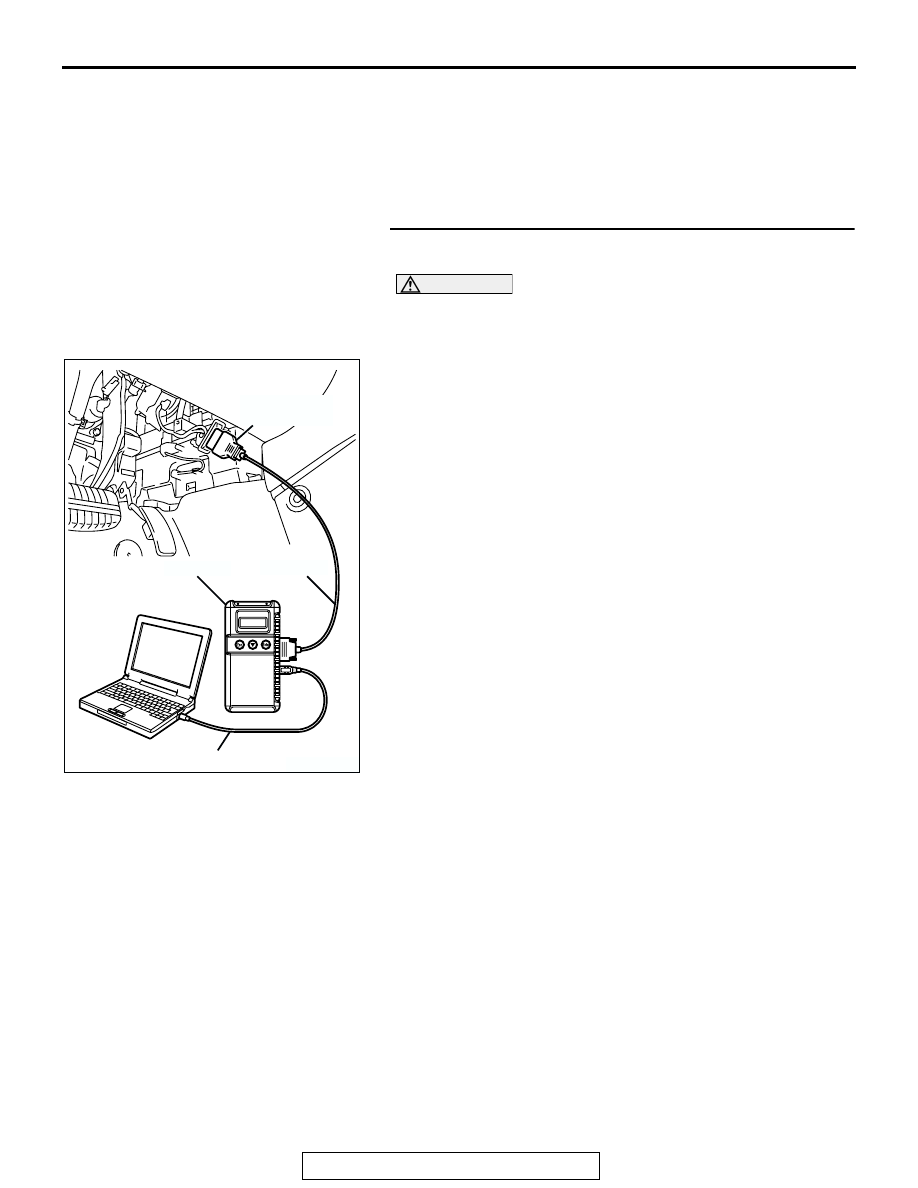

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P2108 set?

YES : Replace the PCM.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection. Service Points

P.00-6

.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827
