Mitsubishi Galant (2004+). Manual - part 93

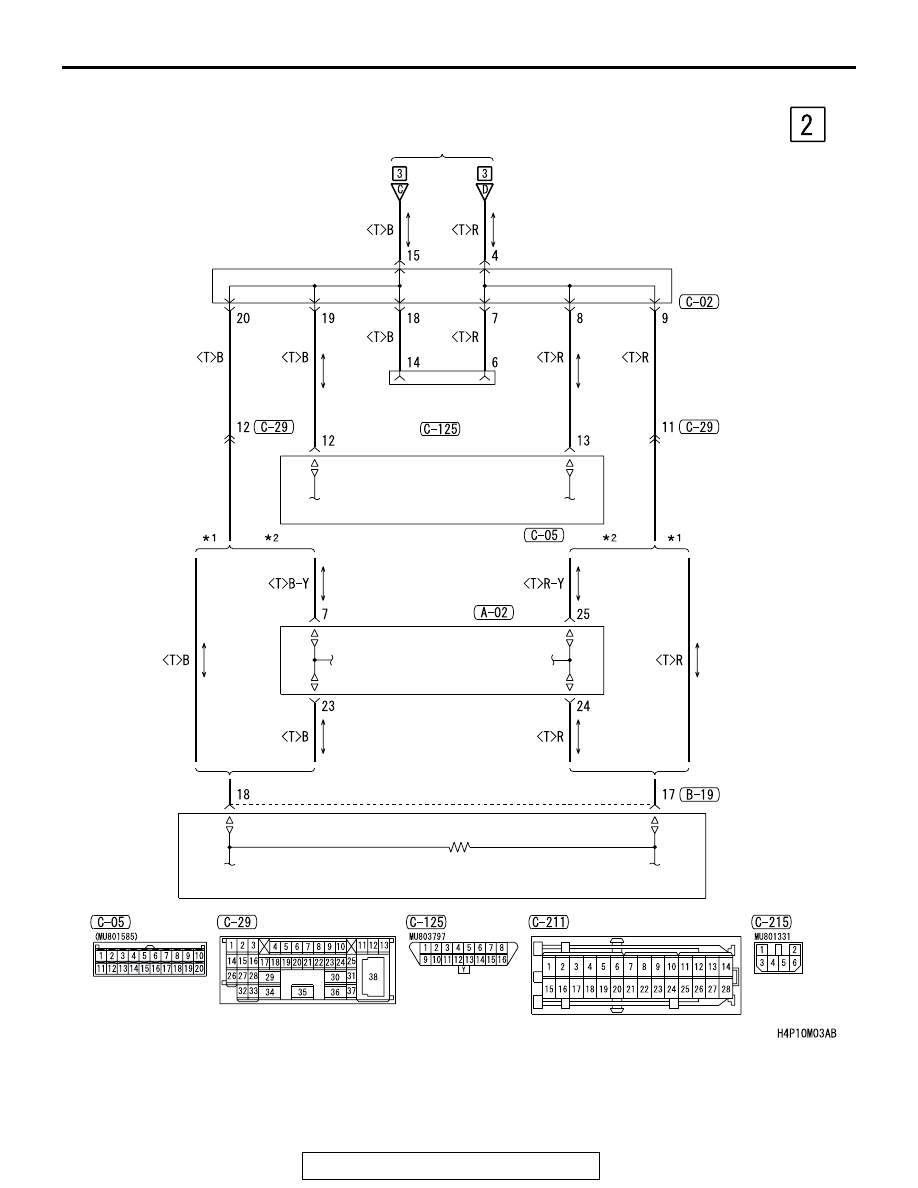

BRAKE WARNING LIGHT, OIL PRESSURE WARNING LIGHT, FUEL WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-131

COMBINATION
METER

JOINT
CONNECTOR (3)

DATA LINK
CONNECTOR

MULTI CENTER DISPLAY UNIT

ABS-ECU OR
ABS/TCL-ECU

POWERTRAIN
CONTROL
MODULE

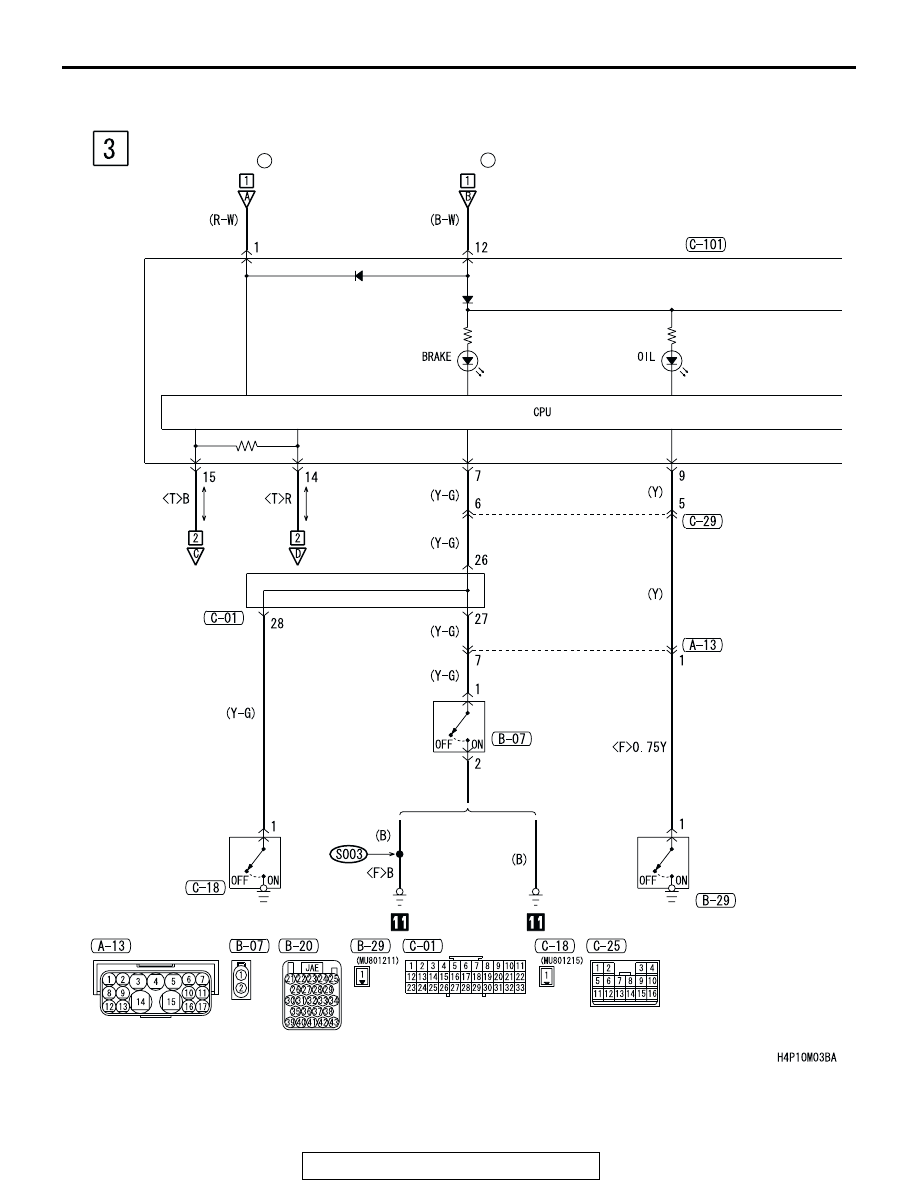

BRAKE WARNING LIGHT, OIL PRESSURE WARNING LIGHT, FUEL WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-132

BRAKE WARNING LIGHT, OIL PRESSURE WARNING LIGHT, FUEL WARNING LIGHT (CONTINUED)

RELAY BOX
(FUSE     )

22

23

JUNCTION
BLOCK
(FUSE     )

COMBINATION
METER

JOINT
CONNECTOR
(1)

PARKING
BRAKE
SWITCH

BRAKE FLUID
LEVEL SWITCH

ENGINE
OIL
PRESSURE
SWITCH

2.4L ENGINE

3.8L ENGINE

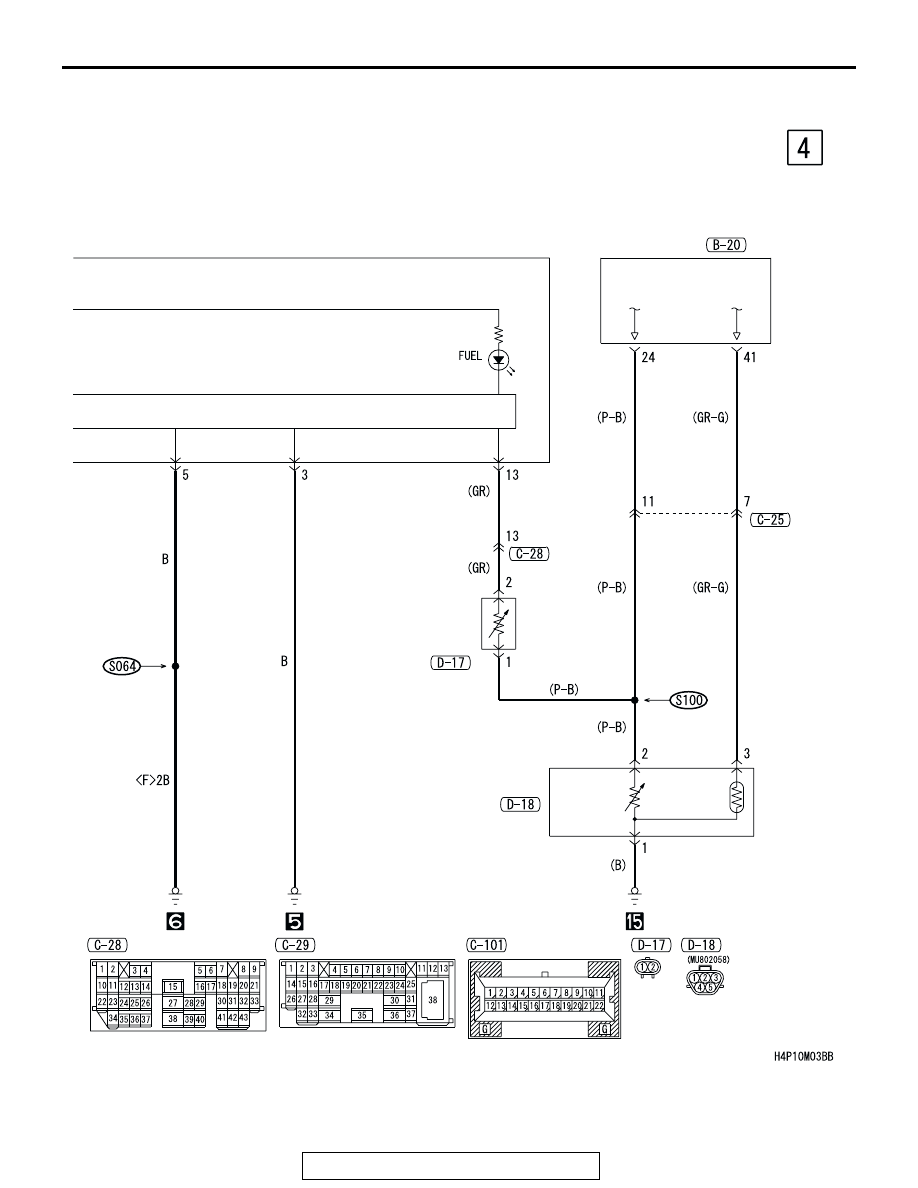

BRAKE WARNING LIGHT, OIL PRESSURE WARNING LIGHT, FUEL WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-133

FUEL
LEVEL
SENSOR
(SUB)

FUEL PUMP
MODULE

POWERTRAIN
CONTROL
MODULE

FUEL
LEVEL
SENSOR
(MAIN)

FUEL TANK
TEMPERATURE
SENSOR

POWER WINDOWS

TSB Revision

CIRCUIT DIAGRAMS

90-134

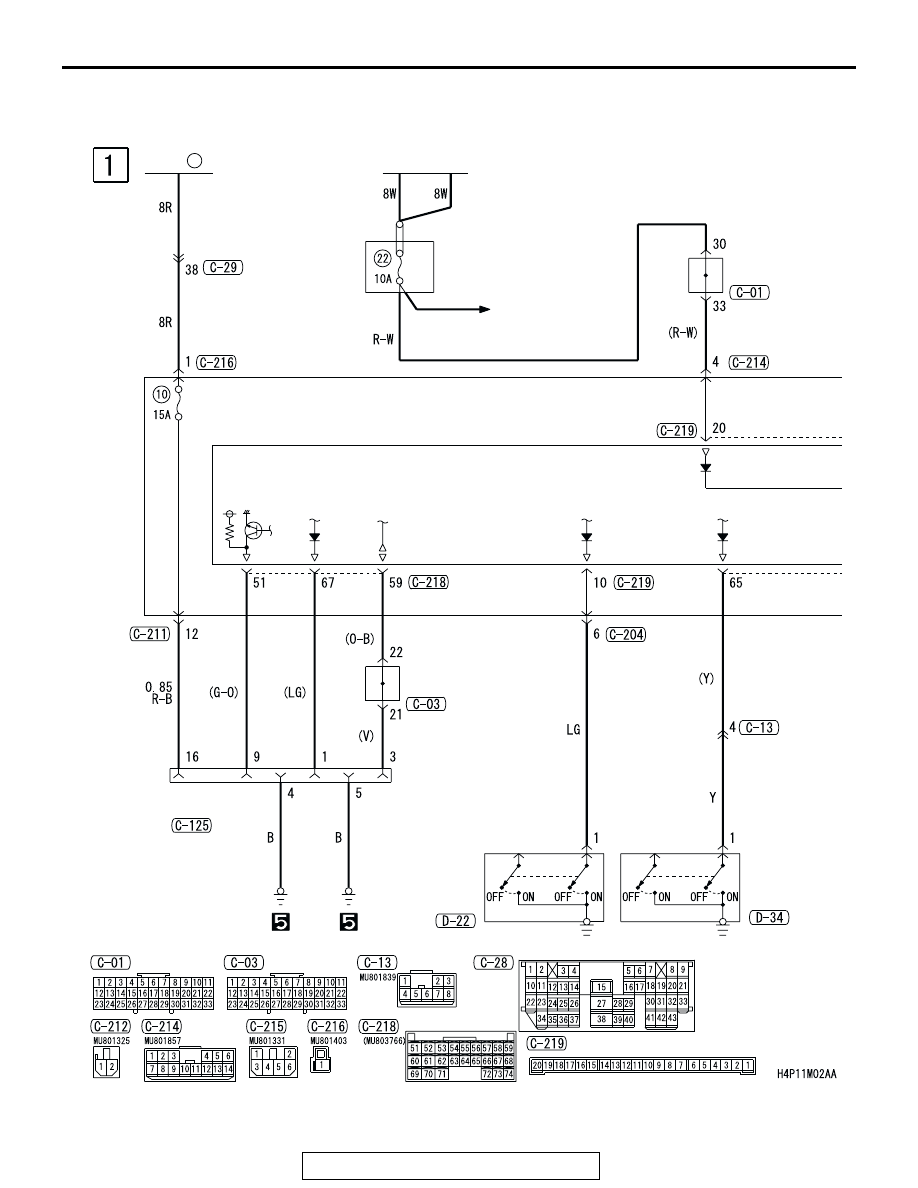

POWER WINDOWS

M1901004600701

BATTERY

FUSIBLE
LINK

1

JOINT
CONNECTOR (1)

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT AND
 LICENSE PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER



ETACS-ECU

JOINT
CONNECTOR (2)

DATA LINK
CONNECTOR

FRONT
DOOR
SWITCH
(LH)

FRONT
DOOR
SWITCH
(RH)

JUNCTION BLOCK SIDE

RELAY
BOX
