Mitsubishi Galant (2004+). Manual - part 88
VANITY MIRROR LIGHT
TSB Revision
CIRCUIT DIAGRAMS
90-111

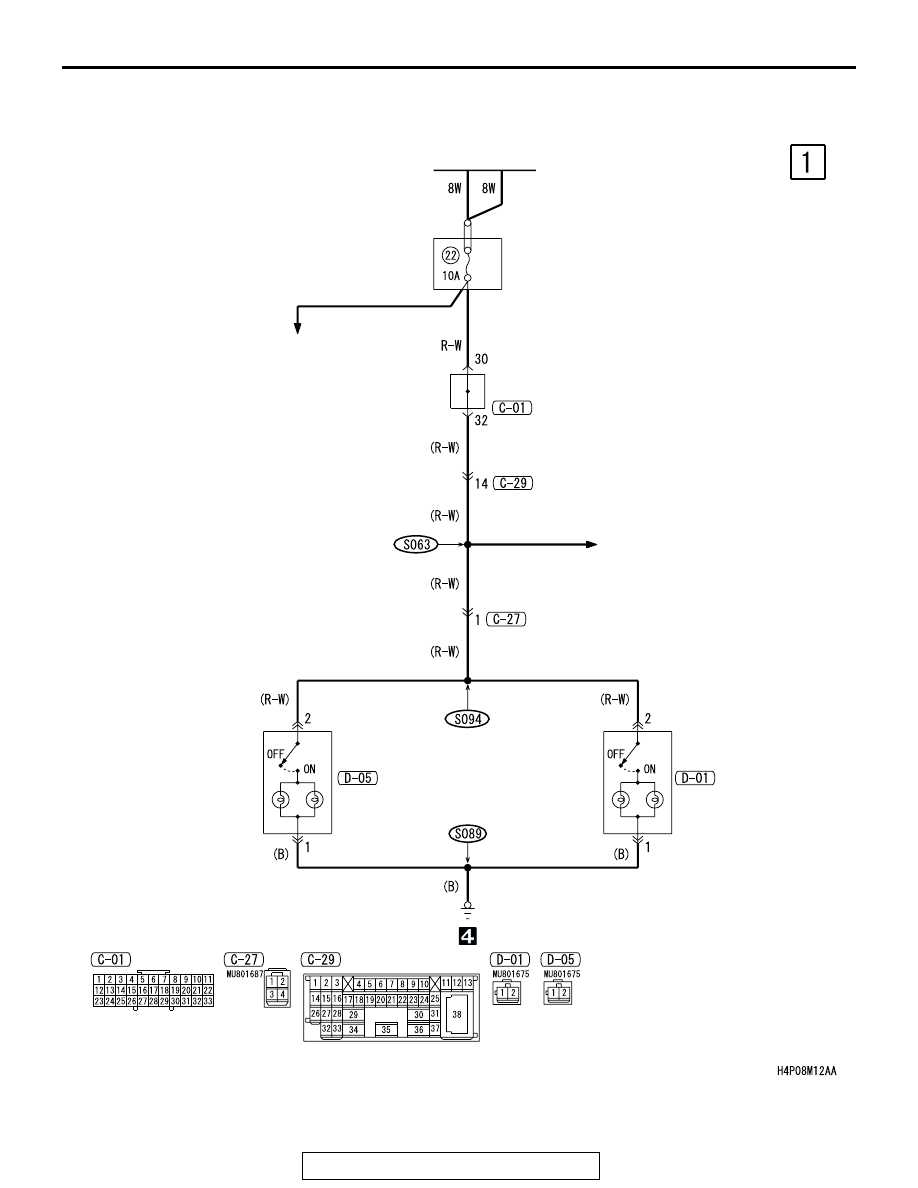

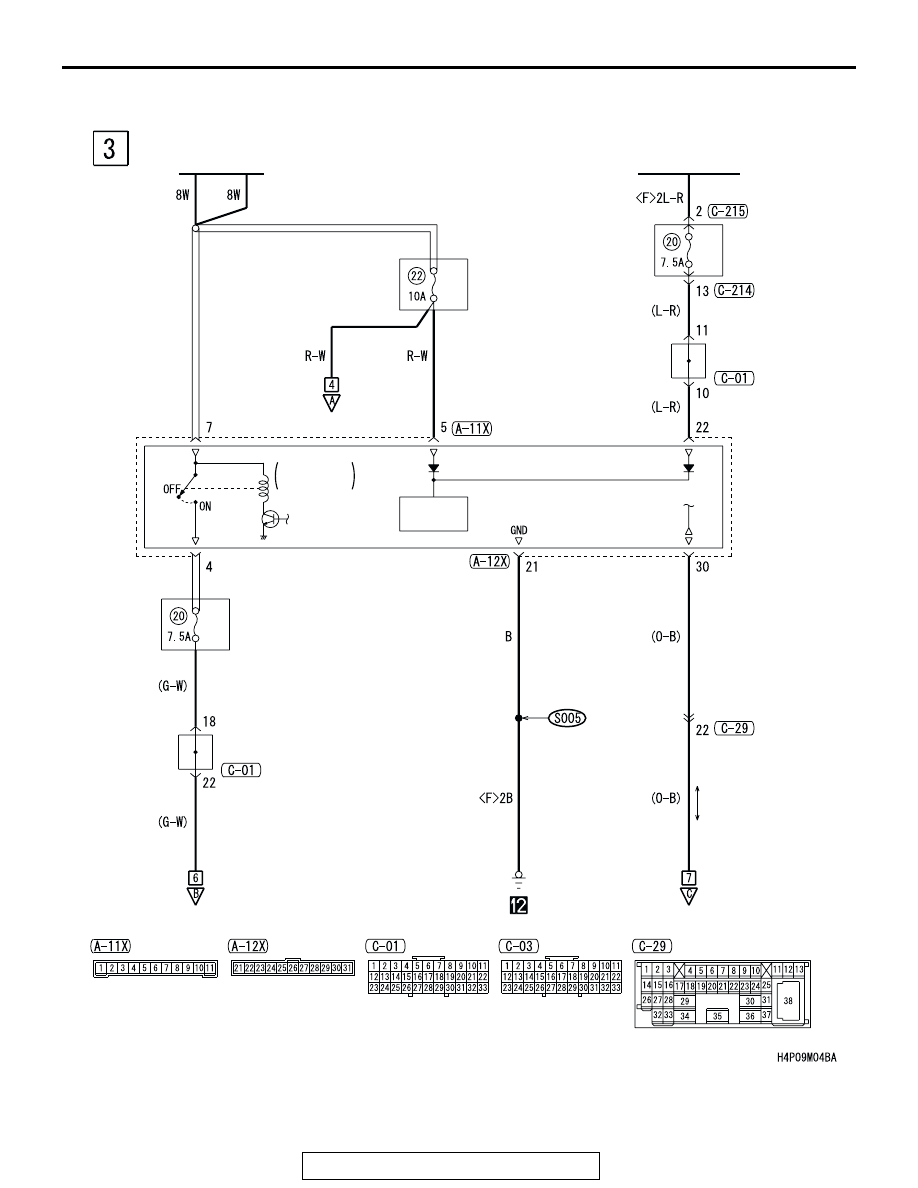

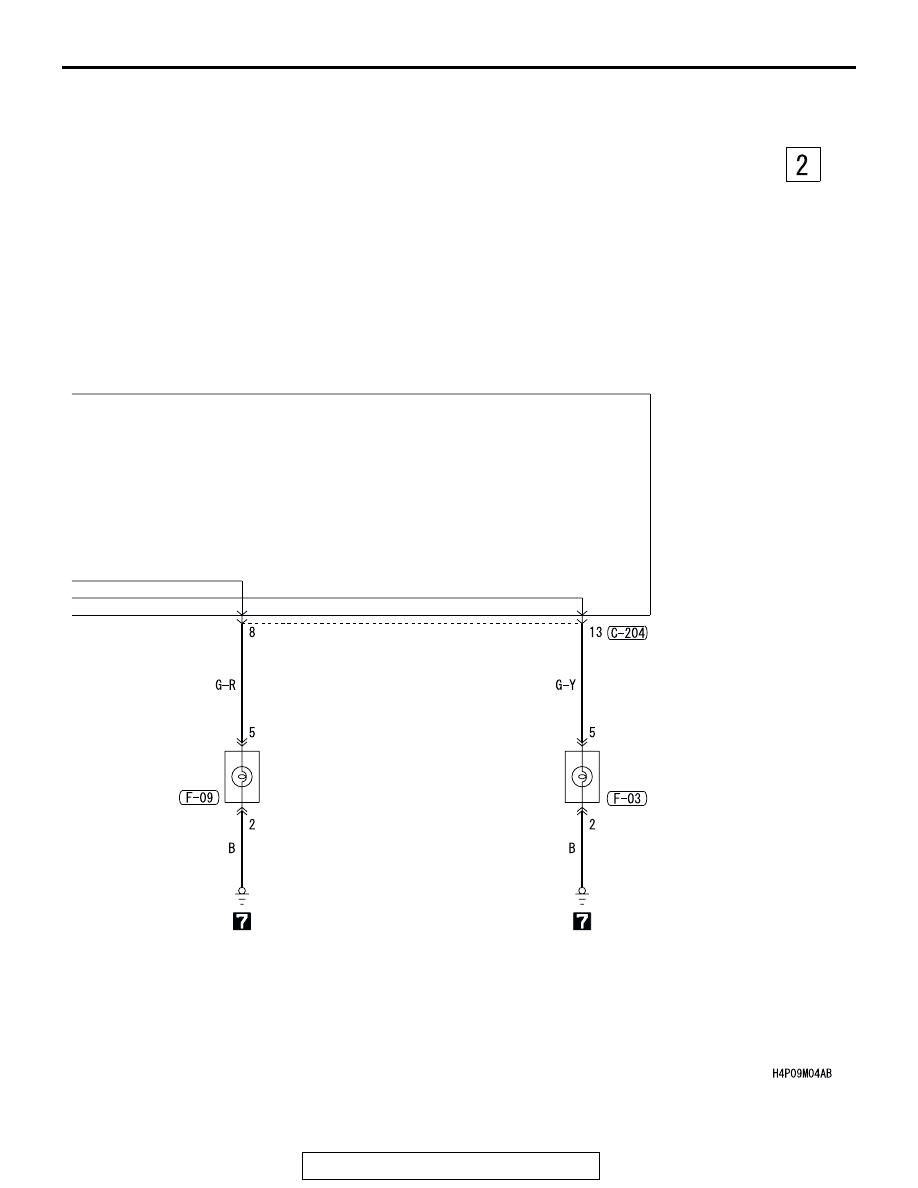

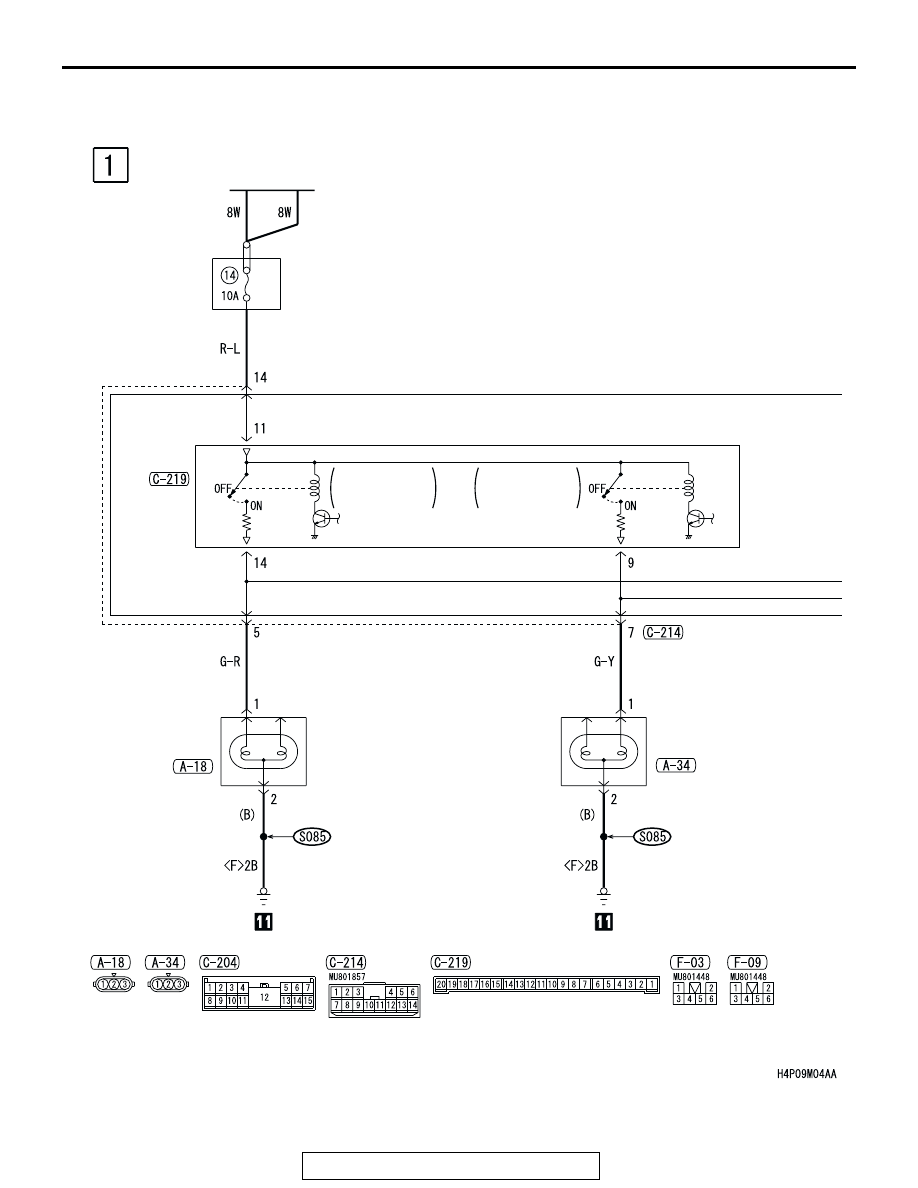

VANITY MIRROR LIGHT
M1901002400347
BATTERY
VANITY
MIRROR
LIGHT (LH)
VANITY
MIRROR
LIGHT (RH)
JOINT
CONNECTOR (1)
RELAY
BOX
WIRE COLOR CODE
B : BLACK SB : SKY BLUE
BR : BROWN LG : LIGHT GREEN
G : GREEN P : PINK GR : GRAY
R : RED L : BLUE Y : YELLOW
V : VIOLET W : WHITE O : ORANGE
