Mitsubishi Galant (2004+). Manual - part 65

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-19

CENTRALIZED RELAY

AC208463AB

(IN JUNCTION BLOCK)

3 4

7 8 9

11 12

14 15 16 17

19 20 21 22 23 24

CONNECTOR NO.

NAME

CONNECTOR NO.

NAME

A-05X

Fog light relay

A-16X

Radiator fan relay

A-06X

Horn relay

B-11X

−

A-07X

−

B-12X

−

A-08X

−

B-13X

−

A-09X

−

B-14X

Throttle actuator control
motor relay

A-10X

Fan control relay

B-15X

−

A-11X

Front-ECU

B-16X

A/T control relay

A-12X

Front-ECU

B-17X

MFI relay

A-15X

Condenser fan relay

B-18X

A/C compressor clutch relay

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-20

NOTE: The triangle mark on the relay housing should face that on the relay box.

AC208462

(RELAY BOX IN ENGINE COMPARTMENT)

A-06X

A-10X

A-05X

A-07X A-08X A-09X

A-11X

A-12X

FRONT OF VEHICLE

AC303418

(RELAY BOX IN ENGINE COMPARTMENT)

FRONT OF VEHICLE

A-15X

A-16X

AC208464

B-12X

B-11X

FRONT OF VEHICLE

B-13X

B-14X

B-15X

B-16X

B-17X

B-18X

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-21

NOTES

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-22

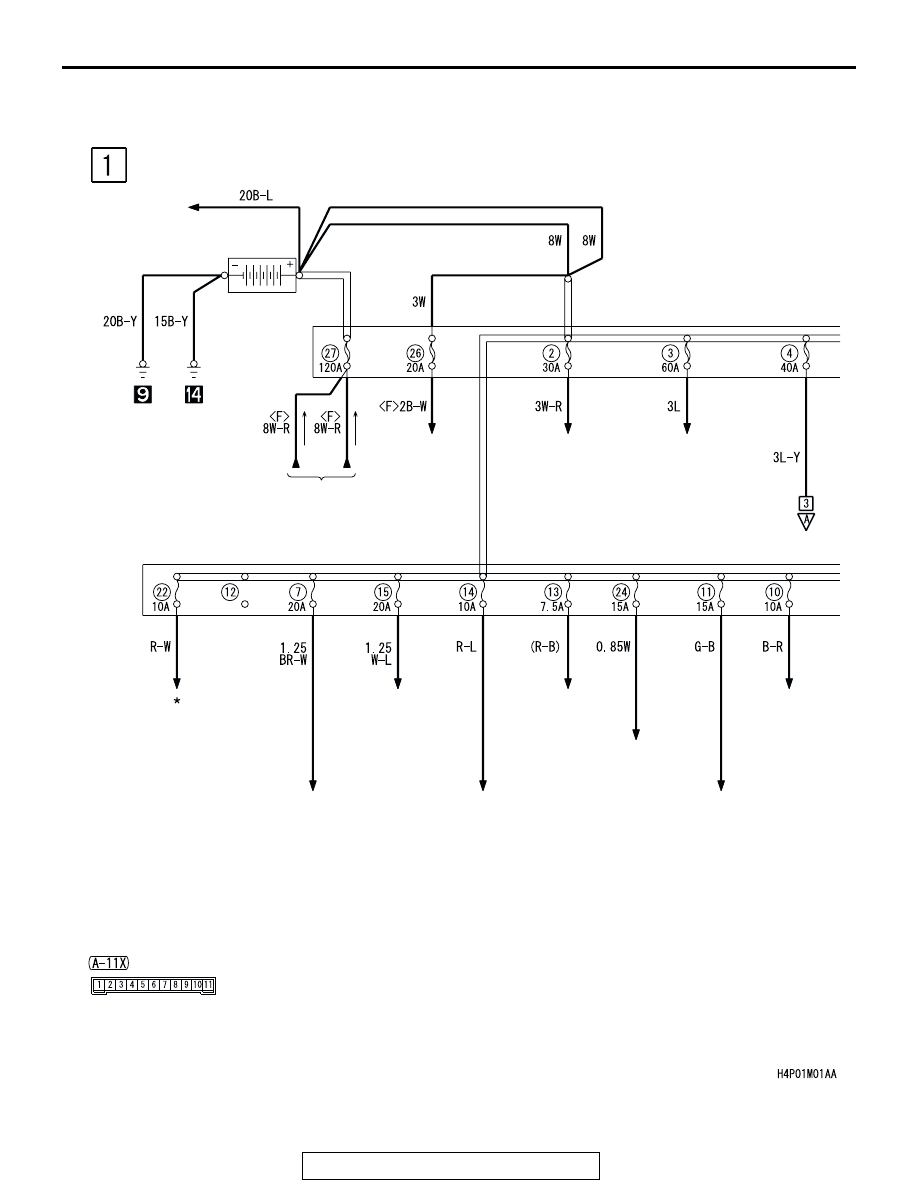

POWER DISTRIBUTION SYSTEM

M1901000400642

BATTERY

FUSIBLE
LINK

RELAY BOX

STARTING
SYSTEM

·AUTOMATIC AIR
CONDITIONING SYSTEM
·COOLING SYSTEM
·MANUAL AIR
CONDITIONING SYSTEM

·AUTOMATIC AIR
CONDITIONING
SYSTEM
·COOLING SYSTEM
·MANUAL AIR
CONDITIONING
SYSTEM

·CONTROLLER AREA
NETWORK (CAN)
·ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM

HEATED SEAT

·CONTROLLER AREA
NETWORK (CAN)
·INVECS-II 4A/T

·CENTRAL DOOR
LOCKING SYSTEM
·TURN-SIGNAL LIGHT
AND HAZARD
WARNING LIGHT

·AUTO-CRUISE
CONTROL SYSTEM
·ELECTRONIC BRAKE-
FORCE DISTRIBUTION
(EBD) AND ANTI-LOCK
BRAKING SYSTEM
·ENGINE IMMOBILIZER
SYSTEM
·INVECS-II 4A/T
·STOPLIGHT

·AUTOMATIC AIR
CONDITIONING
SYSTEM
·MANUAL AIR
CONDITIONING
SYSTEM

CHARGING
SYSTEM

MFI SYSTEM

CHARGING
SYSTEM
