HOW TO READ CIRCUIT DIAGRAMS
TSB Revision
CIRCUIT DIAGRAMS
90-7

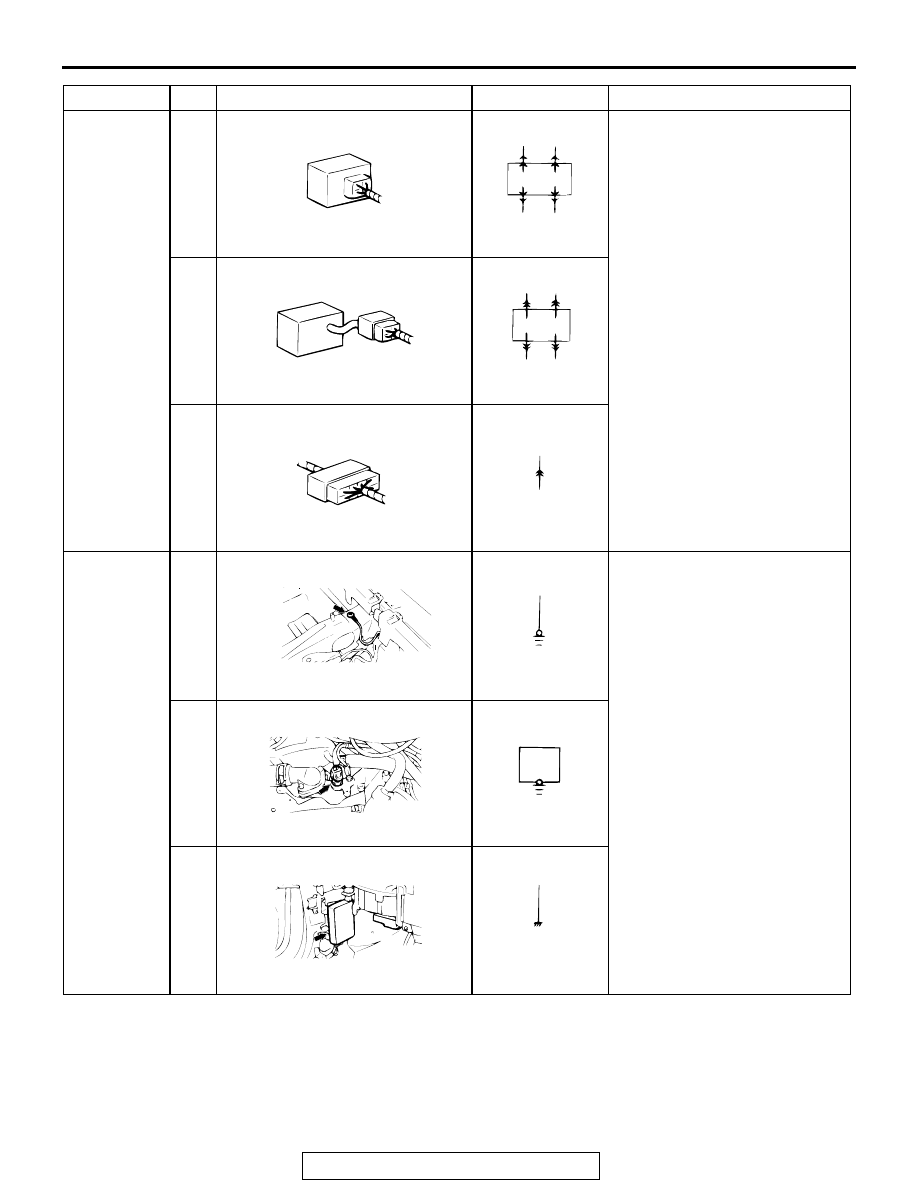

ITEM
NO. CONNECTOR/ GROUNDING
SYMBOL
CONTENTS

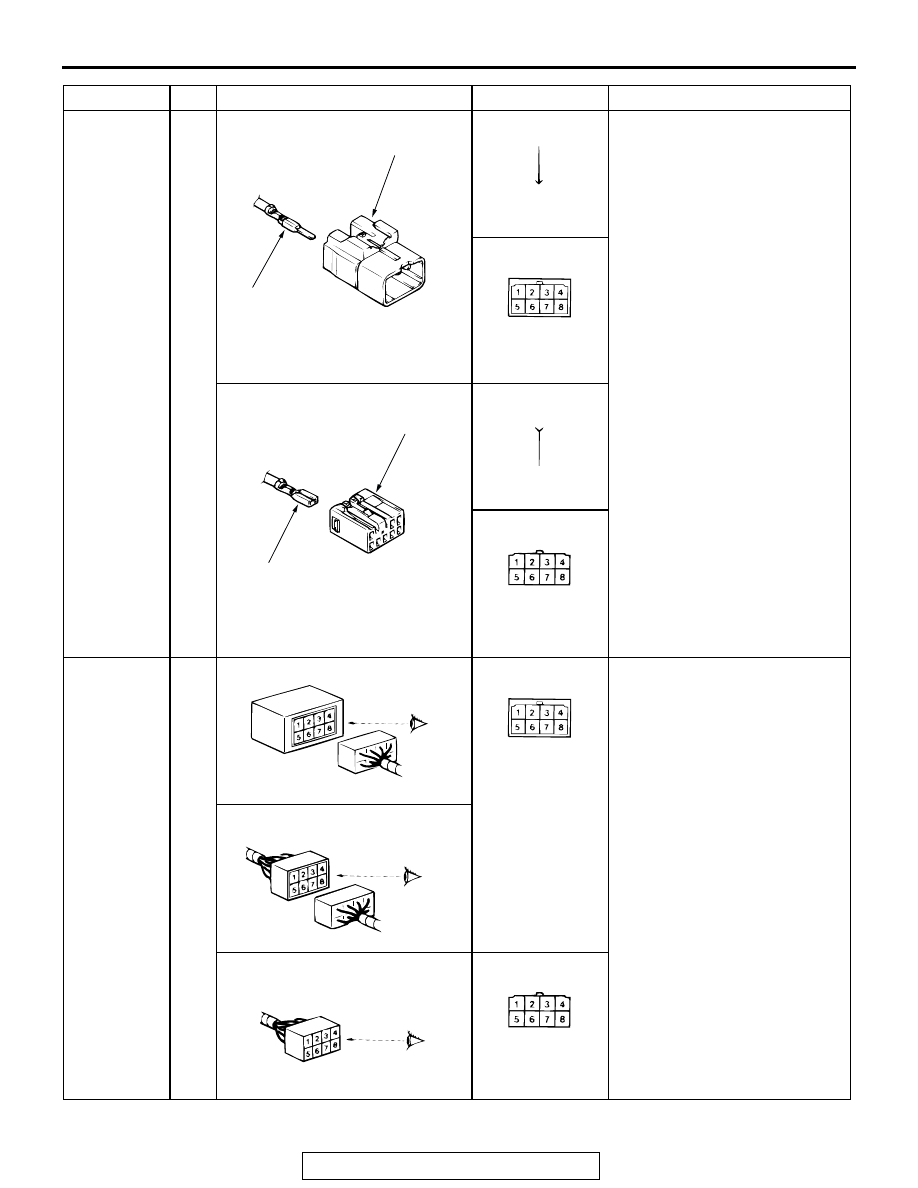

Connector
and terminal
marking
1
The male and female terminals
are indicated as shown. The
connector with male terminal(s)
is called as male connector and
indicated by two connector
contour lines, while the
connector with female
terminal(s) is called as female
connector and indicated by
single connector contour line.
Connector
symbol
marking
2
The symbol indicates the
connector is viewed as shown.
At a device connection, the
connector symbol on the device
side is shown. For an
intermediate connector, the
male connector symbol is
shown. For spare connectors
and check connectors, no
device is connected, and so the
harness-side connector symbol
is shown for these connectors.
For the data link connector, its
contents differ from the previous
description. Refer to the
"MUT-II/MUT-II+ Reference
Manual" for details.
ACX01251AB
Male terminal
Male connector
ACX01252AB
Male terminal
ACX01253 AB
Male connector
ACX01254 AB
Female terminal
Female connector
ACX01255AB
Female terminal
ACX01256 AB
Female connector
ACX01257AB
Device
ACX01253
ACX01258AB
Intermediate connector
ACX01816
Spare connector, check connector
AB
ACX01256
