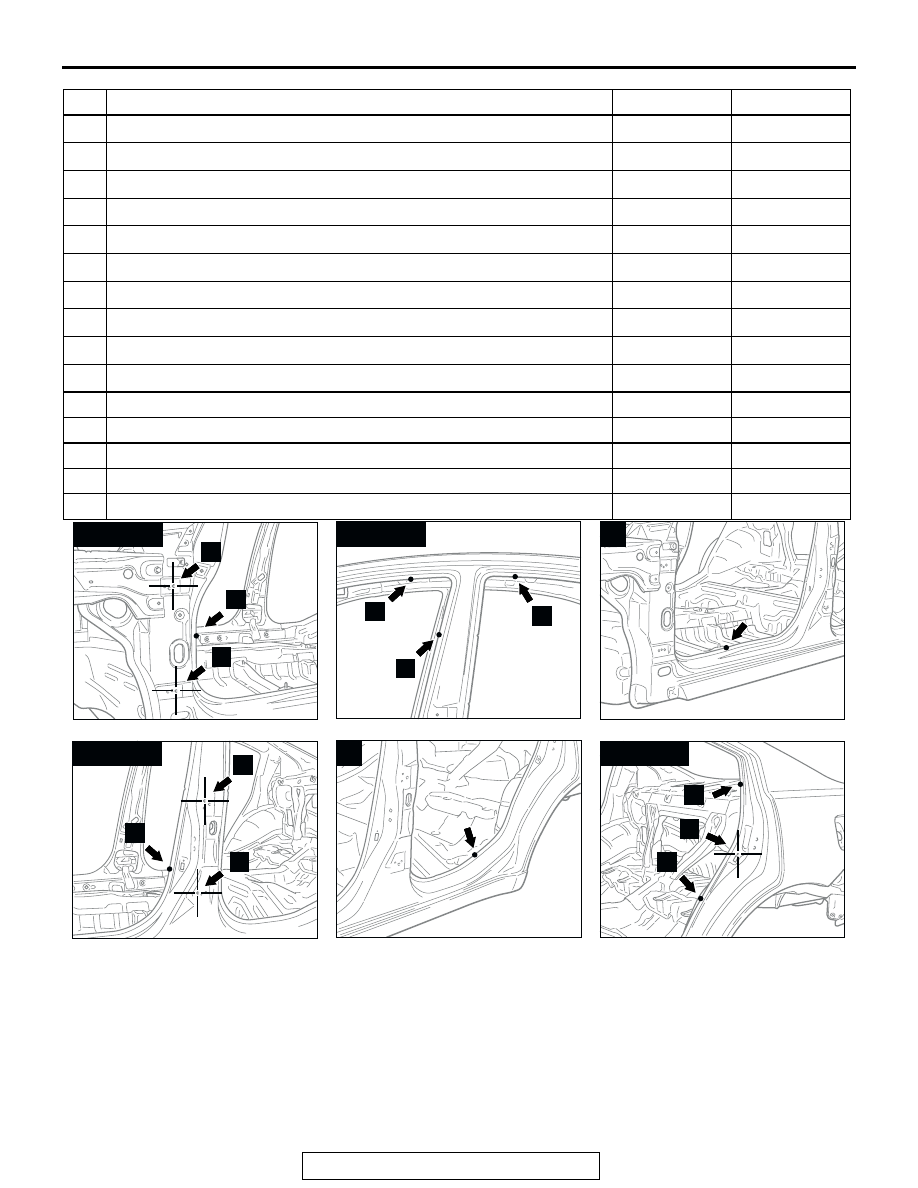

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-15

NO. STANDARD MEASUREMENT POINT

HOLE SHAPE  SIZE mm (in)

32

Front pillar positioning notch (upper)

−

−

33

Front pillar positioning notch (lower)

−

−

34

Side roof rail positioning notch (front)

−

−

35

Side sill positioning notch (front)

−

−

36

Center pillar positioning notch (upper)

−

−

37

Center pillar positioning notch (lower)

−

−

38

Side roof rail positioning notch (rear)

−

−

39

Side sill positioning notch (rear)

−

−

40

Quarter panel positioning notch (upper)

−

−

41

Quarter panel positioning notch (lower)

−

−

42

Center of front door hinge mounting hole (upper)

Round

10 (0.4)

43

Center of front door hinge mounting hole (lower)

Round

10 (0.4)

44

Center of rear door hinge mounting hole (upper)

Round

10 (0.4)

45

Center of rear door hinge mounting hole (lower)

Round

10 (0.4)

46

Center of rear door switch mounting hole

Round

5 (0.2)

AB301200AB

33, 42, 43

43

33

42

AB301492AB

34, 36, 38

36

38

34

AB301493AB

35

AB301201AB

37, 44, 45

45

37

44

AB301494 AB

39

AB301202AB

40, 41, 46

41

46

40

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-16

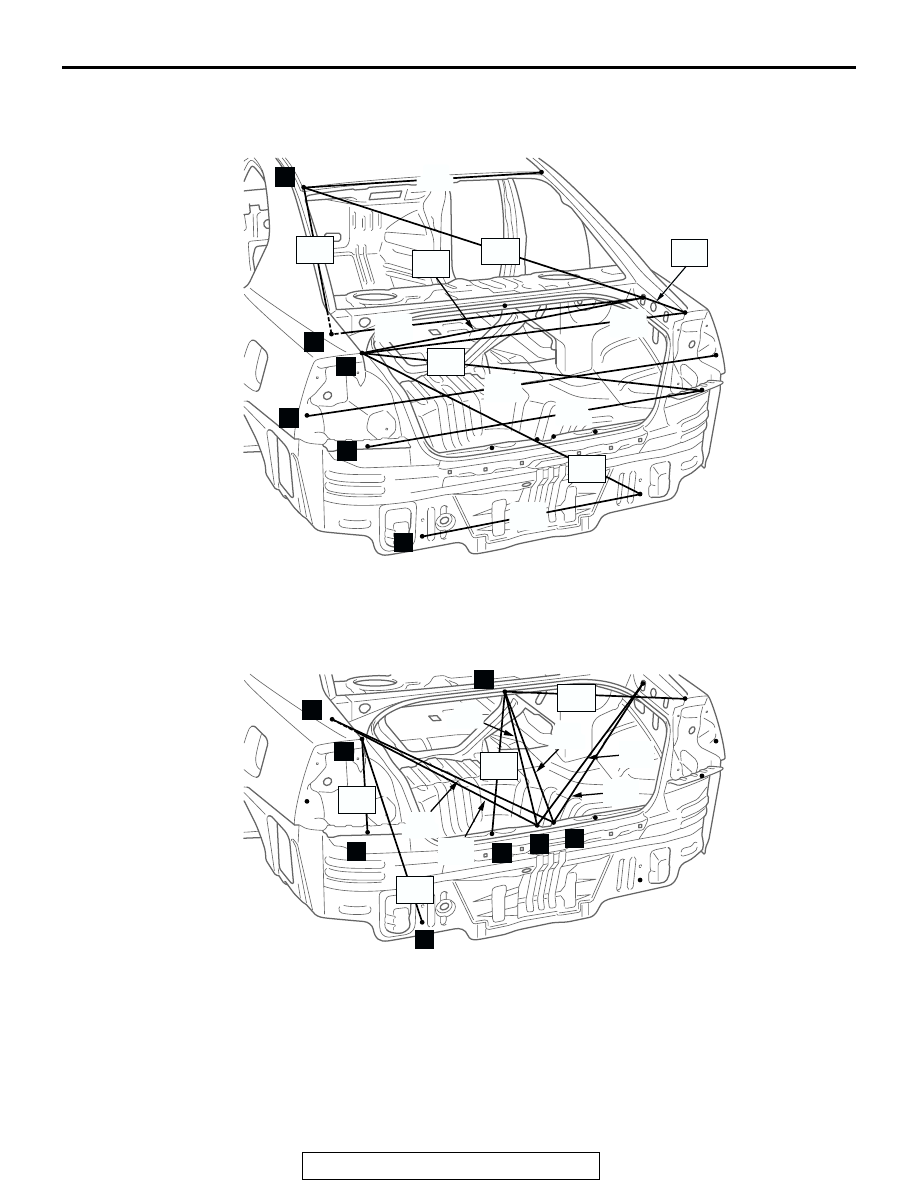

REAR BODY

M4020008000159

AB300514

AB

47

48

49

52

1,208

(47.4)

1,046

(41.4)

  856

(33.6)

1,172

(46.0)

1,226

(48.1)

  832

(32.7)

1,217

(47.8)

1,526

(59.9)

1,176

(46.2)

mm (in)

50

51

1,195

(46.9)

1,401

(55.0)

  856

(33.6)

AB300513

AB

48

49

53

56

54

  645

(25.3)

55

  518

(20.3)

  673

(26.4)

  741

(29.1)

  518

(20.3)

  570

(22.4)

  803

(31.5)

52

51

  739

(29.0)

  800

(31.4)

  277

(10.9)

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-17

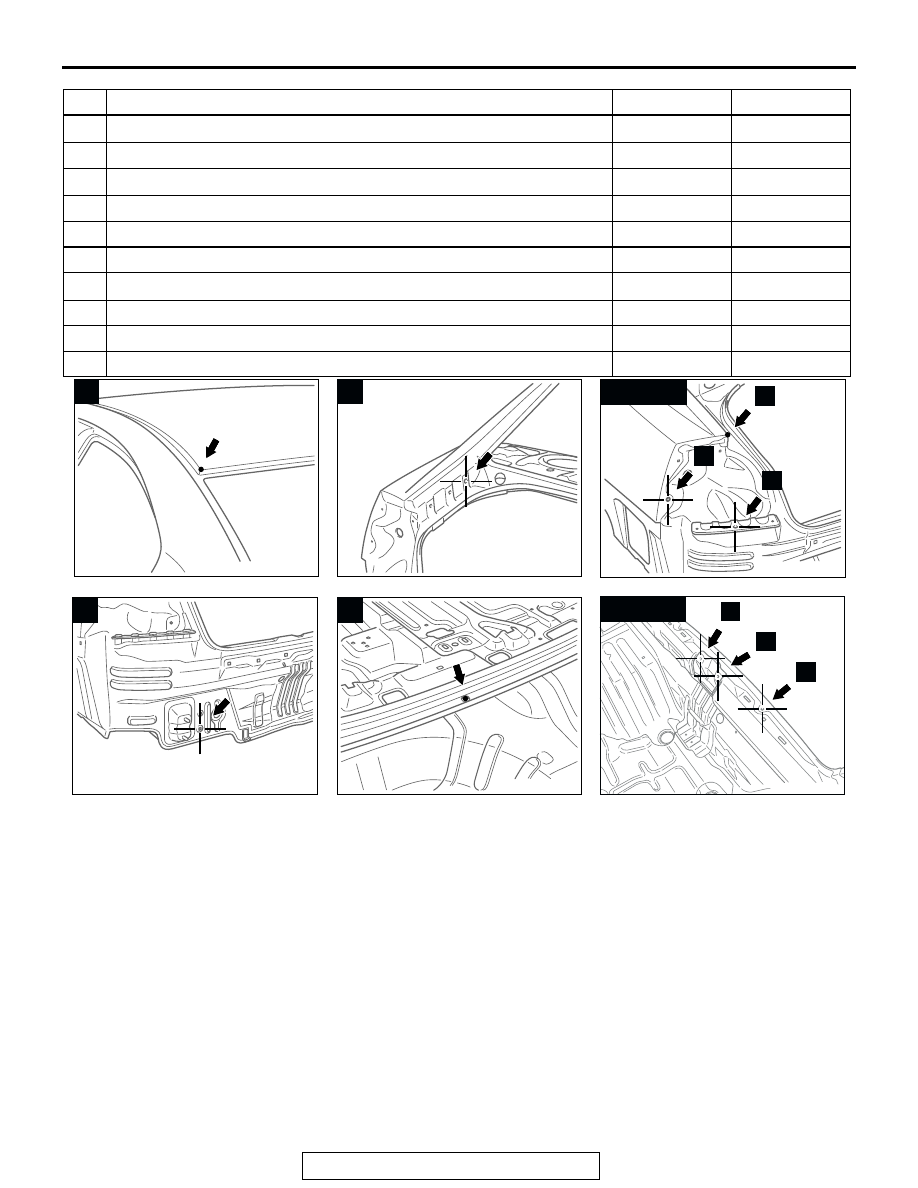

NO. STANDARD MEASUREMENT POINT

HOLE SHAPE SIZE mm (in)

47

Corner of roof panel

−

−

48

Center of tranklid hinge mounting hole

Round

9 (0.4)

49

Corner of side outer panel

−

−

50

Center of rear comb lamp mounting hole

Oblong

8

×

12 (0.3

×

0.5)

51

Center of rear bumper mounting hole

Round

6.7 (0.26)

52

Center of rear end panel outer mounting hole

Round

10 (0.4)

53

Body center point rear shelf reinforcement

−

−

54

Center of latch mounting hole

Round

6.6 (0.26)

55

Center of latch mounting hole

Round

6.6 (0.26)

56

Center of rear end panel inner water draining hole

Round

7 (0.3)

AB300706

AB

47

AB300707

AB

48

AB300709

AB

51

50

49, 50, 51

49

AB300711

AB

52

AB300708

AB

53

AB301203AB

56

54, 55, 56

54

55

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-18

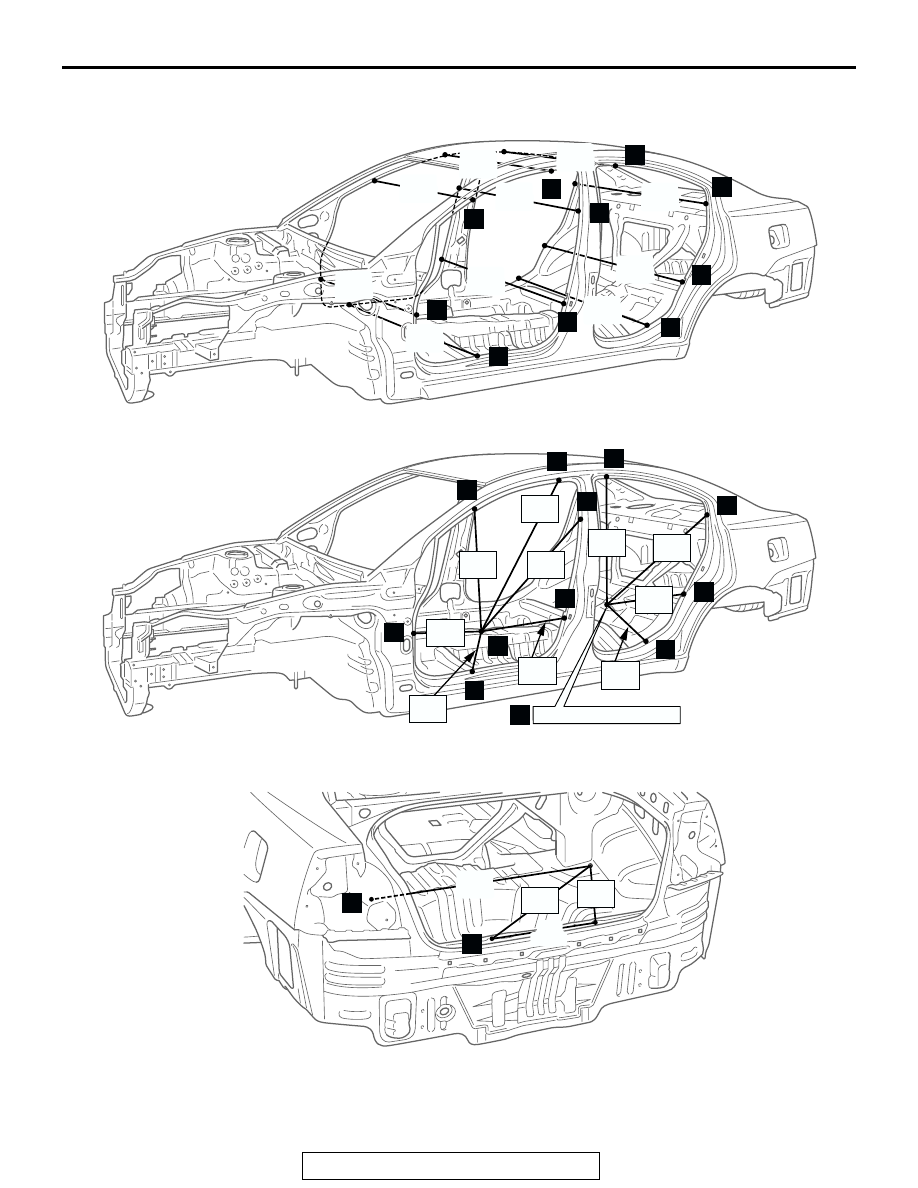

 INTERIOR

M4020009000152

AB300519

AB

32

34

36

37

39

35

33

38

40

41

1,427

(56.0)

1,217

(47.8)

1,421

(55.8)

1,511

(59.3)

1,193

(46.8)

1,347

(52.9)

1,504

(59.1)

1,509

(59.3)

1,515

(59.5)

1,523

(59.8)

mm (in)

AB300520

AB

32

33

34

37

41

35

36

38

57

58

40

39

 1097

(43.1)

1,146

(45.0)

1,159

(45.5)

1,077

(42.3)

1,174

(46.1)

  963

(37.8)

  776

(30.5)

  860

(33.8)

BODY CENTER POINT

  814

(32.0)

  808

(31.7)

AB301237

AB

60

59

1,164

(45.7)

  380

(14.9)

1,120

(44.0)

  901

(35.4)
