BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-17

.

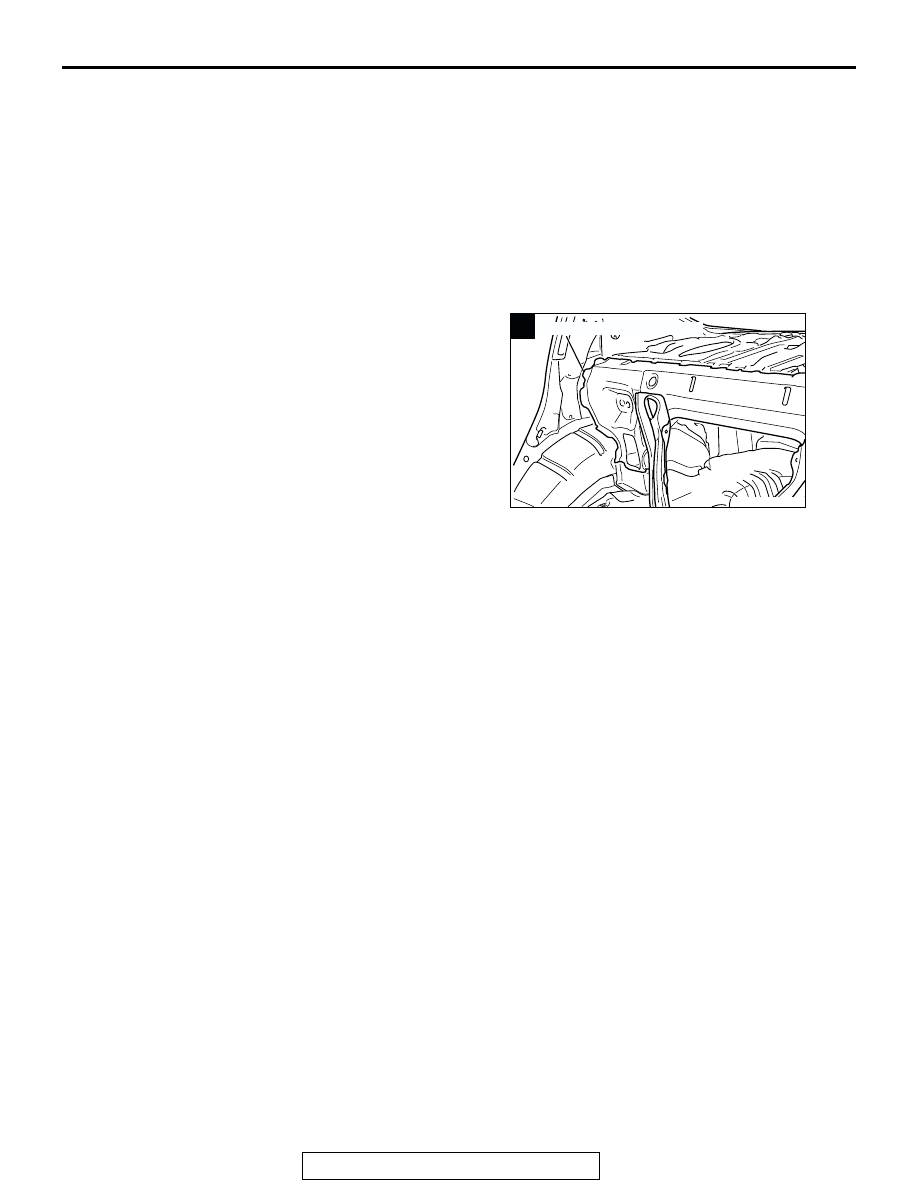

The rear deck has been connected to the rear floor
with a closed section by a rear seatback plate and a
rear deck crossmember extension rear, so that the
body torsional rigidity and handling stability have
been improved.

1.

SIDE OUTER REINFORCEMENT

2.

FRONT PILLAR BRACE REINFORCEMENT

3.

SIDE SILL OUTER REINFORCEMENT INNER

4.

SIDE SILL REINFORCEMENT FRONT

5.

SIDE SILL REINFORCEMENT BULKHEAD FRONT

6.

FRONT PILLAR BULKHEAD LOWER

7.

FRONT DOOR HINGE REINFORCEMENT UPPER

8.

FRONT PILLAR INNER LOWER

9.

CROSSMEMBER BRACKET REAR LOWER (LEFT
SIDE)

10. CROSSMEMBER BRACKET REAR UPPER (LEFT

SIDE)

11. CROSSMEMBER BRACKET REAR (RIGHT SIDE)
12. FRONT PILLAR INNER UPPER
13. SUNVISOR BRACKET A
14. ROOF SIDE RAIL INNER
15. REAR SEATBACK BRACE
16. SEAT BELT REINFORCEMENT
17. REAR DECK CROSSMEMBER EXTENSION REAR
18. REAR QUARTER INNER PANEL UPPER
19. REAR WHEEL HOUSE PANEL INNER
20. REAR WHEEL HOUSE SHIELD PLATE REAR
21. REAR QUARTER INNER PANEL LOWER
22. REAR WHEEL HOUSE SHIELD PLATE FRONT
23. SIDE ROOF RAIL REINFORCEMENT REAR
24. REAR PILLAR REINFORCEMENT
25. STRIKER REINFORCEMENT
26. FUEL FILLER NECK BRACKET (LEFT SIDE)
27. REAR QUARTER OUTER PANEL EXTENSION
28. QUARTER CORNER PANEL
29. REAR LIGHT HOUSING

30. REAR BUMPER BRACKET
31. SIDE OUTER EXTENSION REAR
32. SIDE OUTER PANEL
33. SIDE OUTER EXTENSION FRONT
34. FENDER BRACKET
35. SIDE SILL REINFORCEMENT REAR
36. CENTER PILLAR REINFORCEMENT UPPER
37. SIDE SILL BULKHEAD B
38. SIDE SILL BULKHEAD REAR
39. CENTER PILLAR REINFORCEMENT
40. CENTER PILLAR SEATBELT REINFORCEMENT
41. CENTER PILLAR INNER

AB301546

AB

A

REAR SEATBACK BRACE

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-18

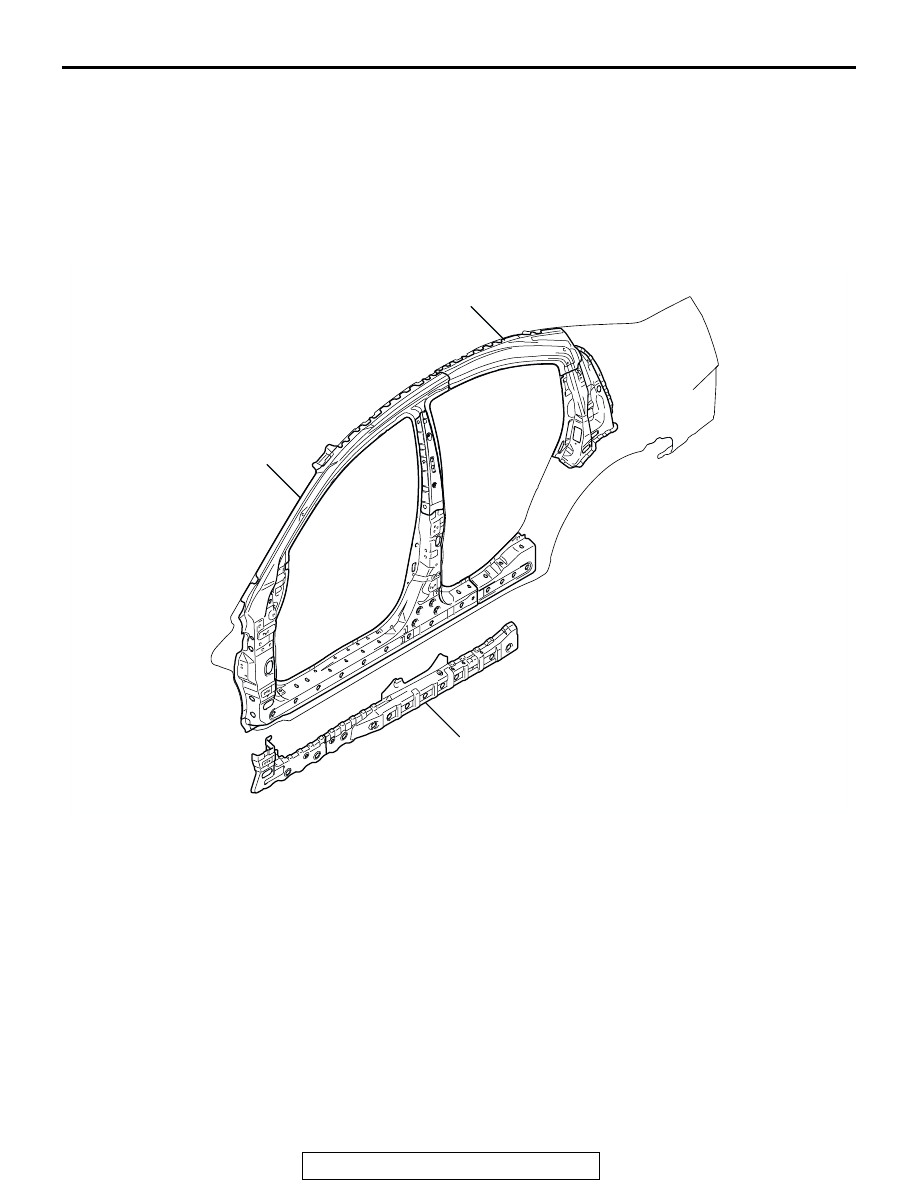

SIDE STRUCTURE REINFORCEMENT

1. A large side outer reinforcement has been

installed to disperse energy upon impact effi-
ciently, so that the safety upon impact has been
improved.

2. The side roof rail reinforcement rear rigidity has

been enhanced to maintain the cabin space and
improve the passenger rescue upon off-set rear
impact.

3. An uneven-thickness steel sheet* has been

adopted to the side sill outer reinforcement inner
to thicken the sheet thickness of the front vehicle,
so that the safety upon frontal impact has been
improved.

NOTE: *: Steel plates with different thickness welded
together to make one steel plate.

AB301238AB

2

1

3

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-19

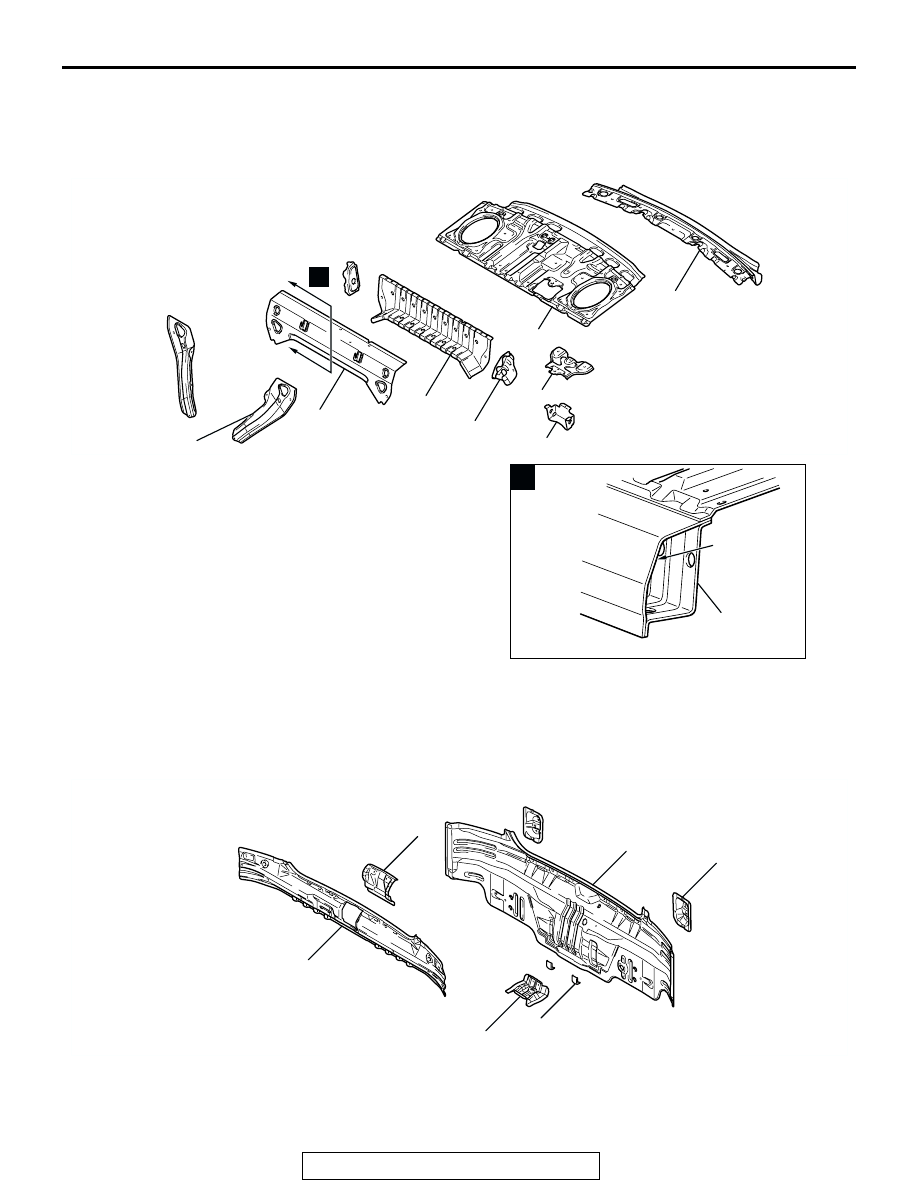

REAR BODY

M4010012000139

REAR DECK

A rear seatback plate has been used to improve the
body torsional rigidity.

The front side of rear deck features a closed sec-
tional structure, which has improved the body tor-
sional rigidity and the driving stability.

REAR END PANEL

AB301148

3

2

4

1

5

6

7

8

AB

A

1.

REAR SEATBACK PLATE

2.

REAR SHELF EXTENSION

3.

REAR DECK CROSSMEMBER

4.

REAR DECK CROSSMEMBER BULKHEAD

5.

SEAT BELT PROTECTOR BRACKET

6.

SEAT BELT REINFORCEMENT CENTER

7.

REAR SHELF PANEL

8.

REAR SHELF REINFORCEMENT

AB301106

A

AB

REAR DECK
CROSSMEMBER

REAR SHELF
EXTENSION

AB301147

AB

3

2

4

1

5

6

1.

REAR END PANEL INNER

2.

TRUNK LID LOCK REINFORCEMENT

3.

REAR END PANEL OUTER

4.

REAR BUMPER BRACKET

5.

REAR BUMPER A BRACKET

6.

JACK BRACKET

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-20

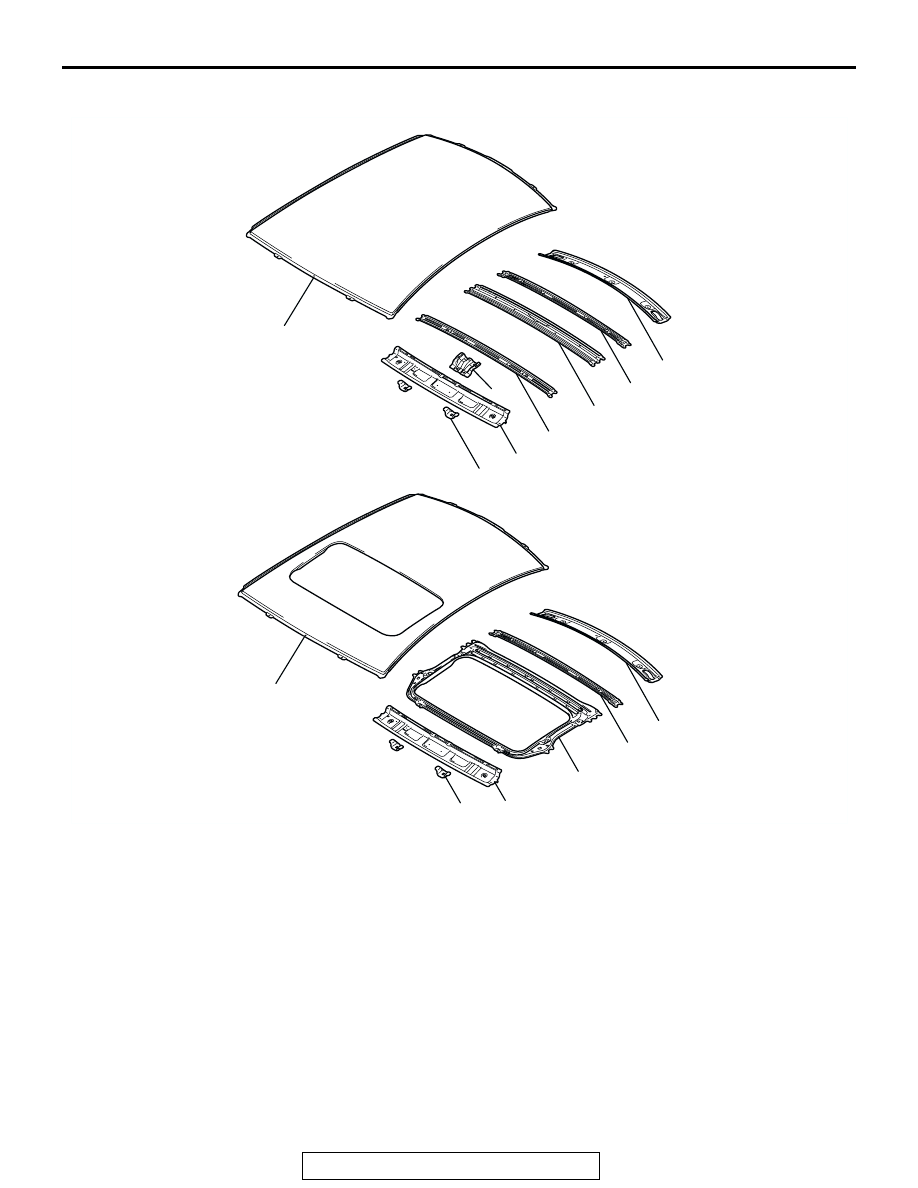

ROOF

M4010013000143

AB301239 AB

1

2

3

4

5

7

1

3

2

6

7

8

9

VEHICLES WITHOUT SUN ROOF

8

VEHICLES WITH SUN ROOF

1.

ROOF PANEL

2.

SUNVISOR B BRACKET

3.

ROOF RAIL FRONT INNER

4.

MAP LAMP STAY

5.

ROOF BOW FRONT

6.

ROOF BOW CENTER

7.

ROOF BOW REAR

8.

ROOF REAR RAIL

9.

ROOF REINFORCEMENT
