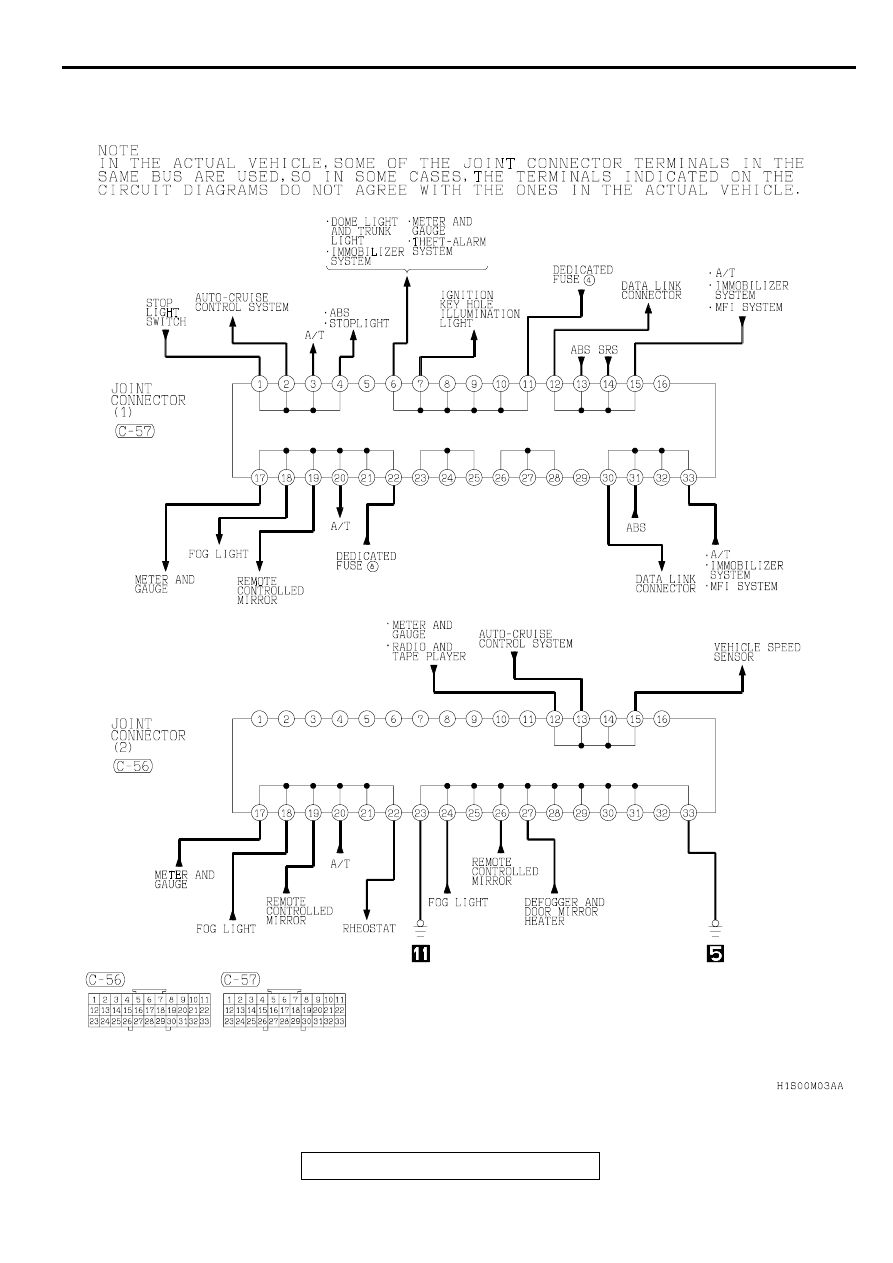

JOINT CONNECTOR

TSB Revision

CIRCUIT DIAGRAMS

90-12

JO IN T C O N N EC TO R

M1901014200050

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-13

C EN TR A LIZED  JU N C TIO N

M1901000300087

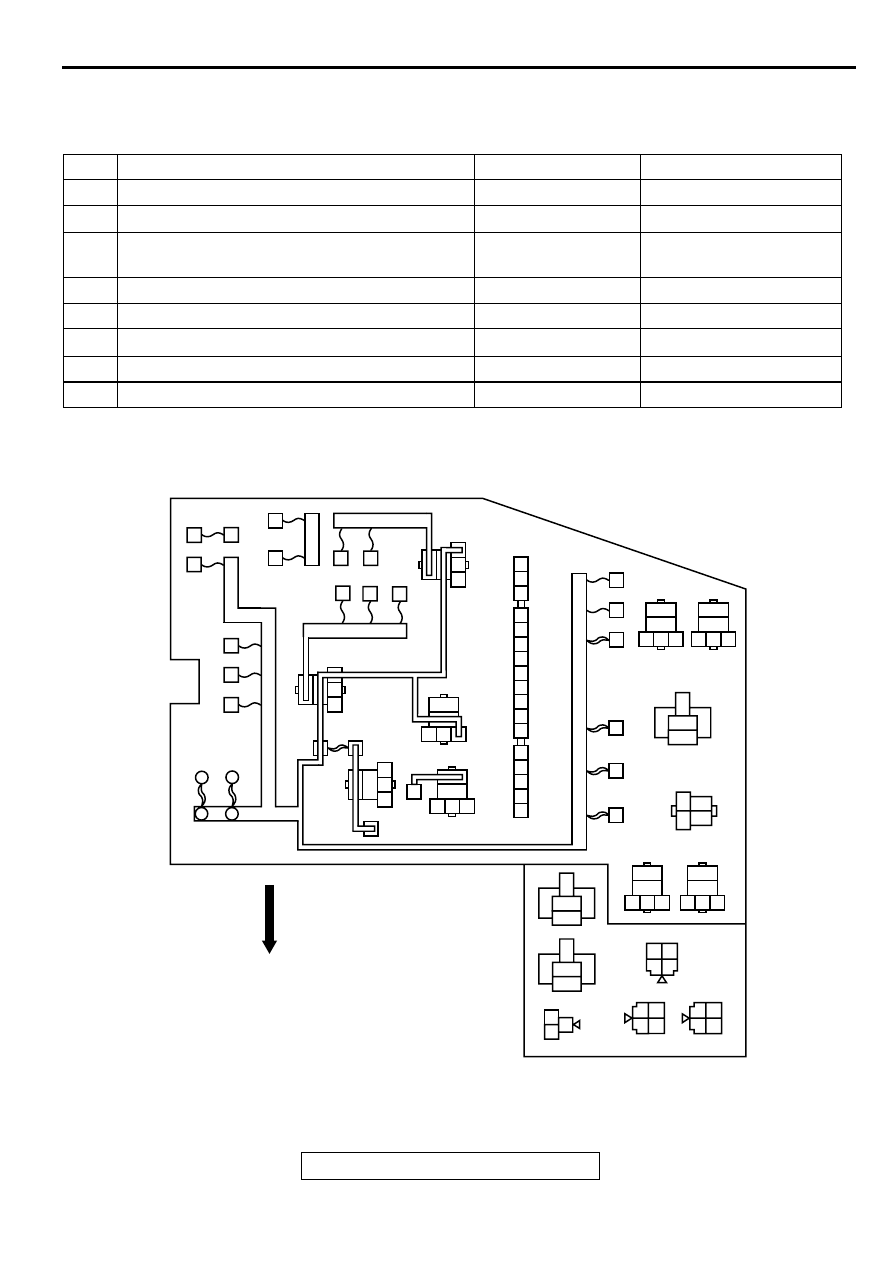

FUSIBLE LINK

NO.

CIRCUIT

HOUSING COLOR

RATED CAPACITY (A)

1

Multi-purpose fuse No.1, 2, 3, 10, 11

Yellow

60

2

−

−

−

3

Dedicated fuse No.15, 17, power windows and
power seat

Pink

30

4

Air conditioning system and cooling system

Red

50

5

Anti-lock braking system

Red

50

6

−

−

−

7

Ignition switch circuit

Pink

30

8

Generator circuit

White

120

AC000312

(RELAY BOX IN ENGINE COMPARTMENT)

FUSIBLE LINKS 1 TO 7

1

2

3

4

5

6

7

FRONT OF VEHICLE

AD

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-14

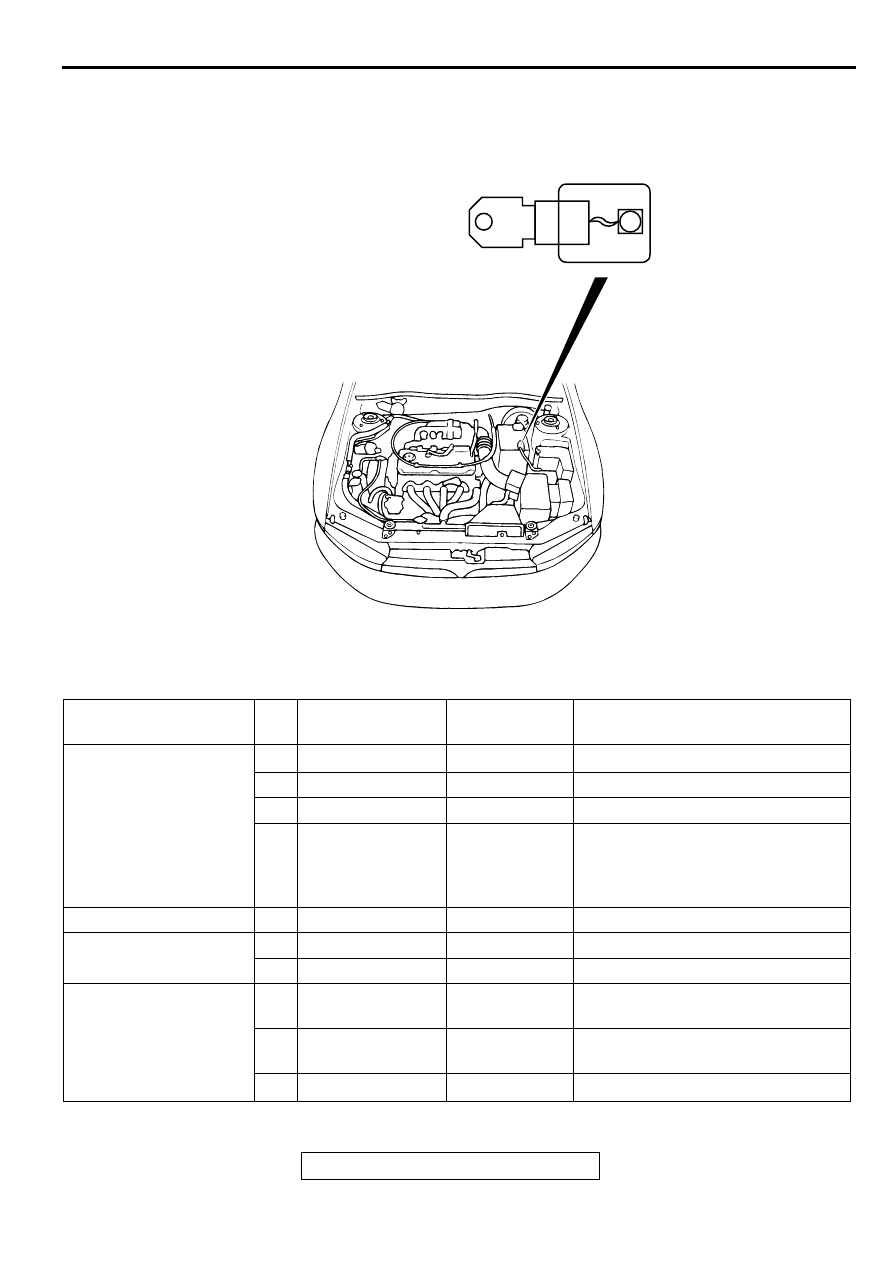

DEDICATED FUSE

AC002480

(CONNECTED DIRECTLY TO BATTERY POSITIVE TERMINAL)

FUSIBLE LINK 8

8

AB

POWER SUPPLY
CIRCUIT

NO. RATED

CAPACITY (A)

HOUSING
COLOR

CIRCUIT

Battery

1

−

−

−

2

15

Blue

Fog light

3

10

Red

Air conditioning system

4

10

Red

ECU power supply, dome light, trunk
light, ignition key hole illumination
light, meter, gauge, MFI system and
vanity mirror light

Ignition switch (ACC)

5

10

Red

Radio and tape player

Headlight (High)

6

10

Red

Headlight and theft-alarm system

7

10

Red

Headlight and theft-alarm system

Taillight relay

8

10

Red

Rheostat, taillight, position light and
illumination light

9

10

Red

Taillight, position light and license
plate light

10

−

−

−

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-15

Headlight relay (Low)

11

10

Red

Headlight

12

10

Red

Headlight

Battery

13

20

Yellow

INVECS-II 4A/T, MFI system, air
conditioning system, cooling system
and immobilizer system

14

10

Red

Charging system, central door
locking system, turn-signal light and
hazard warning light

Fusible link No.3

15

20

Yellow

Radio and tape player <7-speakers>

−

16

−

−

−

Fusible link No.3

17

20

Yellow

Sunroof

Defogger relay

18

10

Red

Door mirror heater

POWER SUPPLY
CIRCUIT

NO. RATED

CAPACITY (A)

HOUSING
COLOR

CIRCUIT
