SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-167

STEP 1. Check the ETACS-ECU power supply circuit.
Do all of the following functions work when the ignition switch is
turned to the "LOCK" (OFF) position?

Ignition key reminder tone alarm function

Light reminder tone alarm function

Central door locking system

Hazard warning light

Interior light dimming function

Q: Do any of the functions work?

YES : Go to Step 2.
NO :  Check the ETACS-ECU battery circuit. Refer to

Inspection Procedure O-1 (

P.54B-266

 ).

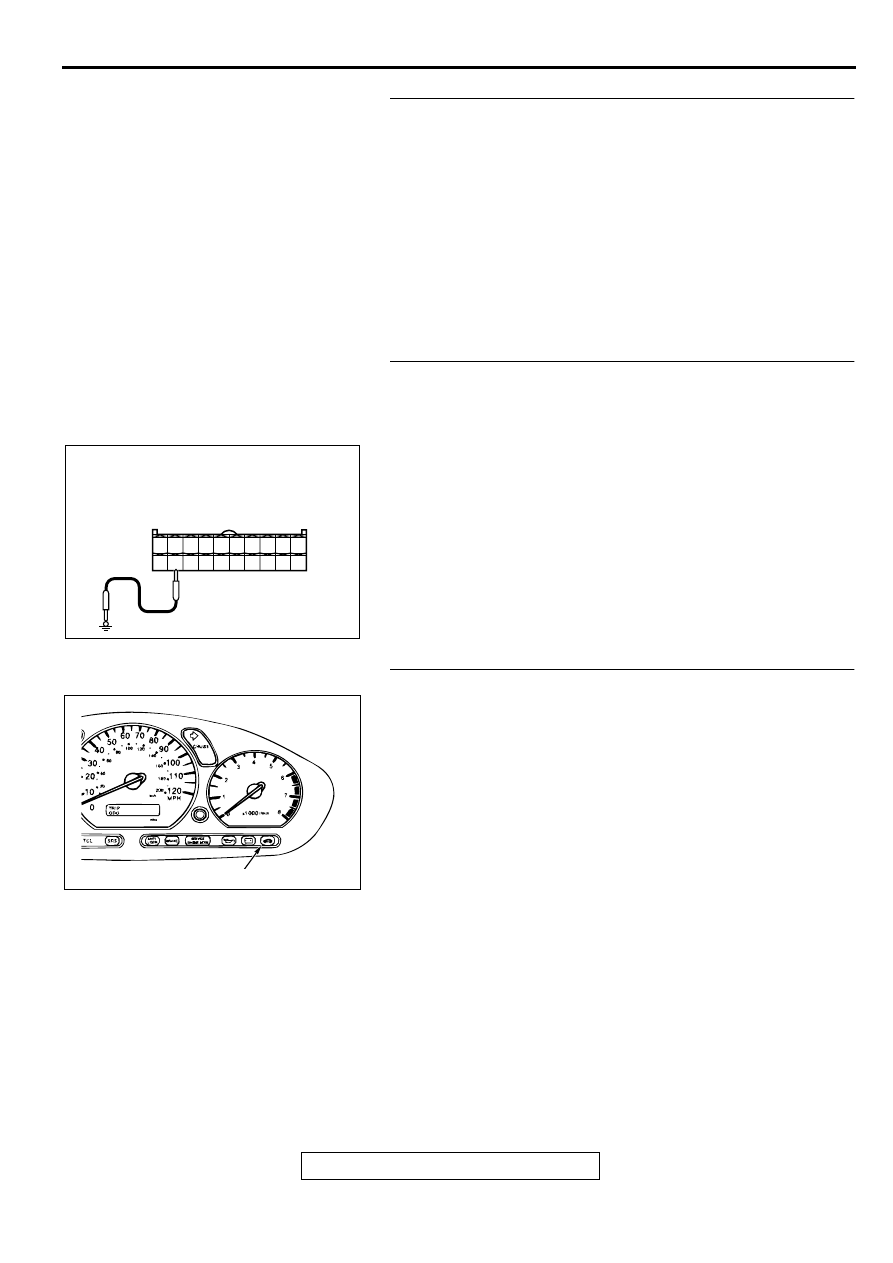

STEP 2. Check the "SECURITY" indicator circuit at the
ETACS-ECU connector C-81.
(1)Disconnect the ETACS-ECU connector C-81 and measure

at the harness side.

(2)Connect terminal 39 to the ground.

Q: Does the "SECURITY" indicator light illuminate?

YES : Go to Step 10 <when using scan tool MB991502> or

1      <when using a voltmeter>.

NO :  Go to Step 3.

STEP 3. Check the "SECURITY" indicator light bulb.
Q: Is the "SECURITY" indicator light bulb in good

condition?
YES :
Go to Step 4.
NO :  Replace it. The security indicator light should

illuminate, and the theft-alarm system should be
armed normally.

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

AC002146 AC

CONNECTOR C-81
(HARNESS SIDE)

AC003180 AD

SECURITY INDICATOR LIGHT

SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-168

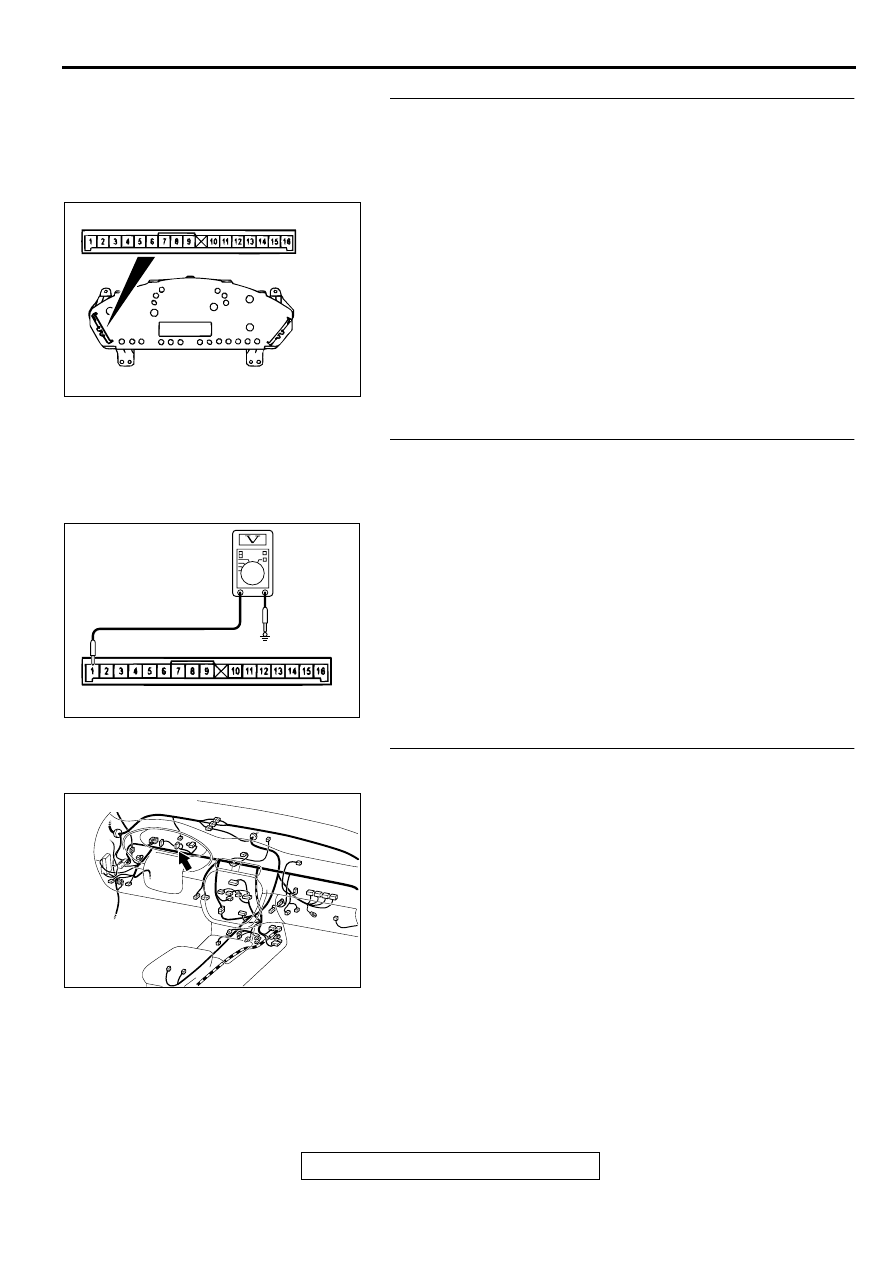

STEP 4. Check the combination meter (printed-circuit
board).
(1)Remove the combination meter.
(2)Remove the seat belt warning light bulb. The measure the

resistance between the bulb terminals.

(3)Install the bulb to the combination meter, and then measure

the resistance between connector C-30 terminal 1 and 2.
The resistance reading at this time should be muck the
same as the resistance measured at Step (2).

Q: Are the two resistance values extremely different each

other?
YES :
Repair or replace the combination meter (printed-

circuit board). The security indicator light should
illuminate, and the theft-alarm system should be
armed normally.

NO :  Go to Step 5.

STEP 5. Check the combination meter power supply circuit
at the combination meter connector C-30.
(1)Disconnect the combination meter connector C-30 and

measure at the harness side.

(2)Measure the voltage between terminal 1 and ground.

Q: Is the voltage approximately 12 volts (battery positive

voltage)?
YES :
Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check combination meter connector C-30 for
damage.
Q: Is combination meter connector C-30 in good

condition?
YES :
Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

 . The security indicator

light should illuminate, and the theft-alarm system
should be armed normally.

AC003569

CONNECTOR C-30

AB

AC003570

CONNECTOR C-30
(HARNESS SIDE)

AB

AC003089 AH

CONNECTOR: C-30

SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-169

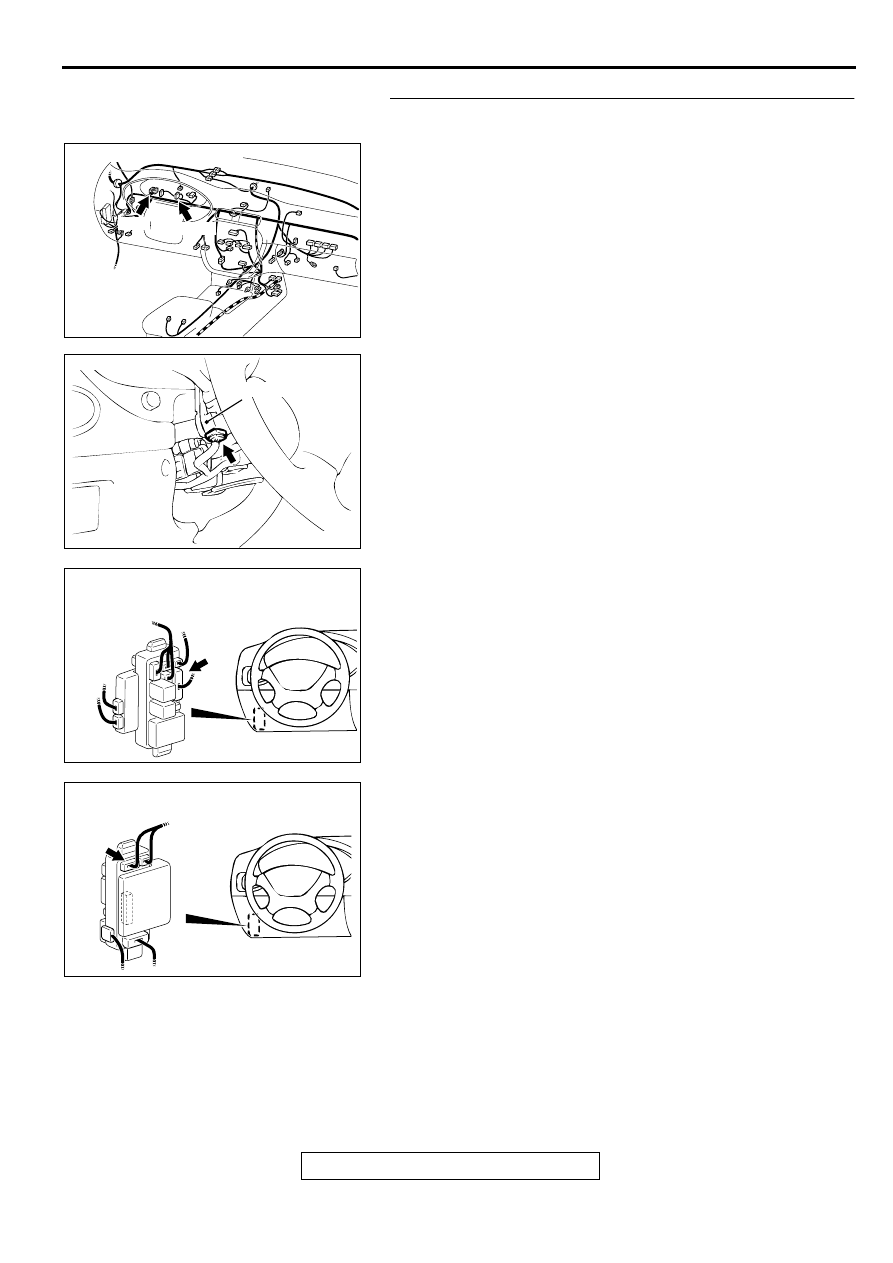

STEP 7. Check the harness wires between combination
meter connector C-30 and battery.
NOTE: After checking junction block connectors C-78 and C-
84, joint connector C-57 and intermediate connector C-66,
check the wires. If junction block connectors C-78 and C-84,
joint connector C-57 and intermediate connector C-66 are
damaged, repair or replace them. Refer to GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q: Are the harness wires between combination meter

connector C-30 and battery in good condition?
YES :
There is no action to be taken.
NO :  Repair or replace them. The security indicator light

should illuminate, and the theft-alarm system should
be armed normally.

AC003089 AG

C-57

C-30

CONNECTORS: C-30, C-57

AC003078 AB

CONNECTOR: C-60

COLUMN SWITCH

AC003082 AF

JUNCTION BLOCK
(FRONT VIEW)

CONNECTOR: C-78

AC003080 AB

JUNCTION BLOCK
(REAR VIEW)

CONNECTOR: C-84

SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-170

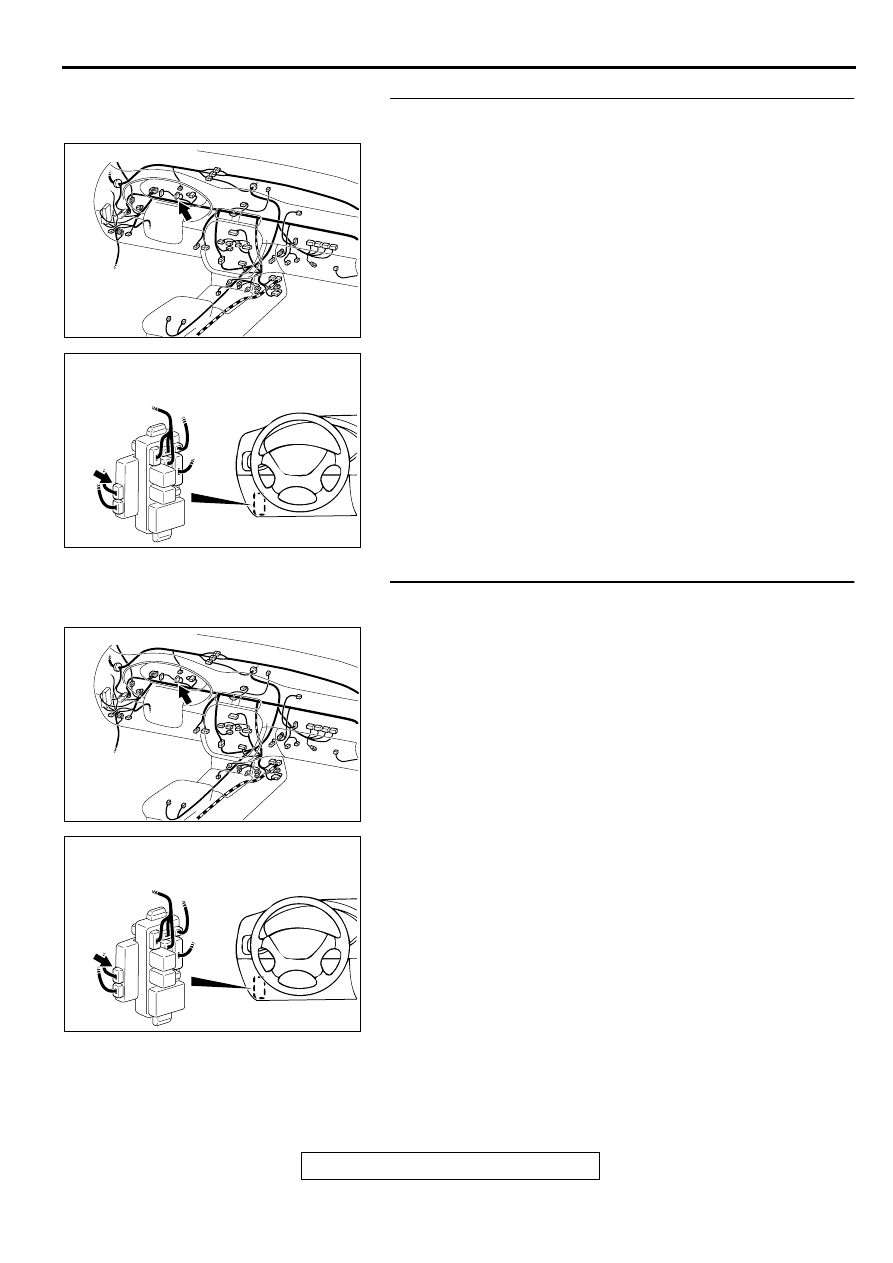

STEP 8. Check combination meter connector C-30 and
ETACS-ECU connector C-81 for damage.
Q: Are combination meter connector C-30 and ETACS-ECU

connector C-81 in good condition?
YES :
Go to Step 9.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

 . The security

indicator light should illuminate, and the theft-alarm
system should be armed normally.

STEP 9. Check the harness wire between combination
meter connector C-30 and ETACS-ECU connector C-81.
Q: Is the harness wire between combination meter

connector C-30 and ETACS-ECU connector C-81 in
good condition?
YES :
There is no action to be taken.
NO :  Repair it. The security indicator light should illuminate,

and the theft-alarm system should be armed normally.

AC003089 AH

CONNECTOR: C-30

AC003082 AJ

JUNCTION BLOCK
(FRONT VIEW)

CONNECTOR: C-81

AC003089 AH

CONNECTOR: C-30

AC003082 AJ

JUNCTION BLOCK
(FRONT VIEW)

CONNECTOR: C-81
