RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-149

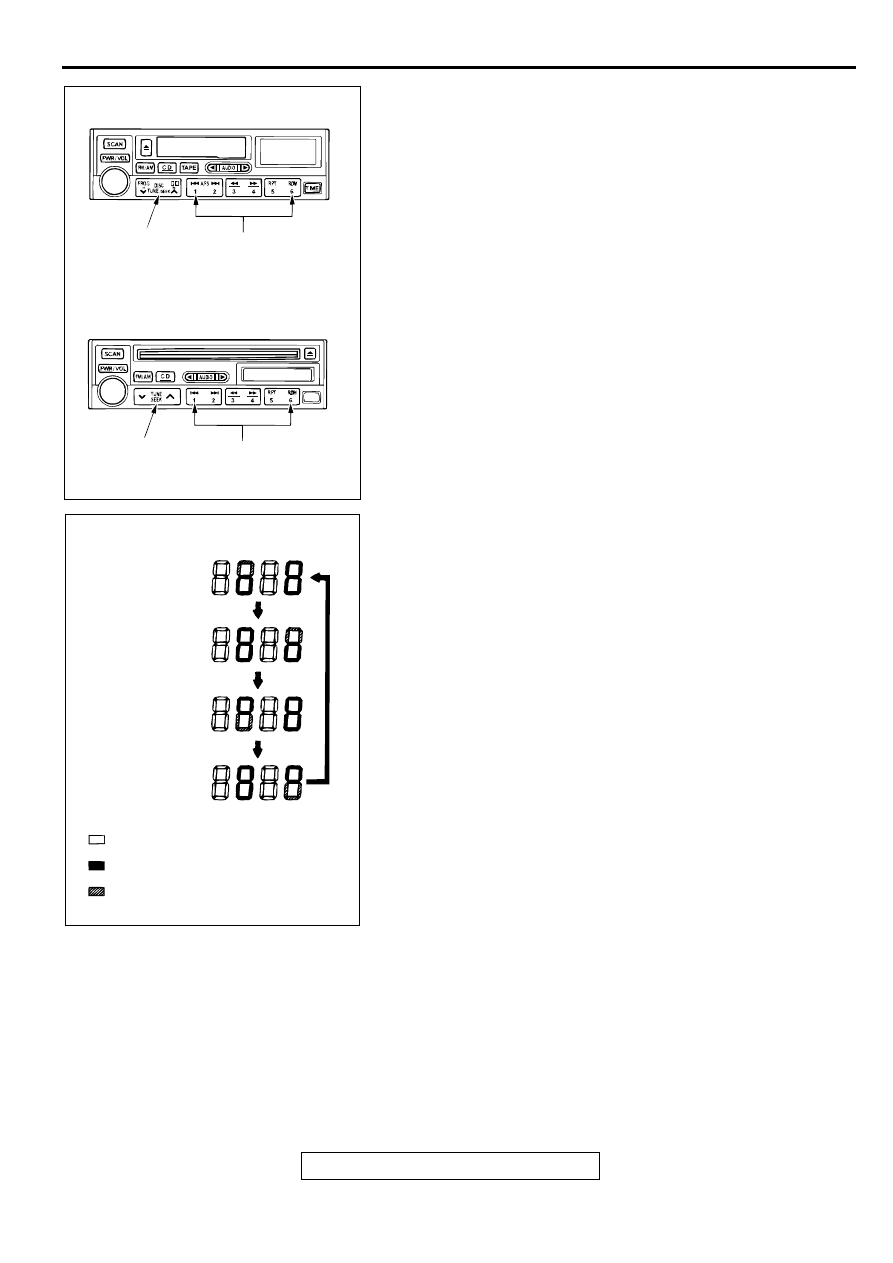

2. Press the following buttons in that order within 60 seconds

from step (1).

(1) Memory select "1" button
(2) "TUNE/SEEK (DOWN)" button
(3) "TUNE/SEEK (UP)" button
(4) Memory select "6" button

3. Check that the speaker, which is displayed on the display,

sounds (If the memory select "6" button is pressed, the
speaker will be changed).

4. If a button other than the memory select "6" button and

"EJECT" button (tape or CD) is pressed, or the ignition
switch is turned to "LOCK" (OFF) position, you will exit from
the speaker test mode.

AC003684

TUNE/SEEK
BUTTON

TUNE/SEEK
BUTTON

MEMORYSELECT
BUTTON (1,6)

MEMORYSELECT
BUTTON (1,6)

TYPE 1

TYPE 2

AB

ACX01941

DOOR SPEAER (LH)
AND TWEETER (LH)

DOOR SPEAER (RH)
AND TWEETER (RH)

REAR SPEAKER (LH)

REAR SPEAKER (RH)

NOTE

: ILLUMINATES

: FLASHES

: OFF

AC

TSB Revision

CHASSIS ELECTRICAL

RADIO WITH TAPE PLAYER AND CD PLAYER

54A-150

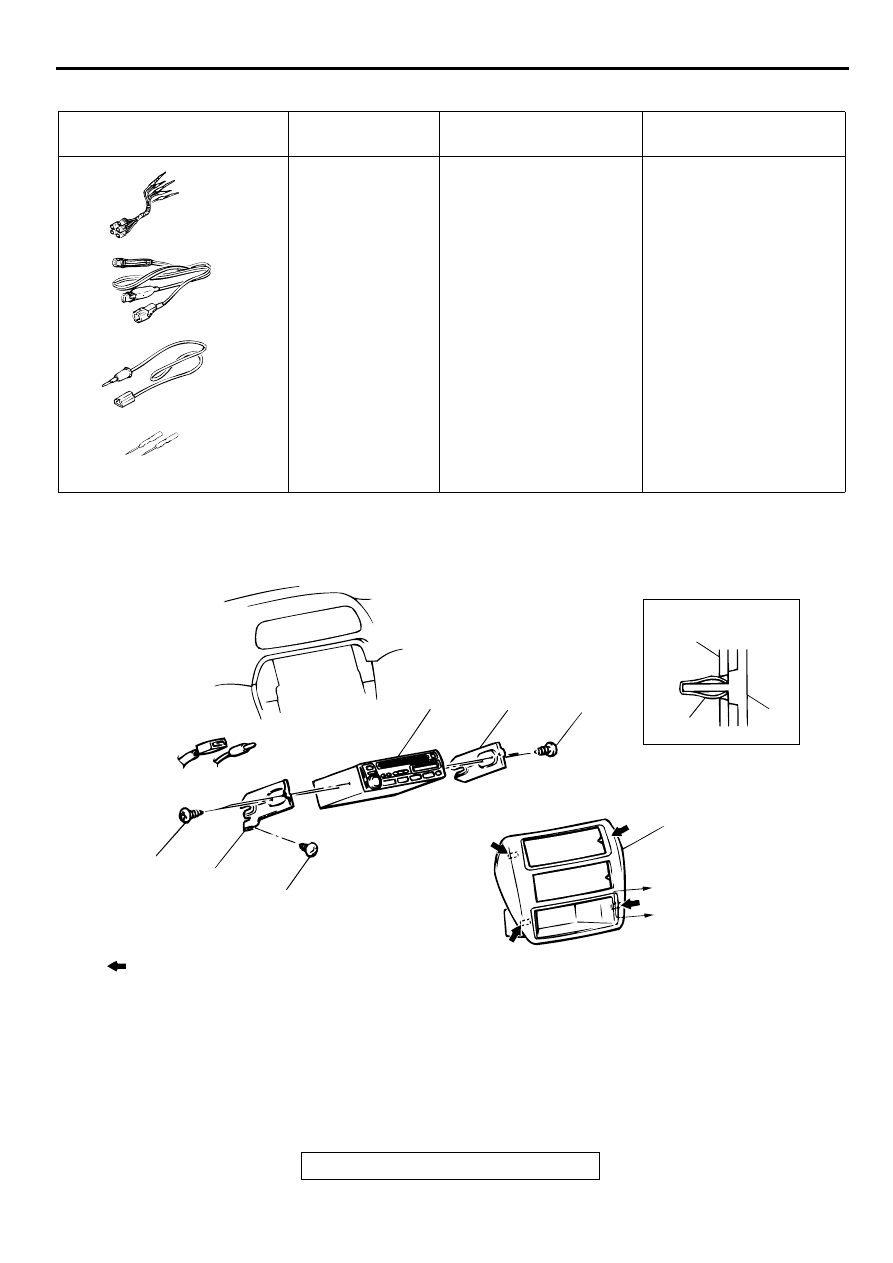

SPECIAL TOOLS

M1544000600113

RADIO WITH TAPE PLAYER AND CD PLAYER

REMOVAL AND INSTALLATION

M1544001100069

TOOL

TOOL NUMBER
AND NAME

SUPER SESSION

APPLICATION

MB991223
A:MB991219
B:MB991220
C:MB991221
D:MB991222
Harness set
A:Test harness
B:LED harness
C:LED harness

adapter

D:Probe

MB991223

Making voltage and
resistance measurements
during troubleshooting

A:Connect pin contact

pressure inspection

B:Powerncircuit

inspection

C:Power circuit inspection
D:Commercial tester

connection

MB991223

A

B

C

D

AC

AC002923

NOTE
       :CLIP POSITION

CLIP

INSTRUMENT
PANEL ASSEMBLY

1.5 N·m
13 in-lb

1.5 N·m
13 in-lb

1.5 N·m
13 in-lb

1

1

SECTION A - A

A

A

2

2

3

AB

RADIO REMOVAL STEPS

1.

CENTER PANEL ASSEMBLY

2.

RADIO BRACKET

3.

RADIO, TAPE PLAYER AND CD
PLAYER

RADIO REMOVAL STEPS (Continued)

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-151

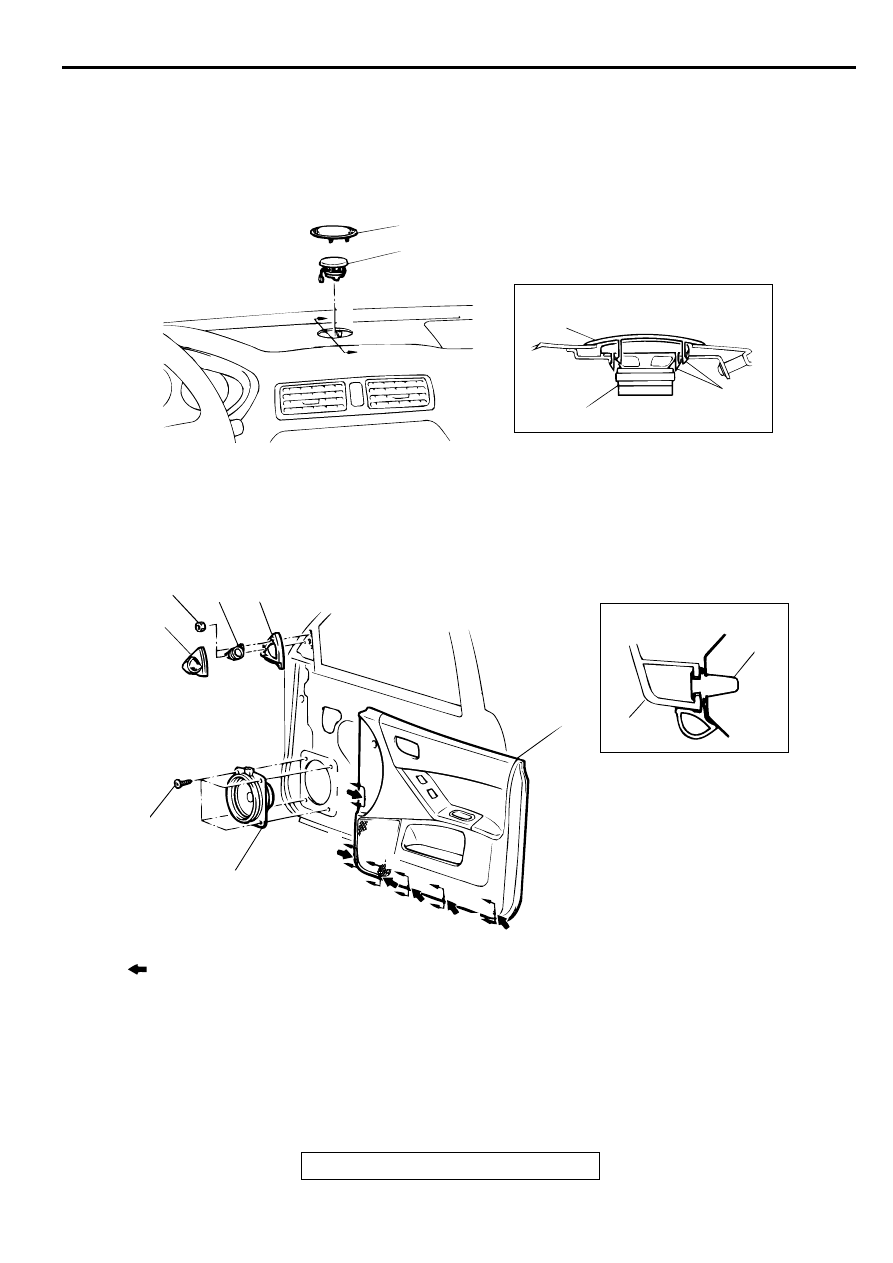

SPEAKER

REMOVAL AND INSTALLATION

M1544002600120

SENTER SPEAKER <VEHICLES WITH
SEVEN SPEAKERS>

DOOR SPEAKER AND TWEETER

AC002924

1

2

1

2

SECTION A - A

NOTCH

A

A

AB

REMOVAL STEPS

1.

SPEAKER GARNISH

2.

CENTER SPEAKER

AC002925AB

1.5 N·m
13 in-lb

1.5 N·m
13 in-lb

7

6

5

4

3

6

SECTION B - B

B

B

B

B

B

B

B

B

B

B

B

B

CLIP

NOTE
      :RESIN CLIP POSITION

TWEETER REMOVAL STEPS
<VEHICLES WITH SEVEN
SPEAKERS>

3.

TWEETER COVER

4.

TWEETER

5.

DELTA COVER BASE

DOOR SPEAKER REMOVAL
STEPS

6.

FRONT DOOR TRIM (REFER TO
GROUP 42, DOOR TRIM, POWER
WINDOW SWITCH AND
WATERPROOF FILM

P.42-54

.)

7.

FRONT DOOR SPEAKER

TSB Revision

CHASSIS ELECTRICAL

RADIO WITH TAPE PLAYER AND CD PLAYER

54A-152

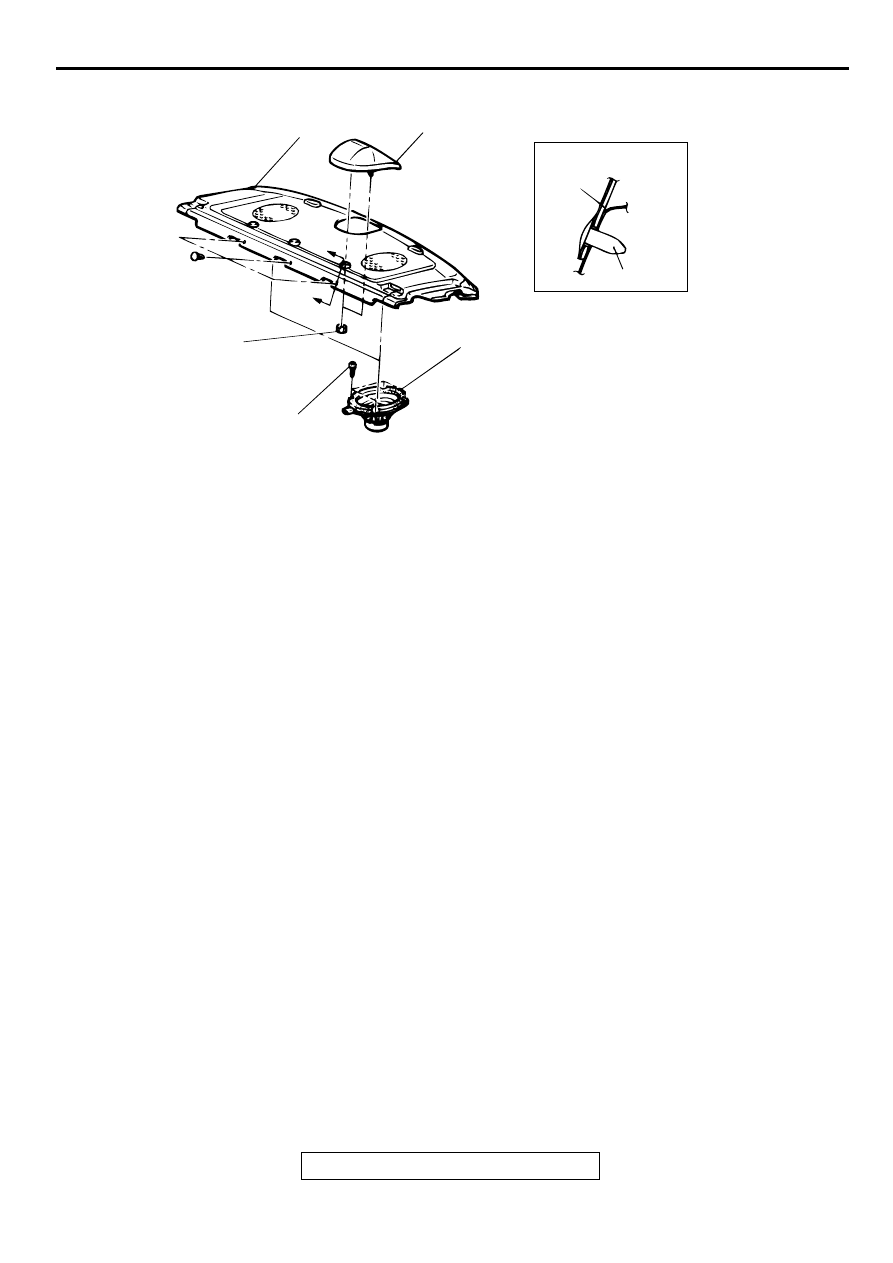

REAR SPEAKER

AC002926

CLIP

10

9

8

9

SECTION A - A

5 N·m
44 in-lb

1.5 N·m
13 in-lb

A

A

AB

REAR SPEAKER REMOVAL STEPS

•

REAR SEAT (REFER TO GROUP 52A,
REAR SEAT

P.52A-20

.)

•

REAR PILLAR TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-12

.)

8.

HIGH-MOUNTED STOPLIGHT

9.

REAR SHELF TRIM

10. REAR SPEAKER

REAR SPEAKER REMOVAL STEPS
