DOOR

TSB Revision

BODY

42-59

INSPECTION

M1423004700143

FRONT DOOR LOCK ACTUATOR CHECK

<LH>

<RH>

REAR DOOR LOCK ACTUATOR CHECK

<LH>

NOTE: *: indicates the vehicle equipped with the theft-alarm
system.

<RH>

NOTE: *: indicates the vehicle equipped with the theft-alarm
system.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

4-Battery(+)

→

6-

Battery(-), 1

−

 3

Lock position

→

Unlock position,

Continuity

UNLOCK

4-Battery(-)

→

6-

Battery(+), 1

−

 2

Unlock position

→

Lock position,

Continuity

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

4-Battery(-)

→

6-

Battery(+), 1

−

 3

Lock position

→

Unlock position,

Continuity

UNLOCK

4-Battery(+)

→

6-

Battery(-), 2

−

 3

Unlock position

→

Lock position,

Continuity

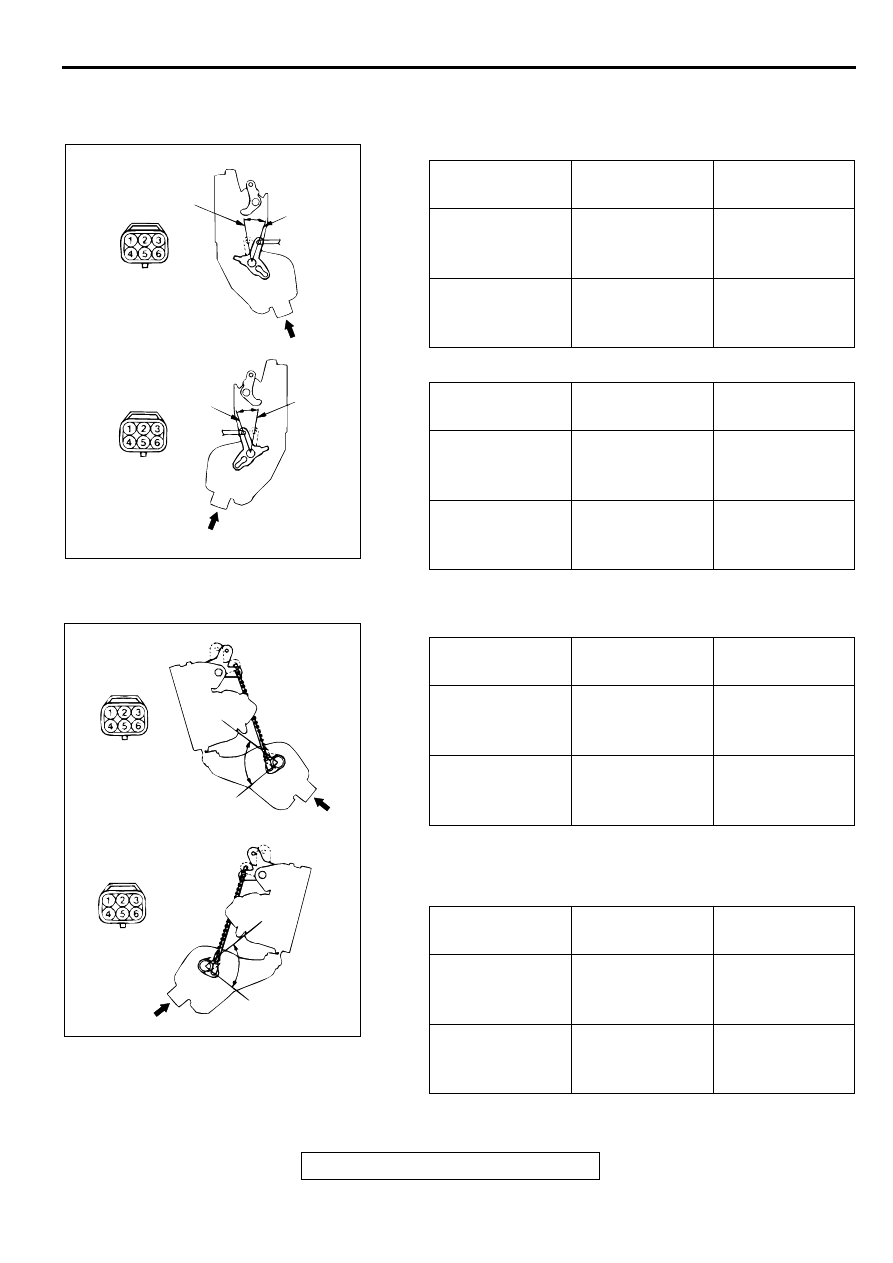

AC000605

<LH>

<RH>

VIEW A

VIEW B

A

B

LOCK

UNLOCK

LOCK

UNLOCK

AB

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

4-Battery(-)

→

6-

Battery(+), 1

−

 2*

Lock position

→

Unlock position,

Continuity

UNLOCK

4-Battery(+)

→

6-

Battery(-), 1

−

 3*

Unlock position

→

Lock position,

Continuity

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

4-Battery(+)

→

6-

Battery(-), 1

−

 2*

Lock position

→

Unlock position,

Continuity

UNLOCK

4-Battery(-)

→

6-

Battery(+), 1

−

 3*

Unlock position

→

Lock position,

Continuity

AC000606AB

<LH>

<RH>

VIEW A

VIEW B

A

B

LOCK

UNLOCK

LOCK

UNLOCK

DOOR

TSB Revision

BODY

42-60

DOOR LOCK KEY CYLINDER SWITCH CHECK
<VEHICLES WITH CENTRAL DOOR LOCKING
SYSTEM>

DOOR LOCK SWITCH CONTINUITY CHECK

Remove the power window switch. (Refer to

P.42-54

.)

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

2

−

 3

Continuity

NEUTRAL (OFF)

-

No Continuity

UNLOCK

1

−

 2

Continuity

AC000607

1

2

3

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

5

−

 12

Continuity

OFF

-

No Continuity

UNLOCK

10

−

 12

Continuity

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

1

−

 2

Continuity

OFF

-

No Continuity

UNLOCK

2

−

 3

Continuity

AC000577

18I0342

5

4

6

13

3

2

1

14

12

11

10

9

8

7

DOOR LOCK

SWITCH

POWER WINDOW

MAIN SWITCH

AB

AC000578

18I0343

1

2 3

4 5 6 7 8

AB

DOOR LOCK

SWITCH

FRONT POWER

WINDOW SUB SWITCH

DOOR

TSB Revision

BODY

42-61

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHER-STRIP

REMOVAL AND INSTALLATION

M1423003100074

REMOVAL SERVICE POINT

<<A>> DOOR OUTER OPENING WEATHERSTRIP
REMOVAL
Make a fabricated tool as shown in the illustration to remove
the door weatherstrip.

INSTALLATION SERVICE POINT

>>A<< DOOR OUTER OPENING WEATHERSTRIP
INSTALLATION
The clip color identifies the left and right weatherstrips so be
sure to use the colors so as to install correctly.

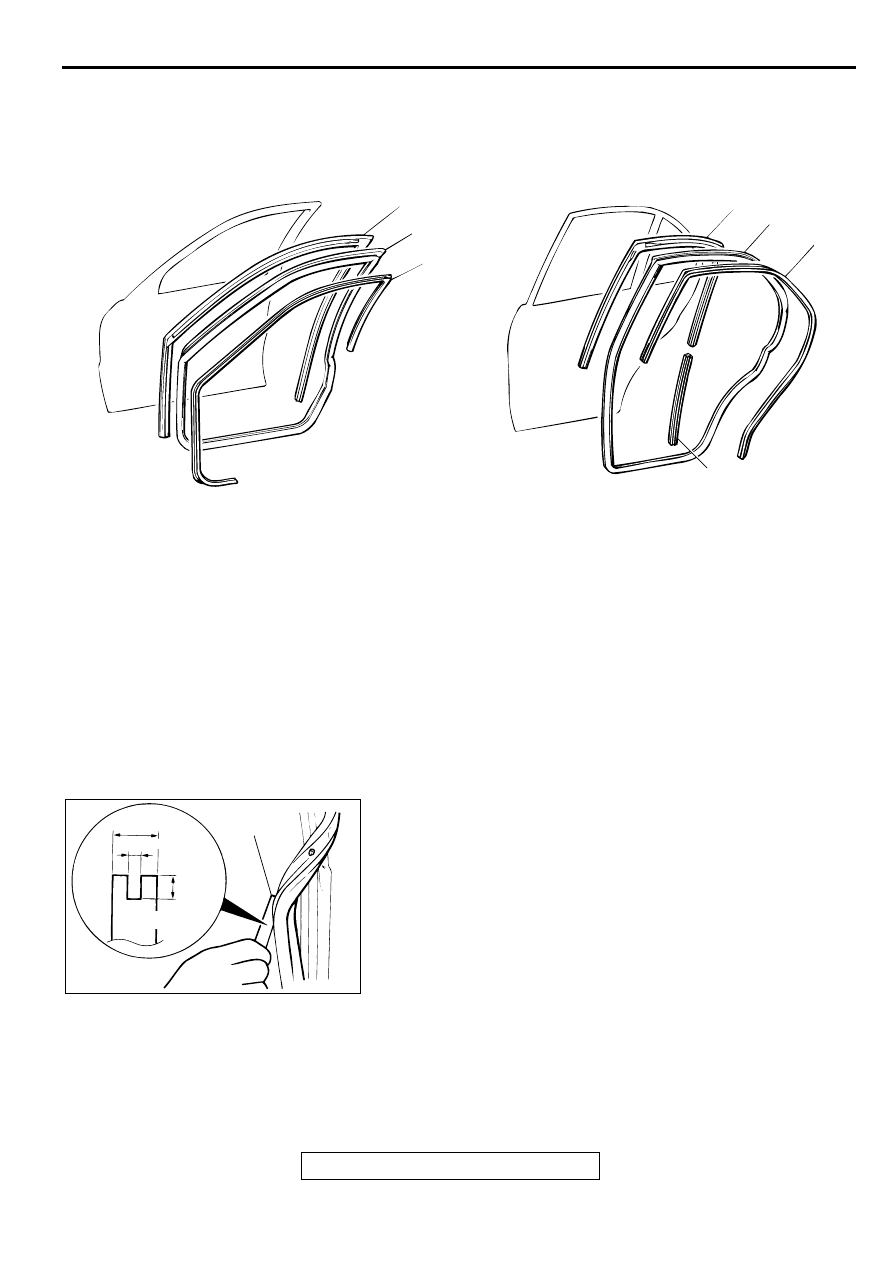

AC000608

3

1

2

3

1

2

4

AB

FRONT DOOR

REAR DOOR

<<A>>

>>A<< 1. DOOR OUTER OPENING WEATH-

ERSTRIP

DOOR INNER OPENING WEATHER-
STRIP REMOVAL STEPS

•

FRONT SCUFF PLATE, REAR
SCUFF PLATE, CENTER PILLAR
LOWER TRIM AND COWL SIDE
TRIM (REFER TO GROUP 52A,
TRIMS

P.52A-12

.)

2. DOOR INNER OPENING WEATHER-

STRIP

DOOR WINDOW GLASS RUNCHAN-
NEL REMOVAL STEPS

•

DOOR TRIM WATERPROOF FILM
(REFER TO

P.42-54

.)

3. DOOR WINDOW GLASS RUN-

CHANNEL

4. DOOR WINDOW GLASS LOWER

RUNCHANNEL

ACX00555

15 mm (0.6 in)

8 mm
(0.3 in)

AB

4 mm (0.2 in)

THICKNESS:
1 mm (0.04 in)

FABRICATED TOOL

TRUNK LID

TSB Revision

BODY

42-62

TR U N K  LID

TRUNK LID DIAGNOSIS

INTRODUCTION TO TRUNK LID DIAGNOSIS

M1421005800147

Difficult locking and unlocking, uneven clearance and
height, and generation of wind noise from the trunk
lid may be caused by improper adjustment of the
trunk lid.

TRUNK LID DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1421005900122

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
trunk lid fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1421006000100

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Difficult locking and unlocking

DIAGNOSIS

STEP 1. Check the release cable routing
condition.

Q: Is the release cable routing condition good?

YES :

Go to Step 3.

NO :

Repair it, then go to Step 2.

STEP 2. Check the engagement of the trunk lid
latch and trunk lid striker.

Q: Are the trunk lid latch and trunk lid striker engaged

correctly?
YES :

Adjust it. Refer to

P.42-64

.

NO :

 Then go to Step 3.

STEP 3. Check symptoms.

Q: Does the trunk lid lock operate easily?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

APPLICABLE SIDE

IDENTIFICATION COLOR

Right door

Orange

Left door

Natural (White)

SYMPTOMS

INSPECTION
PROCEDURE

REFERENCE PAGE

Difficult locking and unlocking

1

P.42-62

Uneven body clearance

2

P.42-63

Uneven height

3

P.42-63
