34-1

GROUP 34

REAR SUSPENSION

CONTENTS

GENERAL DESCRIPTION. . . . . . . . . . .

34-2

REAR SUSPENSION DIAGNOSIS . . . .

34-2

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . .

34-2

TROUBLESHOOTING STRATEGY . . . . . . . .

34-2

SYMPTOM CHART. . . . . . . . . . . . . . . . . . . . .

34-3

SYMPTOM PROCEDURES . . . . . . . . . . . . . .

34-3

SPECIAL TOOLS. . . . . . . . . . . . . . . . . .

34-5

ON-VEHICLE SERVICE. . . . . . . . . . . . .

34-5

REAR WHEEL ALIGNMENT CHECK AND
ADJUSTMENT  . . . . . . . . . . . . . . . . . . . . . . . .

34-5

BALL JOINT DUST COVER
NSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . .

34-6

REAR SUSPENSION ASSEMBLY  . . . .

34-6

REMOVAL AND INSTALLATION . . . . . . . . . .

34-6

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . . . .

34-8

UPPER ARM ASSEMBLY . . . . . . . . . . .

34-9

REMOVAL AND INSTALLATION . . . . . . . . . .

34-9

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . . . .

34-10

TRAILING ARM ASSEMBLY. . . . . . . . .

34-10

REMOVAL AND INSTALLATION  . . . . . . . . . .

34-10

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . . . .

34-12

LOWER ARM AND TOE CONTROL ARM
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . .

34-12

REMOVAL AND INSTALLATION  . . . . . . . . . .

34-12

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . . . .

34-14

TOE CONTROL ARM BALL JOINT DUST
COVER REPLACEMENT  . . . . . . . . . . . . . . . .

34-15

SHOCK ABSORBER ASSEMBLY . . . .

34-16

REMOVAL AND INSTALLATION  . . . . . . . . . .

34-16

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . . . .

34-17

DISASSEMBLY AND ASSEMBLY  . . . . . . . . .

34-17

STABILIZER BAR. . . . . . . . . . . . . . . . .

34-19

REMOVAL AND INSTALLATION  . . . . . . . . . .

34-19

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . . . .

34-20

SPECIFICATIONS  . . . . . . . . . . . . . . . .

34-21

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . .

34-21

GENERAL SPECIFICATIONS  . . . . . . . . . . . .

34-22

SERVICE SPECIFICATIONS  . . . . . . . . . . . . .

34-22

GENERAL DESCRIPTION

TSB Revision

REAR SUSPENSION

34-2

.

G EN ER A L DESC RIPTIO N

M1341000100052

The rear suspension is a multi-link suspension,
which has been used for the previous models. The
layout of each arm and the rigidity balance of each
bushing have been rationalized to provide both
excellent steering stability and riding comfort.

R EAR  SUSPEN SIO N  D IA G N O SIS

INTRODUCTION

M1341013100052

If the rear suspension is faulty, the vehicle will not run
straightforward or noise will occur. Incorrect wheel
alignment, malfunction of shock absorber, stabilizer
bar, coil spring, control arms or worn or out-of-
balance will cause these problems.

TROUBLESHOOTING STRATEGY

M1341013200059

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you

have exhausted most of the possible ways to find a
rear suspension fault.

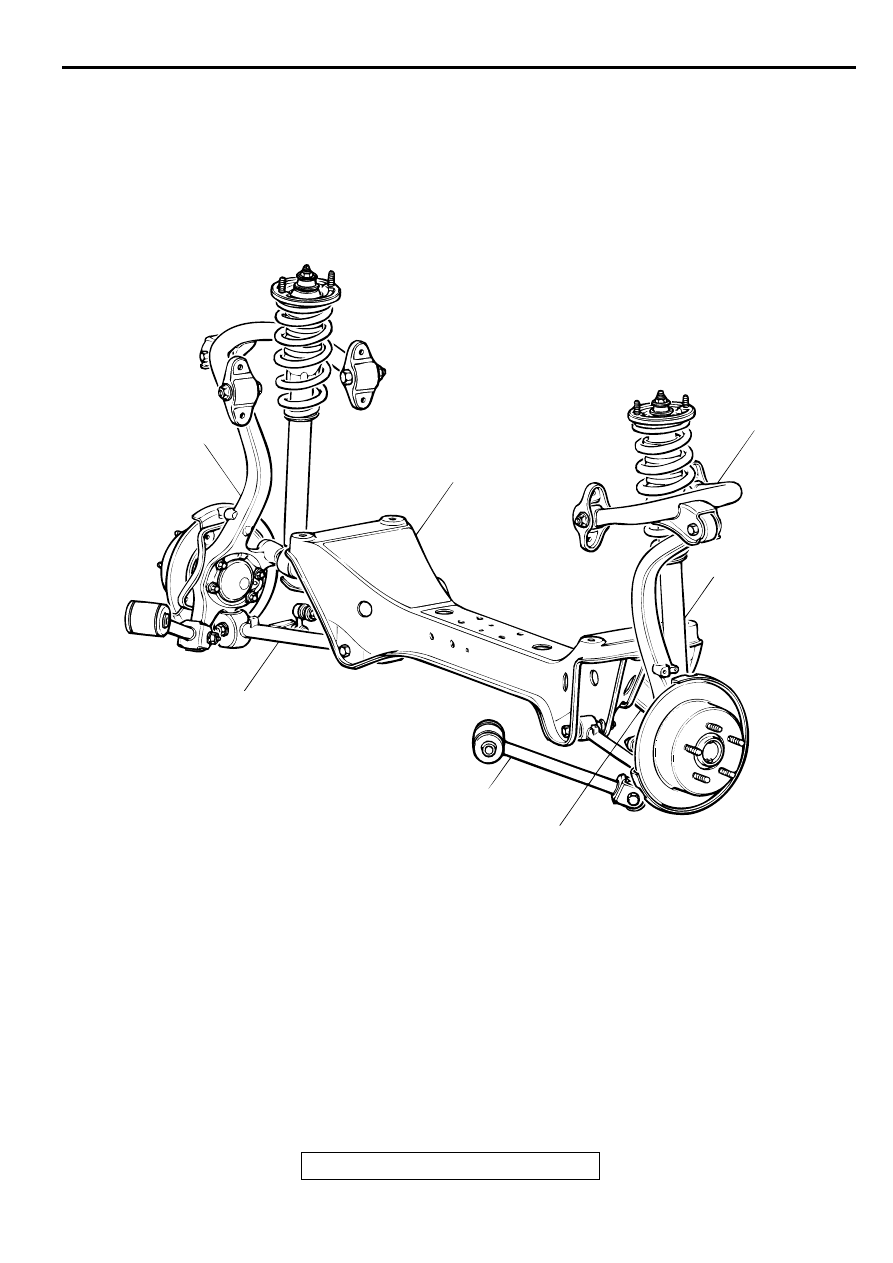

AC001055

CROSSMEMBER

KNUCKLE

LOWER ARM

TRAILING ARM

TOE CONTROL ARM

UPPER ARM

SHOCK ABSORBER

AB

REAR SUSPENSION DIAGNOSIS

TSB Revision

REAR SUSPENSION

34-3

1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1341013500061

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Squeaks or Other Abnormal Noise

DIAGNOSIS

STEP 1. Check for loose rear suspension
installation bolts and nuts.

Q: Are the rear suspension installation bolts and nuts

loose?
YES :

Retighten them, then go to Step 6.

NO :

Go to Step 2.

STEP 2. Check the malfunction of shock
absorbers (worn bushings).

Q: Are the shock absorbers (bushings) in good

condition?
YES :

Go to Step 3.

NO :

Replace the faulty part, then go to Step 6.

STEP 3. Check the upper arms and/or lower arms
and/or toe control arms for deformity or damage.

Q: Are the upper arms and/or lower arms and/or toe

control arms in good condition?
YES :

Go to Step 4.

NO :

Replace the faulty part, then go to Step 6.

STEP 4. Check the trailing arms for deformity or
damage.

Q: Are the trailing arms in good condition?

YES :

Go to Step 5.

NO :

Replace the faulty part, then go to Step 6.

STEP 5. Check the crossmember deformed or
damaged.

Q: Is the crossmember deformed or damaged?

YES :

Adjust or replace it, then go to Step 6.

NO :

Go to Step 6.

STEP 6. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 2: Poor Ride

DIAGNOSIS

STEP 1. Check the excessive tire inflation
pressure.

Q: Is the tire inflation pressure in good condition?

YES :

Go to Step 2.

NO :

Adjust the pressure, then go to Step 4.

STEP 2. Check for malfunction of shock
absorbers (weak or broken springs).

Q: Are the shock absorbers in good condition?

YES :

Go to Step 3.

NO :

Replace the faulty part, then go to Step 4.

SYMPTOMS

INSPECTION PROCEDURE

REFERENCE PAGE

Squeaks or other abnormal noise

1

P.34-3

Poor ride

2

P.34-3

Body tilting

3

P.34-4

REAR SUSPENSION DIAGNOSIS

TSB Revision

REAR SUSPENSION

34-4

STEP 3. Check the stabilizer bar and/or stabilizer
links for deformity or damage.

Q: Are the stabilizer bar and/or stabilizer link

deformed or damaged?
YES :

Replace the faulty part, then go to Step 4.

NO :

Go to Step 4.

STEP 4. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 3: Body Tilting

DIAGNOSIS

STEP 1. Check for weak or deteriorated
bushings.

Q: Are the bushings in good condition?

YES :

Go to Step 2.

NO :

Replace the faulty part, then go to Step 6.

STEP 2. Check for weak or broken springs.

Q: Are the springs in good condition?

YES :

Go to Step 3.

NO :

Replace the faulty part, then go to Step 6.

STEP 3. Check the upper arms and/or lower arms
and/or toe control arms for deformity or damage.

Q: Are the upper arms and/or lower arms and/or toe

control arms deformed or damaged?
YES :

Replace the faulty part, then go to Step 6.

NO :

Go to Step 4.

STEP 4. Check the trailing arms for deformity or
damage.

Q: Are the trailing arms deformed or damaged?

YES :

Replace the faulty part, then go to Step 6.

NO :

Go to Step 5.

STEP 5. Check the crossmember for deformity or
damage.

Q: Is the crossmember deformed or damaged?

YES :

Replace it, then go to Step 6.

NO :

Go to Step 6.

STEP 6. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.
