TIMING BELT B

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-35

<<B>> TIMING BELT B REMOVAL

CAUTION

If the belt is to be re-used, mark an arrow on the belt with
chalk indicating the clockwise direction of rotation.

INSTALLATION SERVICE POINTS

>>A<< TIMING BELT B INSTALLATION

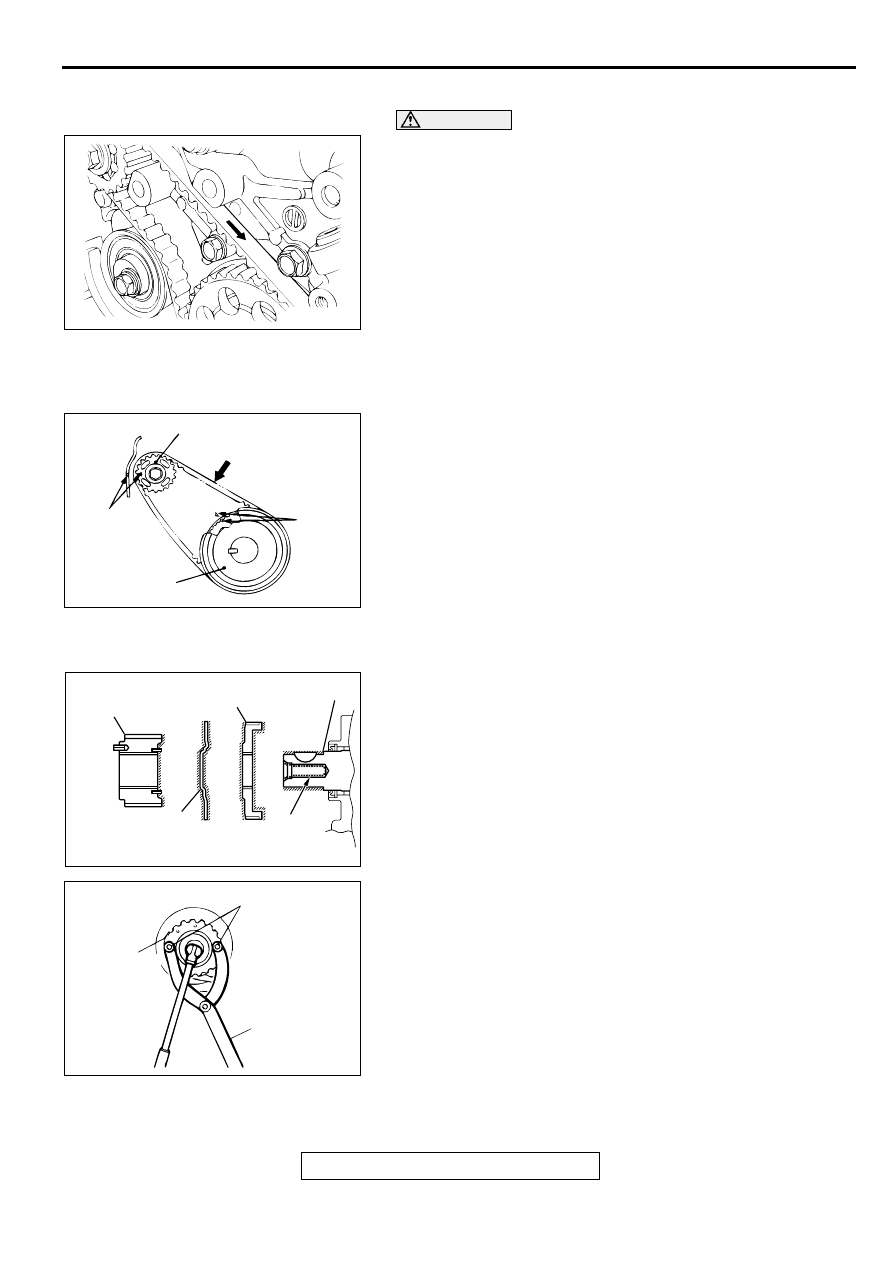

1. Ensure that crankshaft sprocket B timing marks and the

counterbalance shaft sprocket timing marks are aligned.

2. Fit timing belt B over crankshaft sprocket B and the

counterbalance shaft sprocket. Ensure that there is no slack
in the belt.

>>B<< CRANKSHAFT SENSING BLADE/CRANKSHAFT
SPROCKET INSTALLATION
1. To prevent the crankshaft bolt from loosening, degrease or

clean the seating surfaces of the crankshaft, crankshaft
sprocket B, crankshaft sensing blade and crankshaft at the
shown positions.

2. Install the crankshaft sensing blade so that they face as

shown in the illustration.

3. Apply the minimum amount of engine oil to the seat surface

and thread of the crankshaft bolt.

4. Use the crankshaft pulley mounting bolt to secure special

tool MB991367.

5. Tighten the crankshaft sprocket bolt to the specified torque.

Tightening torque: 108

−−−−

127 N

⋅⋅⋅⋅

m (80

−−−−

94 ft-lb)

AC000156

AC000157AB

CONTERBALANCE SHAFT SPROCKET

BELT TENSION SIDE

TIMING
MARKS

CRANKSHAFT
SPROCKET B

AC004794

CRANKSHAFT
SPROCKET

CRANKSHAFT
SPROCKET B

CRANKSHAFT

CRANKSHAFT
SENSING BLADE

SHADED PART: DEGREAS

× PART:
CLEANING

AC000135AB

CRANKSHAFT
PULLEY
MOUNTING
BOLT

MB991367

CRANKSHAFT
SPROCKET

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-36

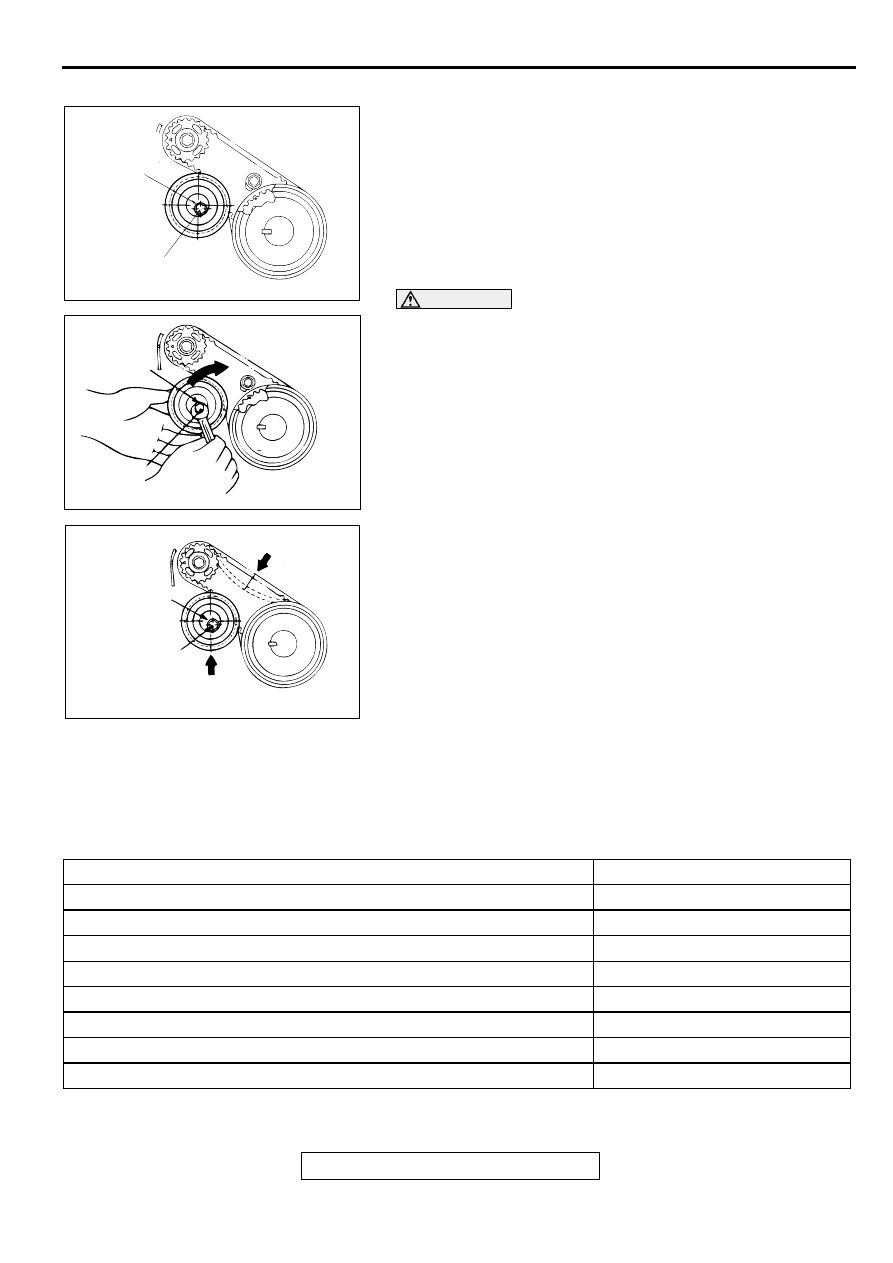

>>C<< TIMING BELT B TENSION ADJUSTMENT
1. Temporarily fix the timing belt B tensioner so the center of

the tensioner pulley is to the left and above the center of the
mounting bolt. Temporarily attach the tensioner pulley so the
flange is toward the front of the engine.

CAUTION

When tightening the bolt, ensure that the tensioner pulley
shaft does not rotate with the bolt. Allowing it to rotate
with the bolt can cause excessive tension of the bolt.
2. Holding the timing belt B tensioner up with your finger in the

direction of the arrow, apply pressure on the timing belt so
the tension side of the belt is taut. Now tighten the bolt to fix
the tensioner.

Tightening torque: 19 N

⋅⋅⋅⋅

m (14 ft-lb)

3. To ensure that the tension is correct, depress the belt (point

A) with a finger. Adjust the belt tension if it is incorrect.

Standard value: 5

−−−−

7 mm (0.2

−−−−

0.3 inch)

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1111003800116

AC000158

CENTER OF
MOUNTINGBOLT

CENTER OF
TENSIONER
PULLEY

AC000159 AC

19 N·m
14 ft-lb

SHAFT

AC000160

CENTER OF
TENSIONER
PULLEY

CENTER OF
INSTALLATION
BOLT

ITEMS

SPECIFICATIONS

Auto-tensioner attaching bolt

24 N

⋅

m (18 ft-lb)

Bell housing cover attaching bolt (bolt, flange)

25 N

⋅

m (18 ft-lb)

Bell housing cover attaching bolt (bolt, washer assembled))

8.8 N

⋅

m (78 in-lb)

Camshaft position sensor sensing cylinder attaching bolt

22 N

⋅

m (16 ft-lb)

Camshaft position sensor support attaching bolt

14 N

⋅

m (124 in-lb)

Camshaft sprocket attaching bolt

88 N

⋅

m (65 ft-lb)

Crankshaft pulley attaching bolt

25 N

⋅

m (18 ft-lb)

Crankshaft sprocket attaching bolt

108

−

127 N

⋅

m (80

−

94 ft-lb)

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-37

SERVICE SPECIFICATIONS

M1111000300134

Cylinder head attaching bolt

78 N

⋅

→

0 N

⋅

→

20 N

⋅

→

+90

→

+90

(58 ft-lb

→

0 ft-lb

→

15 ft-lb

→

+90

→

+90

)

Drive plate attaching bolt

127

−

137 N

⋅

m (94

−

101 ft-lb)

Engine mount bracket attaching bolt

M12

86 N

⋅

m (63 ft-lb)

M12

108

81 N

⋅

m (60 ft-lb)

Engine mount bracket attaching nut

86 N

⋅

m (63 ft-lb)

Exhaust manifold bracket attaching bolt

35 N

⋅

m (26 ft-lb)

High-pressure fuel hose attaching bolt

4.9 N

⋅

m (43 in-lb)

Ignition coil attaching bolt

9.8 N

⋅

m (87 in-lb)

Intake manifold stay attaching bolt

−

33 N

⋅

m (19

−

24 ft-lb)

Oil dipstick guide attaching bolt

−

15 N

⋅

m (106

−

133 in-lb)

Oil pan attaching bolt

6.9 N

⋅

m (61 in-lb)

Oil pan drain plug

39 N

⋅

m (29 ft-lb)

Power steering oil pump attaching bolt

28 N

⋅

m (21 ft-lb)

Power steering oil pump bracket attaching bolt

49 N

⋅

m (36 ft-lb)

Pressure hose attaching bolt

12 N

⋅

m (106 in-lb)

Pressure tube attaching bolt

12 N

⋅

m (106 in-lb)

Rocker arm and shaft assembly attaching bolt

−

34 N

⋅

m (21

−

25 ft-lb)

Rocker cover attaching bolt

3.4 N

⋅

m (30 in-lb)

Tensioner pulley attaching bolt

48 N

⋅

m (35 ft-lb)

Timing belt B tensioner attaching bolt

19 N

⋅

m (14 ft-lb)

Timing belt lower cover attaching bolt (bolt, flange)

9.8

−

12 N

⋅

m (87

−

106 in-lb)

Timing belt lower cover attaching bolt (bolt, washer assembly)

8.8 N

⋅

m (78 in-lb)

Timing belt upper cover attaching bolt

9.8

−

12 N

⋅

m (87

−

106 in-lb)

−

15 N

⋅

m (106

−

133 in-lb)

Water pump pulley attaching bolt

8.8 N

⋅

m (78 in-lb)

ITEMS

SPECIFICATIONS

ITEMS

STANDARD VALUE

LIMIT

Basic ignition timing at idle

BTDC

−

Actual ignition timing at idle

Approximately 10

BTDC

−

CO content%

0.5 or less

−

HC contents ppm

100 or less

−

Curb idle speed r/min

700

100

−

Compression pressure (250

−

400 r/min) kPa (psi)

1,275 (185)

Minimum 959 (139)

Compression pressure difference of all cylinder kPa
(psi)

−

98 (14)

Intake manifold vacuum at curb idle kPa (in Hg)

−

Minimum 60 (18)

Cylinder head bolt shank length mm (in)

−

99.4 (3.91)

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-38

SEALANTS AND ADHESIVES

M1111000500116

Auto-tensioner pushrod movement mm (in)

Within 1 (0.04)

−

Auto-tensioner rod protrusion mm (in)

3.8

−

4.5 (0.15

−

0.18)

−

Timing belt B tension mm (in)

−

7 (0.2

−

0.3)

−

ITEMS

STANDARD VALUE

LIMIT

ITEM

SPECIFIED SEALANT

Camshaft position sensor support and oil pan

MITSUBISHI GENUINE Sealant Part No.
MD970389 or equivalent
