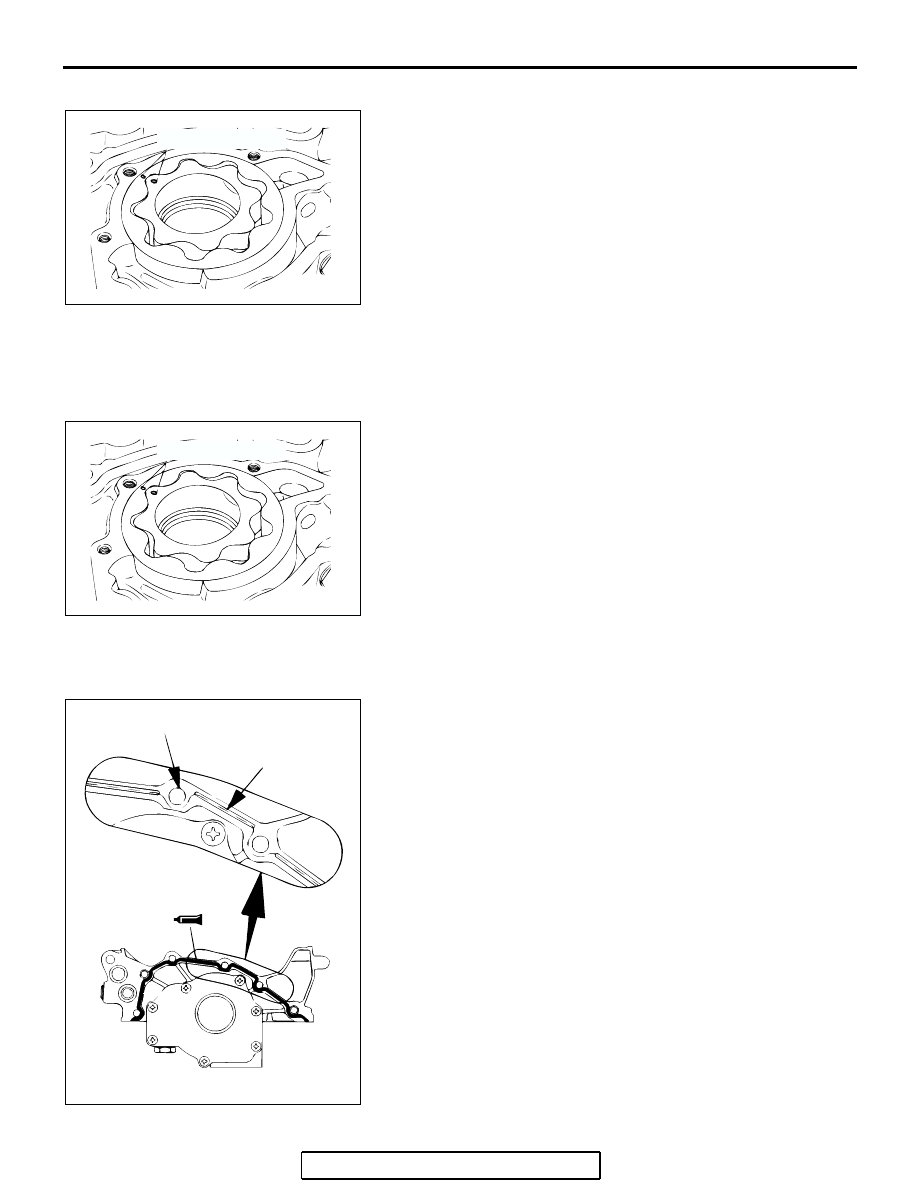

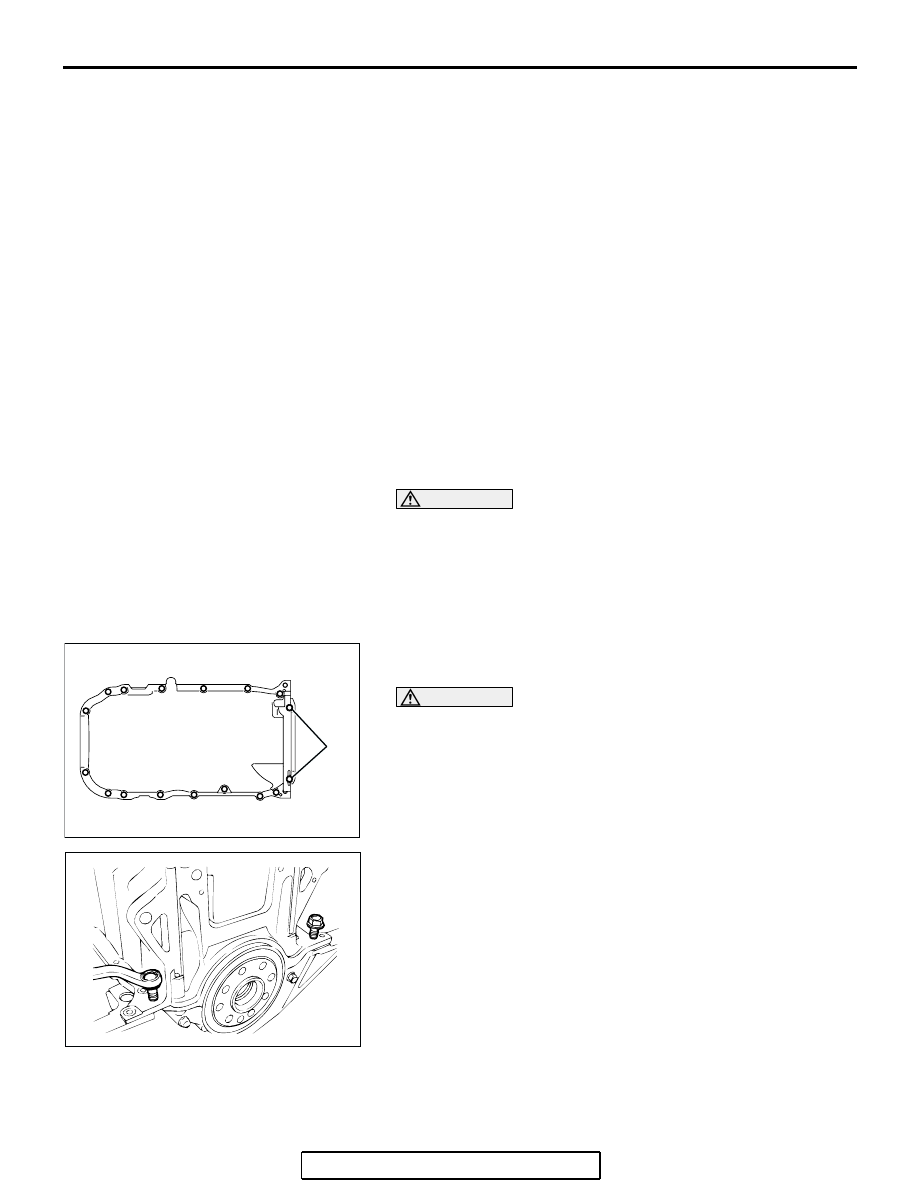

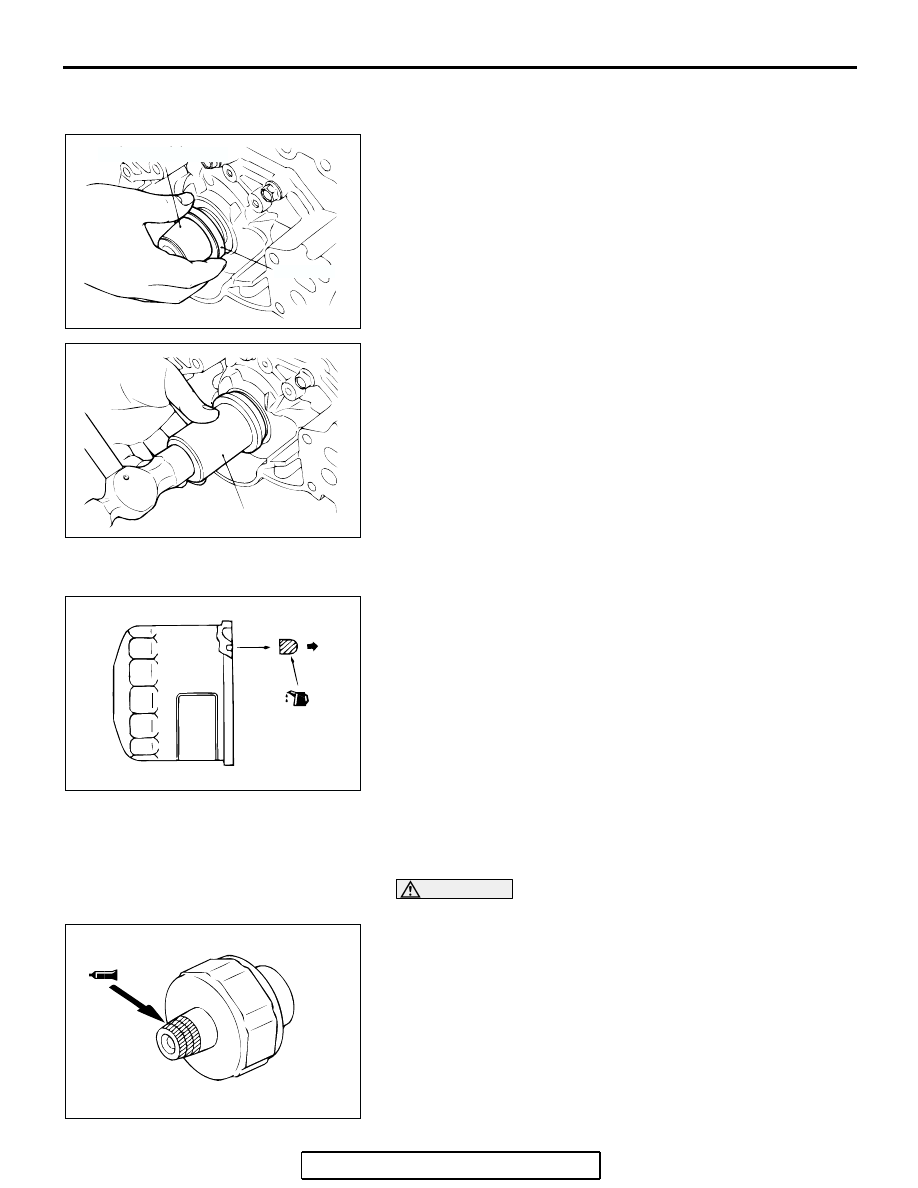

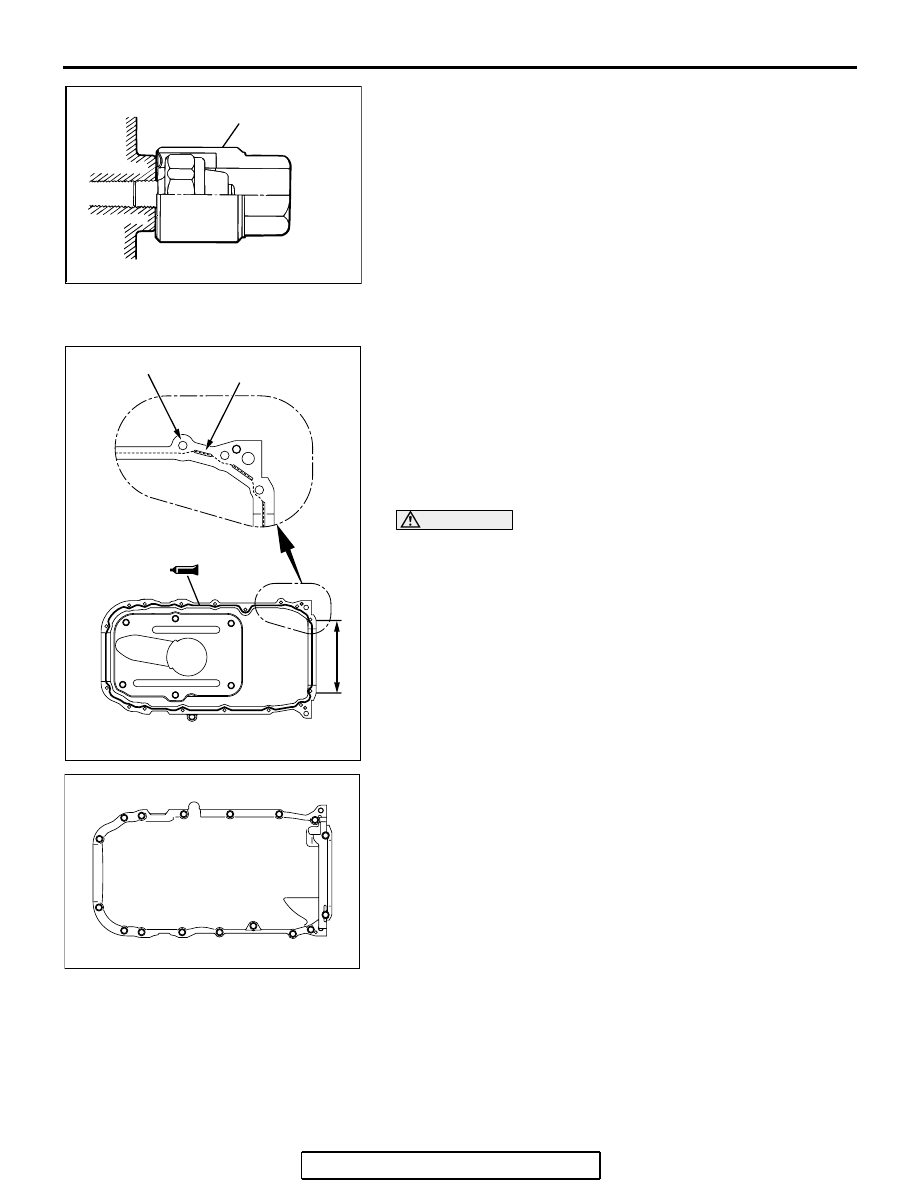

OIL PAN AND OIL PUMP TSB Revision ENGINE OVERHAUL <3.8L ENGINE> 11D-38 Required Special Tool • MD998054: Oil Pressure Switch Socket Wrench • MD998717: Crankshaft Front Oil Seal Installer REMOVAL SERVICE POINT . <<A>> OIL PAN, LOWER REMOVAL 1. Remove the lower oil pan mounting bolts. CAUTION Do not use a scraper or special tool to remove the oil pan. plastic hammer (mallet) through a wooden plank held . <<B>> OIL PAN, UPPER REMOVAL 1. Remove the long bolts "A" shown in the illustration first. CAUTION Do not use a scraper or special tool to remove the oil pan. 4. Screw M10 bolts into the two bolt holes in the oil pan to break the joint and remove the oil pan. . REMOVAL STEPS 1. DRAIN PLUG >>H<< 2. DRAIN PLUG GASKET 3. OIL PAN, LOWER <<B>> >>F<< 5. OIL PAN, UPPER >>E<< 9. ENGINE OIL PRESSURE SWITCH >>D<< 11. OIL FILTER 13. OIL FILTER BRACKET GASKET >>C<< 17. CRANKSHAFT FRONT OIL SEAL >>B<< 18. OIL PUMP CASE ASSEMBLY <<C>> >>A<< 21 OIL PUMP OUTER ROTOR <<C>> >>A<< 22. OIL PUMP INNER ROTOR REMOVAL STEPS (Continued) AK304454 "A" AB AKX00658 |
