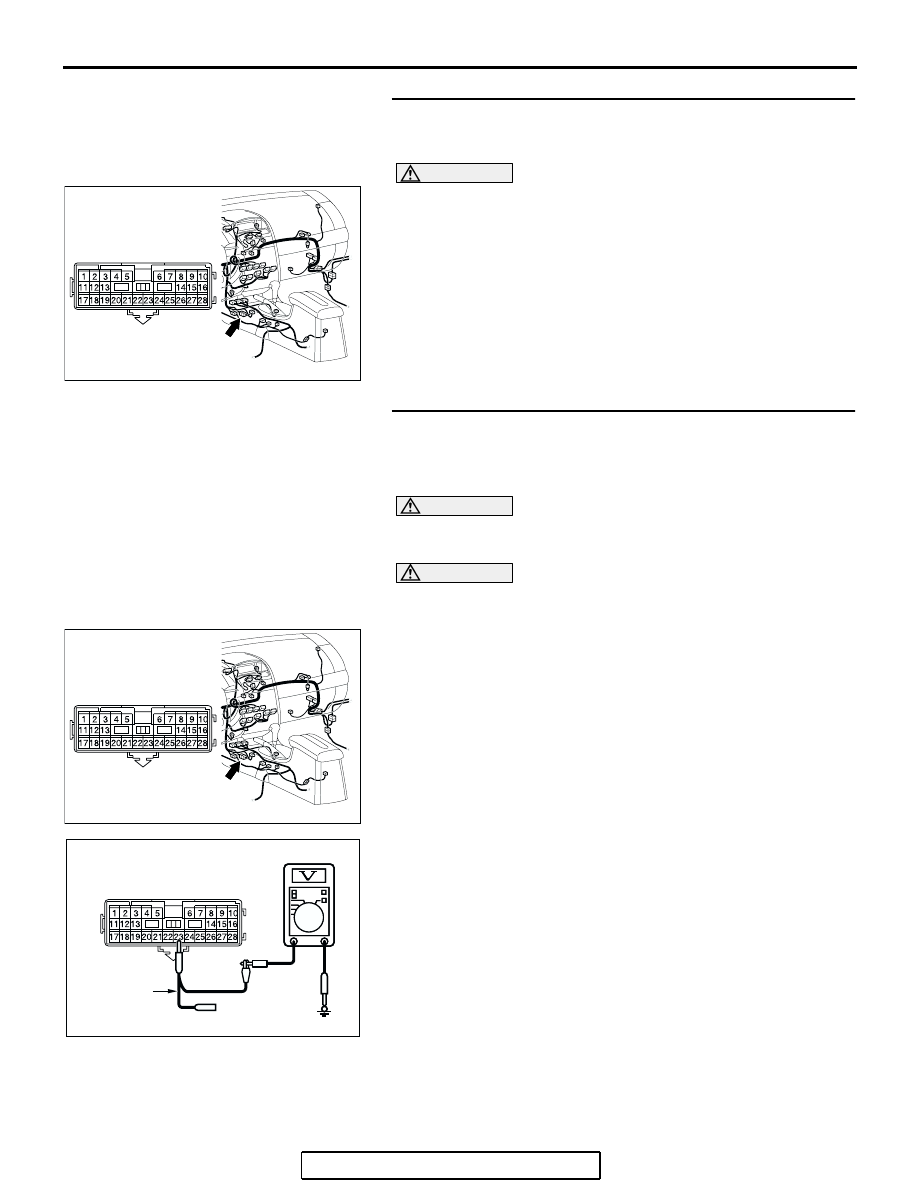

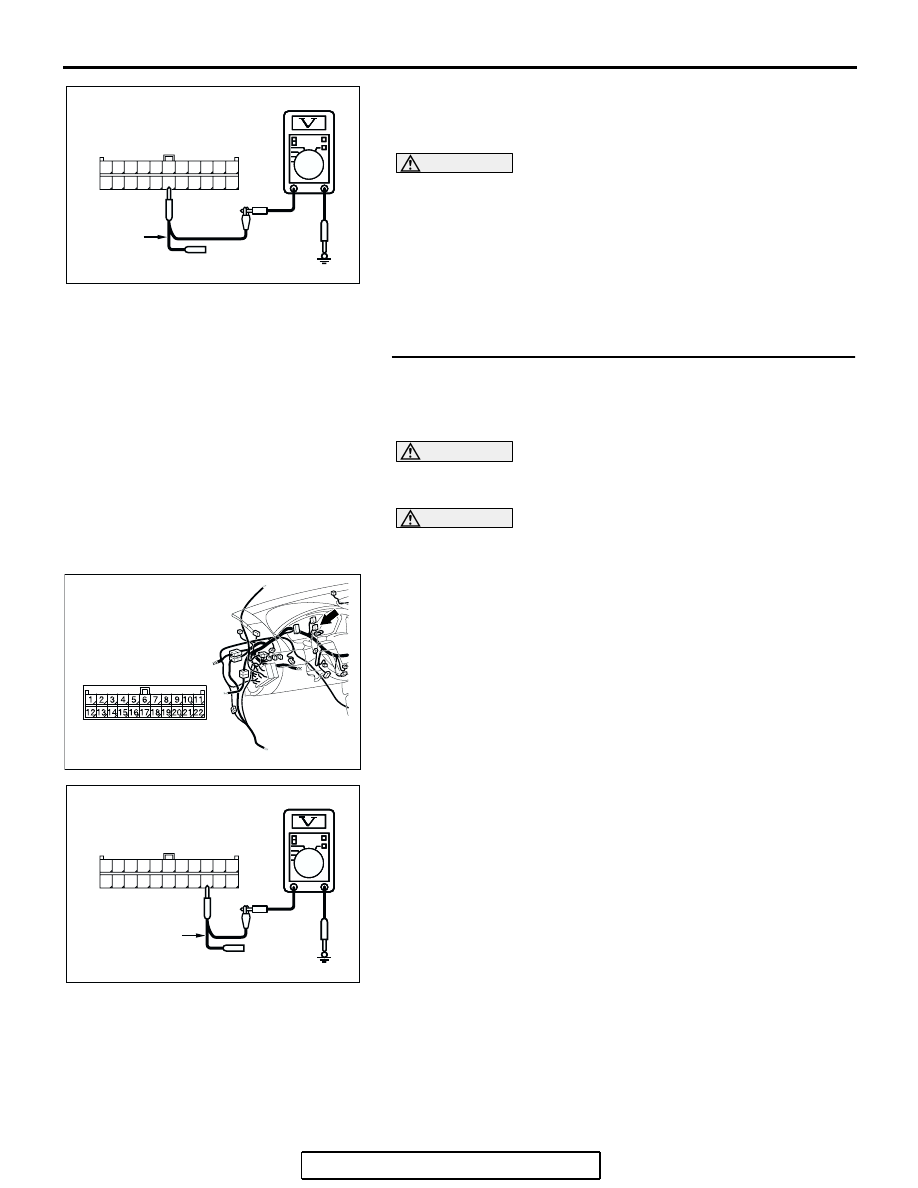

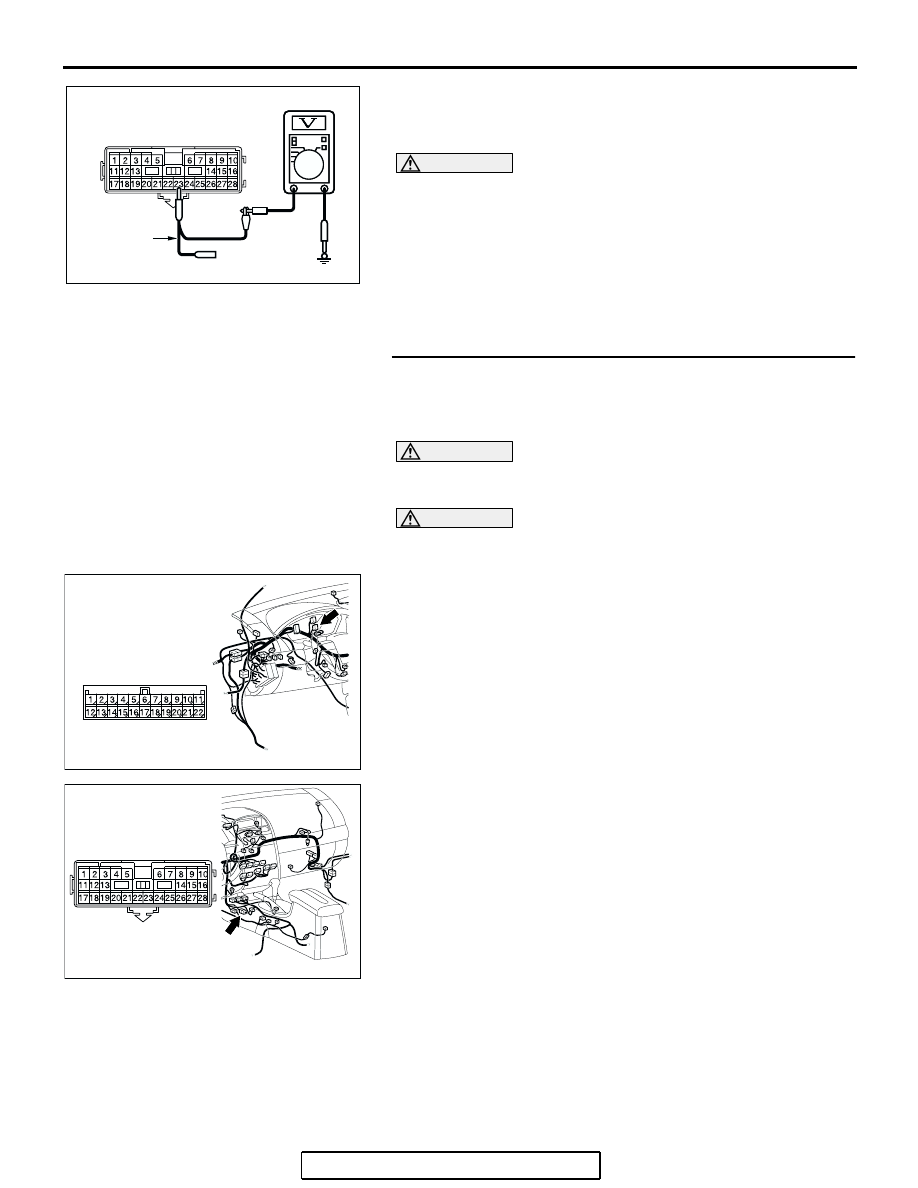

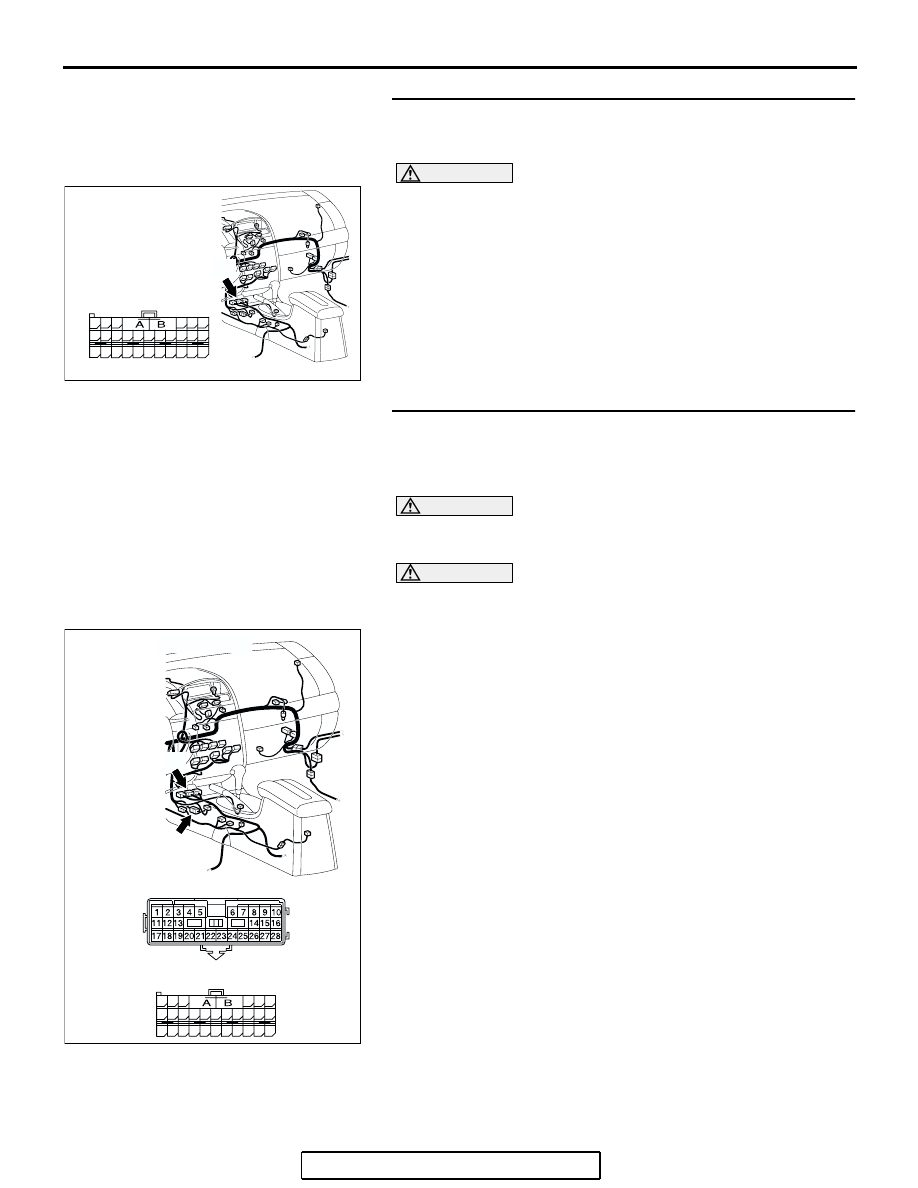

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-108 (3) Measure the voltage between joint connector (3) terminal 17 and body ground. OK: 1.0 V or less CAUTION Strictly observe the specified wiring harness repair proce- Q: Does the voltage measure 1.0 V or less? YES : If the voltage measures 1.0 V or less, diagnose CAN bus lines thoroughly by referring to NO : If the voltage measures more than 1.0 V, repair the wiring harness between joint connector (3) and the STEP 38. Check the CAN_L line (communication line CAUTION A digital multimeter should be used. For details refer to . CAUTION The test wiring harness should be used. For details refer to . (1) Disconnect joint connector (3) C-02, and measure the voltage at the wiring harness side of joint connector (3) (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between joint connector (3) terminal 14 and body ground. OK: 4.0 V or less Q: Does the voltage measure 4.0 V or less? YES : If the voltage measures 4.0 V or less, go to Step 44. AC209365 11 22 10 21 9 20 8 19 7 18 6 17 5 16 4 15 3 14 2 13 1 12 AC209365 AC209365GD HARNESS SIDE: C-02 TEST AC305231AP CONNECTOR: C-02 AC209365 11 22 10 21 9 20 8 19 7 18 6 17 5 16 4 15 3 14 2 13 1 12 AC209365 AC209365GE HARNESS SIDE: C-02 TEST |
