SYMPTOM PROCEDURES
TSB Revision
SIMPLIFIED WIRING SYSTEM (SWS)
54B-144
NOTE: Also check intermediate connector C-26 and junction
block connector C-211 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If intermediate
connector C-26 or junction block connector C-211 are dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection
P.00E-2
.

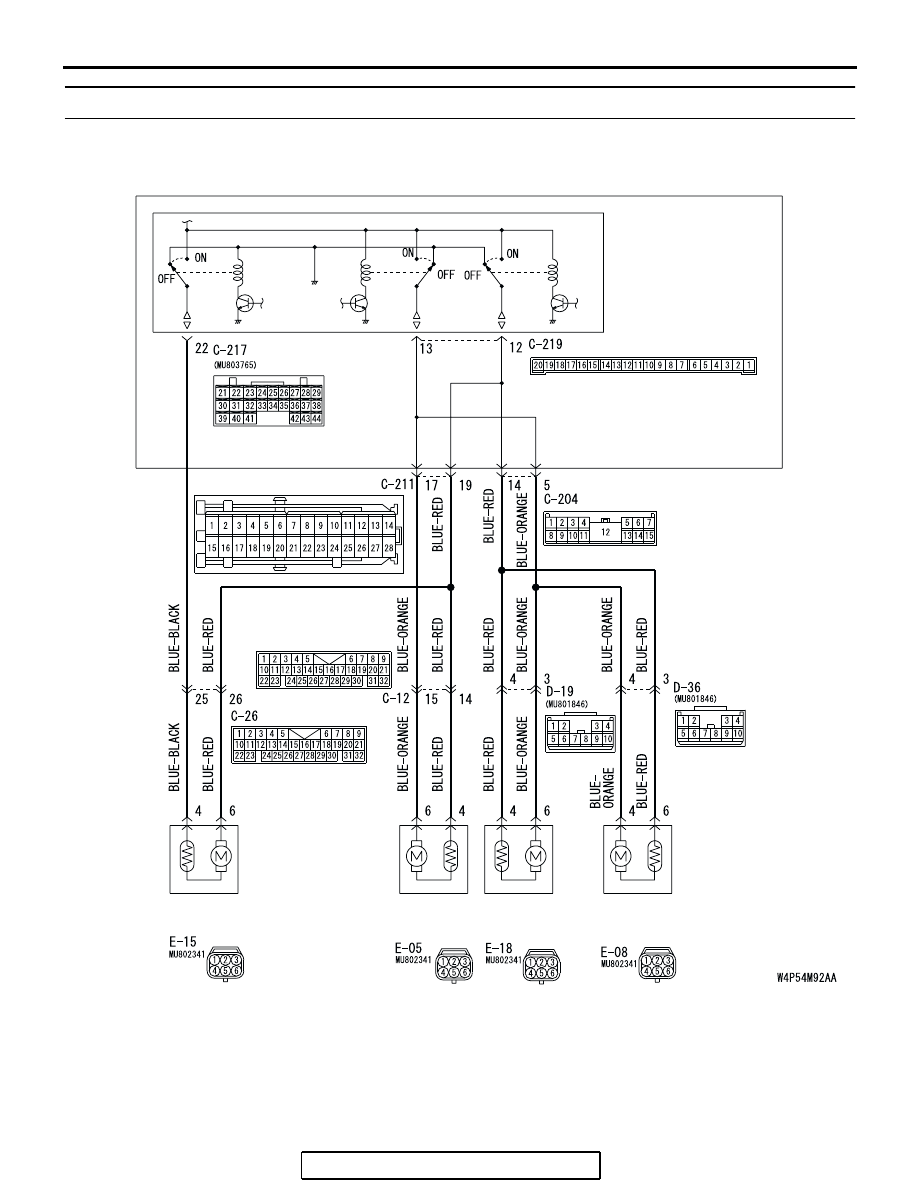

Q: Is the wiring harness between ETACS-ECU connector
C-219 (terminal 12) and front door lock actuator (LH)
connector E-15 (terminal 6) in good condition?
YES : Replace the ETACS-ECU. Verify that all the doors
can be locked and unlocked normally.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair or replace the damaged component(s). Verify
that the central door locking system works normally.

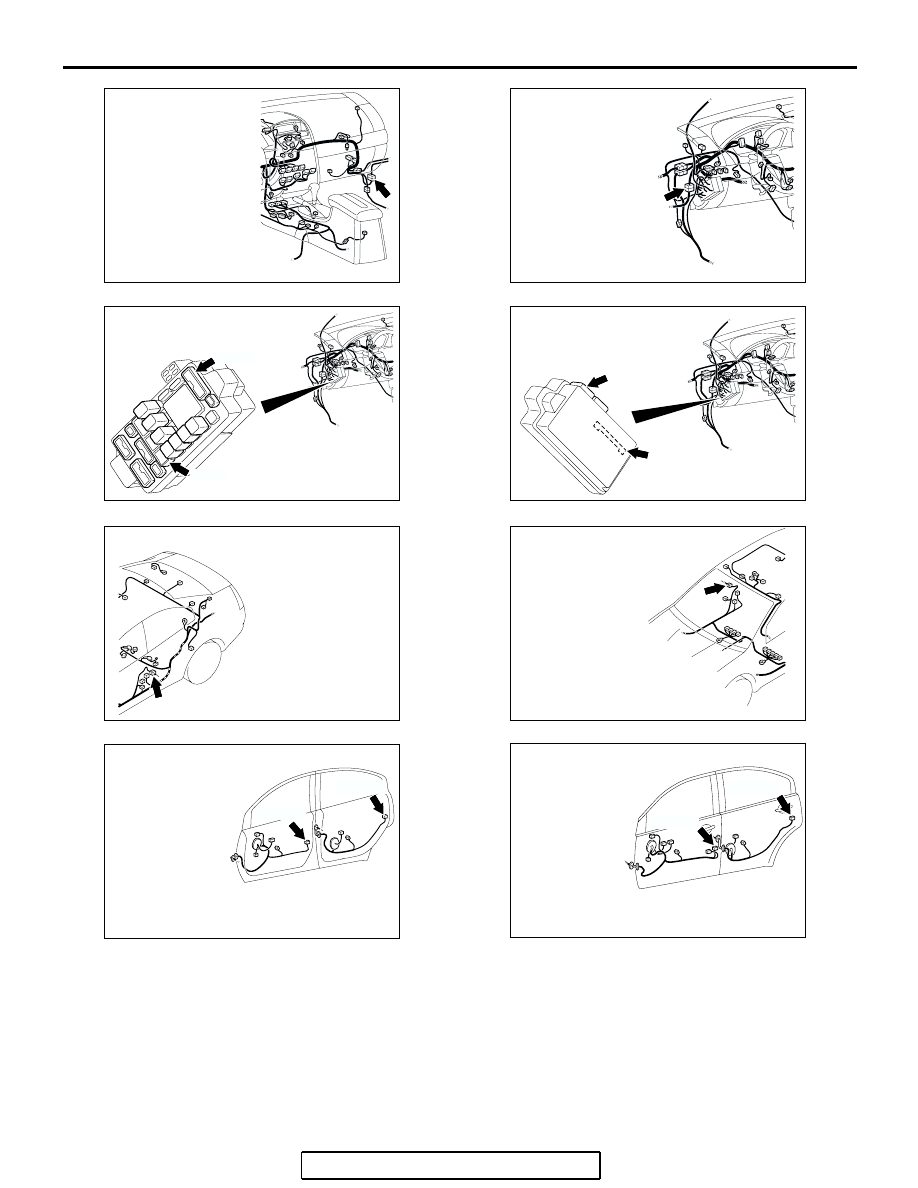

AC305231

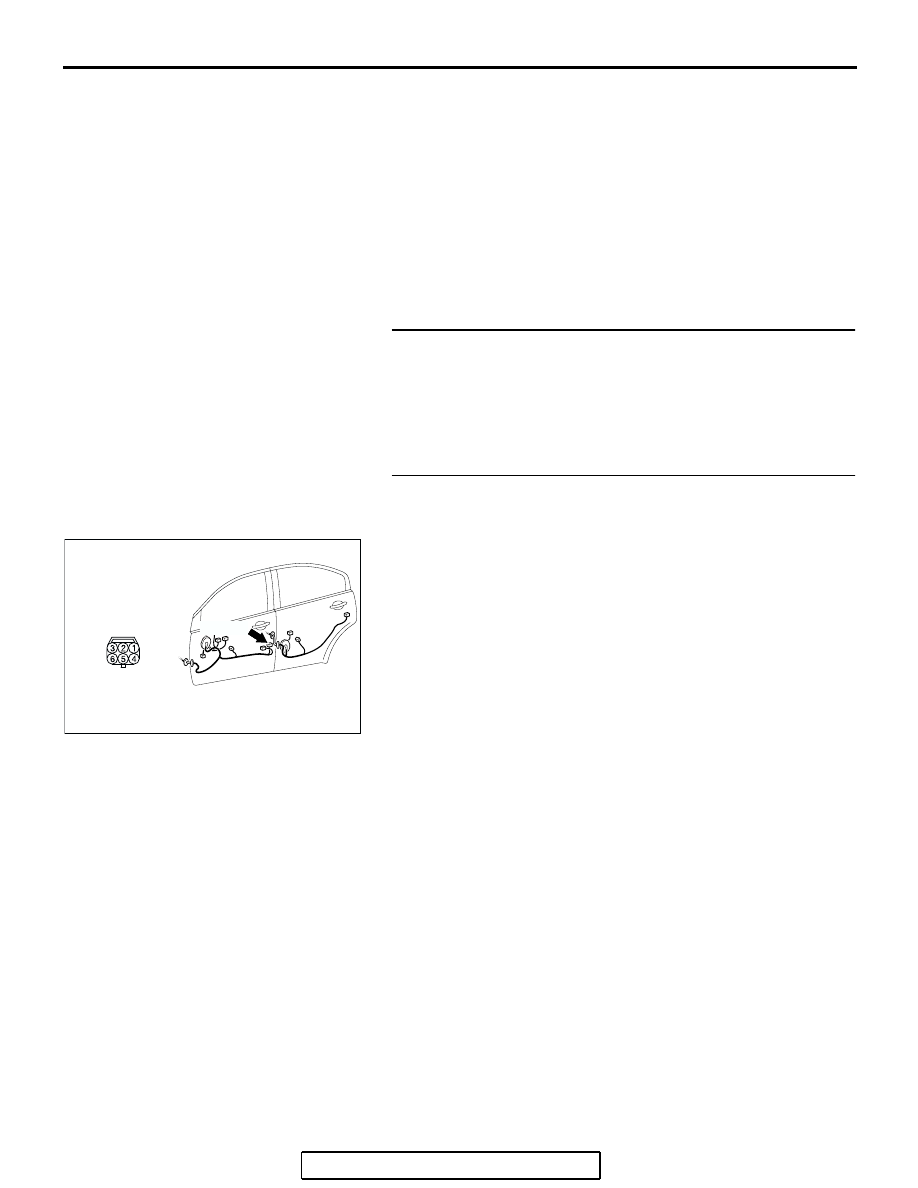

CONNECTOR: C-26
AK
AC305415AH

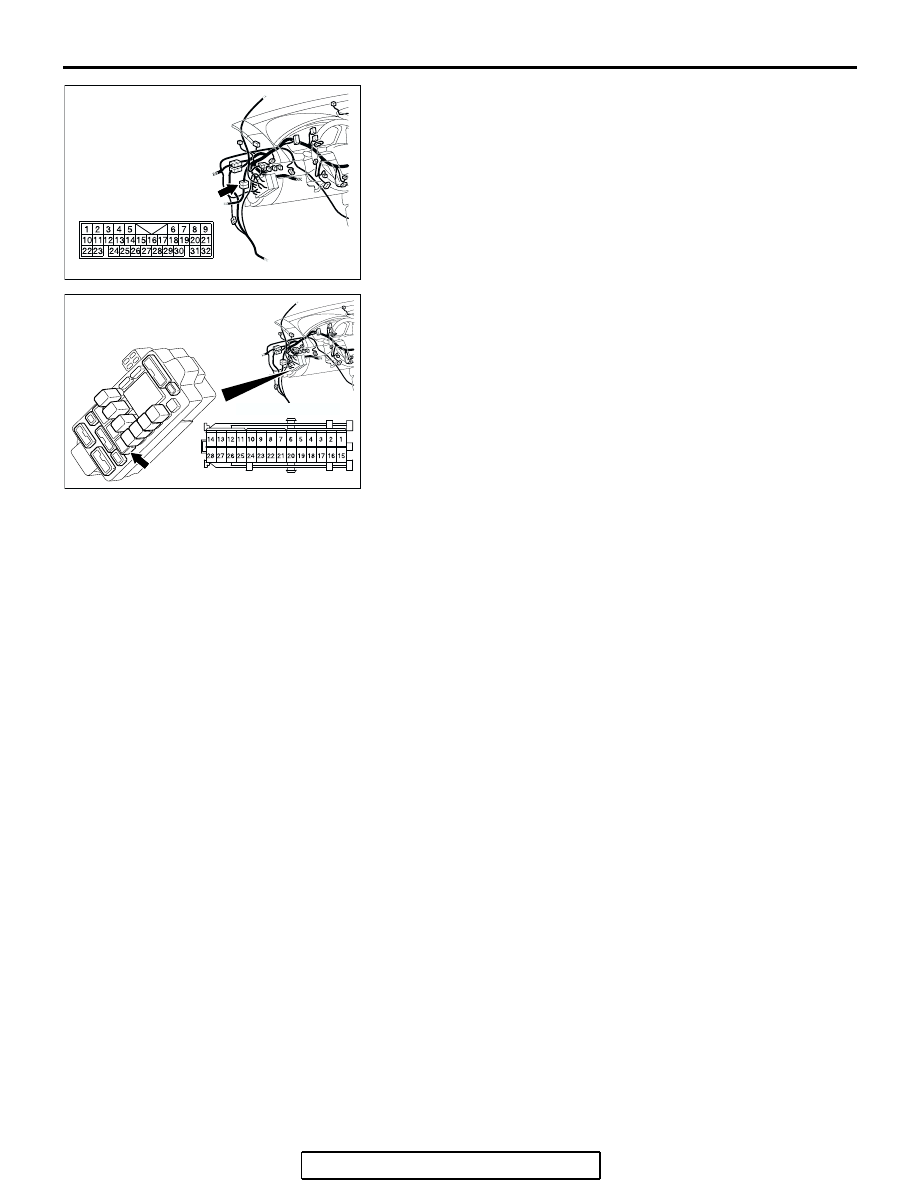

CONNECTOR: C-211
C-211
HARNESS SIDE
JUNCTION BLOCK
(FRONT VIEW)
