Mitsubishi Pajero Pinin. Manual - part 284

BODY  –

Door

42-12

FRONT DOOR GLASS AND
REGULATOR

DOOR WINDOW GLASS/GLASS HOLDER/DOOR
GLASS PAD INSTALLATION

1.

Install the door glass pads and glass holders to the window
glass in the positions shown.

Standard value (A): 50.0 mm

Standard value (B): 419.0 – 421.0 mm

Standard value (C): 45.0 mm

2.

Install the glass to the window regulator assembly.

Caution
Do not activate the window regulator assemble before
installing the glass as the resetting in the limit switch
is cancelled.

INSPECTION

POWER WINDOW MAIN SWITCH CONTINUITY CHECK

NOTE
Since the power window main switch uses the SWS system, check the continuity with the input signal
check method. Refer to GROUP 54B – Troubleshooting.

B

C

Glass pads and
glass holders

A

BODY  –

Door

42-13

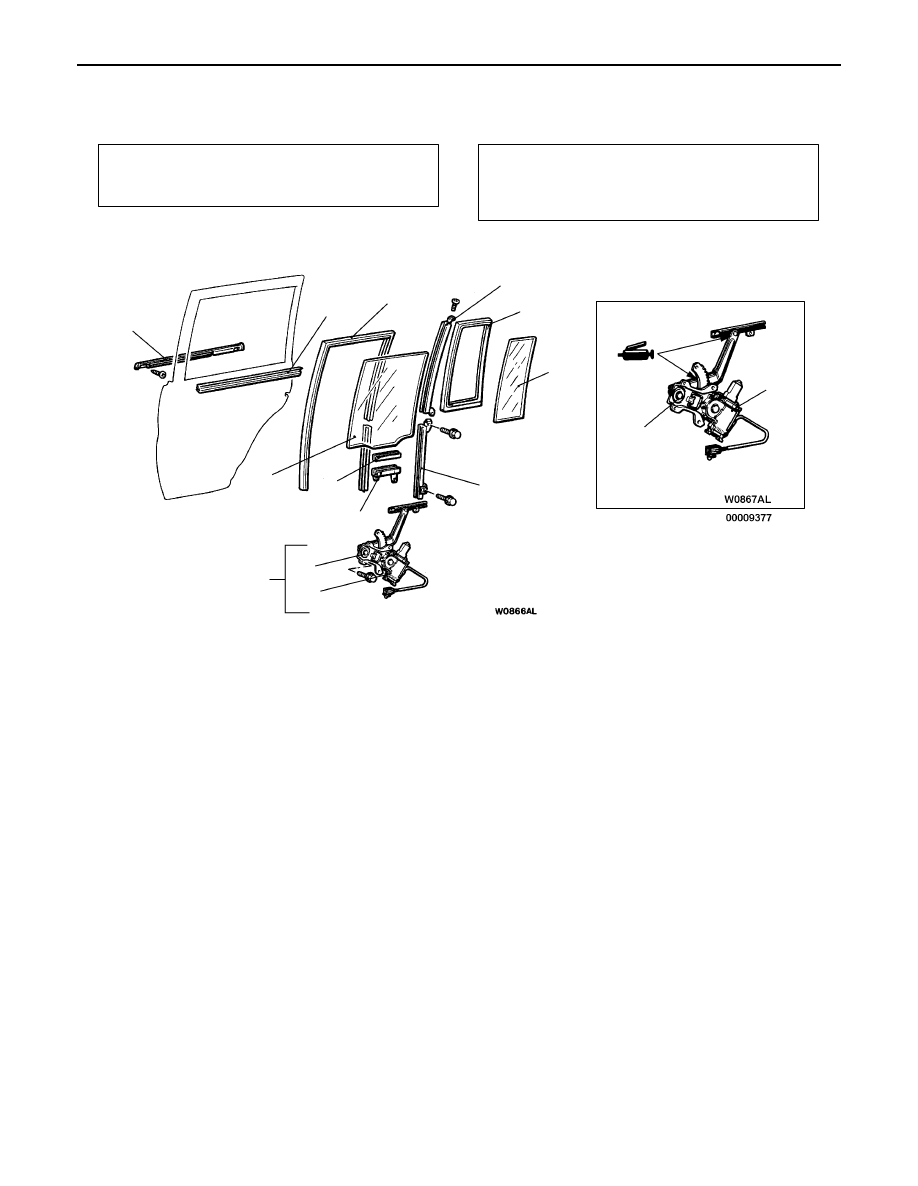

REAR DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

Pre-removal Operation



Door Trim and Waterproof Film Removal (Refer
to P.42-9.)

Post-installation Operation



Door Window Glass Adjustment



Door Trim and Waterproof Film Installation (Refer
to P.42-9.)

7

8

9

10

11

2

1

3

4

10

6

5

11

13

12

Door window glass removal steps

1. Door window inner weather strip
2. Door belt line moulding assembly
3. Door window glass runchannel
4. Rear center sash
5. Rear lower sash



B



6. Rear door window glass



B



7. Glass holder



B



8. Door glass pad

Power window regulator and motor
assembly removal steps

9. Power window regulator and motor

assembly



A



10. Power window motor assembly



A



11. Power window regulator assembly

12. Stationary window glass
13. Stationary window glass weather

strip

BODY  –

Door

42-14

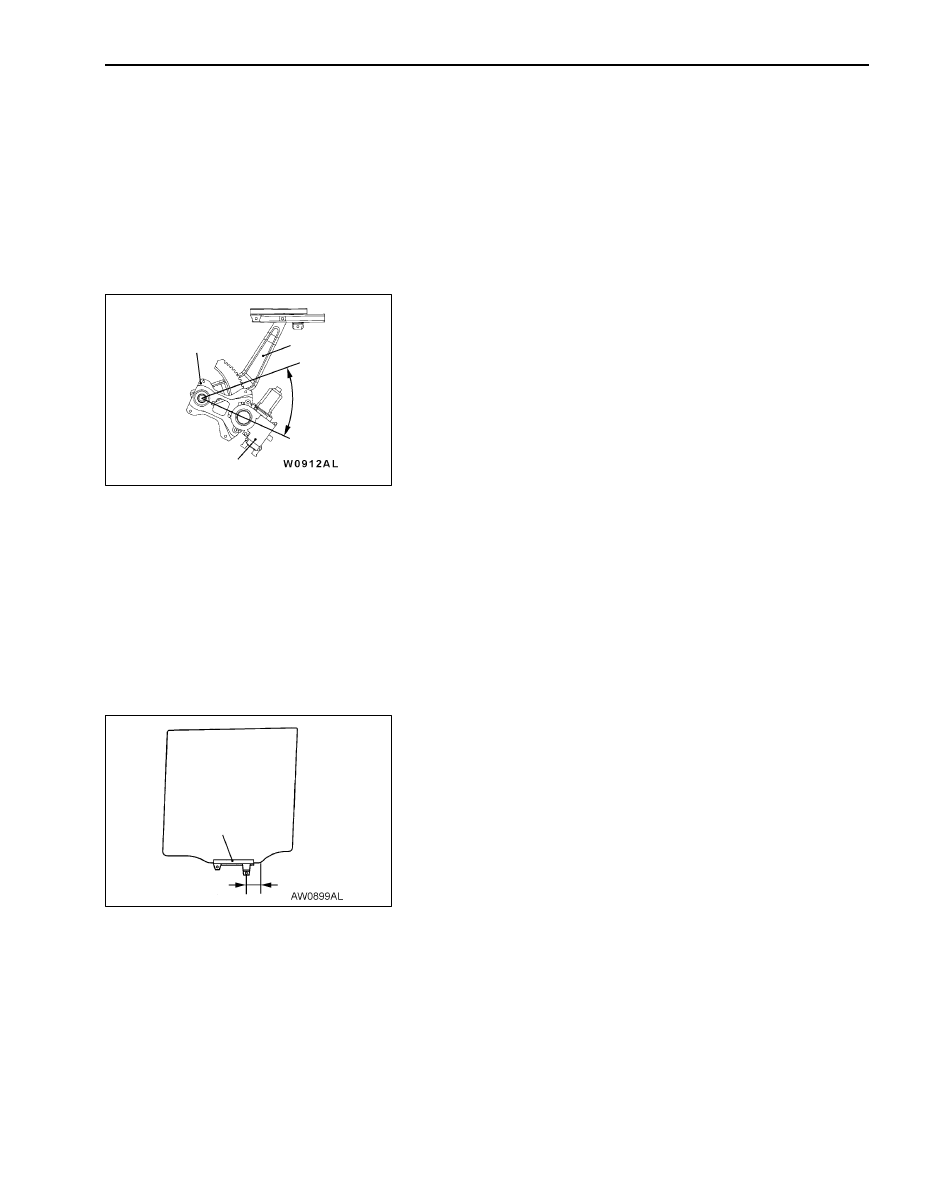

INSTALLATION SERVICE POINTS



A



POWER WINDOW MOTOR ASSEMBLY/POWER
WINDOW REGULATOR ASSEMBLY
INSTALLATION

Adjust the power window motor assembly and power window
regulator assembly positions as follows:
1.

Connect the power window motor assembly connector
and the power window switch connector to the wiring
harness of body side.

2.

Turn on the power window switch to operate the power
window motor for 3 seconds in the direction which the
window glass closes.

3.

Disconnect the power window motor assembly connector
and the power window switch connector from the wiring
harness of body side.

4.

Assemble the power window motor assembly and the
power window regulator so that the arm and bracket are
positioned as shown in the illustration, and then install
the power window motor assembly.

Caution
When installing the power window regulator, do not
set it in the window glass fully-closed position. If
installing the power window regulator in that condition,
the window glass safety mechanism will not functions
correctly.



B



REAR DOOR WINDOW GLASS/GLASS
HOLDER/DOOR GLASS PAD INSTALLATION

1.

Install the door glass pad and glass holder to the window
glass in the position shown.

Standard value (A): 53.0 mm

2.

Install the glass to the window regulator assembly.

Caution
Do not activate the window regulator assemble before
installing the glass as the resetting in the limit switch
is cancelled.

Power window
motor assembly

Arm

Bracket

30

°

 or less

A

Glass pad and
glass holder

BODY  –

Door

BODY  –

Door

42-15

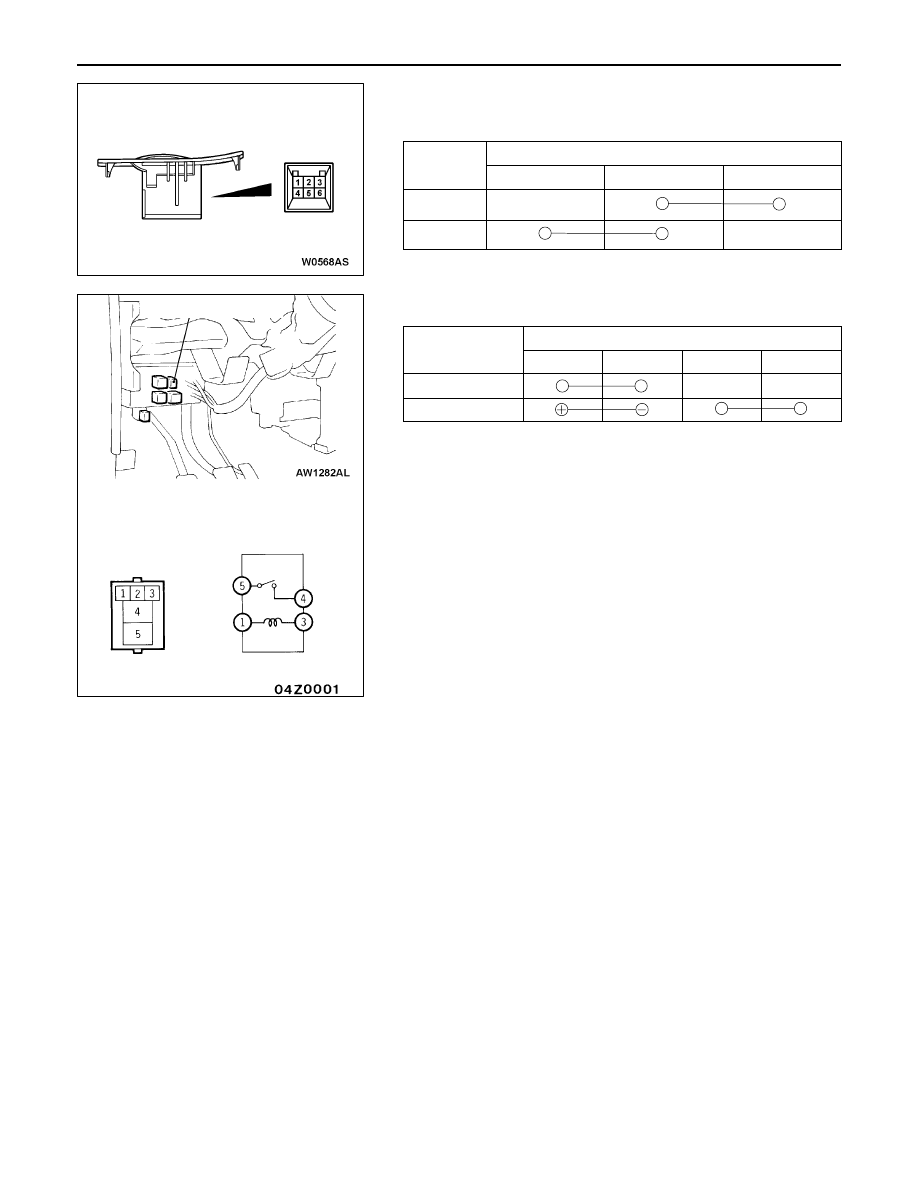

INSPECTION

POWER WINDOW SUB SWITCH CONTINUITY CHECK

Switch

iti

Terminal No.

position

1

4

6

UP

DOWN

POWER WINDOW RELAY CONTINUITY CHECK

Battery

lt

Terminal No.

y

voltage

1

3

4

5

Not applied

Applied

Power window relay
