BODY –

Window Glass

42-14

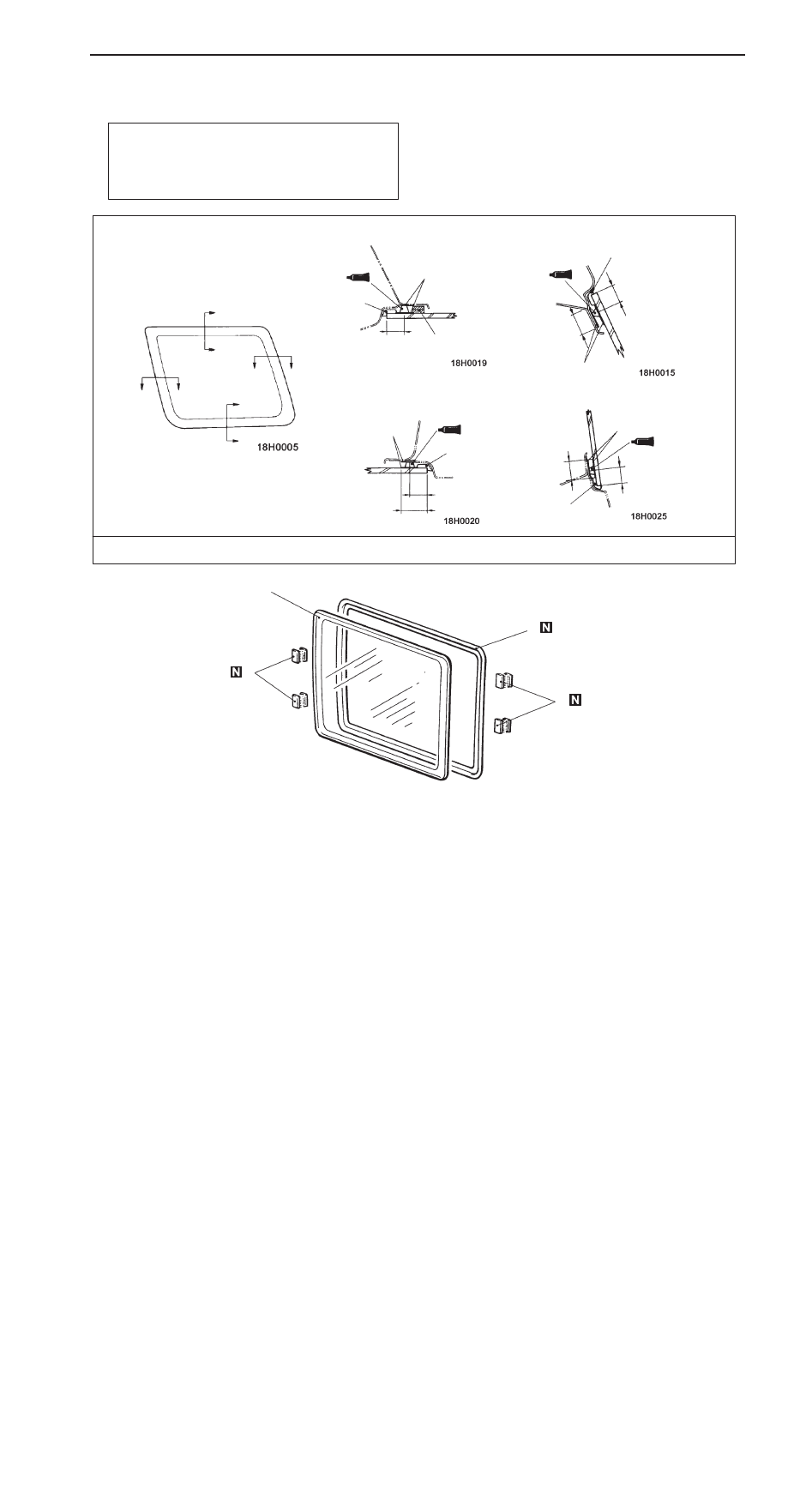

QUARTER WINDOW GLASS

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Quarter Trim,  Lower (R.H.) Removal and
Installation (Refer to GROUP 52A.)

D

Headlining Removal and Installation
(Refer to GROUP 52A.)

W0390AL

1

2

2

3

A

A

Primer

B

B

C

C

D

D

Section A – A

Section B – B

Section C – C

mm

Section D – D

Primer

Primer

Primer

12.5

12.5

15

15

12.5

12.5

18.5

3, 7

3

3, 7

3, 7

2, 6

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent

00008893

Removal steps

A

A

" "

A

A

1. Quarter window glass

"

A

A

2. Dual lock fastener

"

A

A

3. Window dam

BODY –

Window Glass

42-15

REMOVAL SERVICE POINT

A

A

"

QUARTER WINDOW GLASS REMOVAL

Remove the quarter window glass in the same manner as
for the windshild. (Refer to P.42-11.)

INSTALLATION SERVICE POINT

"

A

A

WINDOW DAM/DUAL LOCK FASTENER/
QUARTER WINDOW GLASS INSTALLATION

1.

Use a isopropyl alcohol to decrease the glass and body
surfaces where the window dam and dual lock fasteners
are installed.

2.

Install the window dam.

3.

Install the dual lock fasteners to the body flange in the
specified positions.

4.

Install the dual lock fasteners to the windshield in the
positions corresponding to the ones on the body flange
where the dual lock fasteners have been installed.

5.

Apply the primer and adhesive.

6.

Install the glass in the same manner as for the windshield.
(Refer to P.42-12.)

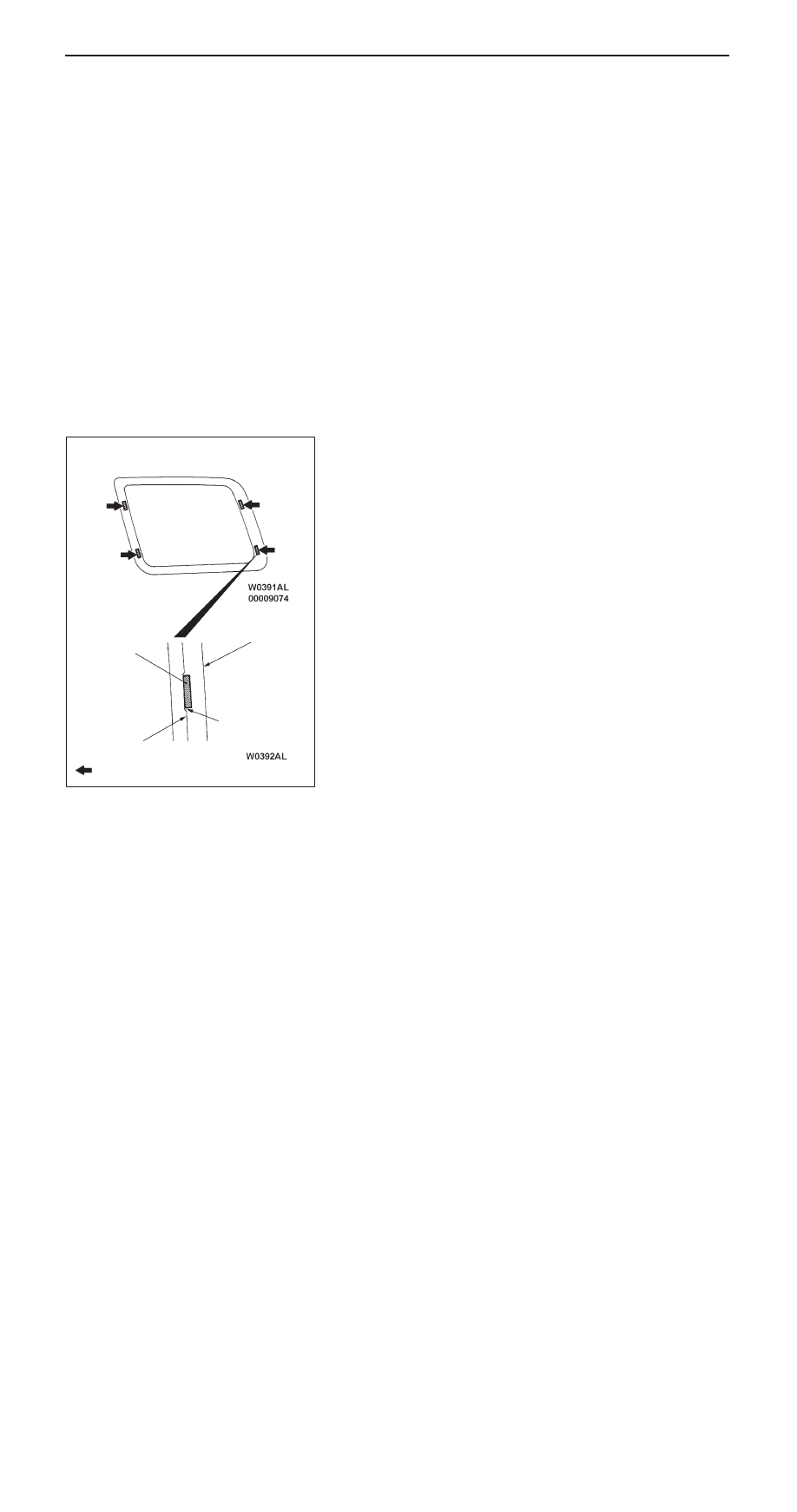

Dual lock
fastener

Dual lock fastener
installation positions

Glass end line

Side panel
flange end line

Align the dual
lock fastener end
and the marking.

: Dual lock fastener installation positions

BODY –

Window Glass

42-16

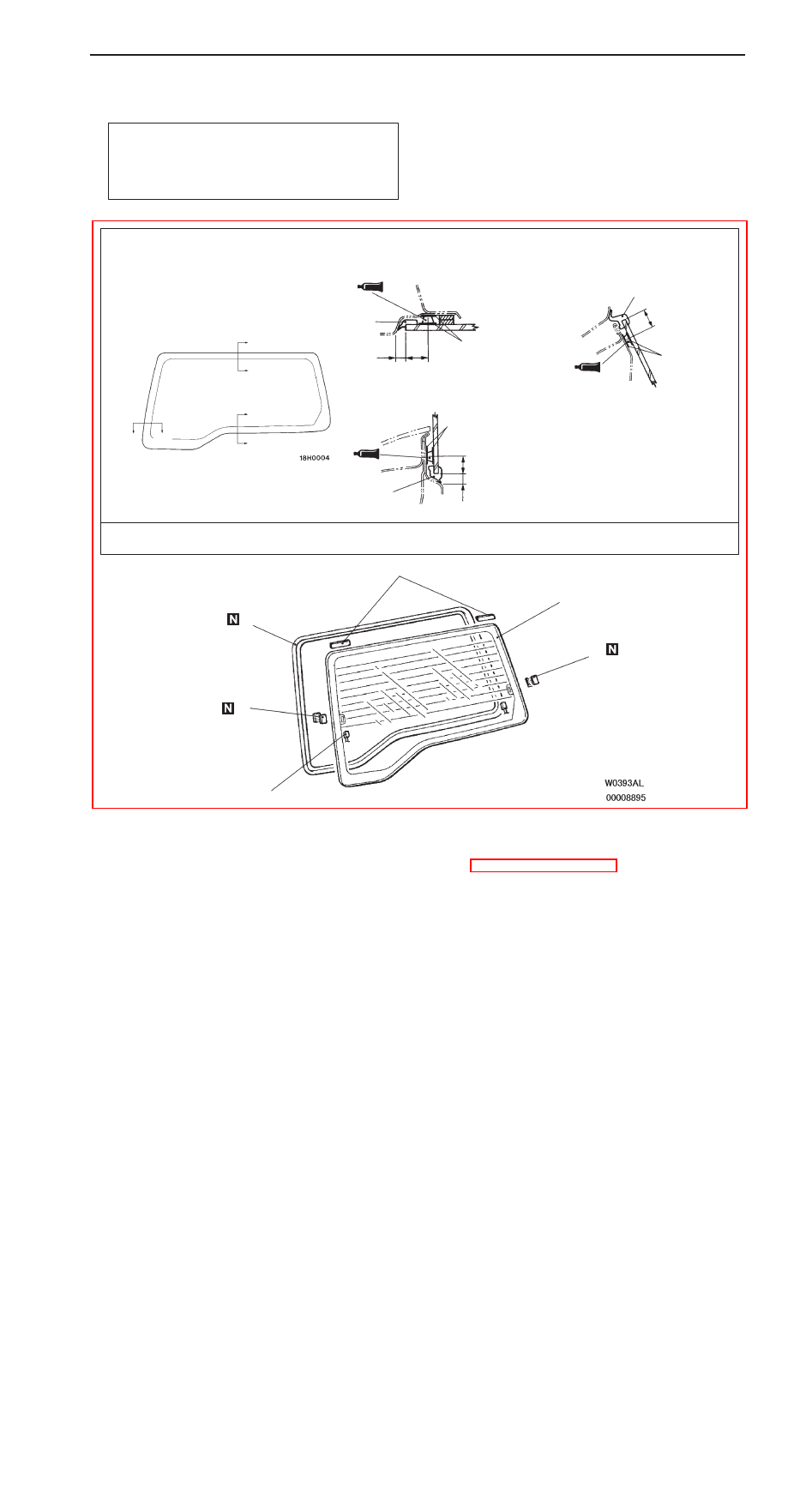

BACK DOOR GLASS

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

High-mounted Stop Lamp Assembly Removal and
Installation (Refer to GROUP 52A.)

D

Back Door Trim Removal and Installation (Refer
to P.42-34.)

C

B

1

3

2

3

A

A

Primer

B

C

Section A – A

Section B – B

Section C – C

mm

Primer

Primer

12.5

5.5

12.5

12.5

5

5

4

5

5.5

5

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent

Removal steps

1. Harness connector

A

A

" "

A

A

2. Back door glass

"

A

A

3. Dual lock fastener

"

A

A

4. Glass stopper

"

A

A

5. Window dam

BODY –

Window Glass

42-17

REMOVAL SERVICE POINT

A

A

"

BACK DOOR GLASS REMOVAL

Remove the back door glass in the same manner as for the
windshield. (Refer to P42-11.)

INSTALLATION SERVICE POINT

"

A

A

WINDOW DAM/DUAL LOCK FASTENER/GLASS
STOPPER/BACK DOOR GLASS INSTALLATION

1.

Use a isopropyl alcohol to decrease the glass and body
surfaces where the window dam, dual lock fasteners and
glass stoppers are installed.

2.

Install the window dam.

3.

Install the dual lock fasteners to the concavities on the
body panel and the glass stoppers to the hole on the
body panel respectively.

4.

Install the dual lock fasteners to the windshield in the
positions corresponding to the ones on the body panel
where the dual lock fasteners have been installed.

5.

Apply the primer and adhesive.

6.

Install the glass in the same manner as for the windshield.
(Refer to P.42–12.)

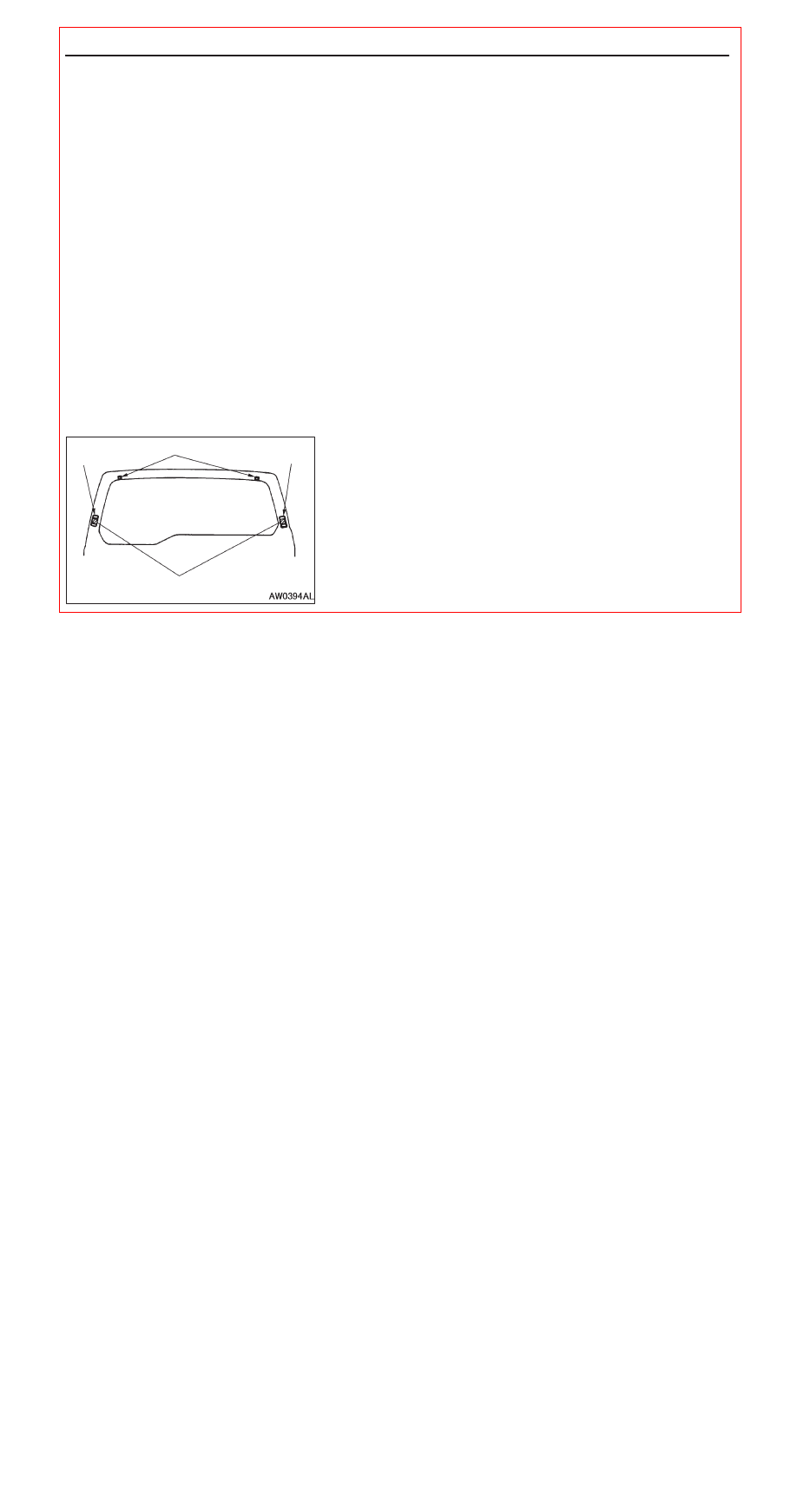

Dual lock fastener

Glass stopper installation holes

Concavity

Concavity
