Mitsubishi Pajero Pinin. Manual - part 256

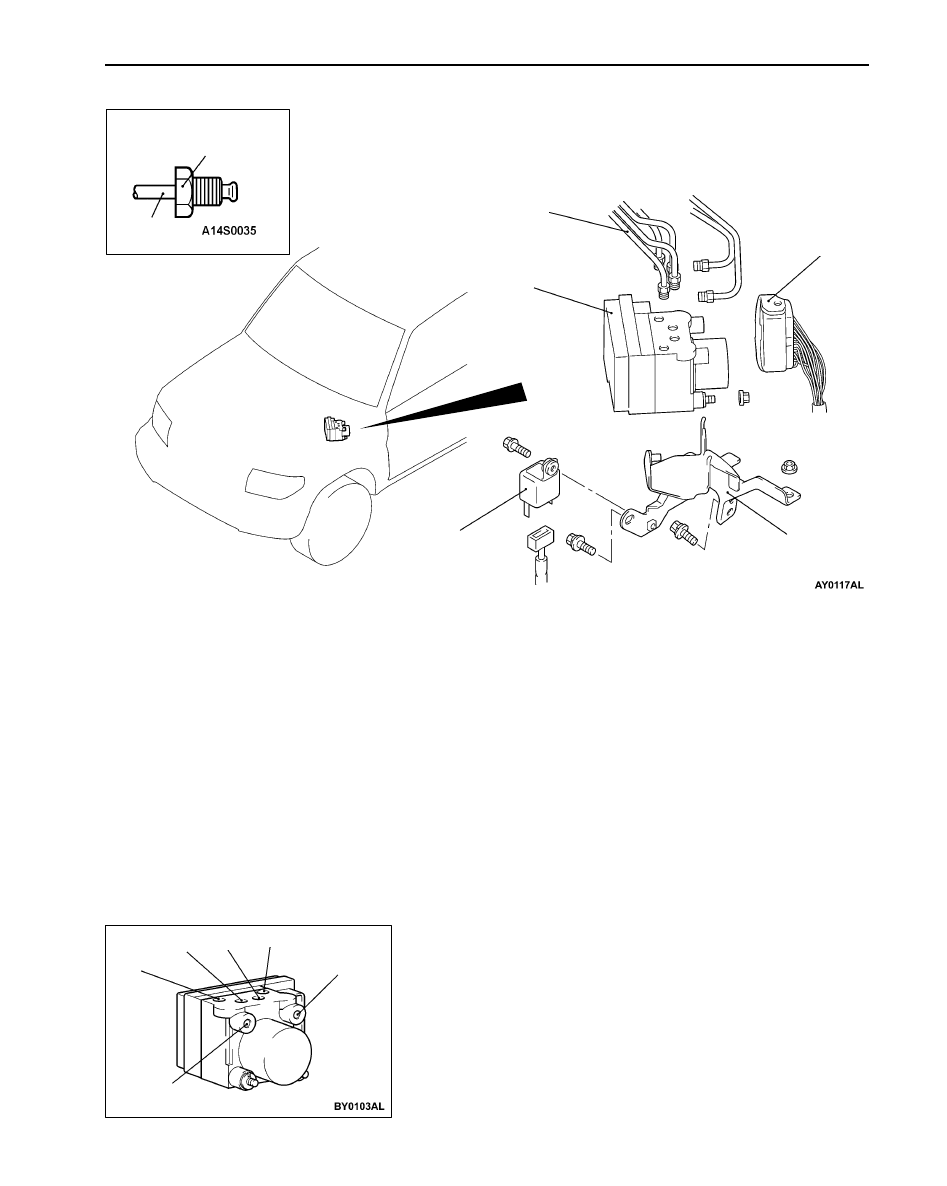

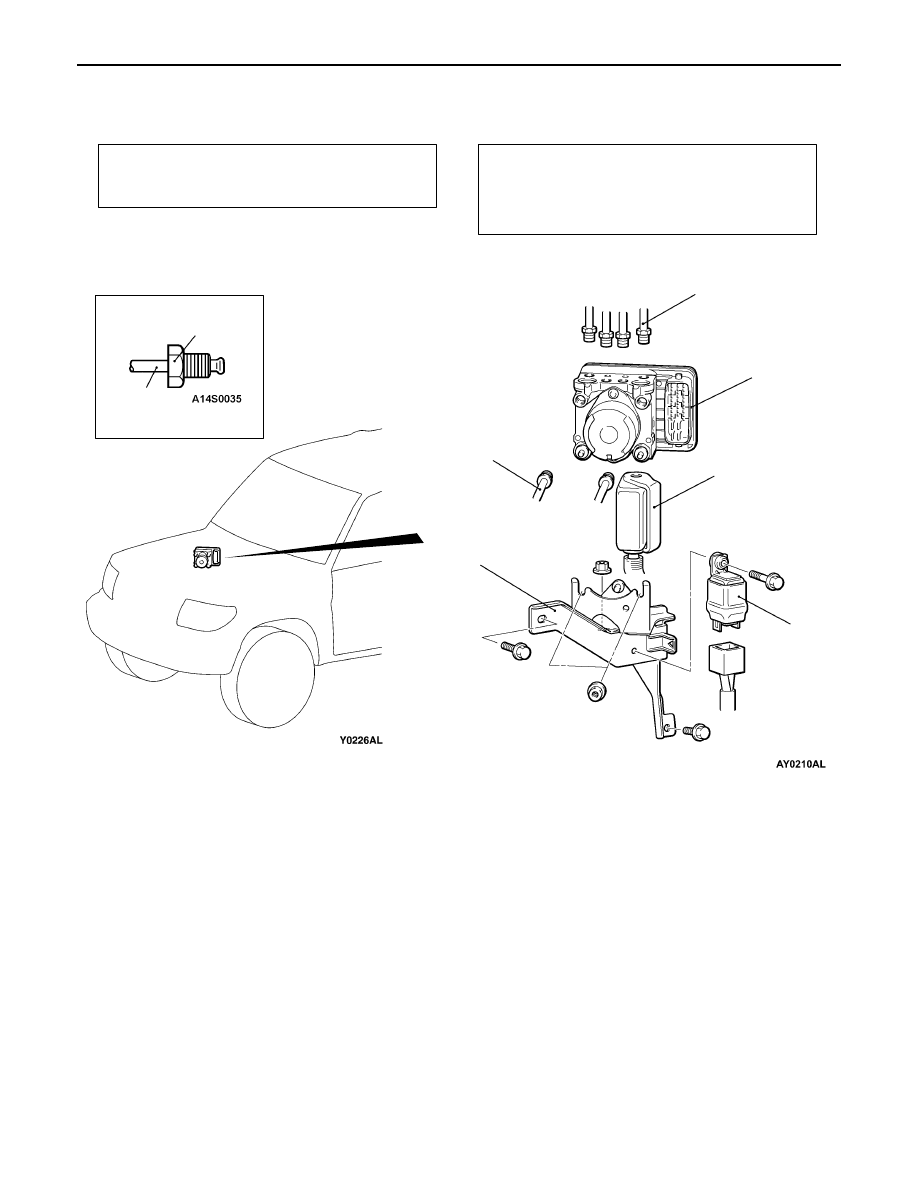

ABS <4WD> –

Hydraulic Unit and ABS-ECU

35B-15

HYDRAULIC UNIT AND ABS-ECU

REMOVAL AND INSTALLATION

Pre-removal Operation



Brake Fluid Draining



Air Cleaner Removal (Refer to GROUP 15.)

Post-installation Operation



Brake Fluid Supplying and Brake Line Bleeding
(Refer to GROUP 35A – On-vehicle Service.)



Hydraulic Unit Inspection



Air Cleaner Installation (Refer to GROUP 15.)

<L.H. drive vehicles>

 15 Nm

2

3

5

1

3

4

3

ABS <4WD> –

Hydraulic Unit and ABS-ECU

35B-16

<R.H. drive vehicles>

15 Nm

1

3

3

4

5

2

Removal steps

1. ABS warning lamp relay



A



2. Harness connector



A



3. Brake pipe connection



B



4. Hydraulic unit and ABS-ECU

5. Hydraulic unit bracket assembly

NOTE
The removal service points are the same as before.

INSTALLATION SERVICE POINT



A



BRAKE PIPE CONNECTION

Connect the pipes to the hydraulic unit assembly as shown
in the illustration.
1.

To the front brake (L.H.)

2.

To the proportioning valve (Rear brake, R.H.)

3.

To the proportioning valve (Rear brake, L.H.)

4.

From the master cylinder (Primary)

5.

From the master cylinder (Secondary)

6.

To the front brake (R.H.)

3

2

1

4

5

6

PARKING BRAKES

Click on the applicable bookmark to selected the required model year

36-1

PARKING BRAKES

CONTENTS

GENERAL INFORMATION

2

. . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

2

. . . . . . . . . . . . . . . . .

LUBRICANTS

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

3

. . . . . . . . . . . . . . . . . . . . .

Parking Brake Lever Stroke Check and
Adjustment

3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parking Brake Switch Check

4

. . . . . . . . . . . . . . . . . . .

Lining Runing-In

4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PARKING BRAKE LEVER

5

. . . . . . . . . . . . . . . . . .

PARKING BRAKE CABLE

6

. . . . . . . . . . . . . . . . . .

PARKING BRAKE DRUM

8

. . . . . . . . . . . . . . . . . . .
