REAR AXLE –
General Information
27-2

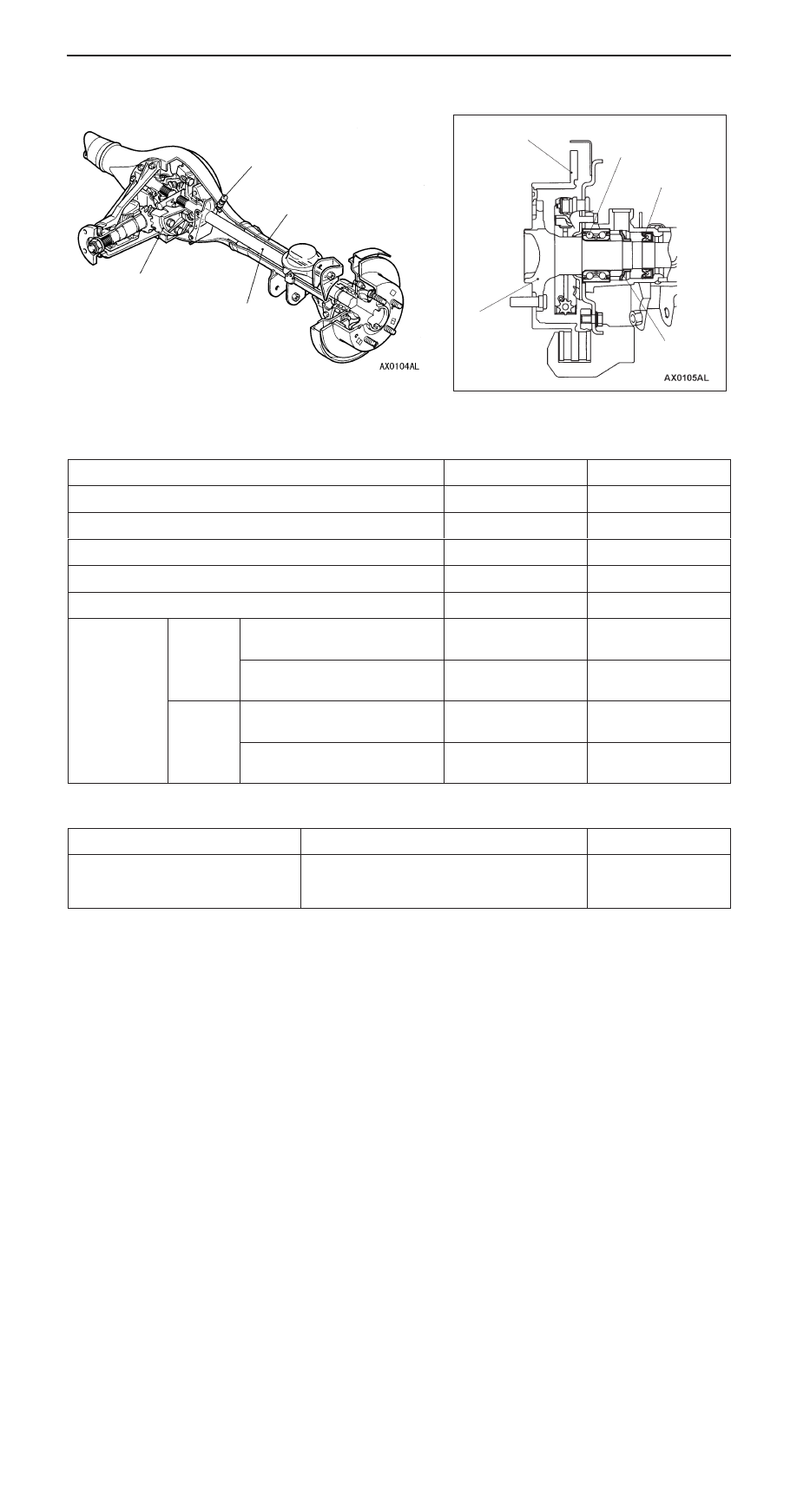

GENERAL INFORMATION
The rear axle is a banjo-type semi-floating type and
provides the following characteristics:
D
The rear wheel bearing is of an anti-mud
enhanced type.
D
In order to improve driveability at muddy road,
helical LSD are available as optional equipment.
D
For vehicles with ABS, the ABS rotor is
press-fitted to the axle shaft.
D
In order to improve stream-crossing
performance, a vent plug is fitted to the upper
part of the axle housing.
Item
Conventional differential
Helical LSD
Drive gear type
Hypoid gear
Hypoid gear
Reduction ratio
4.875
4.875
Limited slip differential type
–
Torque sensitive type
Differential gear type
(Type
quantity)
Side gear
Straight bevel gear
2
Helical gear
2
(Type
quantity)
Pinion gear
Straight bevel gear
2
Long pinion
4, Short
pinion
4
Number of teeth
Drive gear
39
39
Drive pinion
8
8
Side gear
14
14
Pinion gear
10
10
Bearing (O.D.
I.D.) mm
Side
80.0
45.2
80.0
45.2
Front
68.3
30.2
68.3
30.2
Rear
76.2
36.5
76.2
36.5
