PROCEDURE 2

OXYGEN SENSOR <FRONT> MONITOR (P0130)

One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 5 minutes or more.

Drive cycle
pattern

Inspection
conditions

•

Engine coolant temperature : 85

°C or more

•

Atmospheric temperature : -10

°C or more

•

Condition of A/T :Selector lever D range, overdrive switch “ON” position

Test
procedure

1. Engine

:

start

2.  Accelerate until the vehicle speed is 80 – 100 km/h.
3.  While keeping the accelerator pedal opening degree constant, keep the vehicle speed at 80 –

100 km/h and travel for 5 minutes or more.

•

Stopping and braking during this operation are permitted. Keep the accelerator pedal
opening degree constant for 1 minute or more after each acceleration.

4.  Return the vehicle to the shop, then turn the ignition switch “LOCK” (OFF) position.

2000 PAJERO/PININ Workshop Manual Supplement 4G93

GDI - Troubleshooting

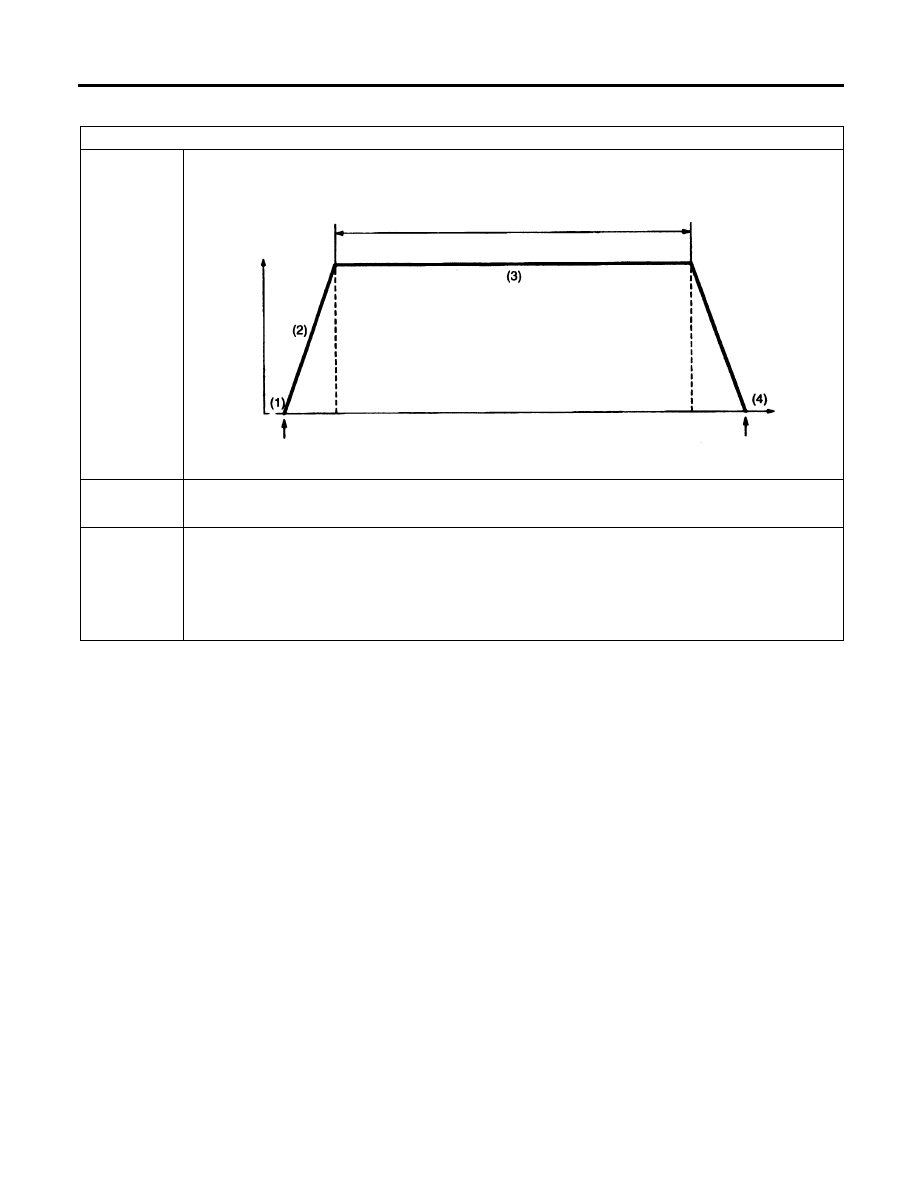

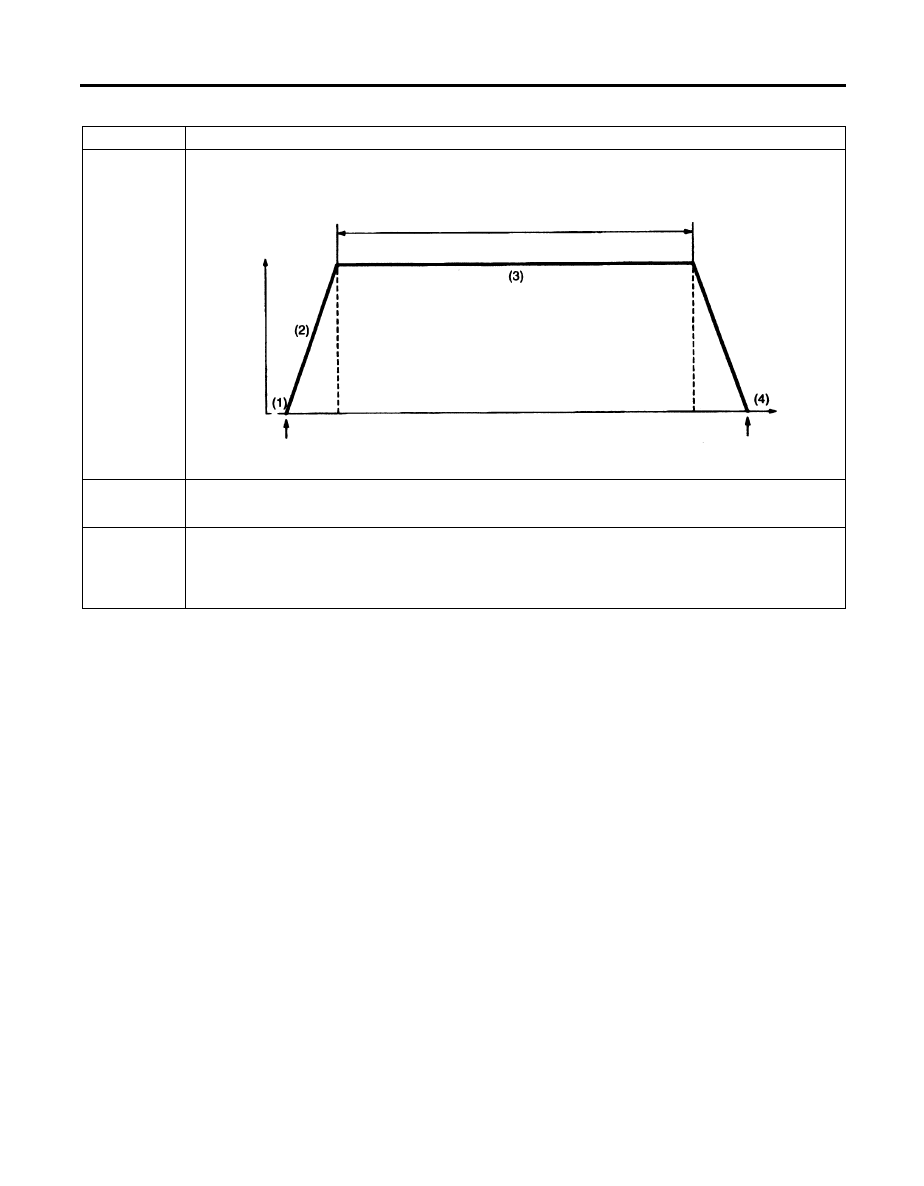

Y6002BY

Vehicle
speed

5 minutes or more

80 – 100 km/h

Engine start

Stopping and
braking permitted

Ignition switch ”LOCK”
(OFF) position

Time

23

PROCEDURE 3

Monitor item

FUEL TRIM MONITOR (P0170)

One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 15 minutes or more.

Drive cycle
pattern

Inspection
conditions

•

Engine coolant temperature : 85

°C or more

•

Atmospheric temperature : -10

°C or more

•

Condition of A/T :Selector lever D range, overdrive switch “ON” position

Test
procedure

1. Engine

:

start

2.  Accelerate until the vehicle speed is 80 – 100 km/h.
3.  While keeping the accelerator pedal opening degree constant, keep the vehicle speed at 80 –

110 km/h and travel for 15 minutes or more.

4.  Return the vehicle to the shop, then turn the ignition switch “LOCK” (OFF) position.

2000 PAJERO/PININ Workshop Manual Supplement 4G93

GDI - Troubleshooting

Y6002BY

Vehicle
speed

15 minutes or more

80 – 110 km/h

Engine start

Stopping and
braking permitted

Ignition switch ”LOCK”
(OFF) position

Time

24

PROCEDURE 4

Monitor item

FEED BACK MONITOR (P0125)

One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 5 minutes or more.

Drive cycle
pattern

Inspection
conditions

•

Engine coolant temperature : 85

°C or more

•

Atmospheric temperature : -10

°C or more

•

Condition of A/T :Selector lever D range, overdrive switch “ON” position

Test
procedure

1. Engine

:

start

2.  Accelerate until the vehicle speed is 100 – 120 km/h.
3.  While keeping the accelerator pedal opening degree constant, keep the vehicle speed at 100 –

120 km/h and travel for 15 minutes or more.

4.  Return the vehicle to the shop, then turn the ignition switch “LOCK” (OFF) position.

2000 PAJERO/PININ Workshop Manual Supplement 4G93

GDI - Troubleshooting

Y6002BY

Vehicle
speed

5 minutes or more

100 – 120 km/h

Engine start

Stopping and
braking permitted

Ignition switch ”LOCK”
(OFF) position

Time

25

PROCEDURE 5

monitor item

OTHER MONITOR

Diagnosis
code No.

P0136, P0201, P0202, P0203, P0204, P0300, P0301, P0302, P0303, P0304, P0325

One trip monitor [from start to ignition switch to “LOCK” (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 6 minutes or more.

Drive cycle
pattern

Inspection
conditions

•

Engine coolant temperature : 85

°C or more

•

Atmospheric temperature : -10

°C or more

•

Condition of A/T :Selector lever D range, overdrive switch “ON” position

Test
procedure

1. Engine

:

start

2.  Accelerate until the vehicle speed is 60 km/h.
3.  While keeping the accelerator pedal opening degree constant, keep the vehicle speed at 60

km/h or more and travel for 5 minutes or more.

4.  Return the vehicle to the shop
5.  After stopping the vehicle, continue idling for 30 seconds, and then turn the ignition switch to

”LOCK” (OFF) position.

•

A/C switch : OFF

•

Light and all accessories: OFF

•

Transmission : Neutral

2000 PAJERO/PININ Workshop Manual Supplement 4G93

GDI - Troubleshooting

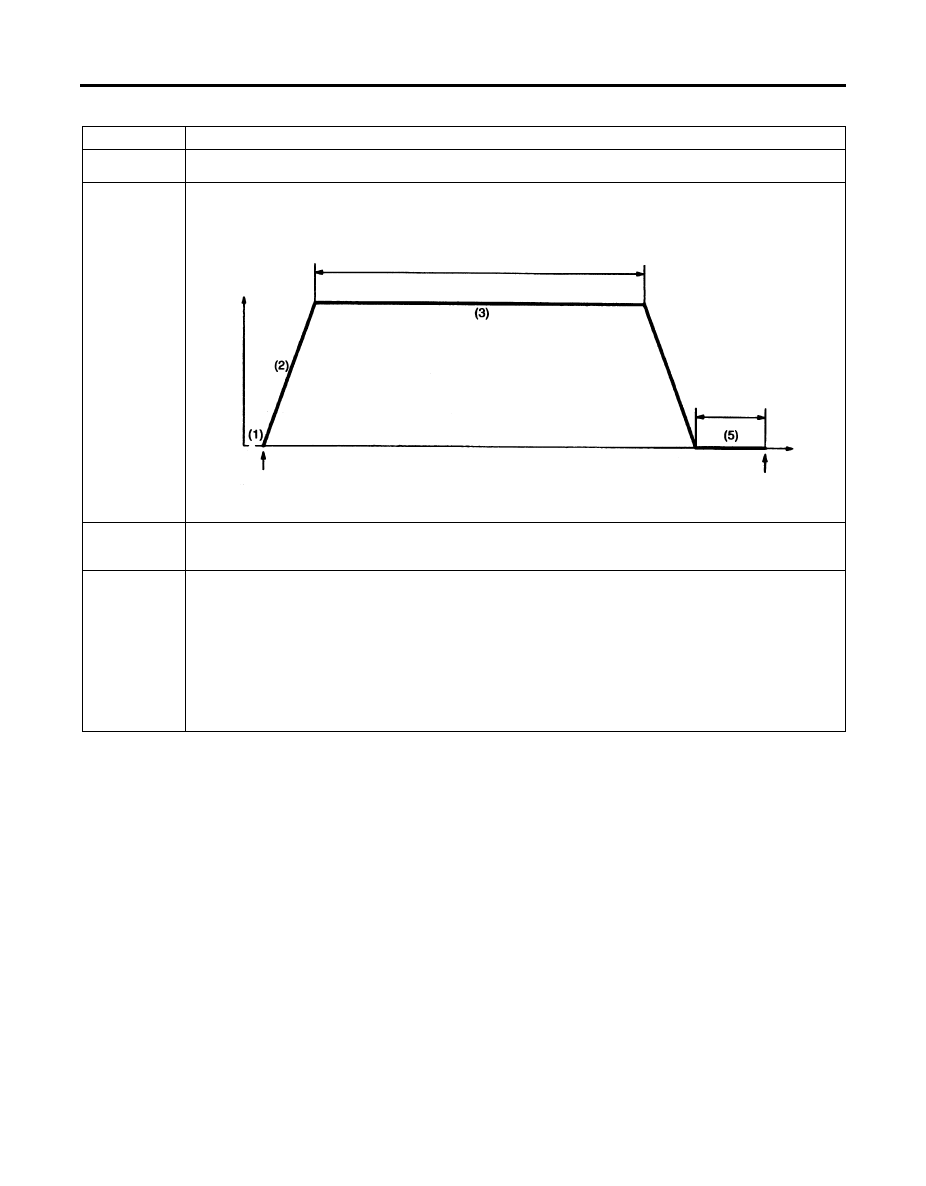

Y6009BY

Vehicle
speed

5 minutes or more

60 km/h or more

Engine start

30 seconds or more
Engine: Idling
Transmission: Neutral

Ignition switch ”LOCK”
(OFF) position

Time
