ENGINE <4G9-MPI> –

Cylinder Head Gasket

11B-27

REMOVAL SERVICE POINTS

A

A

"

RADIATOR UPPER HOSE REMOVAL

After alignment marks are indicated on radiator upper
hose and hose clamps, remove the hose.

A

B

"

CAMSHAFT SPROCKET REMOVAL

A

C

"

POWER STEERING OIL PUMP AND BRACKET
ASSEMBLY REMOVAL

Remove the power steering oil pump and bracket assembly
from the engine with the hose attached.

NOTE
Place the removed power steering oil pump and bracket
assembly in a place where it will not be a hindrance when
removing and installing the cylinder head assembly, and tie it
with a cord.

A

D

"

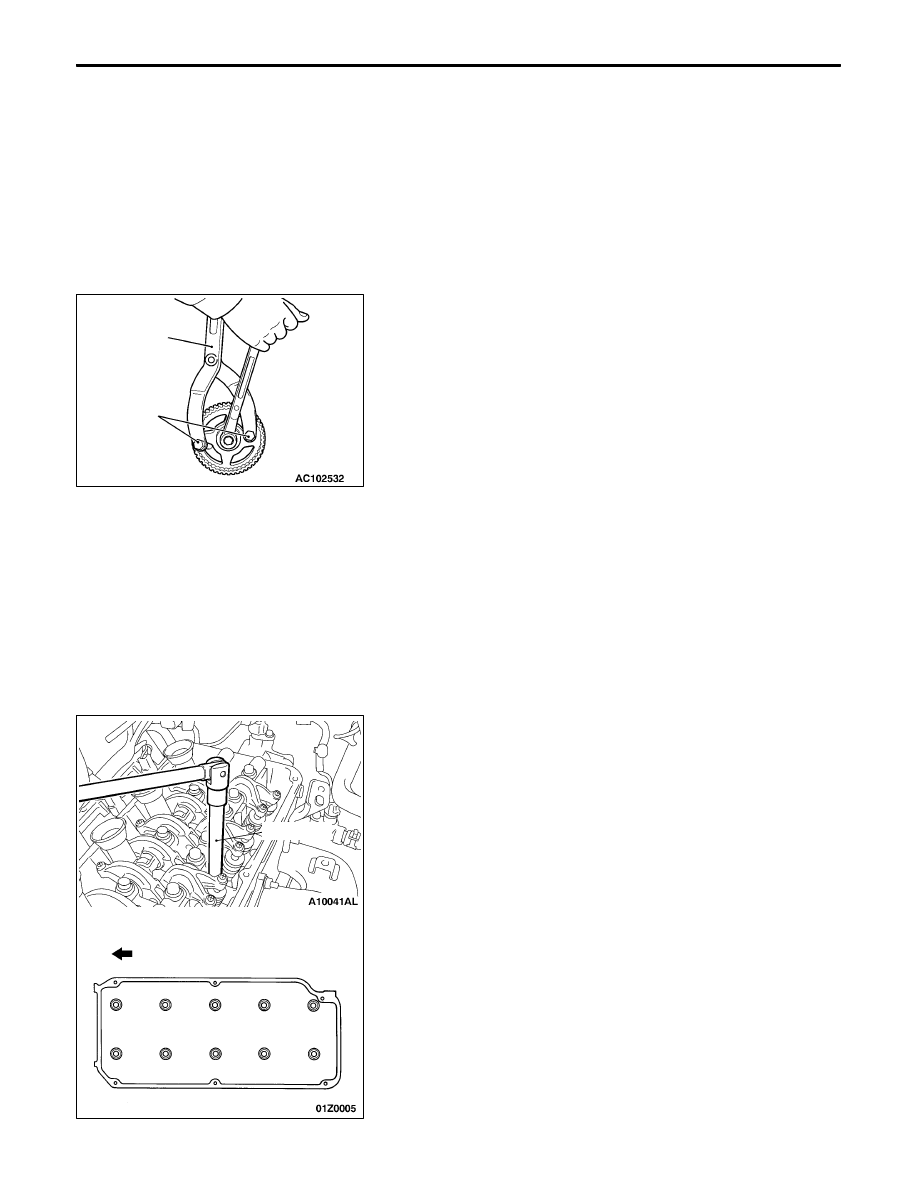

CYLINDER HEAD BOLT REMOVAL

Use the special tool to loosen the bolts in two or three steps
in the order of the numbers shown in the illustration, and
then remove the bolts.
If the washer is caught on valve spring and the bolt is not
removed, pull up the bolt slightly and remove the bolt while
tilting the washer by using a magnet, etc.

MB990767

MD998719

Front of engine

3

5

10

8

2

1

7

9

6

4

MB991653

ENGINE <4G9-MPI> –

Cylinder Head Gasket

11B-28

INSTALLATION SERVICE POINTS

"

A

A

CYLINDER HEAD GASKET INSTALLATION

1.

Wipe off all oil and grease from the gasket mounting
surface.

Caution
Do not insert foreign objects into coolant, oil
passage and cylinders.

2.

Install so that the shapes of the respective cylinder head
gasket holes match the shapes of the cylinder block holes.

"

B

A

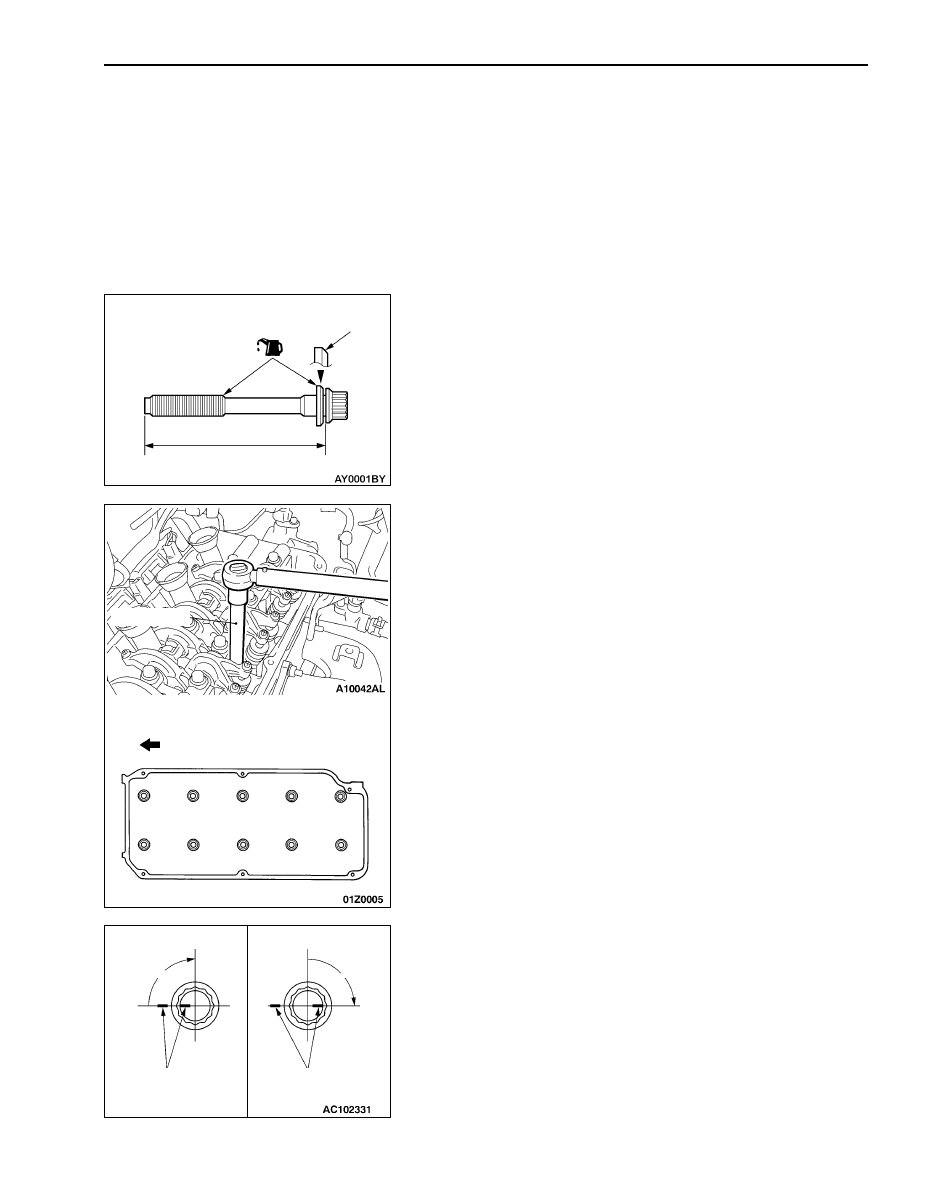

CYLINDER HEAD BOLT INSTALLATION

1.

Ensure that the length under head of cylinder head
bolts is under the limit value. When the measured
value exceeds the limit value, replace the bolt with
new one.

Limit (A): 96.4 mm

2.

With roll-over side of punched cylinder head bolt
washer moved in the direction specified in the figure,
install it on cylinder head bolt.

3.

Apply small quantity of engine oil at the threads of
cylinder head bolts and the washers.

4.

Use special tool to tighten bolts according to the following
procedure (tightening for plastic zone).
(1) According to the sequence in the figure, tighten

bolts to the specified torque 74

±

 2 N·m.

(2) In the reverse sequence of the figure, fully loosen

bolts.

(3) According to the sequence specified in the figure,

tighten bolts to the specified torque 20

±

 2 N·m.

(4) Indicate paint markings on the heads of cylinder

head bolts and cylinder head, and tighten bolts at
the angle of 90 degrees in the sequence specified
in the figure.

(5) When bolts are tightened at the angle of 90

degrees according to the figure, ensure that the
paint markings on the heads of cylinder head
bolts and cylinder head are standing in line.

Caution
1) When the tightening angle is under 90

degree, the bolt is not sufficiently
tightened.

2) When the tightening angle exceeds the

specified value, remove the bolt and repeat
the same procedure beginning with Step 1.

Roll-over side

A

(Engine Oil)

Front of engine

8

6

1

3

9

10

4

2

5

7

MB991653

90

_

Paint marking

90

_

Paint marking

Step (4)

Step (5)

ENGINE <4G9-MPI> –

Cylinder Head Gasket

11B-29

"

C

A

 CAMSHAFT SPROCKET INSTALLATION

Use the special tool to stop the the camshaft sprocket from
turning in the same way as was done during removal, and
then tighten the bolts to the specified torque.

Tightening torque: 88

±

 10 N·m

"

D

A

O-RING/FUEL HIGH-PRESSURE HOSE
INSTALLATION

1.

Apply a small amount of new engine oil to the O-ring.

Caution
Do not let any engine oil get into the delivery pipe.

2.

While turning the fuel high-pressure hose to the right and
left, install the delivery pipe, while being careful not to
damage the O-ring. After installing, check that the hose
turns smoothly.

3.

If the hose does not turn smoothly, the O-ring is probably
being clamped. Disconnect the fuel high-pressure hose
and check the O-ring for damage. After this, re-insert the
delivery pipe and check that the hose turns smoothly.

4.

Tighten the fuel high-pressure hose mounting bolt to the
specified torque.

Tightening torque: 5.0

±

1.0 N·m

"

E

A

RADIATOR UPPER HOSE INSTALLATION

1.

Insert the radiator upper hose to the protruded parts of
the water outlet fitting.

2.

Align the marks on the radiator upper hose and hose
clamp drawn during removal when installing.

ENGINE <4G9-MPI> –

Timing Belt

11B-30

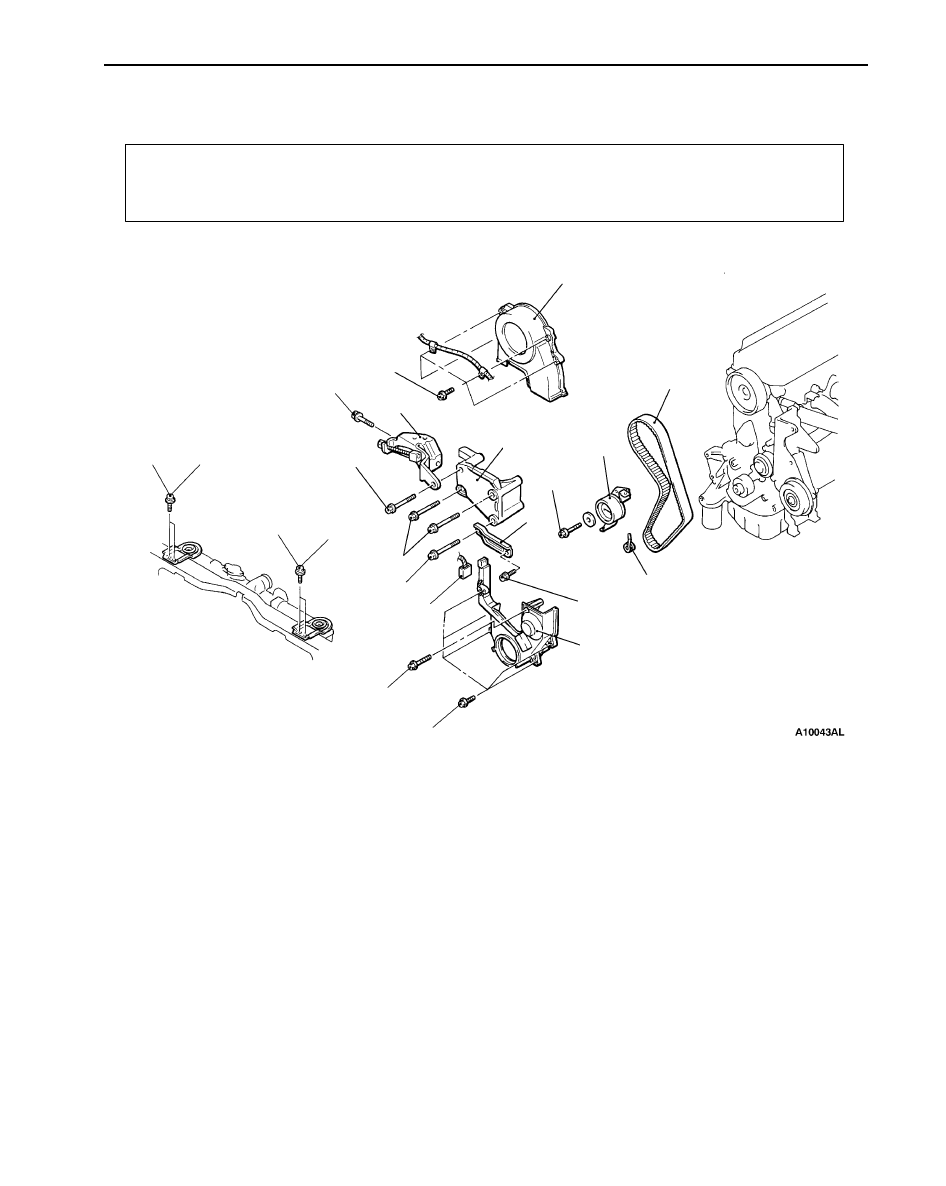

TIMING BELT

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Under Cover Removal and Installation

D

Air Intake Pipe Removal and Installation
(Refer to GROUP 15 – Air Cleaner.)

D

Crankshaft Pulley Removal and Installation
(Refer to P.11B-13.)

10

±

 2 N·m

1

2

3

4

5

6

7

8

9

10

49

±

 5 N·m

23

±

 2 N·m

49

±

 9 N·m

2

10

±

 2 N·m

10

±

 2 N·m

12

±

 2 N·m

12

±

 2 N·m

44

±

 10 N·m

23

±

 3 N·m

49

±

 9 N·m

Removal steps

1. Timing belt front upper cover
2. Radiator upper installation bolts
3. Alternator brace
4. Power steering oil pump bracket

stay

5. Crank angle sensor connector

"

C

A

6. Timing belt front lower cover
7. Accessory mount

"

B

A D

Timing belt tension adjustment

A

A

" "

A

A

8. Timing belt
9. Tensioner spring

10. Timing belt tensioner
