ENGINE <4G9-GDI> –

Timing Belt

11A-28

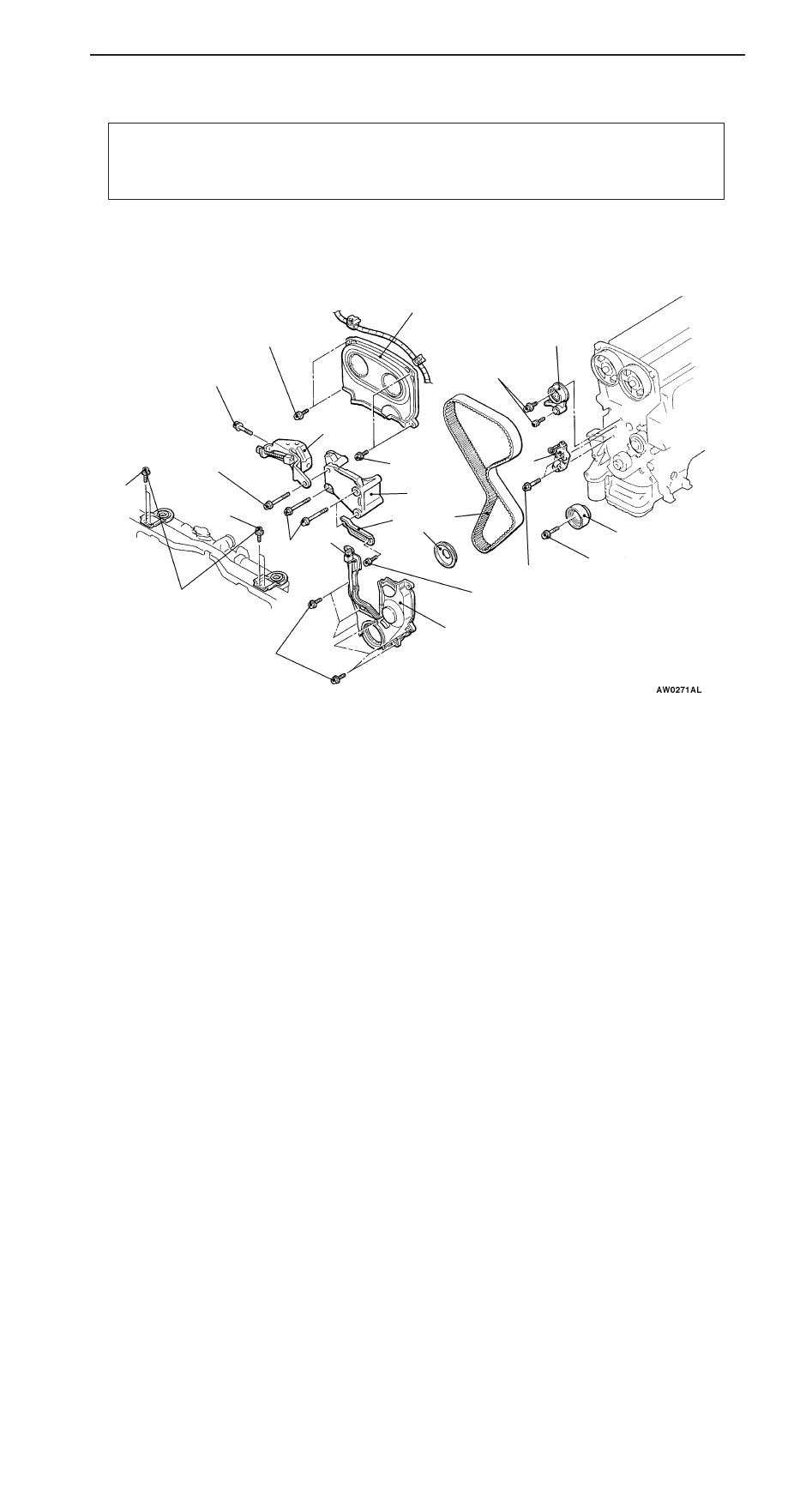

TIMING BELT

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Engine Cover Removal and Installation

D

Air Intake Duct Removal and Installation
(Refer to GROUP 15 – Air Cleaner and Resonance
Tank.)

D

Crankshaft Pulley Removal and Installation (Refer
to P.11A-17.)

10 – 12 Nm

48 Nm

1

2

5

4

6

10 – 12 Nm

3

10

11

9

8

7

2

12

10 – 12 Nm

35 Nm

49 Nm

49 Nm

44 Nm

12 Nm

20 – 25 Nm

12 – 15 Nm

Removal steps

1. Timing belt front upper cover
2. Radiator upper installation bolts
3. Alternator brace
4. Power steering oil pump bracket

stay

5. Crank angle sensor connector
6. Timing belt front lower cover

7. Accessory mount
8. Front flange

"

C

A D

Timing belt tension adjustment

A

A

" "

B

A

9. Timing belt

"

A

A

10. Auto tensioner

11. Tensioner pulley and arm assembly

12. Idler pulley

ENGINE <4G9-GDI> –

Timing Belt

11A-29

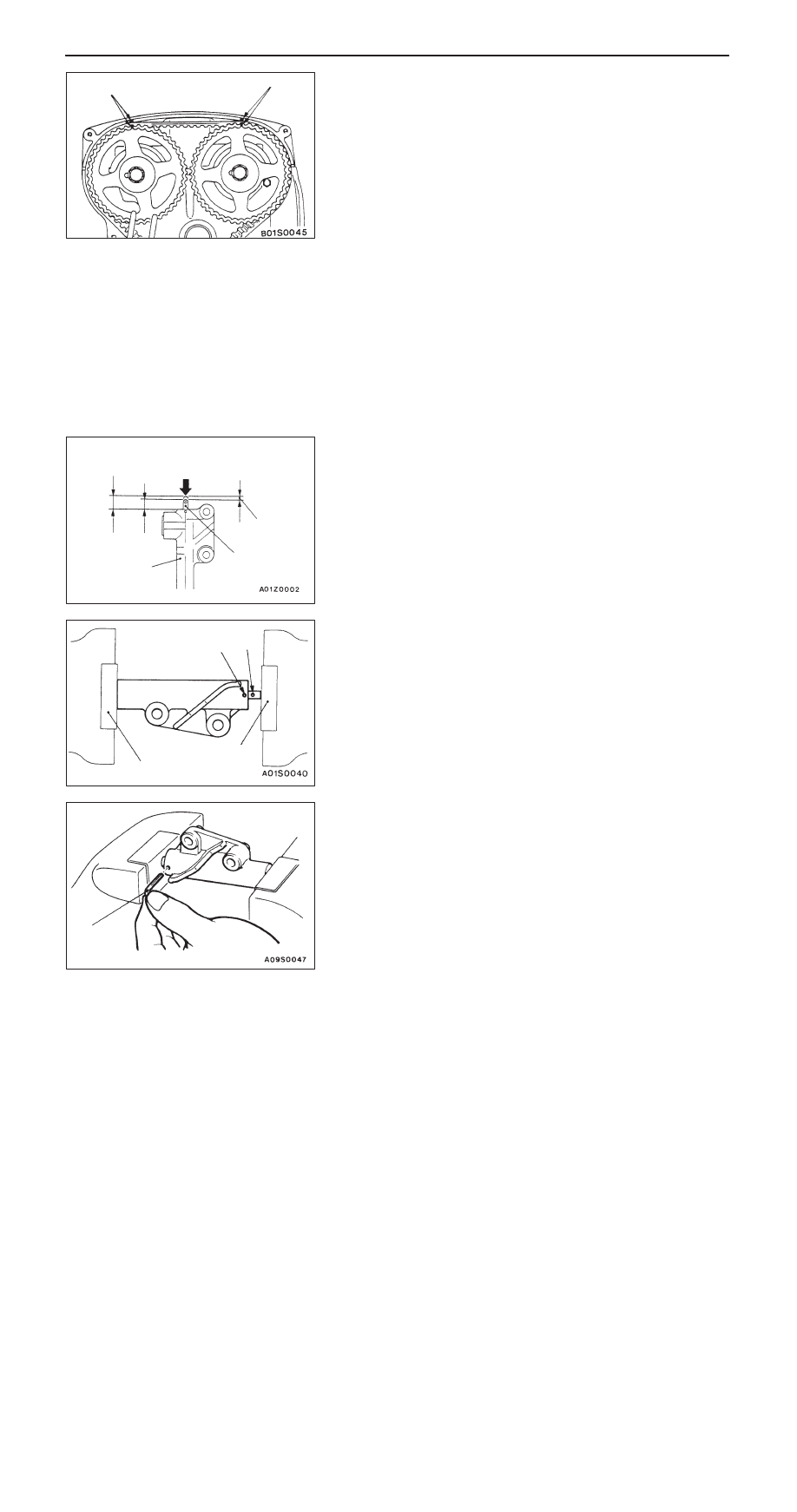

REMOVAL SERVICE POINT

A

A

"

TIMING BELT REMOVAL

1.

Turn the crankshaft clockwise to align each timing mark.

Caution
The crankshaft must always be turned clockwise.

2.

Loosen the tensioner pulley center bolt and remove the
timing belt.

Caution
If the timing belt is to be re-used, use chalk to mark
(on its flat side) an arrow indicating the clockwise
direction.

INSTALLATION SERVICE POINTS

"

A

A

AUTO TENSIONER INSTALLATION

1.

Apply 98 – 196 N force to the push rod of the auto tensioner
by pressing it against a metal (cylinder block, etc.), and
measure the movement of the push rod.

Standard value:

Within 1 mm
A: Length when it is free (not pressed)
B: Length when it is pressed
A – B: Movement

2.

If it is out of the standard value, change the auto tensioner.

3.

Use a press or vice to gently compress the auto tensioner
push rod until pin hole A of the push rod and pin hole
B of the tensioner cylinder are aligned.

Caution
If the compression speed is too fast, the push rod
may become damaged, so be sure to carry out this
operation slowly.

4.

Once the holes are aligned, insert the set pin.

NOTE
When replacing the auto tensioner with a new part, the
pin will be in the auto tensioner.

5.

Install the auto tensioner to the engine.

Timing marks

Timing marks

98 – 196 N

Movement

Auto tensioner

Push rod

B

A

Contact piece

Contact piece

B

A

Set pin

ENGINE <4G9-GDI> –

Timing Belt

11A-30

"

B

A

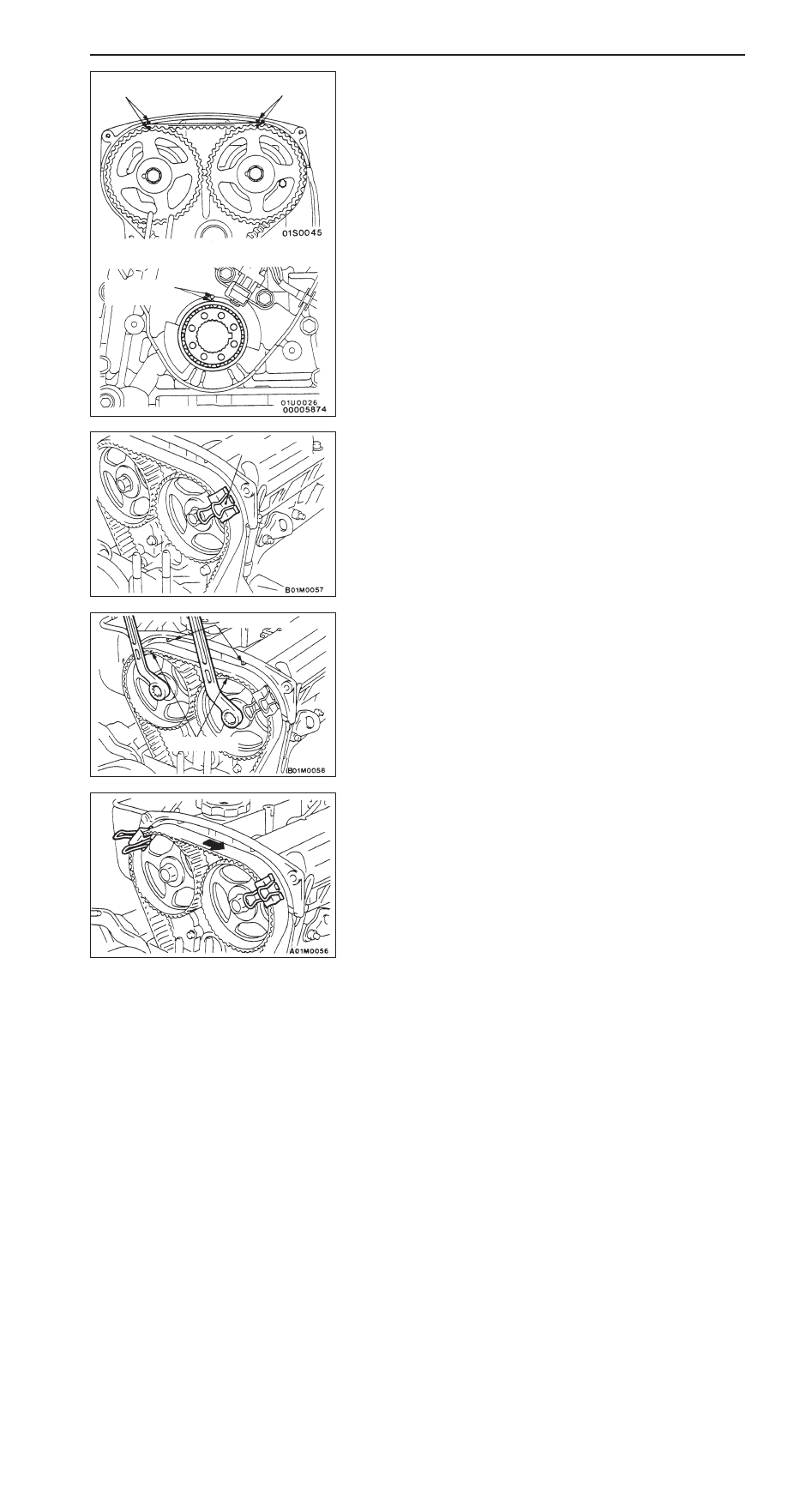

TIMING BELT INSTALLATION

1.

Align the timing marks of each camshaft sprocket and
the crankshaft sprocket.

2.

Loosen the tensioner pulley center bolt.

3.

Move the crankshaft sprocket half a tooth width in the
anti-clockwise direction.

4.

Place the timing belt on the exhaust-side camshaft
sprocket, and hold it in the position shown in the illustration
with a paper clip.

5.

Place the timing belt on the intake-side sprocket while
using two wrenches to align the timing marks.

6.

Hold the belt in the position shown in the illustration with
another paper clip.

Camshaft sprocket

Timing marks

Timing marks

Crankshaft sprocket

Timing
marks

Paper clip

Timing marks

Timing marks

ENGINE <4G9-GDI> –

Timing Belt

11A-31

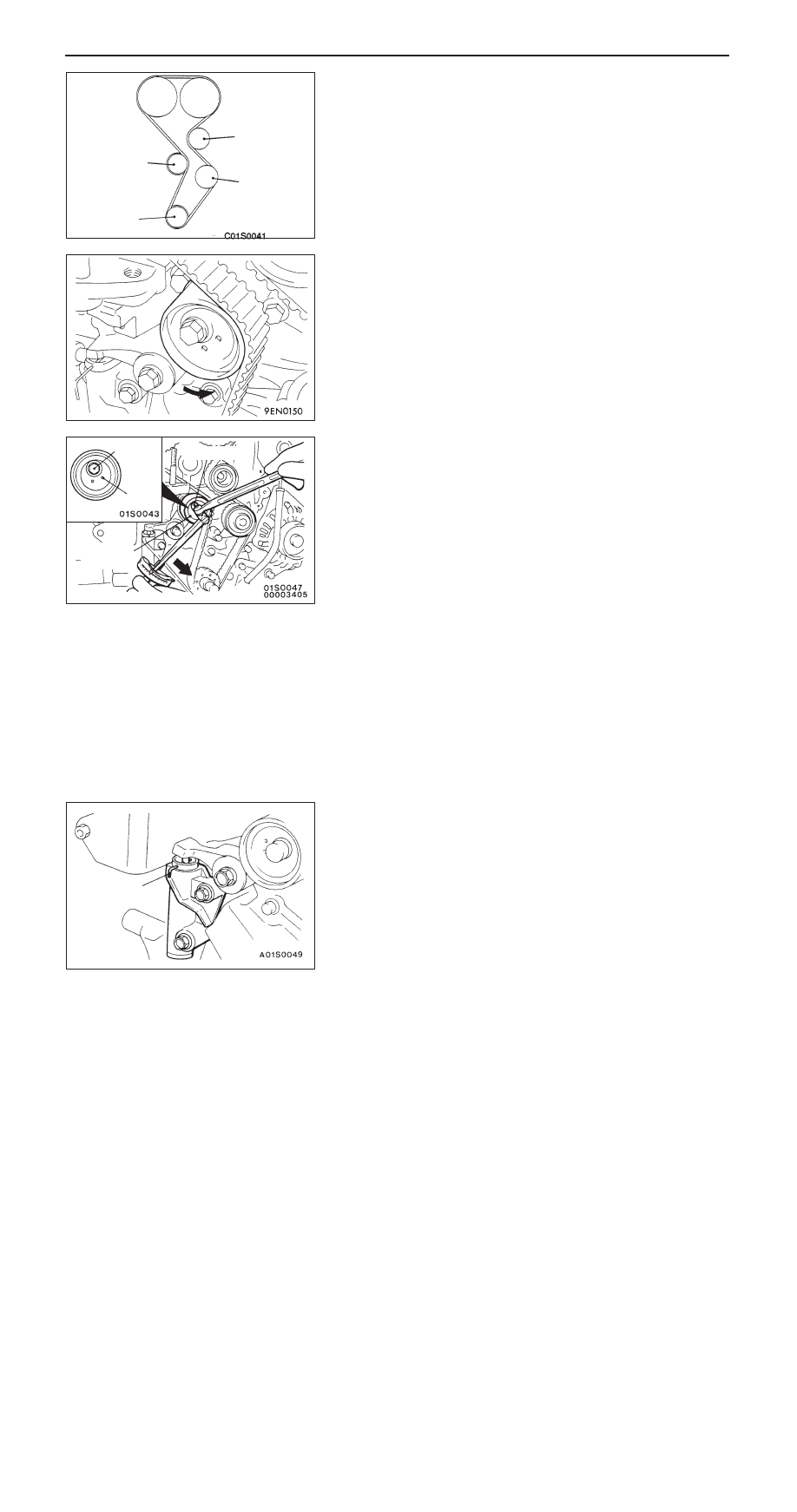

7.

Place the belt onto the idler pulley, water pump sprocket,
crankshaft sprocket and tensioner pulley in that order.

8.

Remove the two paper clips.

9.

Lift the tensioner pulley in the direction of the arrow and
tighten the tensioner pulley bolt.

10. Check to be sure that all timing marks are aligned.
11. Adjust the timing belt tension.

"

C

A

TIMING BELT TENSION ADJUSTMENT

1.

After turning the crankshaft a 1/4 turn anti-clockwise, turn
it clockwise to the position where the timing marks are
aligned.

2.

Loosen the fixing bolt of the tensioner pulley and using the
special tool and a torque wrench, apply tension to the timing
belt; then tighten the fixing bolt at the specified torque.

Standard Value:

2.5 – 4.0 Nm [timing belt tension torque (reference
value)]

Caution
When tightening the fixing bolt, ensure that the
tensioner pulley shaft doesn’t rotate with the bolt.

3.

Take out the 2 mm Allen wrench from the auto tensioner.
At this time, check to be sure that 2 mm Allen wrench
can be pulled out easily.
Turn the crankshaft clockwise 2 turns, and after leaving
it in this position for 5 minutes or more, check again to
be sure that the auto tensioner 2 mm Allen wrench can
be pulled out or inserted easily.

Tensioner
pulley

Idler
pulley

Water
pump
sprocket

Crankshaft
sprocket

Fixing bolt

Pin hole

MD998767

Tensioner
pulley

2 mm Allen
wrench
