WINDOW GLASS

BODY

42-14

CAUTION

•

ACX00476 AB

Be careful not to remove more adhesive than is

necessary.

• Be careful also not to damage the paintwork

on the body surface with the knife. If the
paintwork is damaged, repair the damaged
area with repair paint or anti-rust agent.

6. Use a knife to cut away the remaining adhesive so

that the thickness is within 2 mm around the entire
circumference of the body flange.

7. Finish the flange surfaces so that they are

smooth.

CAUTION

Allow the cleaned area to dry for at least three
minutes. Do not touch any surface that has been
cleaned.
8. When reusing the windshield, remove the

adhesive still adhering to the windshield, and
clean with isopropyl alcohol.

9. Clean the body side in the same way.

INSTALLATION SERVICE POINTS
>>A<< WINDSHIELD
SPACER/SPACER/GLASS STOPPER/WIN-
DOW DAM/WINDSHIELD MOULDING
INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes
to dry well, before starting on the next step. Do
not touch the degreased parts.
1. Use isopropyl alcohol to degrease the inside and

outside of the windshield and the body flanges.

Y0628AU

AC006029

10138AU

10139AU

Y0497AU

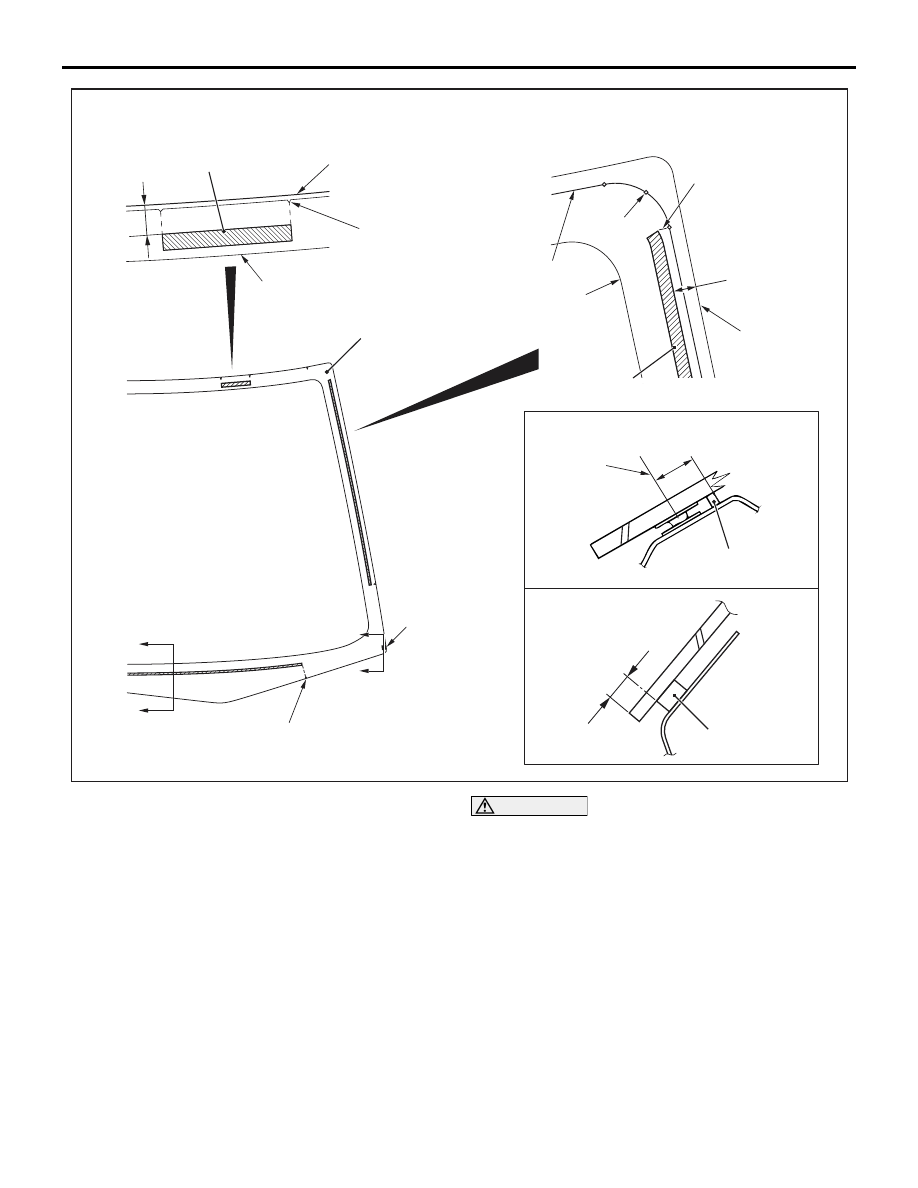

Glass stopper, spacer, windshield spacer and window dam installation position

17.5 mm

Glass stopper

Glass end line

Ceramic line

Align the glass
stopper end with
the ceramic notch.

Align the window
dam and with the
seal line mark.

13 mm

Glass end line

Mark

Seal line

Ceramic line

Window dam

AB

A

A

Windshield

Seal line
centre

14 mm

Windshield spacer

Section A – A

Section B – B

B

B

14 mm

Spacer

Align the spacer
and with glass
end line

Align the windshield
spacer end with the
ceramic notch.

WINDOW GLASS

BODY

42-15

2. The inner side of the windshield is curved,

therefore, make a point to assemble the glass
stopper and windshield spacer without any lifting
and assemble in the position shown in the Figure
of the instructions.

3. Install the windshield moulding.

>>B<<WINDSHIELD INSTALLATION

1. When replacing the windshield, temporarily set

the windshield against the body, and place a
mating mark on the windshield and body.

CAUTION

• The primer strengthens the adhesive, so be

sure to apply it evenly around the entire cir-
cumference. However, a too thick application
will weaken the adhesive.

• Do not touch the coated surface.
• Do not apply the primer on the remaining

adhesive because of weakening the adhesive.

2. Soak a sponge in the primer, and apply evenly to

the windshield in the specified places. If the
adhesive does not remain on the body flange
surface because of the panel replacement on the
body side, apply evenly to the body side in the
specified places.

3. Allow the windshield to dry for at least three

minutes after applying primer.

ACX00480

10 mm

15 mm

AB

WINDOW GLASS

BODY

42-16

4. Fill a sealant gun with adhesive. Then apply the

adhesive evenly around the windshield within 30
minutes after applying the primer.
NOTE: Cut the tip of the sealant gun nozzle into a
V shape to simplify adhesive application.

5. Align the mating marks on the windshield and the

body, and lightly press the windshield evenly so
that it adheres completely.

6. Use a spatula or similar tool to remove any

excessive adhesive. Clean the surface with
isopropyl alcohol. Avoid moving the vehicle until
the adhesive sets.

7. Bond the windshield to the body, and install the

roof drip moulding quickly before the adhesive
cures. (Refer to GROUP51, Moulding

P.51-9

.)

CAUTION

• Do not move the vehicle unless absolutely

necessary.

• When testing for water leakage, do not pinch

the end of the hose to spray the water.

8. Wait 30 minutes or more, and then test for water

leakage.

WINDOW GLASS

BODY

42-17

REAR WINDOW GLASS <SEDAN>

REMOVAL AND INSTALLATION

M1422001600111

Pre-removal and Post-installation Operation
• High-mounted Stop Lamp Assembly Removal and Instal-

lation <Rear Shelf Mounted Type> (Refer to GROUP 54A,

High-Mounted Stop Lamp

P.54A-84

.)

• Rear Pillar Trim and Rear Shelf Trim Removal and Instal-

lation (Refer to GROUP 52A, Trims

P.52A-13

.)

• Headlining Removal and Installation (Refer to GROUP

52A, Headlining

P.52A-23

.)

Y0500AU

Y0502AU

Y0501AU

Y0564AU

AC006056

1

1

7

7

AB

6

2

5

4

9

7

3

N

2

N

2

N

N

4

N

N

3

N

3

N

N

N

2

N

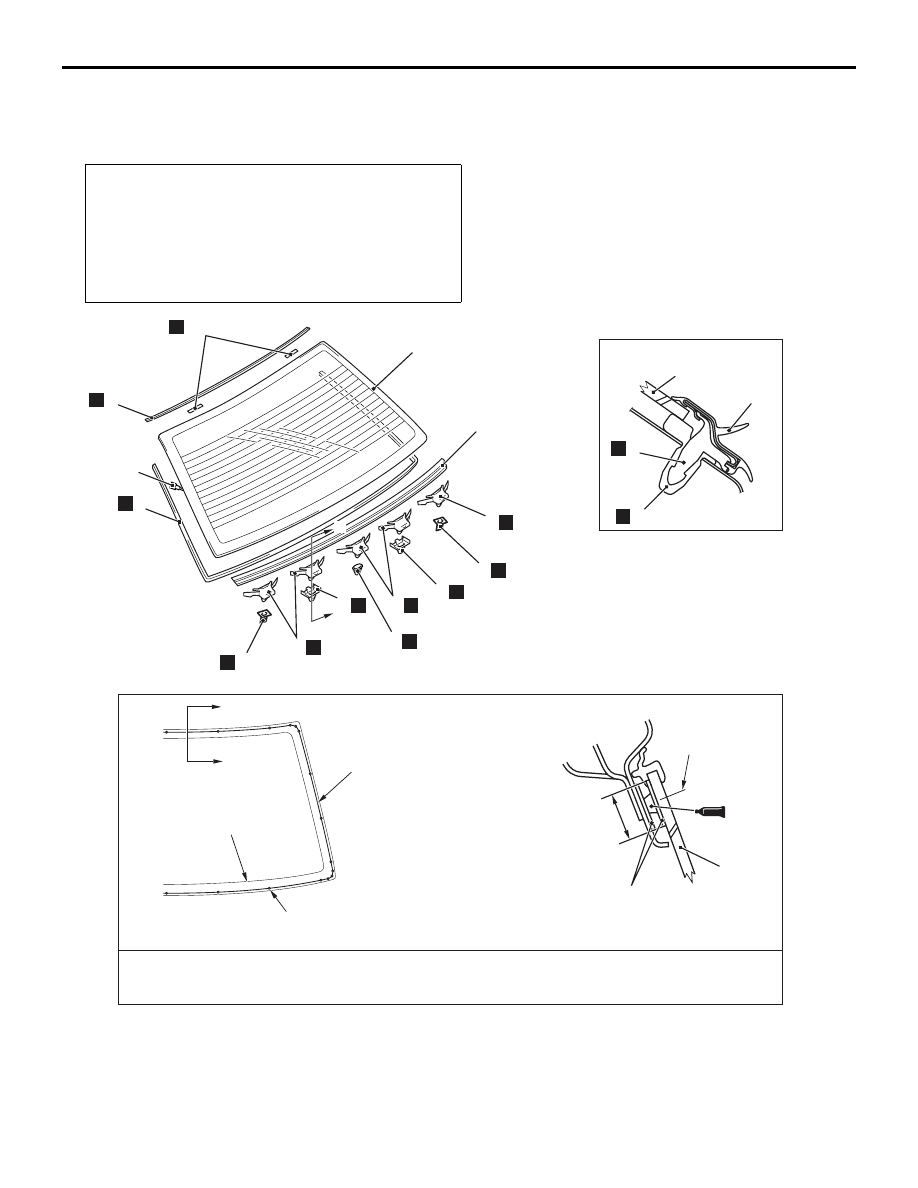

Ceramic line

Mark

Apply the primer and
adhesive along the
fictitious lines (seal line)
between each of
the marks.

Section A – A

Section B – B

Seal line

centre

Primer

8

N

10

N

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent and
3M ATD Part No. 8608 Super Fast Urethane Primer or equivalent

16 mm

A

A

B

B

Removal steps

• Roof drip moulding (Refer to GROUP

51, Moulding

P.51-9

.)

<<

A

>> >>

B

<< 1. Rear window lower moulding

2. Clip
3. Grommet A

4. Grommet B
5. Grommet C
6. Connecting the harness connector

<<

B

>> >>

A

<< 7. Rear window glass

>>

A

<< 8. Rear window upper moulding

Removal steps (Continued)
